LCDR10U20-01 10U Rackmountable 20"  LCD Quad Display With RS-232 / Alarm I/O / VCR in & out / AV / BNC / VGA







Part#  LCDR10U20-01

*** This model is discontinued . Learn more about replacement model LCDR9U19-02  ***


                                  10U Rack mountable 20" LG INDUSTRIAL GRADE A LCD Quad Monitors
                    With RS-232 / Alarm I/O / VCR in & VCR out / AV / BNC / VGA   Optional DC power input

  20" LG industrial Grade A LCD panel

Display type

Active Matrix TFT

Resolutions

1600 x 1200

Response time

Tr =1 ms / Tf =4ms (Typ.)

Contrast ratio

800 : 1 typical

Brightness

300 cd/ m2 typical

Pixel pitch

0.255mm (H) x 0.255mm (W)

Panel color

16.7 million display colors

Viewing angle

160 (Horiz.) / 160 (Vert.)

Video:

Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p

OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector

Product Dimension

48.0(W) x 44.3(H) x 7.15(D)cm /
19.7" x 17.4" x 2.8"

   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE, RoHS

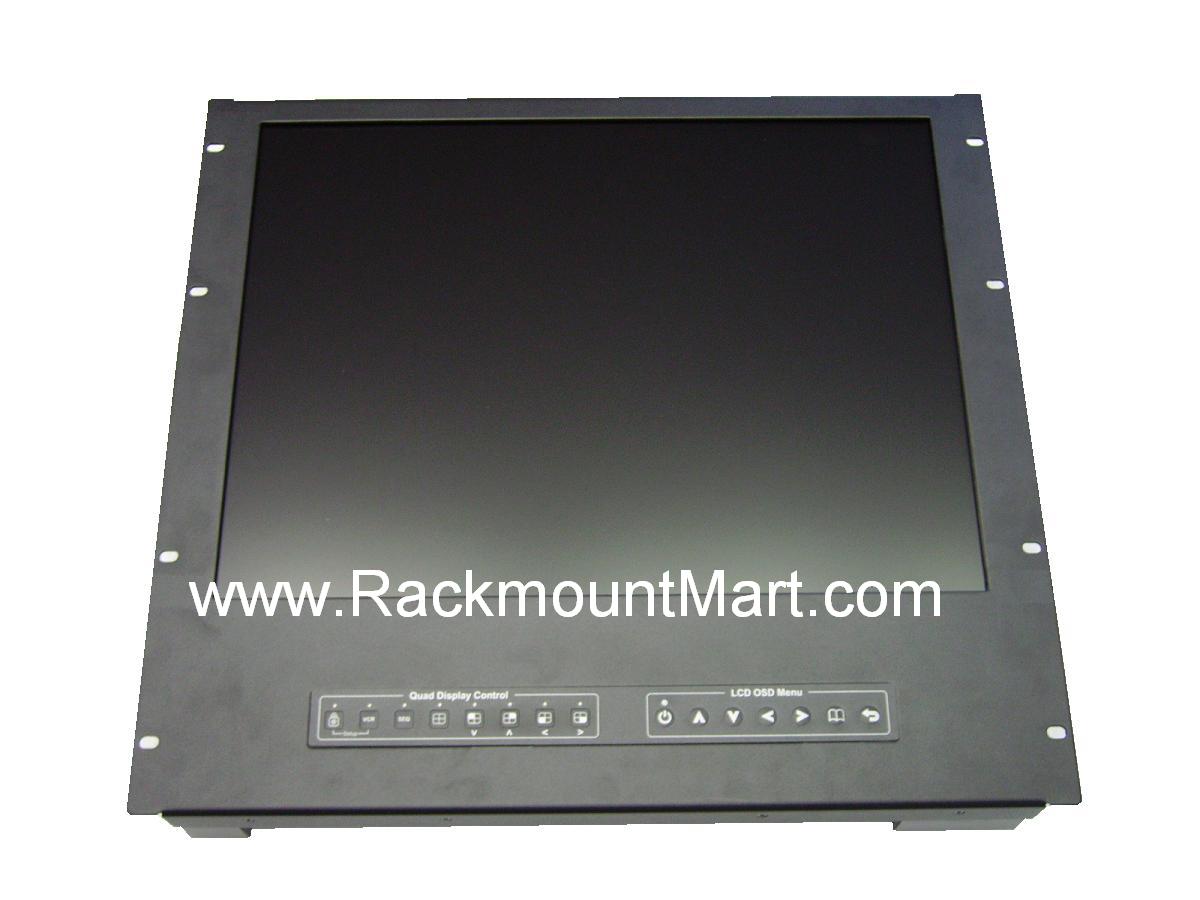

   Front View



               *click on photo for enlarged view

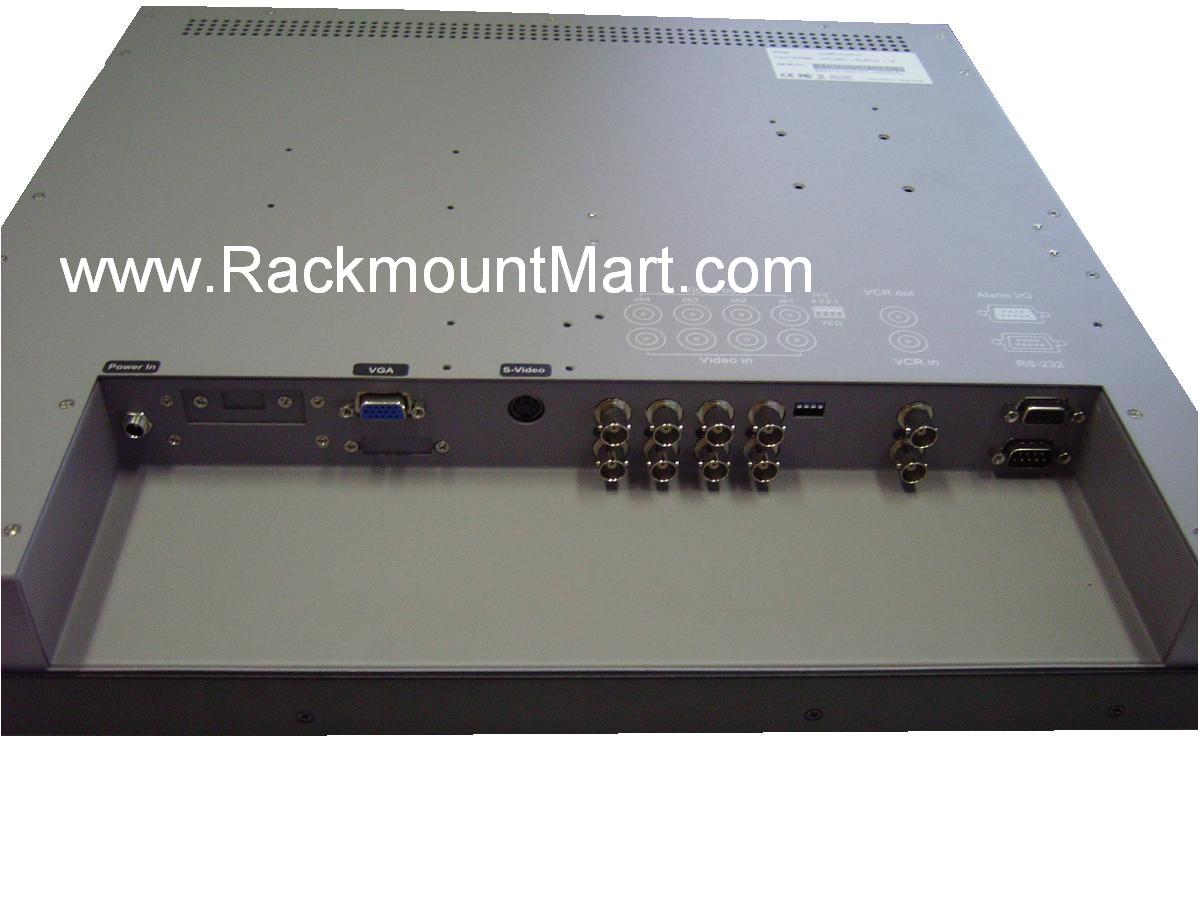

  Rear View

                *click on picture for enlarged view

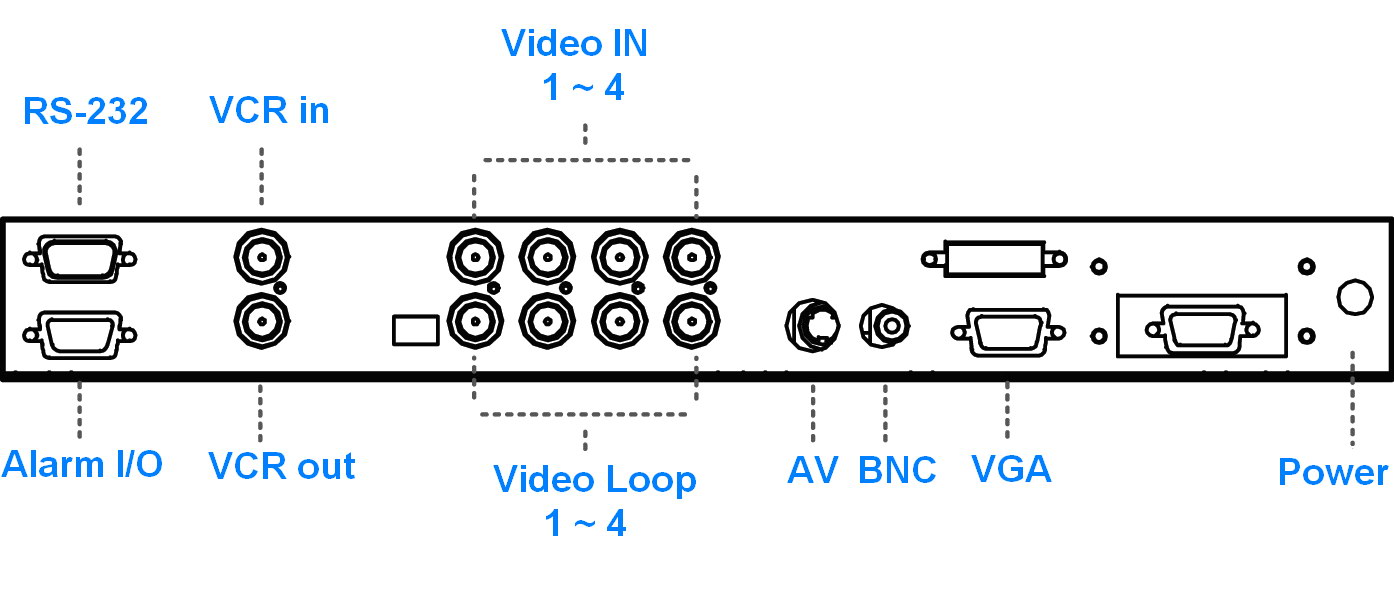

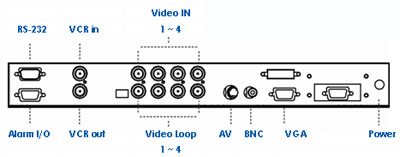

     Diagram


*click on photo for enlarged view

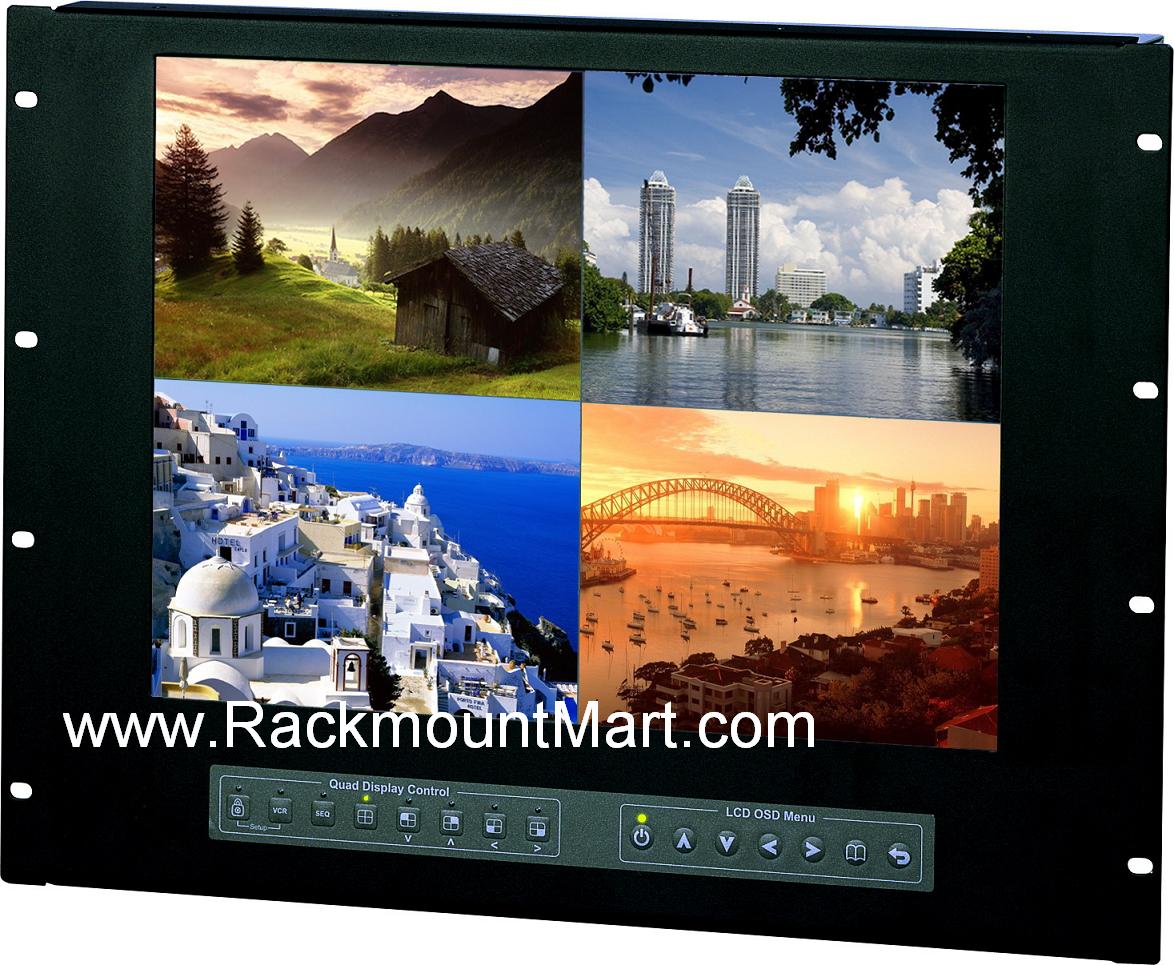

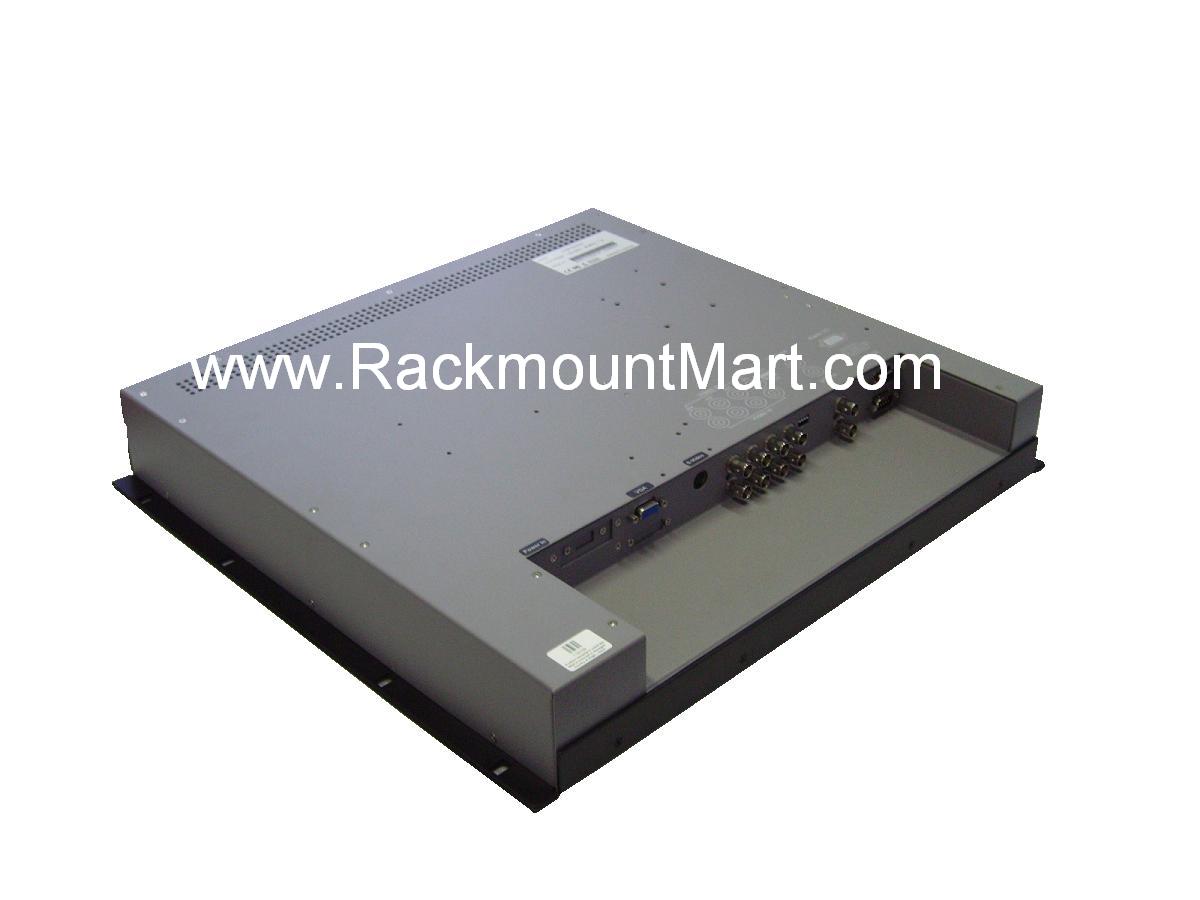

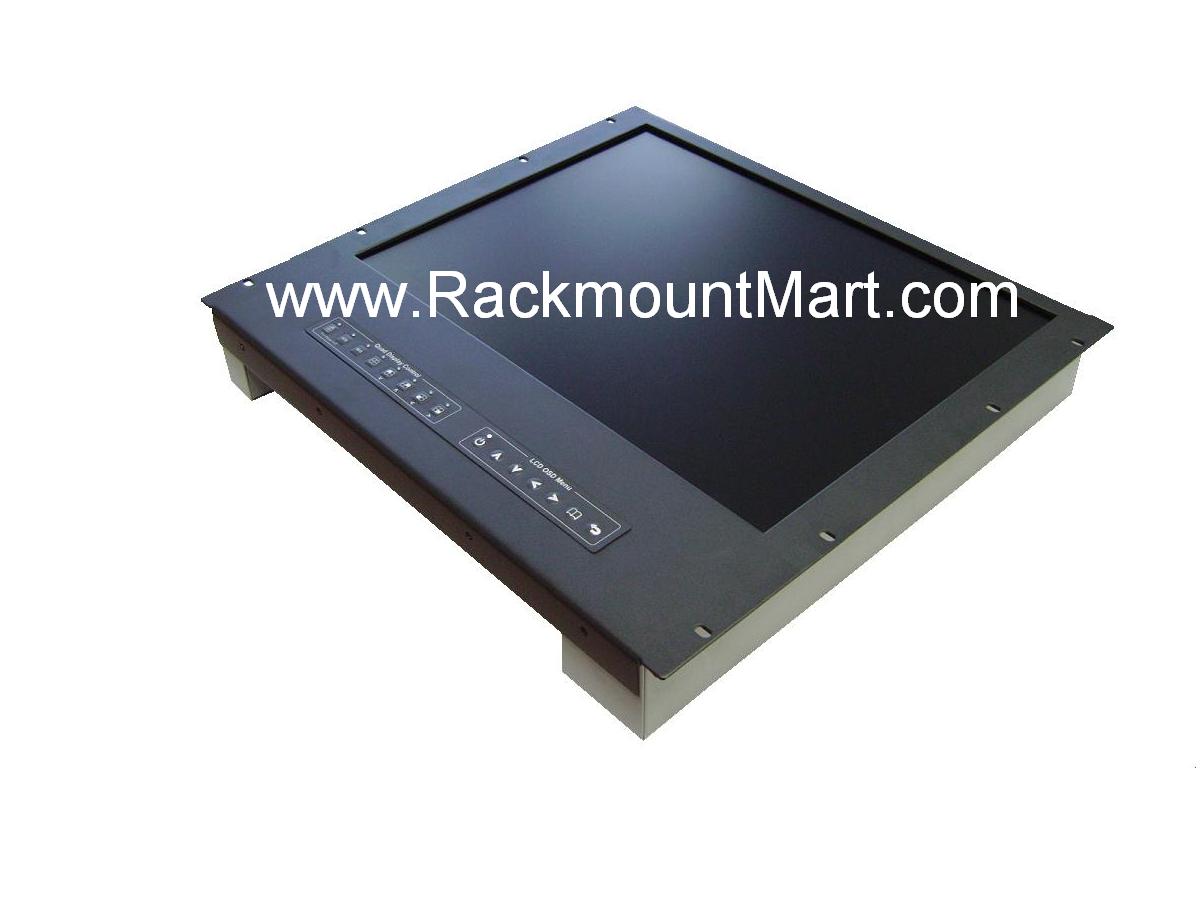

More photos:




Features :

  Built-in Quad Monitor
  Great for CCTV security & industrial control
  High resolution 1600 x 1200, 20" LCD in 10U
  Standard D-sub 15-pin VGA input connector
  Built-in RS-232, Alarm I/O, VCR in/out, AV, BNC
  Optional DC Power Supply
  Side to side wide-angle viewing .
  Built in On Screen Display controlled by integral membrane switches
  Four camera outputs can be combined into one video signal for simultaneous display & recording
  User selected video display mode including Quad Display mode (Cameras 1-4) & full screen sequential switching
  One screen TIME, TITLE display for each channel & on-screen setup menu
  Alarm detection for sensor contact closure & video loss in camera inputs
  Built-in buzzer for alarm detection acknowledgement
  Freeze of last picture before video loss

Power supply :

  • Remote adapter : 110V - 220 V AC Input
  • Optional  48V / 24V / 12V DC input power adapter available

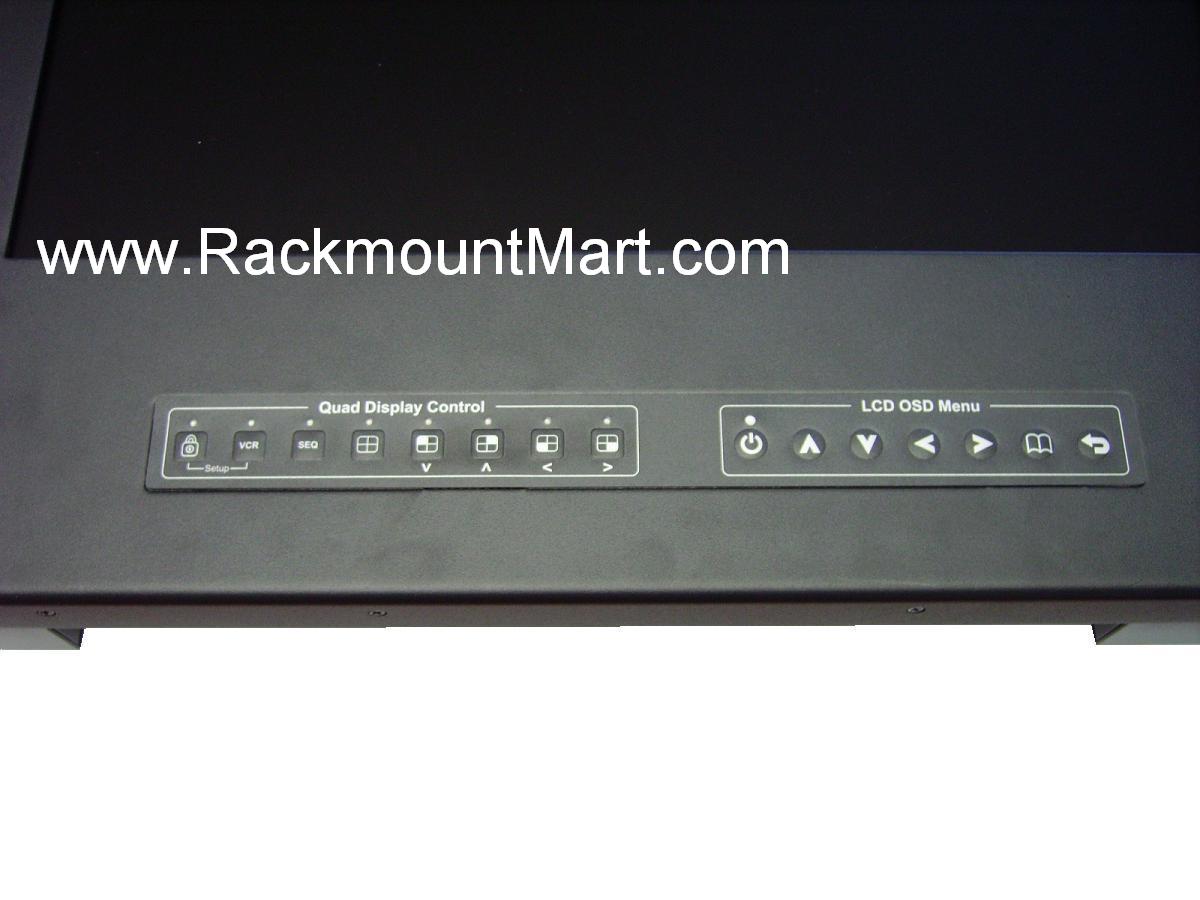

Front QD membrane button
-On-screen menu setup in Quad mode
-LCD on-screen menu setup

 Specifications

Item Description
Model Number QD (NTSC) QD (PAL)
Number of Colour 16.7 Mil 16.7 Mil
Imaging System NTSC PAL
Resolution 1024 x 525 1024 x 625
Refresh Rate 60 50
Video Input Camera Input 1.0 Vpp, 75 Ohm x 4
VCR Input 1.0 Vpp, 75 Ohm x 1
Video Output Live Monitor 1.0 Vpp, 75 Ohm x 1
Loop Through Out 1.0 Vpp, 75 Ohm x 4
VCR Output 1.0 Vpp, 75 Ohm x 1
Auto Gain Control Yes
Time / Date Yes
On Screen Display Yes
Camera Title 8 Character Title
Display Format 2 x Zoom on Playback Yes
QUAD Yes
FULL Yes
SEQUENCE Yes
Dwell Time 0 to 99 Sec Adjustable
Built-in Buzzer Yes
Key Lock Yes

Back to top
