LCD1U17-18 1U LCD SUN Solaris Compatible Rackmount 17" TFT LCD Monitor Keyboard Drawer Optional 8 port  / 16 port  DB-15 KVM Switch







Part #   LCD1U17-18


                        1U LCD SUN Solaris Compatible Rackmount 17" TFT LCD Monitor Keyboard Drawer

                                      Optional 8 port  / 16 port  DB-15 KVM Switch

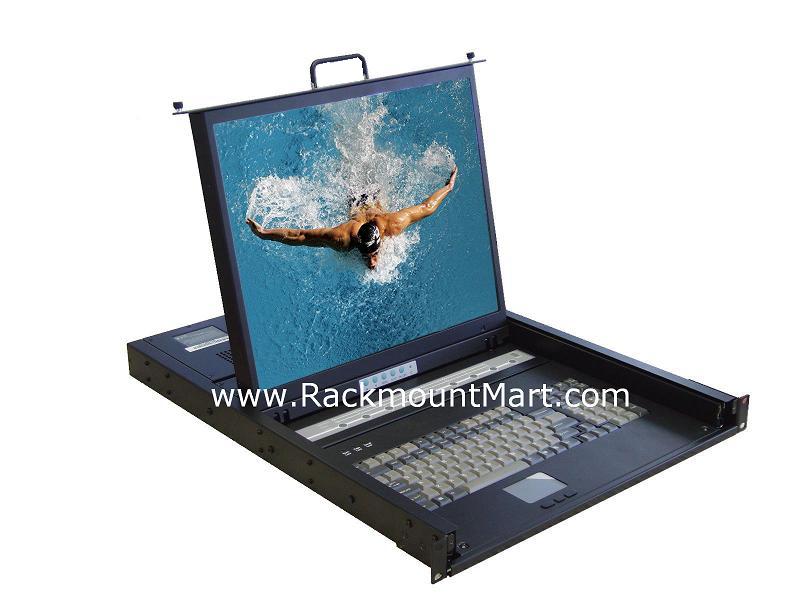

    Front View of 1U LCD LCD1U17-18


    *click on photo for enlarged view

      LCD Drawer & KVM Benefits
  • Direct Support for SUN Micro 1152 x 900 Native Resolution
  • Video auto-adjust for optimum image
  • 117-Key Keyboard with 3 buttons Touchpad
  • Meets EIA310c & IEC-3 specifications
  • Built-in Rail self-locking device
  • D-Sub 15pin to VGA, USB keyboard/Mouse Cable
  • Designed for SUN, SOLARIS, Windows, Linux
  More photos (click to enlarge )
                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Compatible with SUNs, IBMs, HPs, DELLs and
Mix PCs with USB-enable

Server Side Interface

HD15 VGA, USB Type A for KB/MS

Support Platform

Solaris, MS Windows 2000/XP, Linux and
SCO Unix

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

                                                  LCD Screen
LCD Type

 Grade A 17"Industrial  Active Matrix
 TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

-1280 x 1024 native graphic resolution
-Screen will sync with mist SUN resolution
including 1152 x 900 @66 or 76Hz


Response time

Tr=2 / Tf=6 ms

Contrast ratio

500 : 1

Brightness

300 cd/ m2

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Yes

Signal Input

VGA, Analog RGB

LCD MTBF

50,000 hrs

                                     Keyboard & Pointing Device



- 3 buttons touchpad
-With Numeric keypad

      Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

Support Platform

 MS Windows 2000/XP, Solaris and SCO Unix

KVM cable

 USB KVM cable with 6, 10, 15 feet option

Cascade cable

 Cable to PS2 KVM switch w/ 2 & 6 feet option

                                 Power Supply



Internal Power Supply : 110V - 220 V AC
Input ,  12V 5A Output

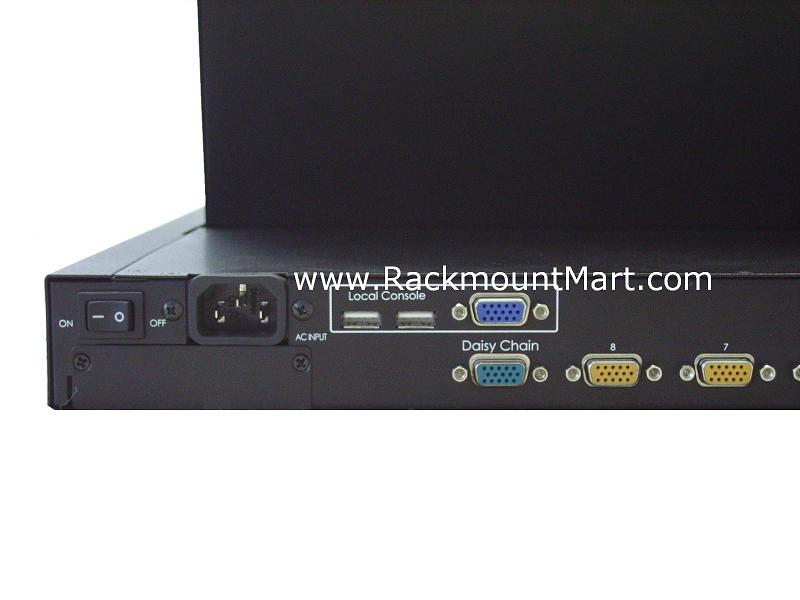

                                 Rear I/O Connector
Integrated KVM
8 or 16 KVM ports :  HD15 female
DC power input  Plug-round type
                                 Mechanical

Product Dimension

 17.42"(W) x 1.75"(H) x 23.63"(D)

Relative Humidity  20-80%, non condensing

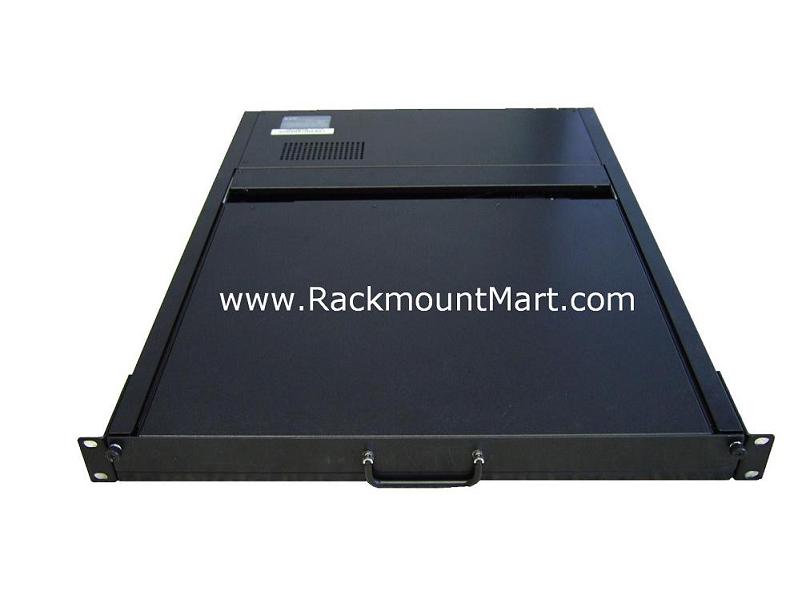

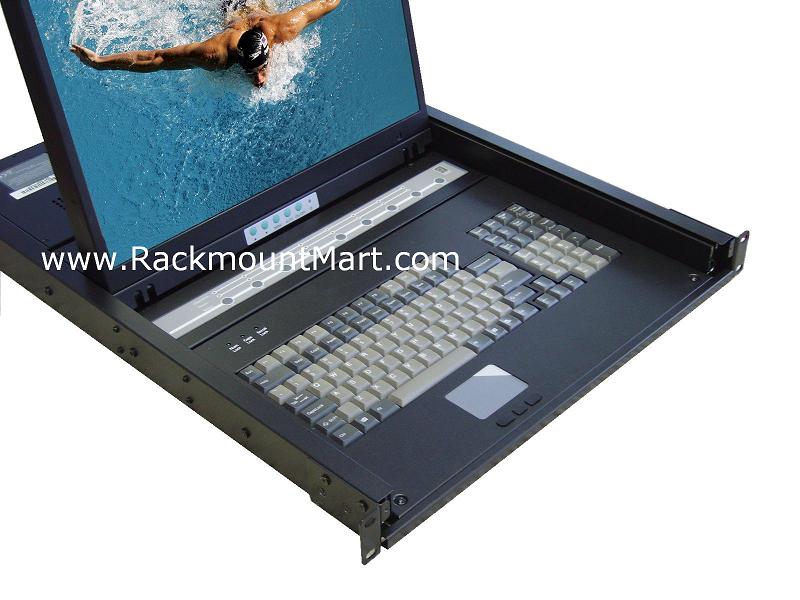

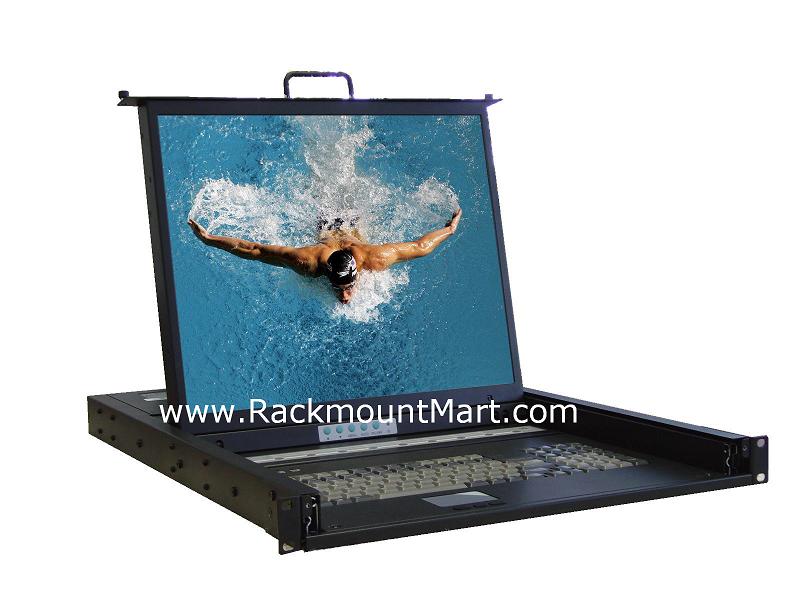

 Different Views  of 1U LCD  LCD1U17-18


     *click on photo for enlarged view


   User Manual

  KVM SUPPORT
Product Sheet
User Reference Manual
      Free Ground Shipping *Click for details



                             Regulatory Approval
           FCC , CE , UL
                             Package Content

Package Content

See user manual of the respective version listed above


Features :

  • Rugged design
  • 1U rackmount drawer with Grade A 17" LCD Panel
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Directly compatible with  SUN & USB server
  • Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
  • Compatible with SUN, Apple, IBM, Dell, HP and USB Server
  • Fits all current SUN racks.
  • Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
  • Unique mechanical design to maximize rack mountable space
  • Built in on screen display controlled by integral membrane switches
  • Standard D-sub 15-pin VGA input connector
  • 12V 5A remote power adapter (Single power source)
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included
  • Optional :  48V DC Power Input

Back to top


ORDERING INFORMATION :

Part # Description
 Single Port
LCD1U17-18
Price: $ 1118
Stylish 1U LCD 17"Grade A Panel w/ SUN Microsystems & Solaris compatible 3 buttons Touchpad, Keyboard & numeric keyboard +  1 set of one 6-ft long all-in-one USB  KVM cable included
 KVM
LCD1U17-18-8KVM
Price: $ 1538
Stylish 1U LCD 17"Grade A Panel w/ SUN Microsystems & Solaris compatible 3 buttons Touchpad, Keyboard and DB-15 8 Port KVM switch, 8 sets of  6-ft long all-in-one USB KVM cable included
LCD1U17-18-16KVM
Price: $ 1728
Stylish 1U LCD 17"Grade A Panel w/ SUN Microsystems & Solaris compatible 3 buttons Touchpad, Keyboard and DB-15 16 Port KVM switch, 16 sets of  6-ft long all-in-one USB KVM cable included





Availability: Usually ships the same business day

LCD1U17-18 $1,118.00
Option:
