New!!! Dual Slides LCD1U17-20 1U Rackmount 17" Samsung LCD KB optional 8/16/32 port KVM (DB-15/ CAT5 CAT6 / IP KVM / Matrix KVM) / DVI / BNC / S-Video (RCA)/Speakers/DC input power

1U Dual Rails Rack Console 17" SAMSUNG Grade A Industrial LCD Monitor Keyboard
                                      Optional DB-15 Kvm / CAT5 Kvm ( CAT6 Kvm ) connector
           Optional Combo Kvm ( USB PS2 Kvm ) / PS2 Kvm / Multi-User Matrix Kvm / Kvm Over IP
                                           Optional 1 / 2 / 3 / 4 Consoles for Local / Remote Access

Dual Rails Rack Console LCD1U17-20-n

*click on photo for enlarged view

Dual Rails Rack Console Benefits

1U Dual Rails 17" SAMSUNG Industrial LCD Rack Console
Optional Cost Efficient built in KVM with various choices:
- Connector : DB-15 KVM or Cat5 KVM ( Cat6 KVM )
- KVM Type : Combo KVM (USB PS2 KVM ) / PS/2 KVM /
Multi-User Matrix KVM
Secure remote user access across the internet via optional IP console (KVM Over IP )
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Combo interface either PS/2 or USB input to the rack console
High Scalability : Interchangeable KVM, & Keyboard & mouse modules
Optional S-Video + Composite Video ( BNC or RCA ),
DVI-D, DC Power input, Audio
2 year Warranty

General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows

LCD Screen

LCD Type

Grade A Industrial monitor 17 inch Active Matrix TFT LCD Panel

Display Size

17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (BNC or RCA ),
DVI-D ...More Video Input Details

LCD MTBF

50,000 hrs

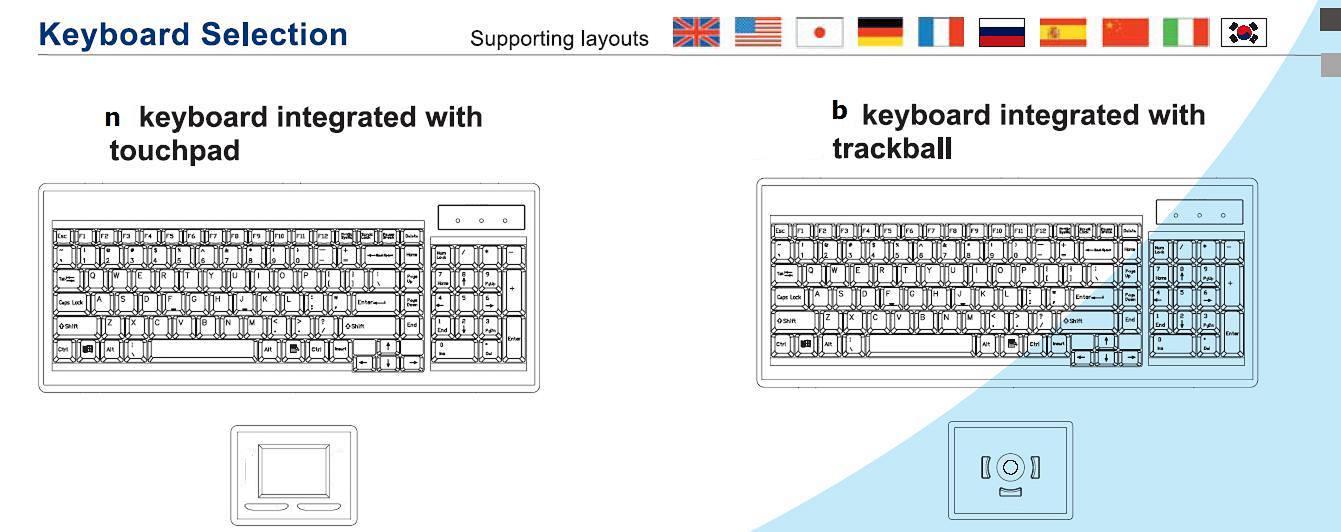

Keyboard & Pointing Device

Model n

Notebook type KB w/ Numeric Keypad & Touchpad

Model b

Notebook type KB w/ Numeric Keypad & Trackball ...More Keyboard Details

KVM ( Keyboard Video Mouse )

Connector

KVM Version

DB-15

* DB-15 No KVM ( with combo interface)

* DB-15 PS/2 KVM ( 8 or 16 port )

* DB-15 Combo KVM ( USB PS2 KVM )
No. of Console	No of KVM port
1 ( Local only )	8 or 16
2 ( 1 x local + 1 x remote )	8 or 16
2 ( 1 x local + 1 x IP )	8 or 16

* DB-15 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	8 or 16
3 ( 1 x local + 2 x remote )	8 or 16
3 (1x local +1x remote +1x IP )	8 or 16
4 ( 1 x local + 3 x remote )	8 or 16
4 (1x local +1x remote +2x IP )	8 or 16
4 (1x local +2x remote +1x IP )	8 or 16

CAT5 /
CAT6

* CAT6 Combo KVM ( USB PS2 KVM )
No. of Console	No. of KVM port
1 ( Local only )	8 or 16 or 32
2 ( 1 x local + 1 x remote )	8 or 16 or 32
2 ( 1 x local + 1 x IP )	8 or 16 or 32

* CAT6 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	16 or 32
3 ( 1 x local + 2 x remote )	16 or 32
3 (1x local +1x remote +1x IP )	16 or 32
4 ( 1 x local + 3 x remote )	16 or 32
4 (1x local +1x remote +2x IP )	16 or 32
4 (1x local +2x remote +1x IP )	16 or 32

Power Supply

-Remote adapter : 110V - 220 V AC Input , 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V
input power

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)

Relative Humidity

5~90%, non condensing

Shock

10G peak acceleration
(11ms duration)

Vibration

5~500Hz, 1G RMS random vibration

Mechanical

Product Dimension

(W x D x H )
442 x 650 x 44 mm /17.4 x 25.6 x 1.73 inch

Product Weight

Approximately 35 lbs / 16kg

Relative Humidity

90%, non condensing

Regulatory Approval

FCC , CE , VCCI , 3C*

Remarks

LCD1U17-21 is the SUN Solaris Compatible version of the current model LCD1U17-20, click this link for details

More photos (click to enlarge )

Update: The touchpad is changed from 3 button to 2 button. For more details, please click here

Diagram

*click on above pictures for enlarged view

Product Sheet
Product Sheet
User Manual
General User Manual
KVM Support
	DB-15 KVM
DB-15 PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local + remote console
DB-15 Combo USB PS2 kvm Local + IP console
	CAT5 / CAT6 KVM
Cat5 / Cat6 Combo USB PS2 kvm Local console
Cat5 / Cat6 Combo USB PS2 kvm Local + remote console
Cat5 / Cat6 Combo USB PS2 kvm Local + IP console
	Matrix KVM
DB-15 Matrix USB PS2 kvm Local + remote console
DB-15 Matrix USB PS2 kvm Local + IP console
Cat5 / Cat6 Matrix USB PS2 kvm Local + remote console
Cat5 / Cat6 Matrix USB PS2 kvm Local + IP console

Optional Peripheral & Accessory

- S-Vdieo + Composite Video (BNC or RCA) / DVI-D

- HDMI

- DC Power Input ( 12V / 24V / 48V )

- KVM Cables & Cascade Cables in Various Length

- USB & PS/2 Dongles

-PS2 to SUN /iMac USB adapter

- KVM Extender -IP KVM Extender

Free Ground Shipping( A $55 Value) *Click for details

Customer who ordered this product may also order these :

- KVM Switch

- PDU ( Power Distribution Unit )

- Server Rack Cabinet

Features of Rack Console :

1U Dual sliding SAMSUNG Industrial monitor Grade A 17" LCD Panel
Either PS/2 or USB input to this Rack console (the rack LCD drawer / keyboard )
Scalable : -KVM interchangeable module Kit : i. All KVM versions are interchangeable in the same chassis
                                                              ii. Mix PS/2 & USB with multi-Platform switch capability
               -Keyboard interchangeable module Kit : 104 key touchpad or trackball with full numerical pad
               -Mouse interchangeable module kit : 2 button GlidepointTM touchpad or trackball interchangeable in
                                                                same chassis
7-button LCD OSD membrane with a power LED
2 point lock, with Stylish latching front panel to release the 2-point lock
Micro switch for screen auto power off , power saving feature for prolonging the lift of LCD panel
KVM membrane
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Unique mechanical design to maximize rack mountable space
Black Anodized aluminum front panel
VGA, keyboards & mouse all in one by 15 pin HDB connector
Built in slide rails which can be mounted easily in any 19" rack cabinet
EMC shielding around the monitor housing to minimize interference
Rear rack mounting bracket included
Standard 6-ft KVM cable, optional 10, 15, 33 ft available
Optional : S-Video and Composite video input (RCA or BNC ), DVI-D , Audio, DC power input adapter , Speaker

Connector

KVM Version

Number of KVM port

Cascade Capacity

Capability / KVM Technical Specifications

DB-15

PS/2 KVM

8 or 16 port

Up to 8 Levels / 128 Servers

Capability

DB-15 PS/2 kvm hooks up 8 or 16 servers with multi-platforms and multi-operating systems. PS/2 KVM cables included

Link to KVM Technical Specification

* DB-15 8 Port PS/2 KVM
* DB-15 16 Port PS/2 KVM

DB-15

Combo KVM (USB PS2 KVM )

8 or 16 port

Up to 8 Levels / 240 Servers

Capability

DB-15 Combo kvm hooks up 8 or 16 servers with multi-platforms and multi-operating systems. With local + remote console model, user can remote access up to 1,000 feet distance via CAT6 cable. While with local + IP console model, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2 interface. Respective Combo KVM cables or/and dongles included

Link to KVM Technical Specification

* DB-15 1 Console 8 Port Combo KVM
* DB-15 1 Console 16 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 8 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 16 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 8 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 16 Port Combo KVM

DB-15

Matrix KVM

8 or 16 port

Up to 8 Levels / 240 Servers

Capability

DB-15 Matrix kvm allows maximum of 4 users to local access, remote access up to 1000 feet distance via CAT6 cable or IP remote access without distance limitation via internet. This model supports servers with either USB or PS/2 interface. Respective Combo KVM cables included

Link to KVM Technical Specification

* DB-15 2-4 Console (Local+Remote) 8 /16 Port Matrix KVM
* DB-15 3-4 Console(Local+Remote+IP) 8/16 Port Matrix KVM

CAT6

Combo KVM (USB PS2 KVM )

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

CAT6 Combo kvm hooks up 8 , 16 or 32 servers with multi-platforms and multi-operating systems. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2 interface.

Link to KVM Technical Specification

* CAT6 1 Console 8 Port Combo KVM
* CAT6 1 Console 16 Port Combo KVM
* CAT6 1 Console 32 Port Combo KVM
* CAT6 2 Console (Local + Remote) 8 Port Combo KVM
* CAT6 2 Console (Local + Remote) 16 Port Combo KVM
* CAT6 2 Console (Local + Remote) 32 Port Combo KVM
* CAT6 2 Console (Local + IP) 8 Port Combo KVM
* CAT6 2 Console (Local + IP) 16 Port Combo KVM
* CAT6 2 Console (Local + IP) 32 Port Combo KVM

CAT6

Matrix KVM

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

CAT6 Matrix kvm allows maximum of 4 users. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. Respective dongles included.

Link to Technical Specification

* CAT6 2 Console (Local + Remote) 8 /16/32 Port Matrix KVM
*CAT6 3-4 Console(Local+Remote+IP)8/16/32 Port Matrix KVM

ORDERING INFORMATION FOR LCD1U17-20 - 1U dual rails SAMSUNG 17" LCD RACK CONSOLE WITH VARIOUS KVM OPTIONS

DB15 KVM

CAT5 KVM /
CAT6 KVM

Matrix KVM

NO KVM ( Single Port ) with Built-in Combo PS2 & USB interface**
KVM Support	Keyboard Type	Part #	Description
Single Port for DB-15 PS2 connection with built-in *Combo PS2 / USB* Interface	104 keys KB KB w/ Touchpad	LCD1U17-20-n Price : $795	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 4-in-1 combo KVM cable. Black
Single Console KVM ( Local console, 8 / 16 / 32 port KVM )
DB-15 KVM ( Local console DB-15 KVM)
KVM Support	Keyboard Type	Part #	Description
Local console DB-15 8 Port PS2 KVM Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-8KVM-n Price: $1091	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cables. Black
Local console DB-15 16 Port PS2 KVM Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-16KVM-n *This option is discontinued, refer to LCD1U17-20-16KVM-n-u*	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cables. Black
Local console DB-15 8 Port COMBO USB/PS2 KVM Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-8KVM-n-u Price: $1177	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port COMBO USB/PS2 KVM switch & 8 x 6-ft 4-in-1 Combo USB/PS2 cables. Black
Single console DB-15 16 Port COMBO USB/PS2 KVM Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-16KVM-n-u Price: $1377	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 16 port COMBO USB/PS2 KVM switch & 16 x 6-ft 4-in-1 Combo USB/PS2 cables. Black
2 Console KVM ( Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM )
KVM Support	Keyboard Type	Part #	Description
2 Consoles ( Local + Remote console ) DB-15 8 Port Combo KVM Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-8KVM2-n Price: $1405	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports Combo KVM switch & 8 x 6-ft 4-in-1 combo KVM cables. Black
2 Consoles ( Local + Remote console ) DB-15 16 Port COMBO USB/PS2 KVM Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-16KVM2-n Price: $1605	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports Combo KVM switch & 16 x 6-ft 4-in-1 combo KVM cables. Black
2 Consoles ( Local + IP console ) DB-15 8 Port Combo KVM Over IP Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-8KVM2IP-n Price: $1564	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ Combo USB/PS2 interface & 8 x 6-ft 4-in-1 combo KVM cables. Black
2 Consoles ( Local + IP console ) DB-15 16 Port Combo KVM Over IP Switch	104 keys KB KB w/ Touchpad	LCD1U17-20-16KVM2IP-n Price: $1764	1U 17" dual rails Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ Combo USB/PS2 interface & 16 x 6-ft 4-in-1 combo KVM cables. Black

DB-15 Matrix KVM
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M82-n Price: $1902	1U 17" Dual Slide (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 combo KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M83-n Price: $2129	1U 17" Dual Slide (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 combo KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M84-n Price: $2356	1U 17" Dual Slide (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 combo KVM cable included, Black
16 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M162-n Price: $2311	1U 17" Dual Slide (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 combo KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M163-n Price: $2538	1U 17" Dual Slide (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 combo KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M164-n Price: $2765	1U 17" Dual Slide (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 combo KVM cable included, Black
DB-15 Matrix KVM With IP Remote
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M83IP-n Price: $2288	1U 17" Dual Slide (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 combo KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M84IP-n Price: $2515	1U 17" Dual Slide (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 combo KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M84IP2-n Price: $2674	1U 17" Dual Slide (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 combo KVM cable included, Black
16 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M163IP-n Price: $2697	1U 17" Dual Slide (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 combo KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M164IP-n Price: $2924	1U 17" Dual Slide (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 combo KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U17-20-M164IP2-n Price: $3083	1U 17" Dual Slide (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 combo KVM cable included, Black
OPTIONS
Part # & Price			Description of Option
-12VDC Price : $171			Add 12V DC power input
-24VDC Price : $171			Add 24V DC power input
-48VDC Price : $171			Add 48V DC power input
-BNC Price : $114			Add Composite Video (RCA) + S-video
-AV Price : $114			Add Composite Video (BNC) + S-video
-HDMI Price : $114			Add HDMI Input with built in Speaker
-DVI Price : $64			Add DVI-D Input
-SPK Price : $114			Add speaker

Availability: Usually ships the same business day

LCD1U17-20

$795.00

Single ( local ) Console : Single Port ( No KVM ):

Single ( local ) Console : DB-15 8 or 16 port KVM Switch :

Single ( local ) Console : High Density 16 or 32 port RJ-45 CAT.5 KVM Switch :

2 Consoles (Local + Remote): DB-15 8/16 port PS/2 Cat.5 KVM :

2 Consoles (Local + Remote): DB-15 8/16 port Cat.5 PS/2 KVM Over IP:

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM w/ Combo PS2 & USB :

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM Over IP w/ Combo PS2 & USB:

OPTIONAL FEATURES
Composite Video & S-Video :

S-Video & BNC :

HDMI Input :

DVI-D Input :

DC Input Power Adapter:

ACCESSORIES
USB Dongle for use w/ High Density RJ-45 CAT.5 KVM or High Density Cat.5 KVM Via IP switch :

Upgrade 6 ft 4-in-1 COMBO USB/PS2 KVM cable to 10-ft:

Upgrade 6-ft 4-in-1 COMBO USB/PS2 KVM cable to 15-ft:

By clicking "order" button, I've read and agreed Synergy Global Technology Inc's terms and policy, http://www.rackmountmart.com/terms.htm:
