LCD1U19-014 1U 19"  Widescreen LCD Rack Drawer w/ VGA & DVI Optional S-Video & Composite Video DVI, Audio, HDMI, SDI,  DC input & Touchscreen





Part#  LCD1U19-014


                     1U Rack Drawer 19" SAMSUNG Widescreen LCD with LED-backlit panel with VGA & DVI
                                                Optional S-Video & Composite Video, Audio, HDMI, SDI, DC Input Power

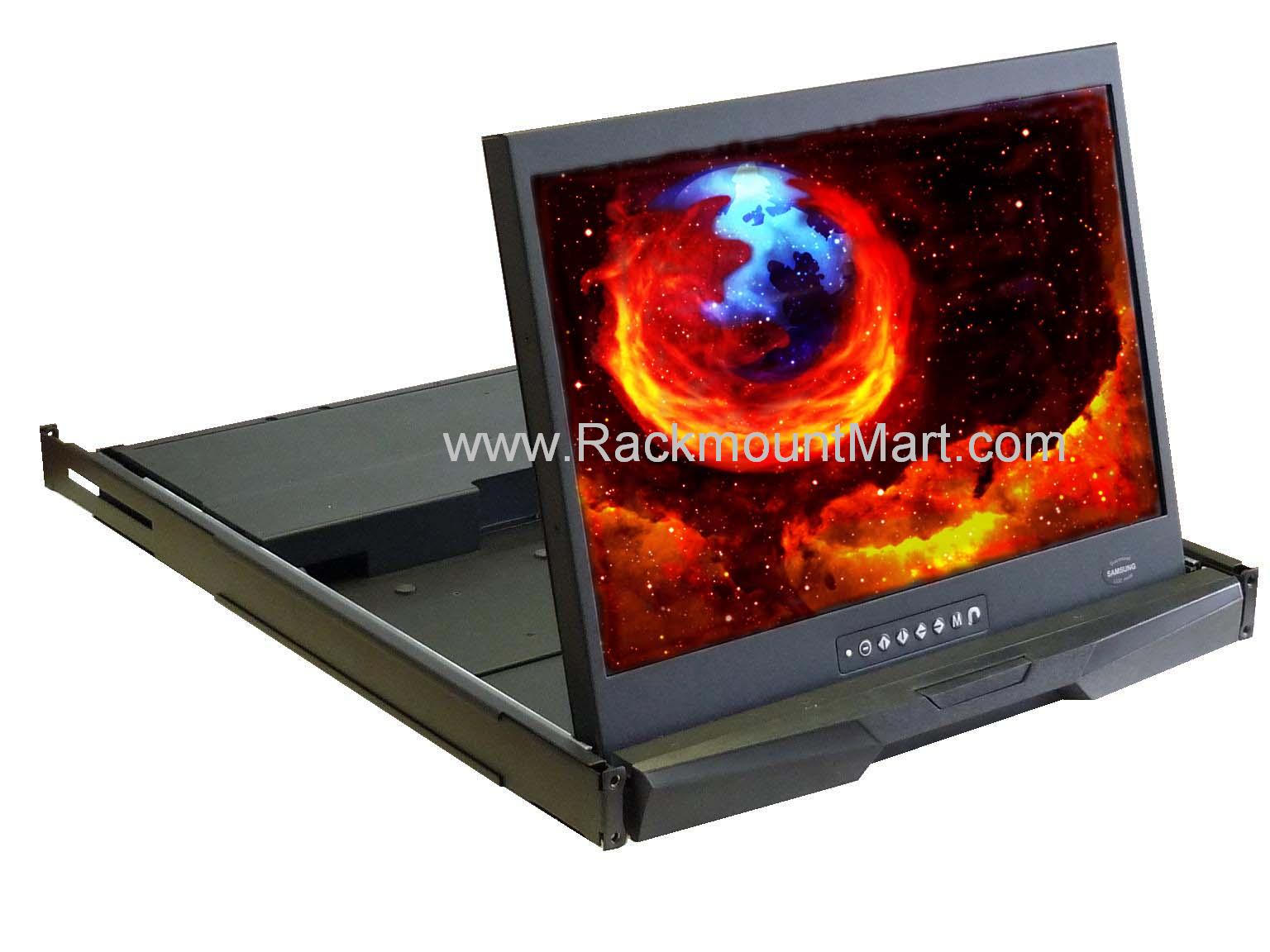

   1U LCD Drawer LCD1U19-014


*click on photo for enlarged view

    Drawer Features & Display Benefits
  • 1U 19" widescreen LCD drawer with DVI-D / VGA input
  • Short depth design of 460mm ( 18.1" )
  • Green LED-backlit panel technology
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Enhanced aesthetics with molded front panel and two point lock
    Options
  • 3G / HD / SD-SDI Broadcast-grade input
  • S-Video + Composite ( BNC )
  • HDMI or Audio input
  • 48V, 24V or 12VDC power
                          LCD Screen

LCD Type

19 inch widescreen TFT LCD Panel

Backlight

LED

Display Size

19 inch diagonal

Resolutions

1440 x 900

Contrast ratio

1000 : 1

Brightness

250 cd/ m2

Active area (mm) 408 x 255

Panel color

16.7M

Viewing angle

160° x 160°

Signal Input

VGA or DVI-D

LCD MTBF

30,000 hrs

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
                     Environmental

Storage temp.

-5ºC to 60ºC

Operating temp.

0ºC to 50ºC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

5~500Hz 1G RMS random vibration

Package Content

LCD1U19-014 unit X 1 , 6ft VGA cable X 1, Power cord X 1 , M6 screw, cage nut & cup washer X 8
                          Mechanical
Dimension:
( Single console )
441.6 x 460 x 44 mm / 17.4 x 18.1 x 1.73 inch
Product Weight 12.5 kgs / 28 lbs
                              Regulatory Approval
  FCC, CE, RoHS Compliant
    Dimension

*click on above pictures for enlarged view

    Construction

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual


        Free Ground Shipping *Click for details

More Photos, click on the following for enlarged view:




I/O Diagram


Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
 Customer who ordered this product may also order these :
- KVM Switch - Rack Shelves
- Rack Mount Keyboard - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount



Ordering  information
Part Number  Description
LCD1U19-014
Price : $636
1U Rackmount 19" SAMSUNG Widescreen LCD Drawer with  VGA &  DVI-D Input , one 6-ft long VGA cable included. ( Video signal Inputs only )
LCD1U19-014-Spk
Price : $750
1U Rackmount 19" SAMSUNG Widescreen LCD Drawer with   VGA , DVI-D  & Audio, one 6-ft long VGA cable included. ( Video  & Audio signal Inputs included )
LCD1U19-014-HDMI
Price : $750
1U Rack-mount 19" SAMSUNG Widescreen LCD  Monitor Drawer with VGA &  HDMI Input with speakers , one 6-ft long VGA cable included.( Video & Audio signal Inputs included , No DVI-D  )
LCD1U19-014-SDI
Price : $1122
1U Rack-mount 19" SAMSUNG Widescreen LCD  Monitor Drawer with VGA + DVI-D + HDMI w/ speaker + SDI , one 6-ft long VGA cable included.( Video Inputs only  )
Optional Video/Audio Inputs
-AV
Price : $114
 With VGA + DVI-D + S-Video &  BNC Composite Video input with RCA adapter
-BNC
Price : $114
 With VGA + DVI-D + BNC + S-Video signal input
-AV3.0
Price : $171
 With VGA + DVI-D + HDMI w/ speaker signal input
Option DC Power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
Other Options
-QUAD DISPLAY Please check our product ***LCD1U19-017***






Availability: Usually ships the same business day

LCD1U19-014$636.00
Model:

Optional Composite Video & S-Video:

Optional DC Input Power Adapter:
