LCDK3005   1U Rackmount Single Console 16-port CAT5 KVM Switch with 16 Optional Dongles



1U Rackmount Single Console 16-port CAT5 KVM Switch with 16 Optional Dongles






This KVM switch can control attaching servers and computers from local console. This KVM switch is loaded with features such as one local console port, plus one optional CAT5-based remote console port or one optional IP-based remote console Port, On Screen Display (OSD) Menu, Password security, Hot key Control, Push Button and Auto Scan Control. It has complete keyboard and mouse emulation for simultaneous PCs boot-up process.

With the CAT5-based remote console port you can you remotely control servers and computers 1000 feet away. In other words, you can locate your monitor, keyboard and mouse up to 1000 feet away from the KVM switch. The built-in CAT5 transmitter synthesizes VGA monitor and keyboard/mouse signals, and transmit the signals to the remote CAT5 receiver over the popular LAN CAT5 cable.

With the IP-based remote console port you can control one or many computers locally at the server site or remotely via the Internet using a standard browser. You can securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet. Communication is secure via SSL encryption.




 Features:

▪Support combo interface for connecting to computer ports conveniently
▪Support one local console
▪Support MS windows, Netware, Unix, and Linux
▪Support iMAC, Power MAC and Sun Micro Systems with USB port
No Software Required --- easy computer selection via On Screen Display (OSD) Menu, Push Buttons, and Hotkeys
▪Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/ R-Win) for switching computer port and other control functions, so Hotkey function can be used in various types of keyboards, and to avoid Hotkey duplicate problem
▪ No Software Required --- easy computer selection via On Screen Display (OSD) Menu, Push Buttons, and Hotkeys
▪ Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/ R-Win) for switching omputer port and other control functions, so Hotkey function can be used in various types of keyboards, and to avoid Hotkey duplicate problem.
Hot Plug --- add or remove connected computers without powering off the KVM switch or computers
Plug-n-Play monitor support
▪Keyboard status restored when switching computer
▪Support Daisy Chain function

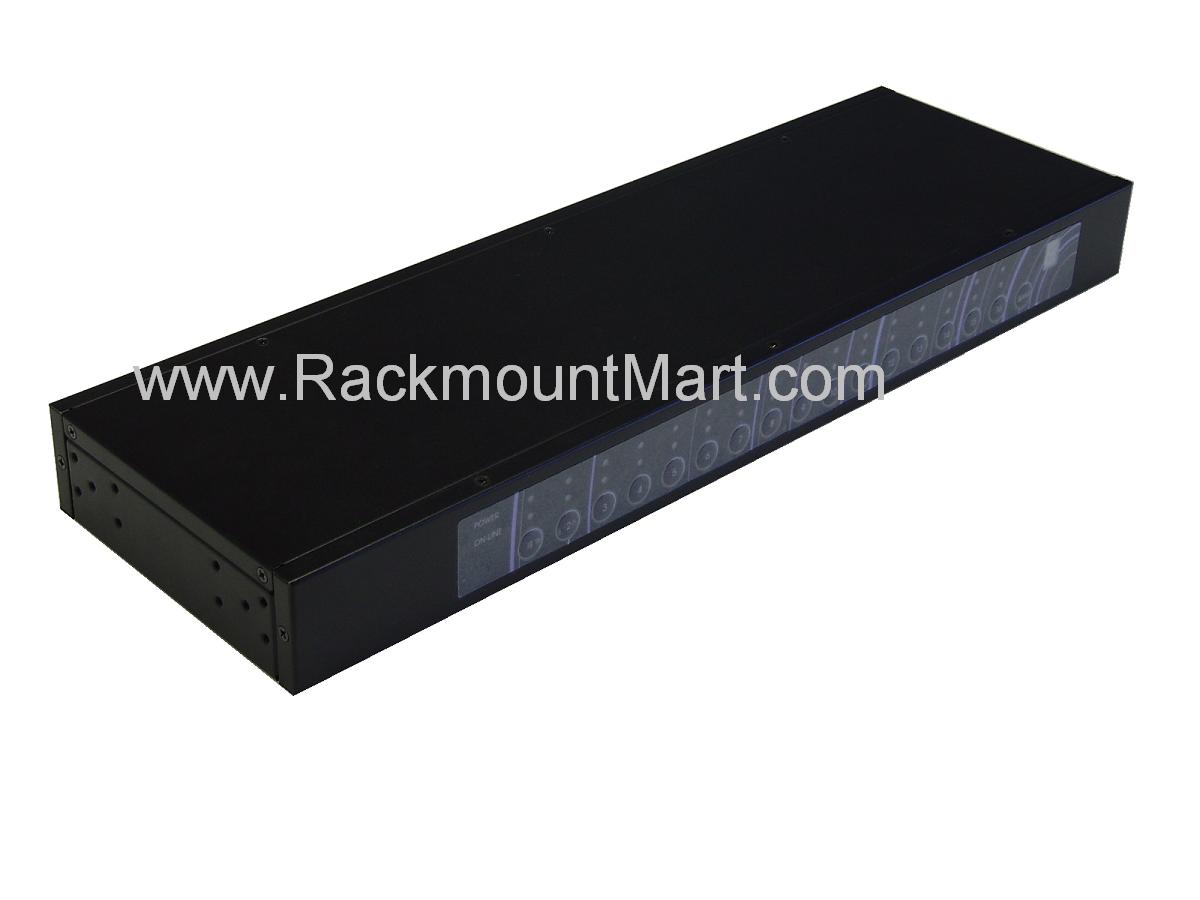

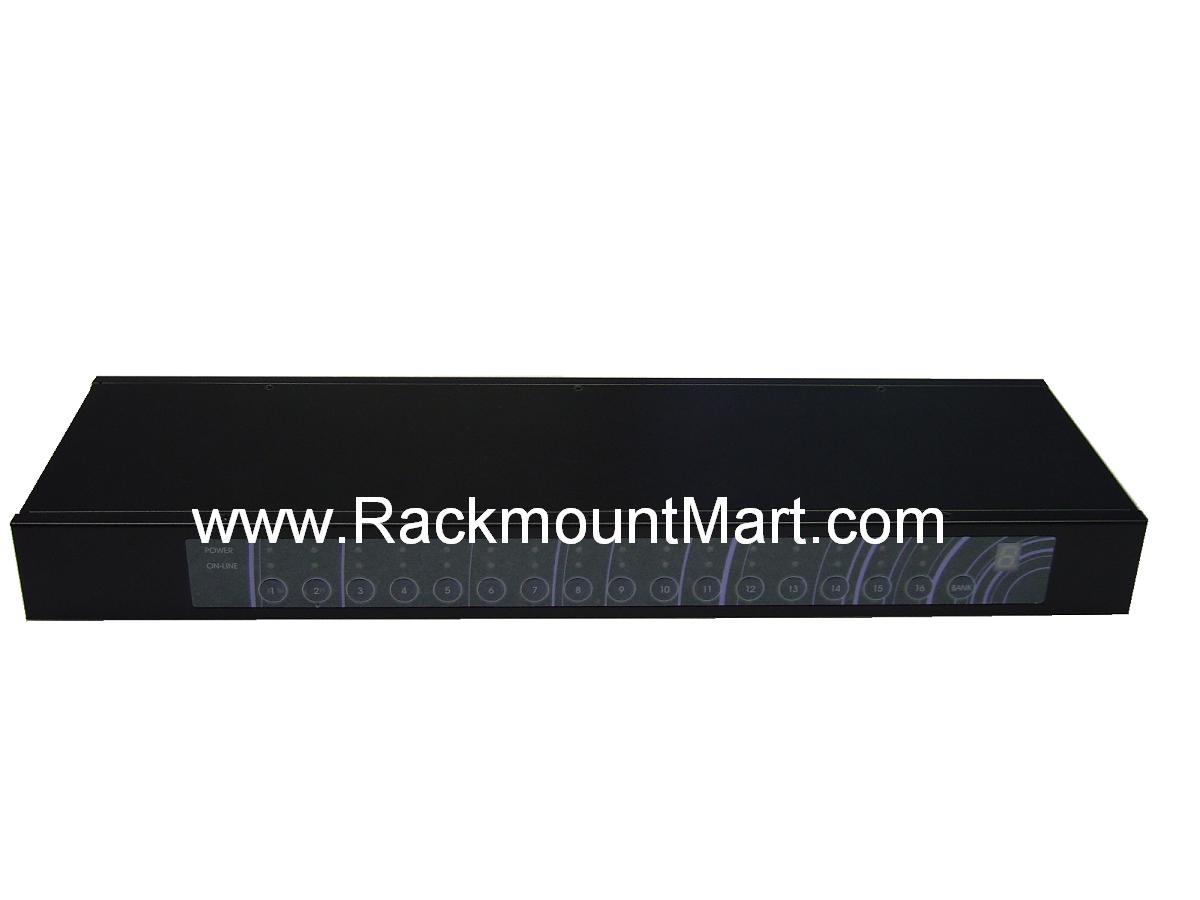

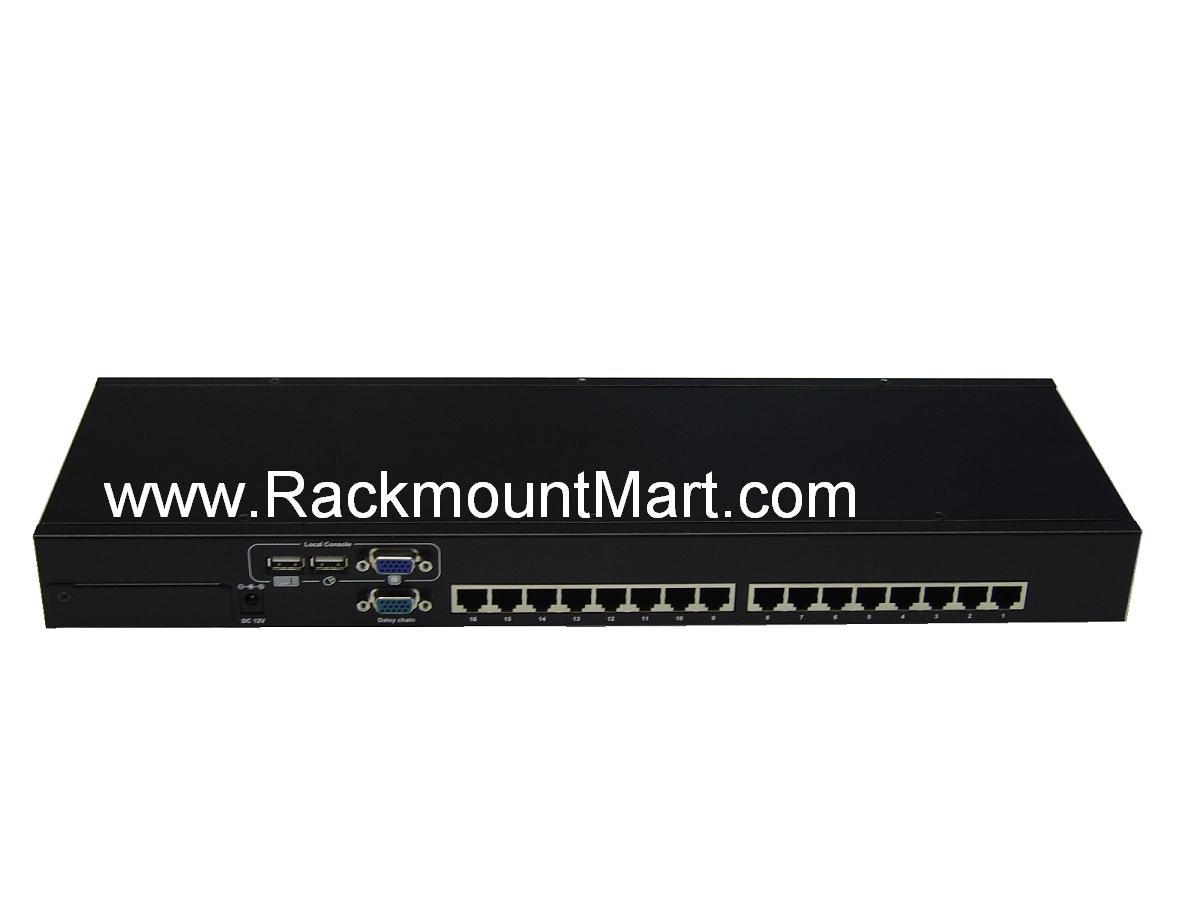

More photos (click to enlarge )

  Technical Specification
PC Connections

16

Console Connections 1
PC Port Connectors

RJ-45

Console Port Connectors

One Local USB console

USB hub ports

2 x USB 2.0 Type A device hub port

PC selection

USB Hotkey / Push buttons

PC port LED

16

Hub port LED

16

Scan delay time

5 ~ 100 sec programmable

Digital Display Resolution
(Local Console)

1600 x 1200 DDC2B

Console Ports

1 Local USB Console, plus
1 Optional Modules: CAT5-Based or IP-Based
Remote Console

CAT5 Combo Dongle

3-to-1 CAT5 combo transmitter dongle. Combine
three cables (keyboard, mouse and VGA) into one
CAT5 cable before connecting to KVM switch.
Support PS/2 and USB cable in the same dongle.

Firmware Upgrade

Yes / via USB port

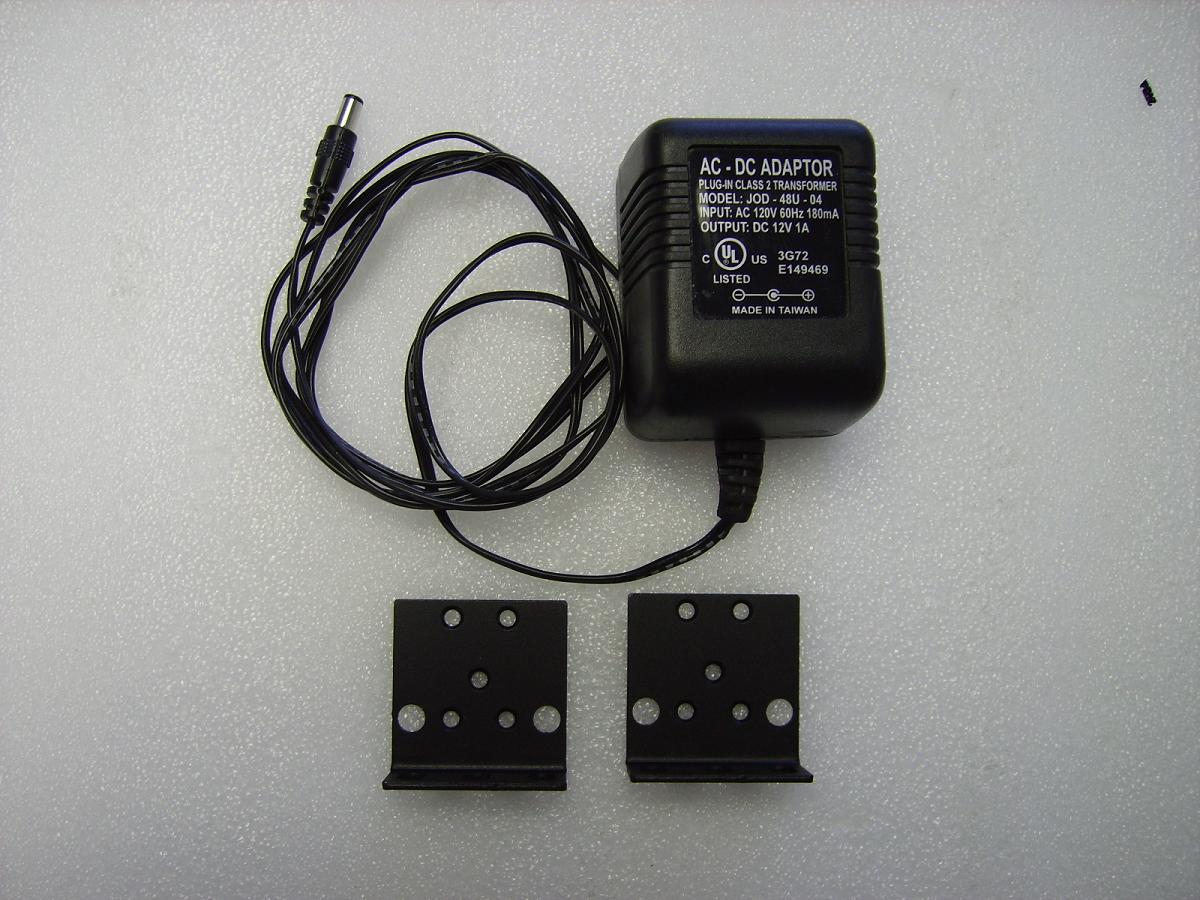

Power Adapter

DC 12V 1A (required)

Housing

Metal case + plastic front

Safety / Emission

FCC, CE



Ordering  information

Part Number  Description
 LCDK3005 1U Rackmount Single user 16-port CAT5 KVM Switch with 16 Optional Dongles




LCDK3005
Single console CAT6 KVM switch:
