New!!! LCD1U19-14 1U Rack Sunlight LCD Monitor Keyboard Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 ( CAT6 )KVM Optional 16 port / 32 port High Density CAT5 ( CAT6 ) KVM



U Rack Bright Screen  : 19" Samsung Sunlight Display Monitor Keyboard Drawer
                      Optional 8 port  / 16 port  DB-15 KVM Switch /  KVM Over IP  / CAT5 ( CAT6 )KVM
                                         Optional  16 port / 32 port  High Density CAT5 ( CAT6 ) KVM  or
                                               CAT5 ( CAT6 )  KVM  IP  for Local / Remote Access
                           ****  Built-in Combo PS/2 &  USB interface  for selected versions ****
Also known as: bright screen , bright lcd , bright monitor , sunlight display, sunlight readable lcd , sunlight monitor , high brightness lcd , sunlight readable monitor , sunlight readable display
SAMSUNG  19" Bright Screen panel

Display type

Active Matrix TFT

Resolutions

1280 x 1024

Response time

Tr =1.3 ms / Tf =3.7 ms (Typ.)

Contrast ratio

800 : 1 typical

Brightness

800 cd/ m2 typical

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 º (Horiz.) / 160 º (Vert.)

Video:

Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p

OSD Control
Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection

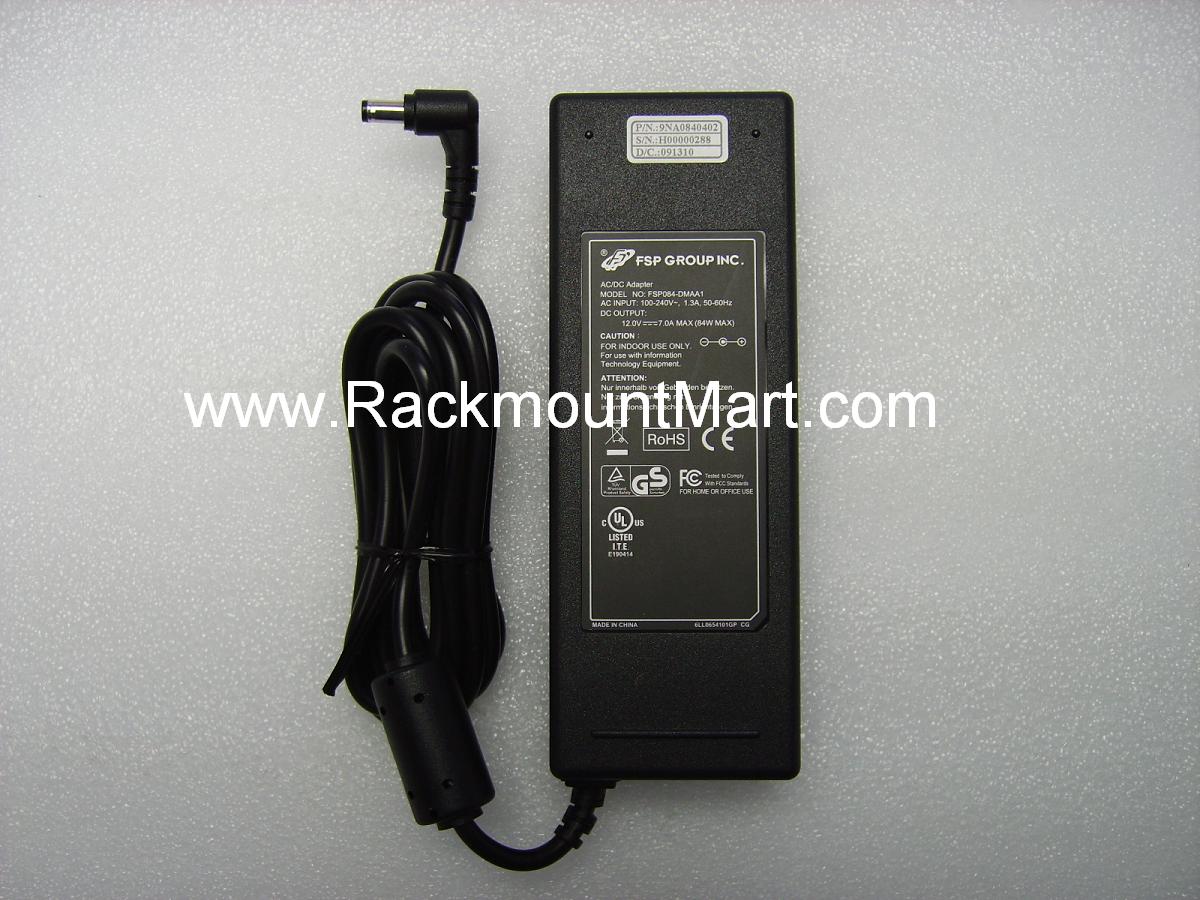

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector

Product Dimension

442(W) x 650(D) x 44(H)mm /
17.4" x 25.6" x 1.73"

Storage temp.

-20  to 60 ºC

Operating temp.

0  to 40 ºC

Safety Approval

















 FCC, CE, RoHS

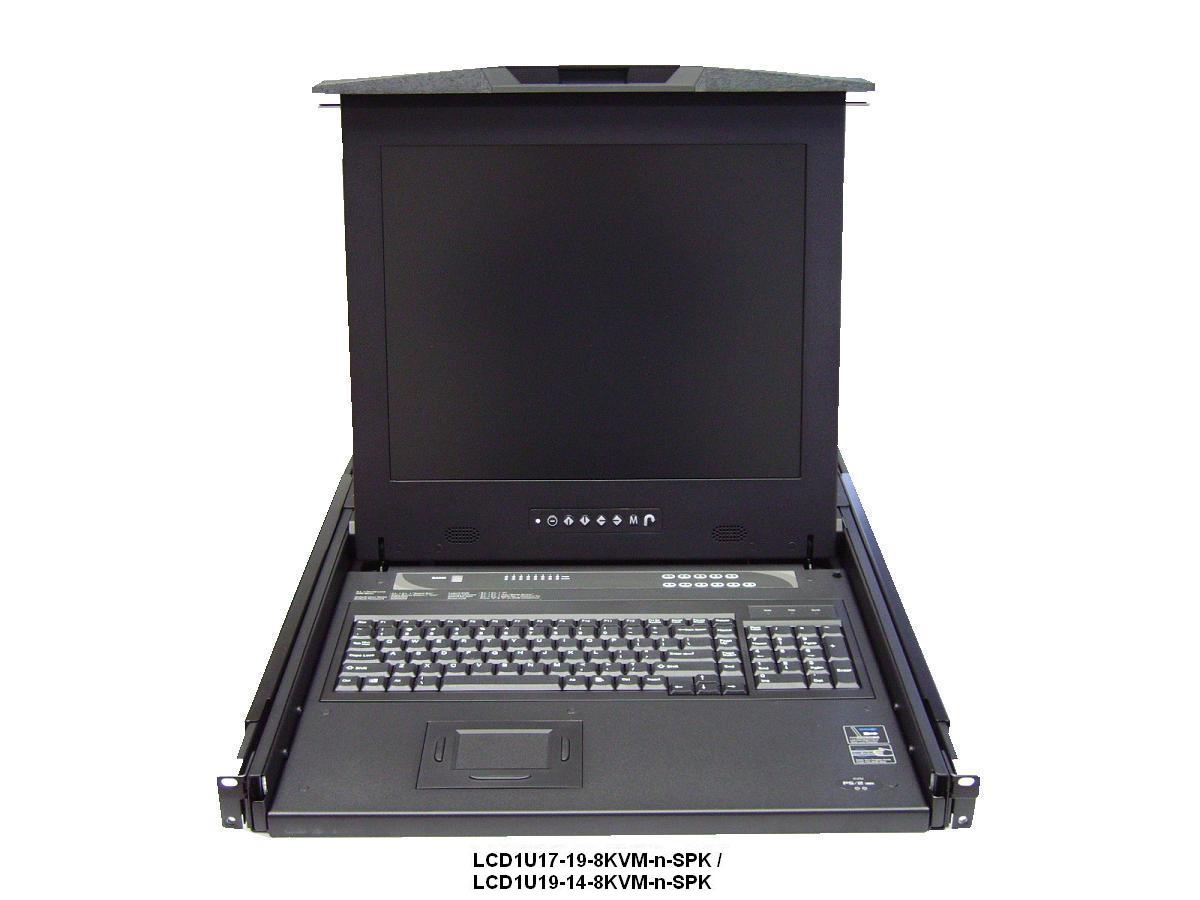

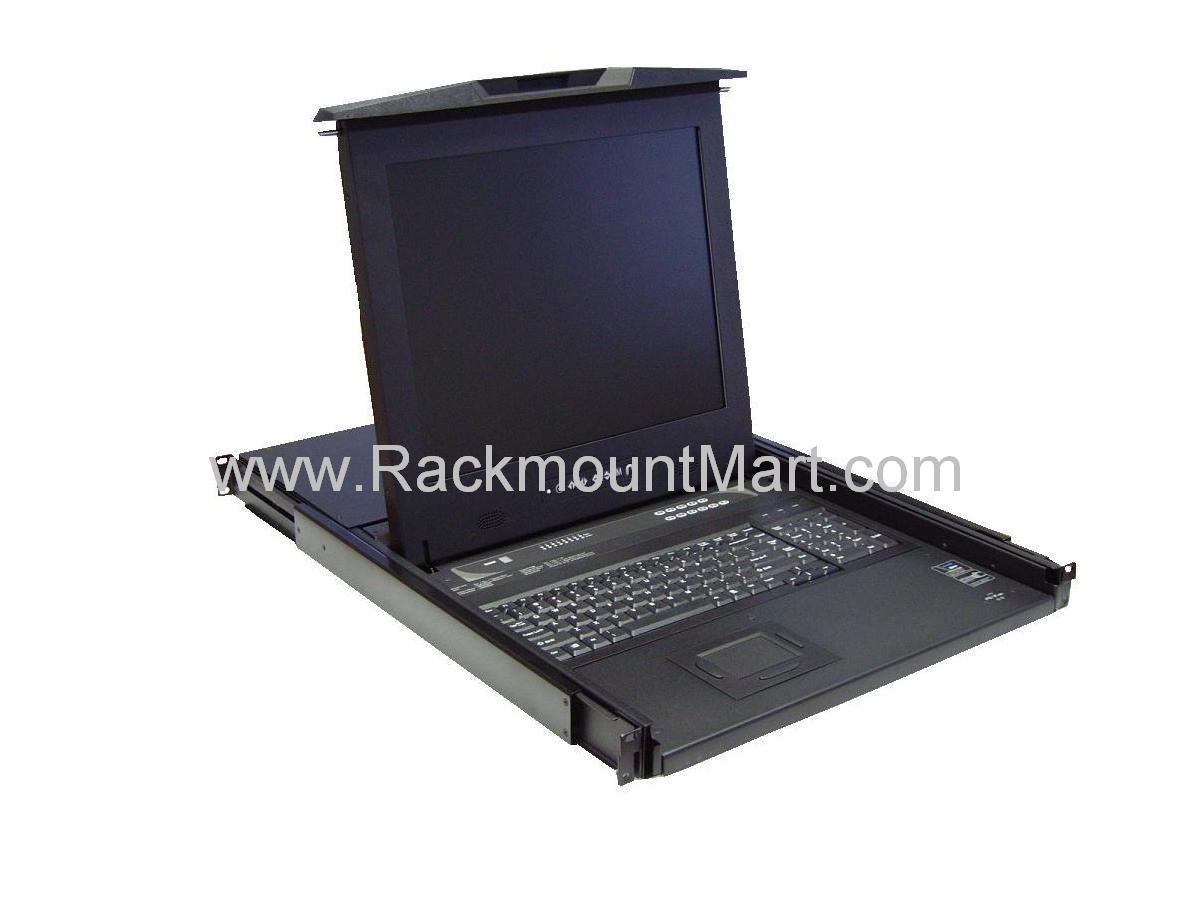

   Front View of Sunlight LCD LCD1U19-14


               *click on photo for enlarged view

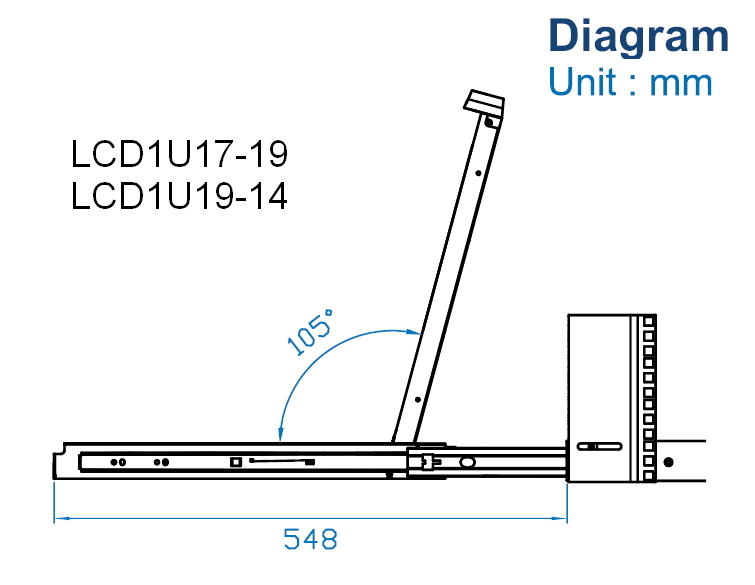

     Diagram

                  *click on diagram for enlarged view

  Keyboards

  Trackball Option -  Touchpad Option -
               *click on photo for enlarged view

     User Manual


     Product Sheet


       Free Ground Shipping *Click for details

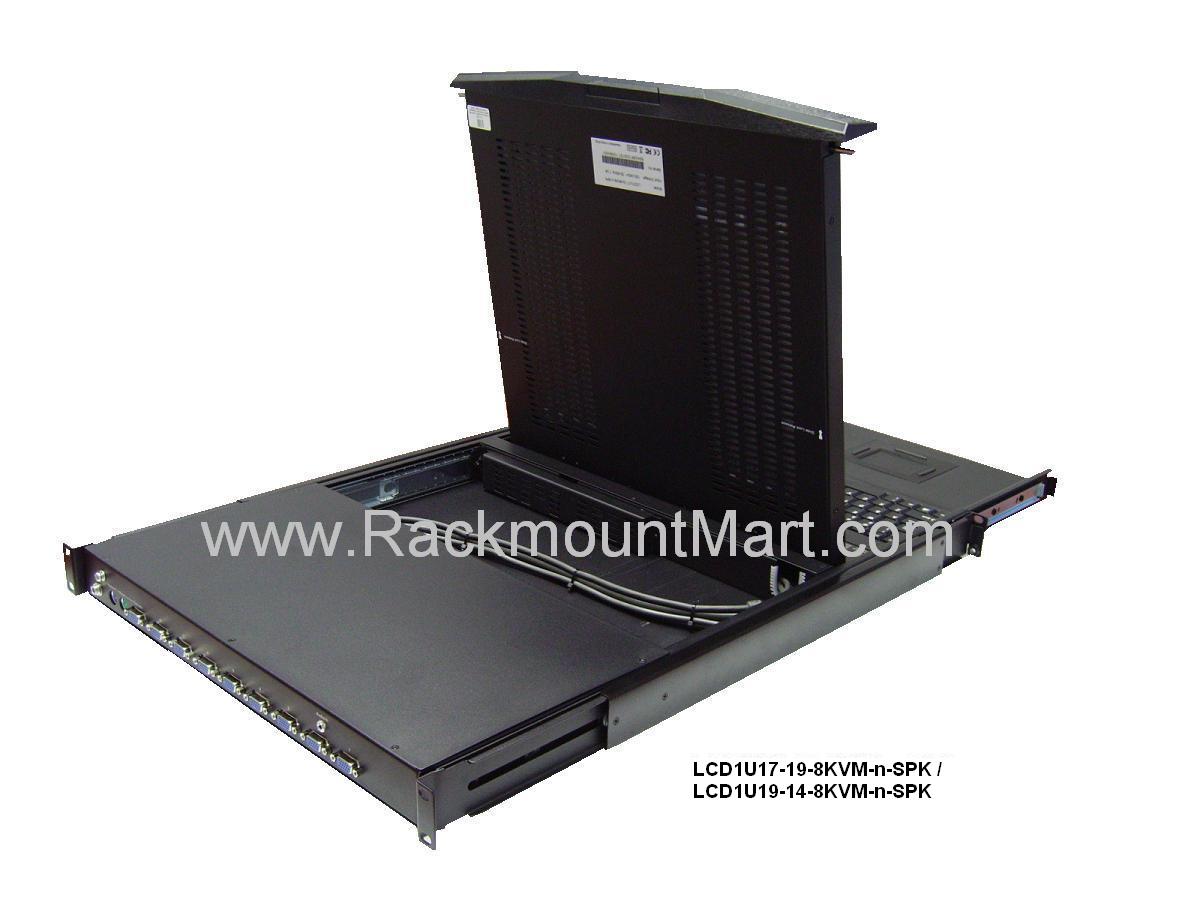

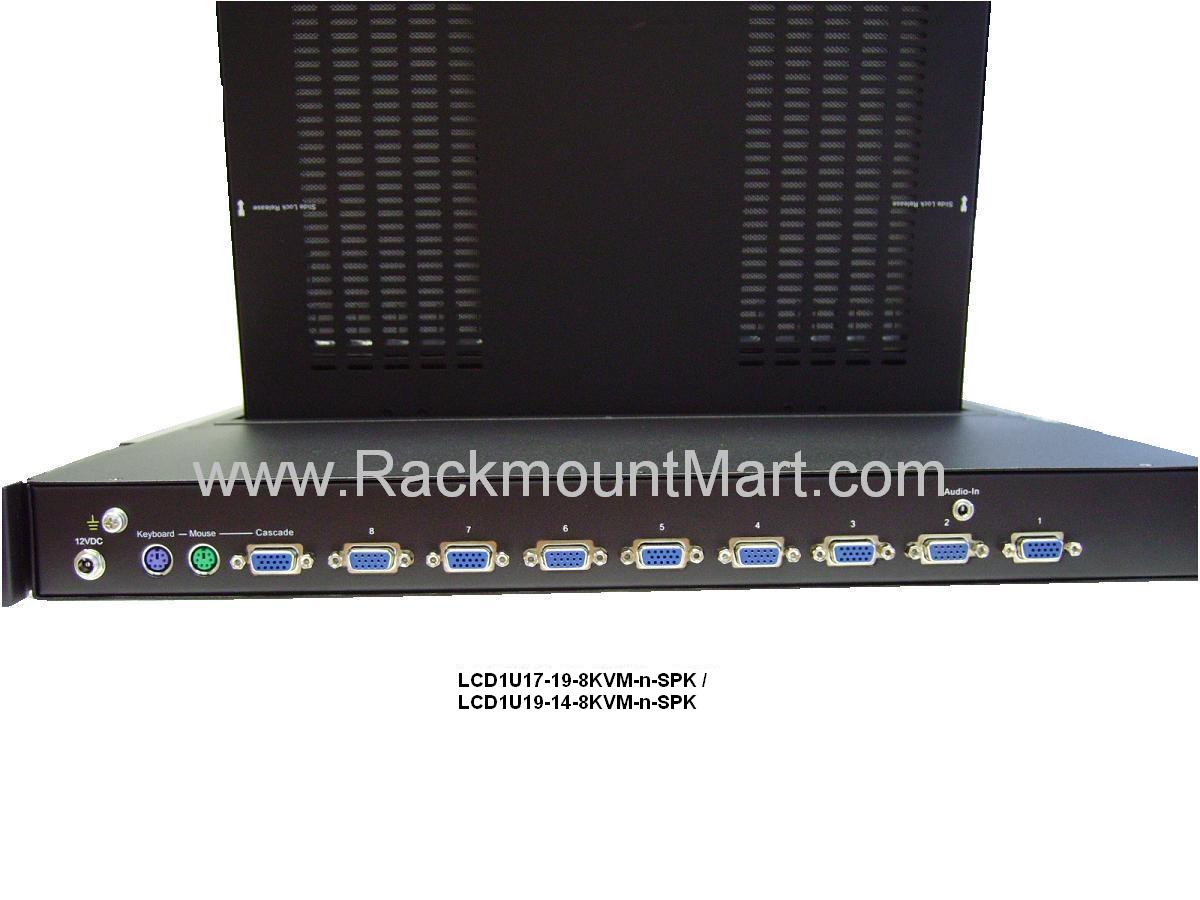

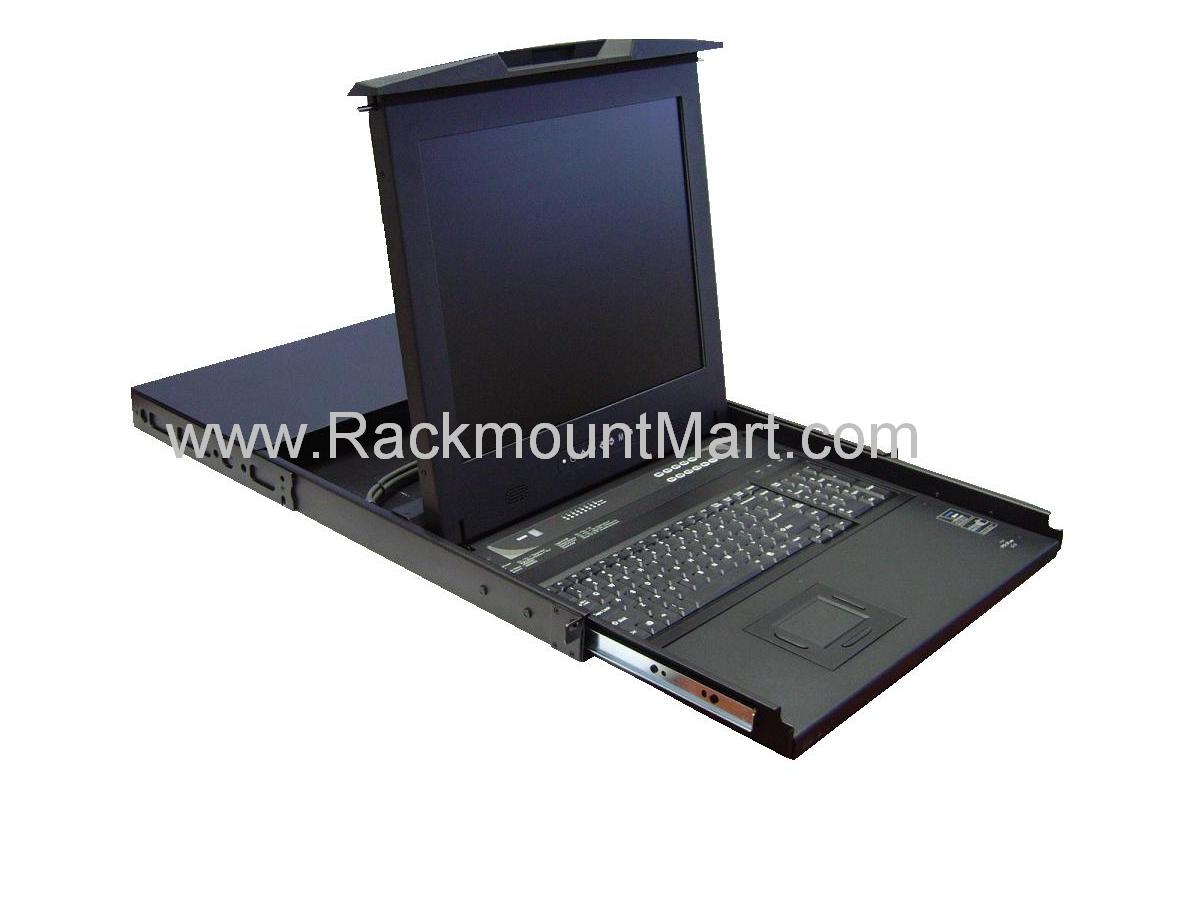

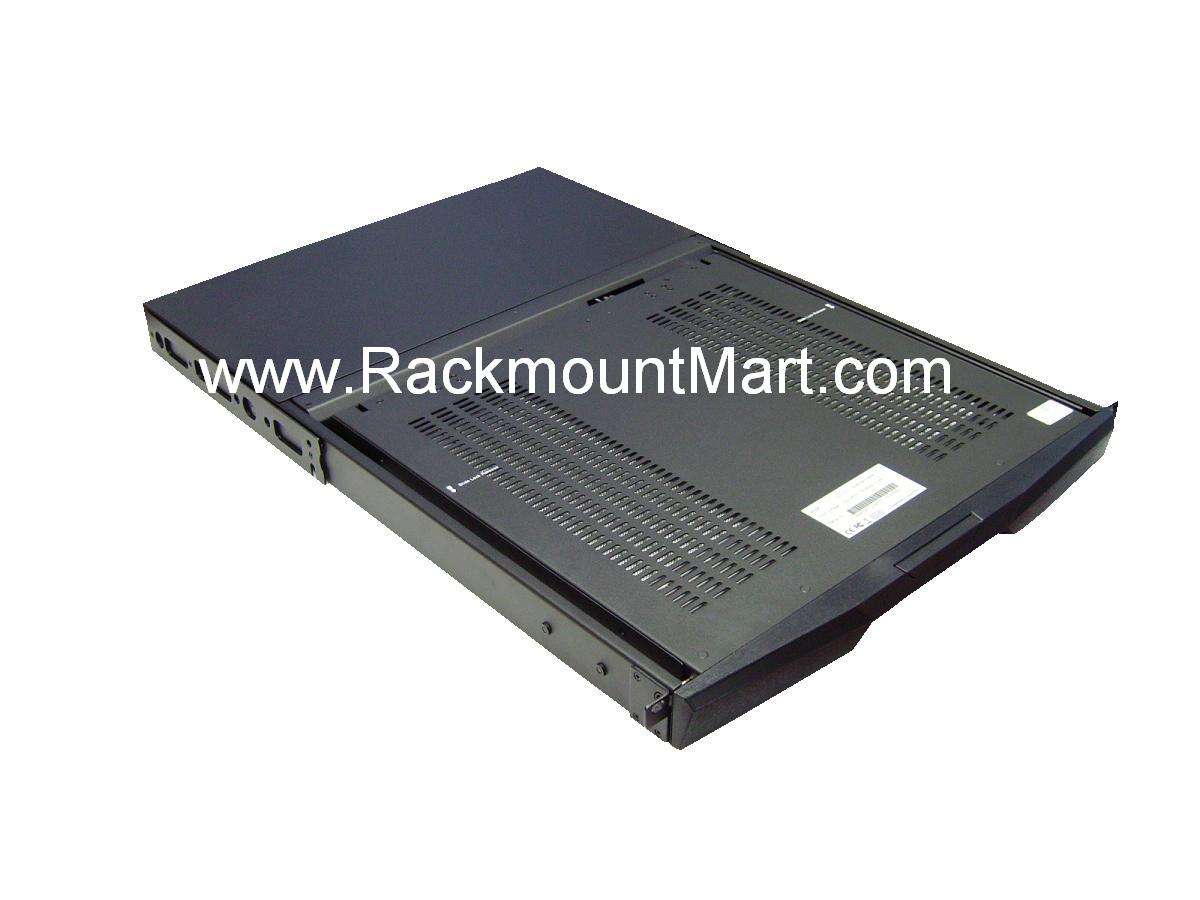

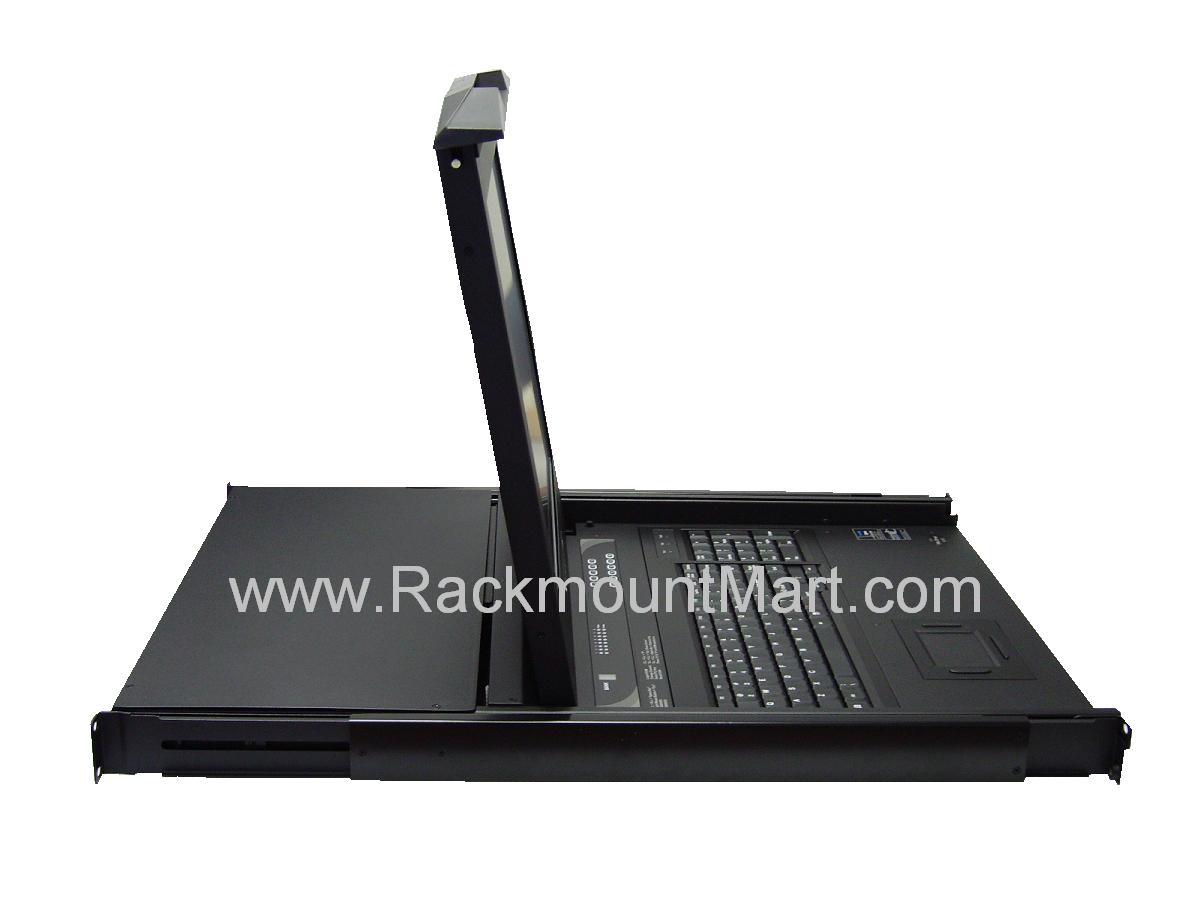

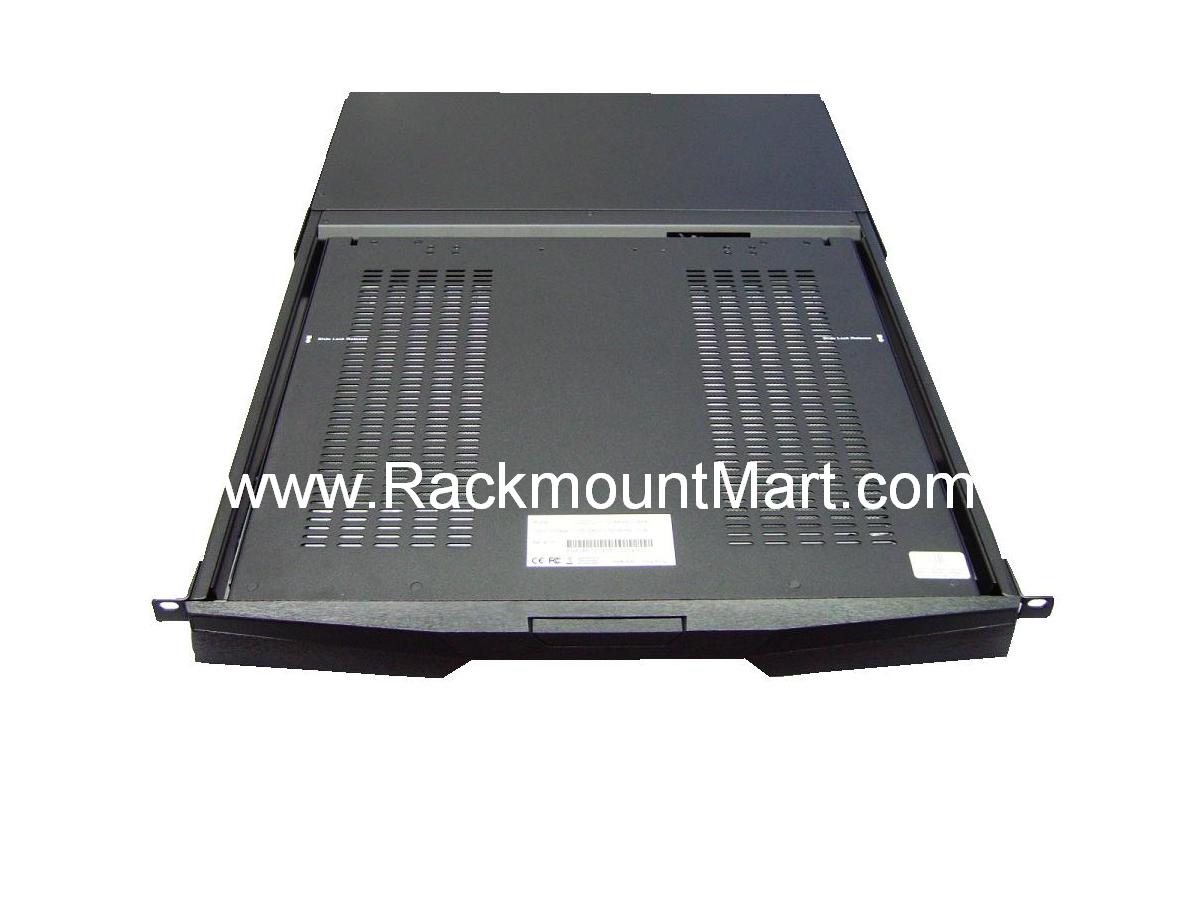

Click on the following photos for more enlarged views :




Features :

•  LED technology
•  Low power consumption
•  Long lifetime up to 70,000 hours
•  Minimum EMI emissions
•  Operation temperature at 0ºC ~ 40ºC
•  High shock & vibration resistance
•  Mercury free
•  Slim size
•  1U keyboard LCD drawer with either 19" LCD
•  Combo interface either PS/2 or USB input to the LCD drawer
•  Mix PS/2, USB & SUN with multi-Platform switch capability
•  "One Man" installation slides for easy, quick installation
•  Slide rails with fixed positions to prevent drawer movement when typing
•  Enhanced aesthetics with new molded front panel and two point lock

Options :

• Composite (BNC or RCA ) Video + S-Video • DVI-D • DC Power input  • Audio

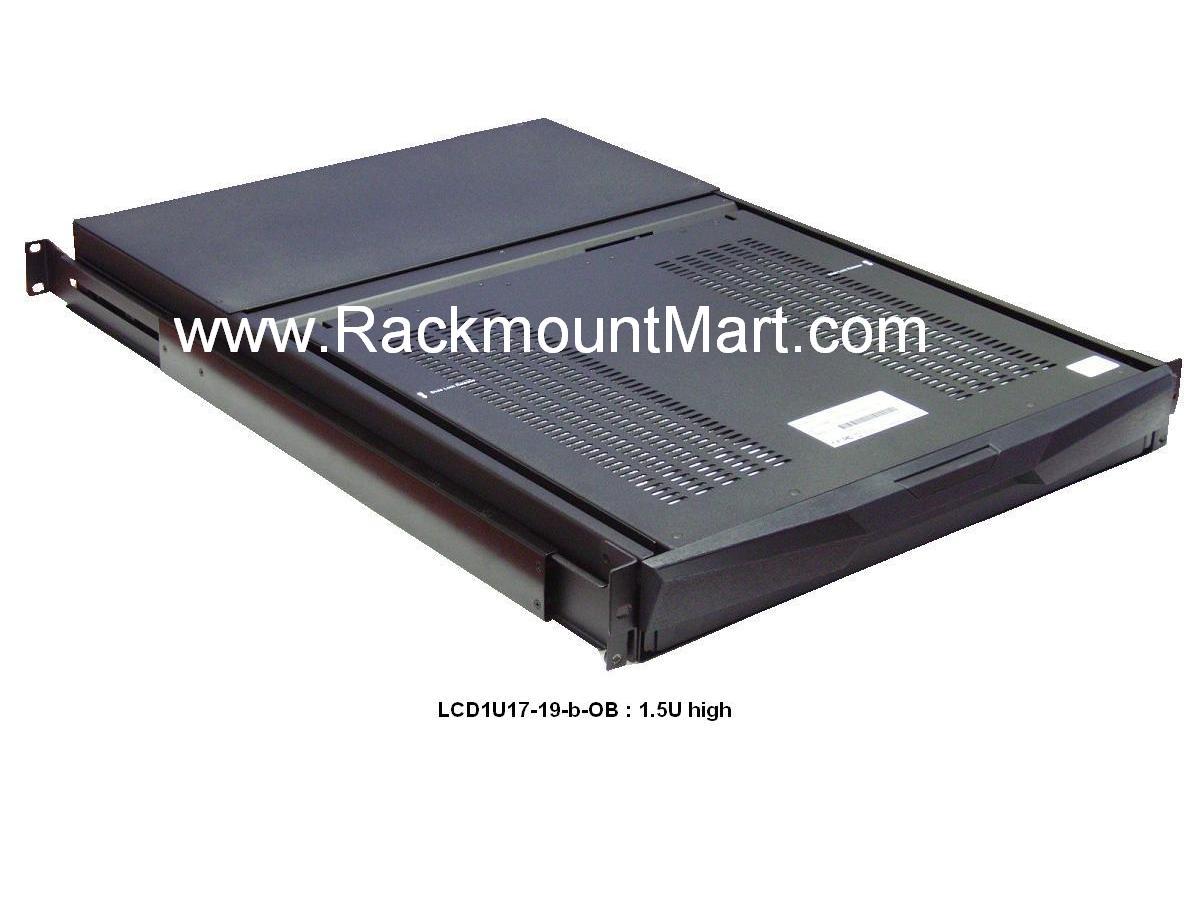

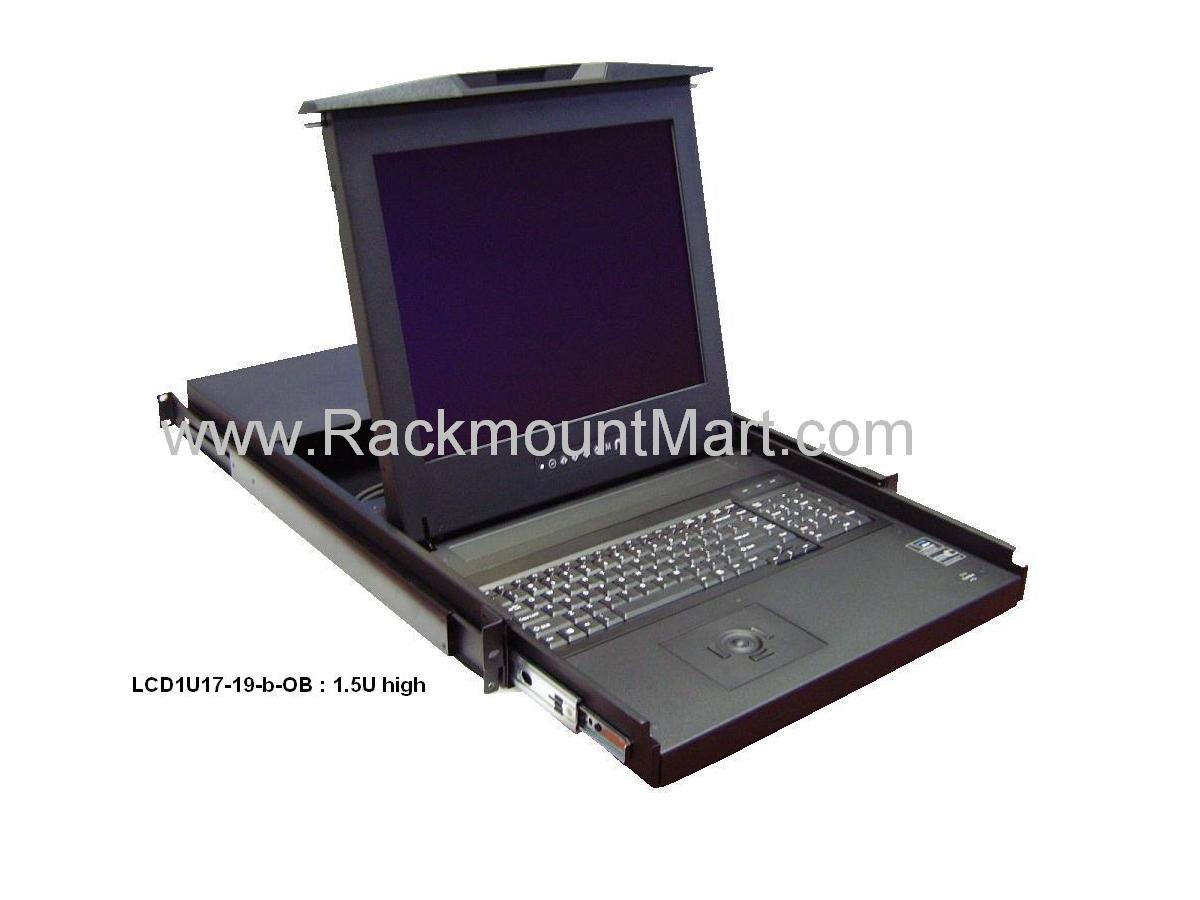

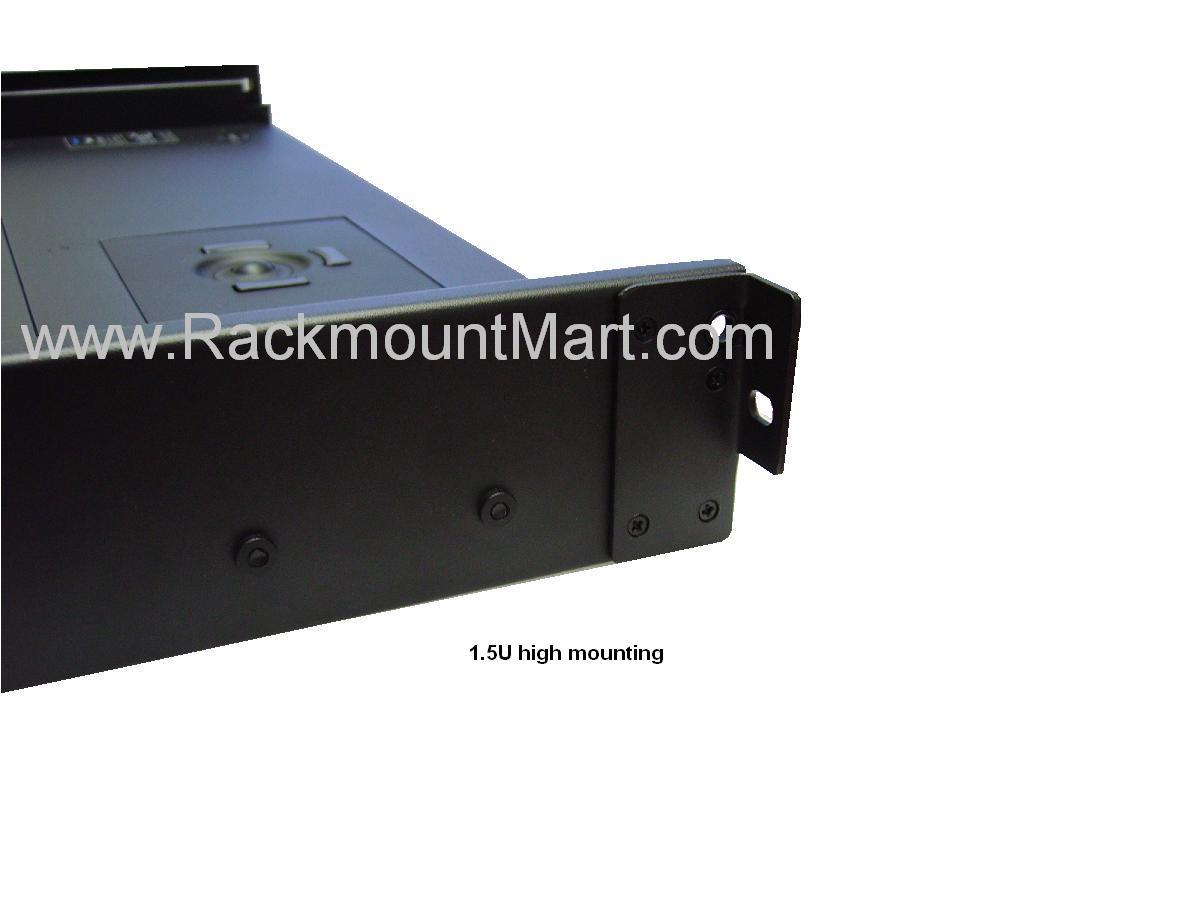

• Touch Screen (***the height will be changed from 1U to 1.5U with touch screen option added )

Optical Bonding Option Anti-reflective Film Option
Yes No Yes No
1mm thick optically clear adhesive for touch screen or 4mm temper glass 0.1mm thick optical interference coating film
Designed to provide visual enhancement
No air gap between the cover glass & LCD panel Cost effective vacuum laminated technology
Greatly reduced specular & diffuse reflection
Increased LCD durability under vibration Increased contrast for improved readability
Eliminate residual and ghost images Easy clean surface

Back to top



Ordering  information

 KVM Support  Keyboard Type Part # Description
 NO KVM ( Single Port ) ** with Built-in Combo  PS2 & USB interface
Single Port for DB-15 PS2
connection with built-in Combo PS2 / USB Interface		 104 keys KB w/ Touchpad  LCD1U19-14-n
Price : $1894		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with 104 keys KB & touchpad & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
104 keys KB w/ Trackball LCD1U19-14-b
Price : $1894		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with otebook KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
 Single Console KVM ( Local console,  8 / 16 / 32 port KVM )
DB-15 KVM ( Local console  DB-15 KVM)
Local console DB-15
8 Port  PS2 KVM Switch		 104 keys KB w/ Touchpad  LCD1U19-14-8KVM-n
Price: $2189		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local console DB-15 8 port PS2 KVM switch  & 8 x 6-ft 3-in-1 PS2 KVM cable
104 keys KB w/ Trackball LCD1U19-14-8KVM-b
Price: $2189		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local console DB-15 8 port PS2 KVM switch  & 8 x 6-ft 3-in-1 PS2 KVM cable
Local console DB-15
16 Port  PS2 KVM Switch 		104 keys KB w/ Touchpad  LCD1U19-14-16KVM-n
Price: $2394		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local console DB-15 16 port PS2 KVM switch  & 16 x 6-ft 3-in-1 PS2 KVM cable
104 keys KB w/ Trackball LCD1U19-14-16KVM-b
Price: $2394		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local console DB-15 16 port PS2 KVM switch  & 16 x 6-ft 3-in-1 PS2 KVM cable
Local console DB-15
8 Port  COMBO USB/PS2 KVM Switch		 104 keys KB w/ Touchpad  LCD1U19-14-8KVM-n-u
Price: $2303		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local console DB-15 8 port COMBO USB/PS2 KVM switch  & 8 x 6-ft 4-in-1 Combo KVM cable
104 keys KB w/ Trackball LCD1U19-14-8KVM-b-u
Price: $2303		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local console DB-15 8 port COMBO USB/PS2 KVM switch  & 8 x 6-ft 4-in-1 Combo KVM cable
Single console DB-15
16 Port  COMBO USB/PS2 KVM Switch		 104 keys KB w/ Touchpad  LCD1U19-14-16KVM-n-u
Price: $2523		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local console DB-15 16 port COMBO USB/PS2 KVM switch  & Local console 16 x 6-ft 4-in-1 Combo KVM cable
104 keys KB w/ Trackball LCD1U19-14-16KVM-b-u
Price: $2523		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local console DB-15 16 port COMBO USB/PS2 KVM switch  & 16 x 6-ft 4-in-1 Combo KVM cable
High Density CAT5  KVM ( Local console CAT5 KVM)
** with Built-in Combo  PS2 & USB interface
Local console High Density  8 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB w/ Touchpad  LCD1U19-14-U8KVM-n
Price: $2621		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )
104 keys KB w/ Trackball LCD1U19-14-U8KVM-b
Price: $2621		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )
Local console High Density  16 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB w/ Touchpad  LCD1U19-14-U16KVM-n
Price: $2712		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )
104 keys KB w/ Trackball LCD1U19-14-U16KVM-b
Price: $2712		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )
Local console High Density   32 Port  High Density High Density CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB w/ Touchpad  LCD1U19-14-U32KVM-n
Price: $3227		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles  Details-> )
104 keys KB w/ Trackball LCD1U19-14-U32KVM-b
Price: $3227		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles  Details-> )
 2 Console KVM (  Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote  DB-15 KVM )
2 Consoles ( Local + Remote console ) DB-15 8 Port  Combo KVM Switch 104 keys KB w/ Touchpad  LCD1U19-14-8KVM2-n
Price: $2492		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local + Remote console DB-15  CAT5 up to 500ft away w/ 8 ports Combo KVM switch  & 8 x 6-ft 4-in-1 Combo KVM cable
104 keys KB w/ Trackball LCD1U19-14-8KVM2-b
Price: $2492		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local + Remote console DB-15  CAT5 up to 500ft away w/ 8 ports Combo KVM switch  & 8 x 6-ft 4-in-1 Combo KVM cable
2 Consoles ( Local + Remote console ) DB-15 16 Port  COMBO USB/PS2 KVM Switch 104 keys KB w/ Touchpad  LCD1U19-14-16KVM2-n
Price: $2674		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local + Remote console DB-15  CAT5 up to 500ft away w/ 16 ports Combo KVM switch  & 16 x 6-ft 4-in-1 Combo KVM cable
104 keys KB w/ Trackball LCD1U19-14-16KVM2-b
Price: $2674		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local + Remote console DB-15  CAT5 up to 500ft away w/ 16 ports Combo KVM switch  & 16x 6-ft 4-in-1 Combo KVM cable
2 Consoles ( Local + IP console ) DB-15  8 Port  Combo KVM Over IP Switch 104 keys KB w/ Touchpad  LCD1U19-14-8KVM2IP-n
Price: $2795		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local + Remote console DB-15  8 port KVM Over IP switch  w/ Combo USB/PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
104 keys KB w/ Trackball LCD1U19-14-8KVM2IP-b
Price: $2795		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local + Remote console DB-15  8 port KVM Over IP switch  w/ Combo USB/PS2 interface  & 8 x 6-ft 4-in-1 Combo KVM cable
2 Consoles ( Local + IP console ) DB-15  16 Port  Combo KVM Over IP Switch 104 keys KB w/ Touchpad  LCD1U19-14-16KVM2IP-n
Price: $2985		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & Local + Remote console DB-15  16 port KVM Over IP switch  w/ Combo USB/PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
104 keys KB w/ Trackball LCD1U19-14-16KVM2IP-b
Price: $2985		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  Local + Remote console DB-15  16 port KVM Over IP switch  w/ Combo USB/PS2 interface  & 16 x 6-ft 4-in-1 Combo KVM cable
High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM )
** with Built-in Combo PS2 & USB interface
2 Consoles ( Local + Remote  console ) High Density 8 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface  104 keys KB w/ Touchpad  LCD1U19-14-U8KVM2-n
Price: $2848		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with 104 keys KB & touchpad & 2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
104 keys KB w/ Trackball LCD1U19-14-U8KVM2-b
Price: $2848		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface   (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
2 Consoles ( Local + Remote  console ) High Density 16 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB w/ Touchpad  LCD1U19-14-U16KVM2-n
Price: $2939		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
104 keys KB w/ Trackball LCD1U19-14-U16KVM2-b
Price: $2939		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface   (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
2 Consoles ( Local + Remote  console ) High Density 32 Port  High Density CAT.5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB w/ Touchpad  LCD1U19-14-U32KVM2-n
Price: $3455		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface   (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
104 keys KB w/ Trackball LCD1U19-14-U32KVM2-b
Price: $3455		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
2 Consoles ( Local + IP console ) High Density
8 Port  CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface		 104 keys KB w/ Touchpad  LCD1U19-14-U8KVM2IP-n
Price: $3091		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & 2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
104 keys KB w/ Trackball LCD1U19-14-U8KVM2IP-b
Price: $3091		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
2 Consoles ( Local + IP console ) High Density
16 Port  CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface		 104 keys KB w/ Touchpad  LCD1U19-14-U16KVM2IP-n
Price: $3167		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
104 keys KB w/ Trackball LCD1U19-14-U16KVM2IP-b
Price: $3167		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
2 Consoles ( Local + IP console ) High Density

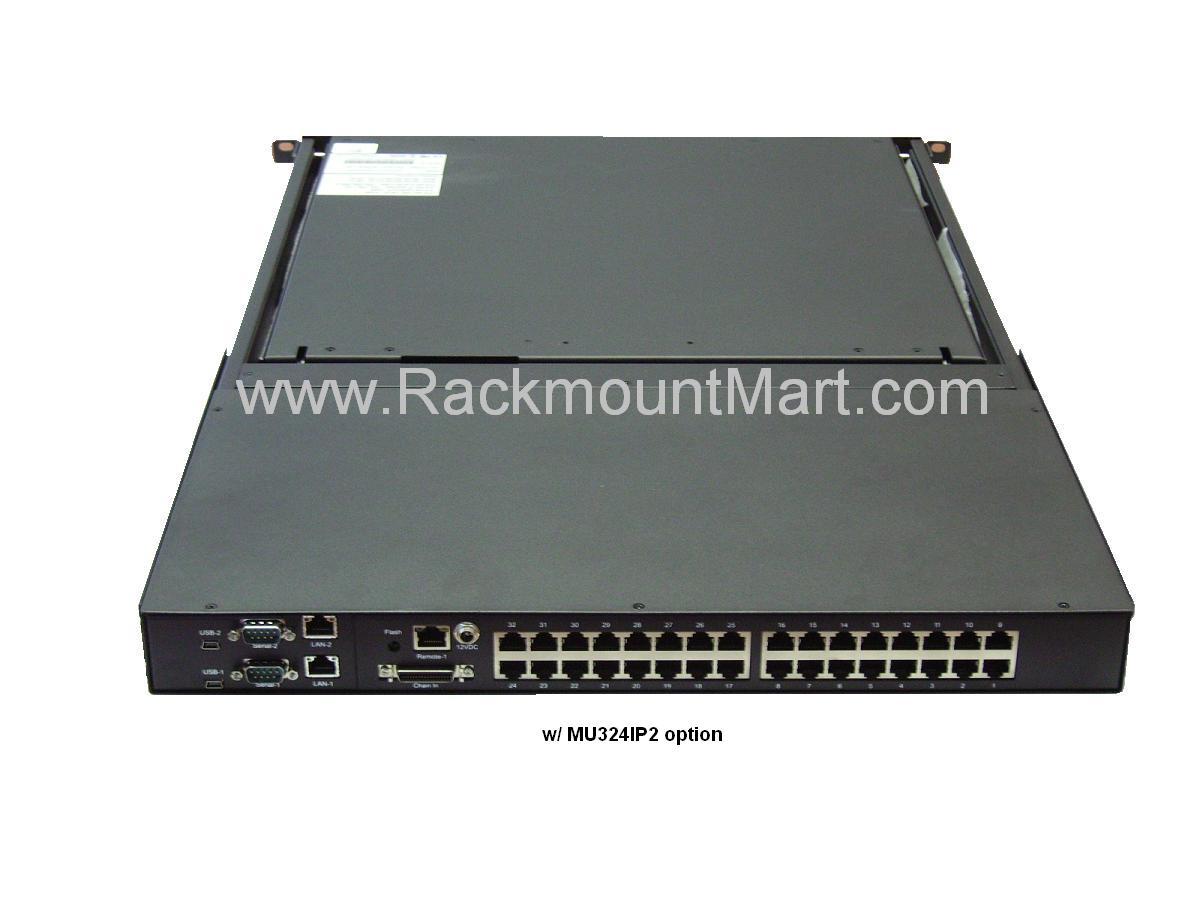

32 Port  CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface		 104 keys KB w/ Touchpad  LCD1U19-14-U32KVM2IP-n
Price: $3697		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & touchpad & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
104 keys KB w/ Trackball LCD1U19-14-U32KVM2IP-b
Price: $3697		 1U Sunlight LCD :19" TFT LCD Monitor Keyboard Drawer with  104 keys KB & trackball &  2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface  (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
Option
-12VDC
Price : $171		 Add 12V DC power supply
-24VDC
Price : $171		 Add 24V DC power supply
-48VDC
Price : $171		 Add 48V DC power supply
-BNC
Price : $114		 Add Composite Video (RCA) + S-video
-AV
Price : $114		 Add Composite Video (BNC) + S-video
-DVI
Price : $114		 Add DVI-D Input
-TRS
Price : $343		 Add e-Resistive touch screen + Serial controller (the Height changed from 1U to 1.5U)
-TRB
Price : $343		 Add e-Resistive touch screen + USB controller (the Height changed from 1U to 1.5U)
-TCS
Price : $514		 Add e-Capacitive touch screen + Serial controller (the Height changed from 1U to 1.5U)
-TCB
Price : $514		 Add e-Capacitive touch screen + USB controller (the Height changed from 1U to 1.5U)

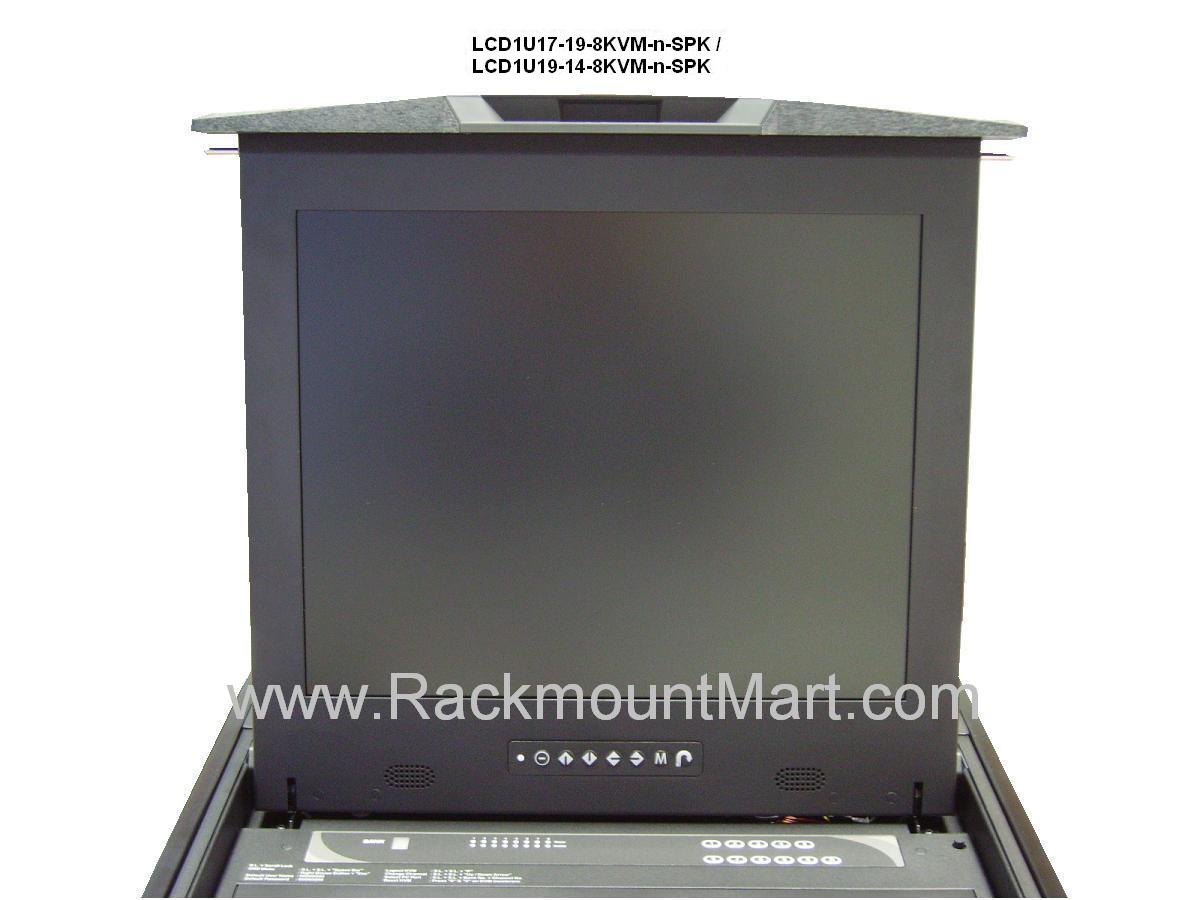

-SPK
Price : $114		 Add speaker





Availability: Usually ships the same business day

LCD1U19-14$1,894.00


MODEL: :


Single Console DB-15 KVM:


Single Console High Density CAT5 KVM:


2 Consoles DB-15 KVM:


2 Console High Density CAT5 KVM:


OPTIONAL FEATURES
Composite Video & S-Video :

S-Video & BNC :

DVI-D Input :

DC Power Input Option( unit depth turn to 19 inch):
