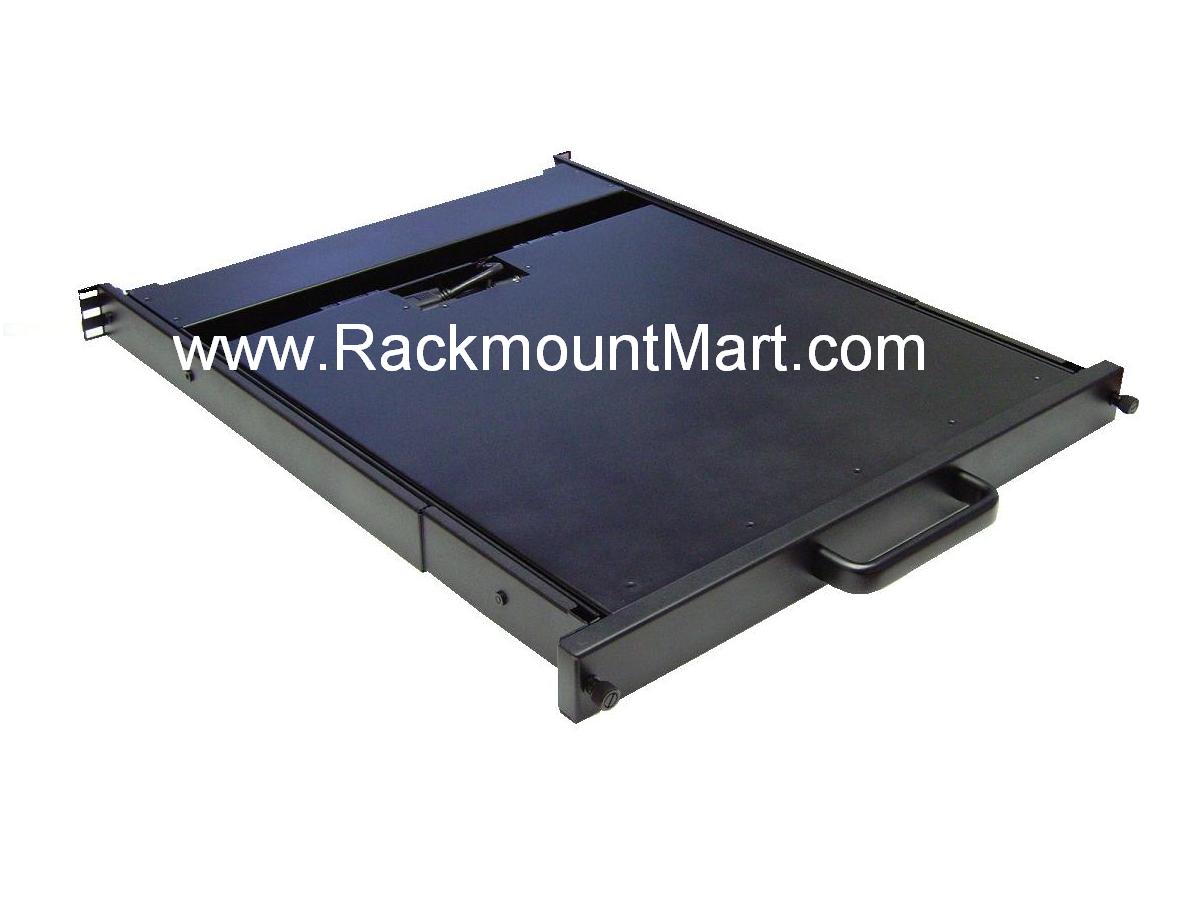

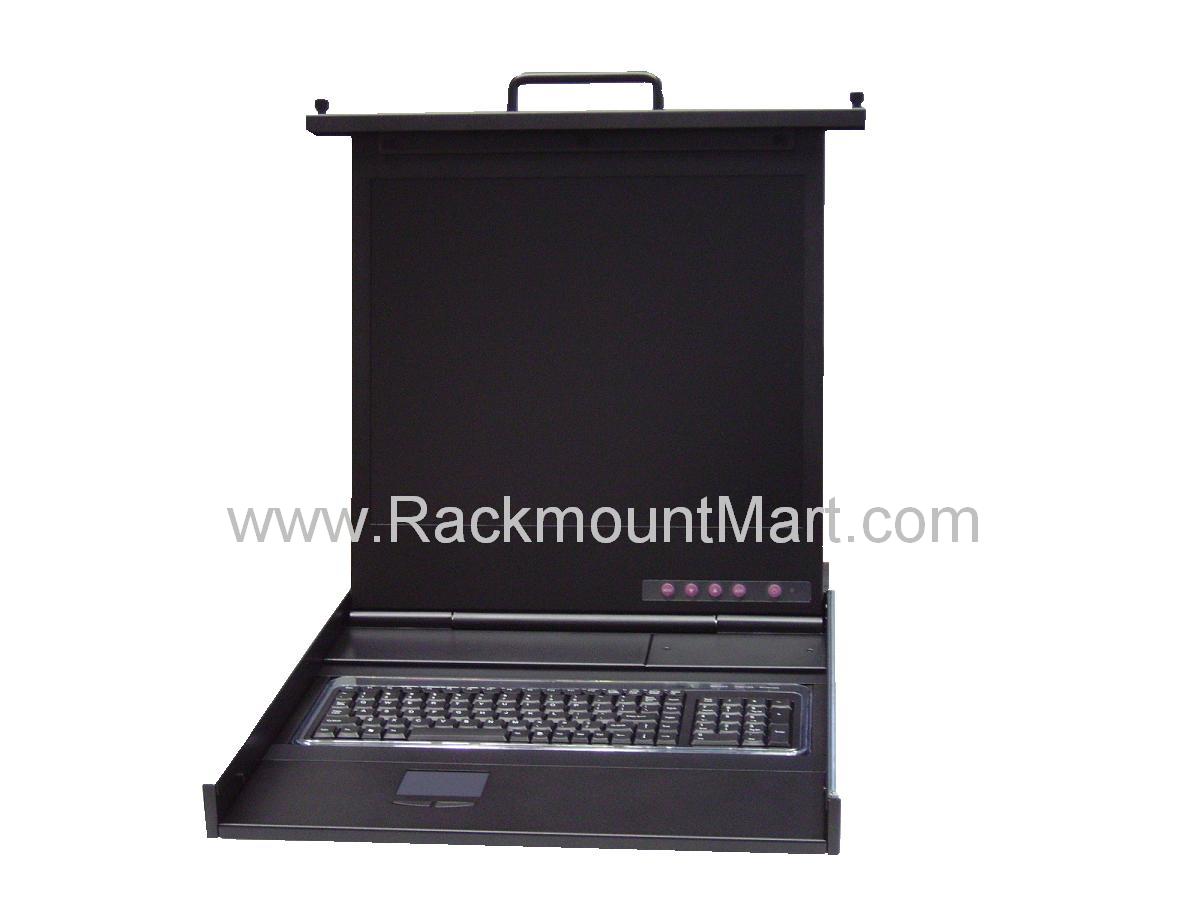

LCD1U19-16 1U single rail console 19" LCD Monitor Keyboard Drawer, Short Dept : 21.9 inches / 557.2mm only  .





*** This model is discontinued. Learn more about replacement model LCD1U19-17  ***


1U single rail console 19" LCD Monitor Keyboard Drawer Short Dept : 21.9" / 557.2mm only


Specification

Form Factor

1U Rack mounting on single rails

Compatibility

Compatible with SUNs, IBMs, HPs, DELLs and Mix PCs with USB-enable

Operating System

Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX, SUN Support USB

Dimension

557.2 x 482 x 43.7 mm
21.9 x 19.0 x 1.7 inches

Panel: 19" LCD panel

Display type

Active Matrix TFT LCD

Resolutions

Maximum Resolution up to 1280 x 1024 (SXGA)

Pixel Pitch

Supports 0.098 mm x 0.294 mm

Viewing Angle (CR>10)

Right-Left view 140° (typical)
Up-Down View 140° (typical)

Contrast Ratio

500 : 1

Brightness

White 300 cd/m² (Center 1 point typical)

Back Light

Four Lamps for Back Light

Supported Colors

16.7M Colors (8-bit with FRC)

Response Time

Rising Time 2 ms, Decay Time 10 ms

Connectors

1 x VGA HDDB-15 pin, 1 x USB, 1 x DC Inlet

System Cables

VGA x 1 + USB x 1 cable ** For optional Cherry trackball keyboard , either PS2 or USB is supported.

Keyboard Mouse

105 key keyboard with touch pad

Sync

45 ~ 80 KHz

Power Source

100 ~ 240 VAC input

Power Consumption

25 W, 21.05 W for Panel

Temperature

Operate 0 ~ 50 °C / 32 ~ 122 °F
Storage -20 ~ 60 °C / -4 ~ 140 °F

Humidity

10% ~ 90% RH

Chassis Construction

Heavy duty steel materials

Keyboard Language

US, UK, German, French, Spanish, Italian, Portuguese, Dutch, Swiss, Belgium, Swedish, Norwegian, Danish, Japanese, Mandarin, Russian, Hebrew

   Front & Rear View





               *click on photo for enlarged view


     Diagram


               *click on photo for enlarged view



       Free Ground Shipping *Click for details












Features :

•  Cost effective LCD console
•  Replaceable keyboard design
•  Single rail easy to install and use
•  Support more than 17 various keyboard languages
•  Bright Active Matrix TFT display
•  OSD function (On Screen Display) for LCD display
•  Support USB interface
•  Optional PS2 interface with Cherry Trackball Keyboard



More Photos :


Back to top

 Ordering  information

Part # Description
LCD1U19-16
1U 19" Single Slide LCD Panel w/ compatible keyboard & touchpad & 1 x 6-ft all-in-one USB cable. Black
LCD1U19-16-c-ps2
1U 19" Single Slide LCD Panel w/ Cherry keyboard & trackball & 1 x 6-ft all-in-one PS2 cable. Black
LCD1U19-16-c-usb
1U 19" Single Slide LCD Panel w/ Cherry keyboard & trackball & 1 x 6-ft all-in-one USB cable. Black






LCD1U19-16
