High Bright Sunlight Readable LCDR7U19-03 7U Rackmount 19"  Widescreen LCD Monitor  w/ Optional AV, BNC & DVI, Black





Part # LCDR7U19-03


             SiriusView7U Rack Sunlight Monitor  : 19 inches Industrial Grade A LCD Widescreen Monitor with LED Technology
                    Optional S-Video & Composite Video (RCA or BNC ) / DVI / HDMI / Audio / Quad Screen / Touch Screen /
                              DC Power Input  / NEMA 4  IP65 front protection / Optical Bonding / Anti-reflective Film

                                       Sunlight Readable /  Viewable under Ambient Lighting Condition
19" Widescreen LCD w/ LED-backlit panel

Display type

TFT 19" High Brightness Widescreen LCD panel

Resolutions

1440 x 900

Contrast ratio

1000 : 1 typical

Brightness

1000 cd/ m2 typical

Active area (mm)

408 x 255

Panel color

16.7M

Viewing angle

160° x 160°

Back light

LED

MTBF (hrs)

50,000

Signal input

VGA or DVI-D

Power

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption : Max. 84 Watt, Standby 5 Watt

                                  Mechanical

Casing Color

Black front panel / Dark grey rear case

Product Dimension

480 x 58 x 310 mm /
18.9 x 2.3 x 12.2 inch

Net Weight

9 kgs / ( 20 lbs )
Package Content LCD Monitor x 1 ,  6-ft VGA cable x 1, Power adapter X 1, Power cord X 1
                                  Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE, RoHS Compliant

 Download User Manual
 Download Product Sheet
Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

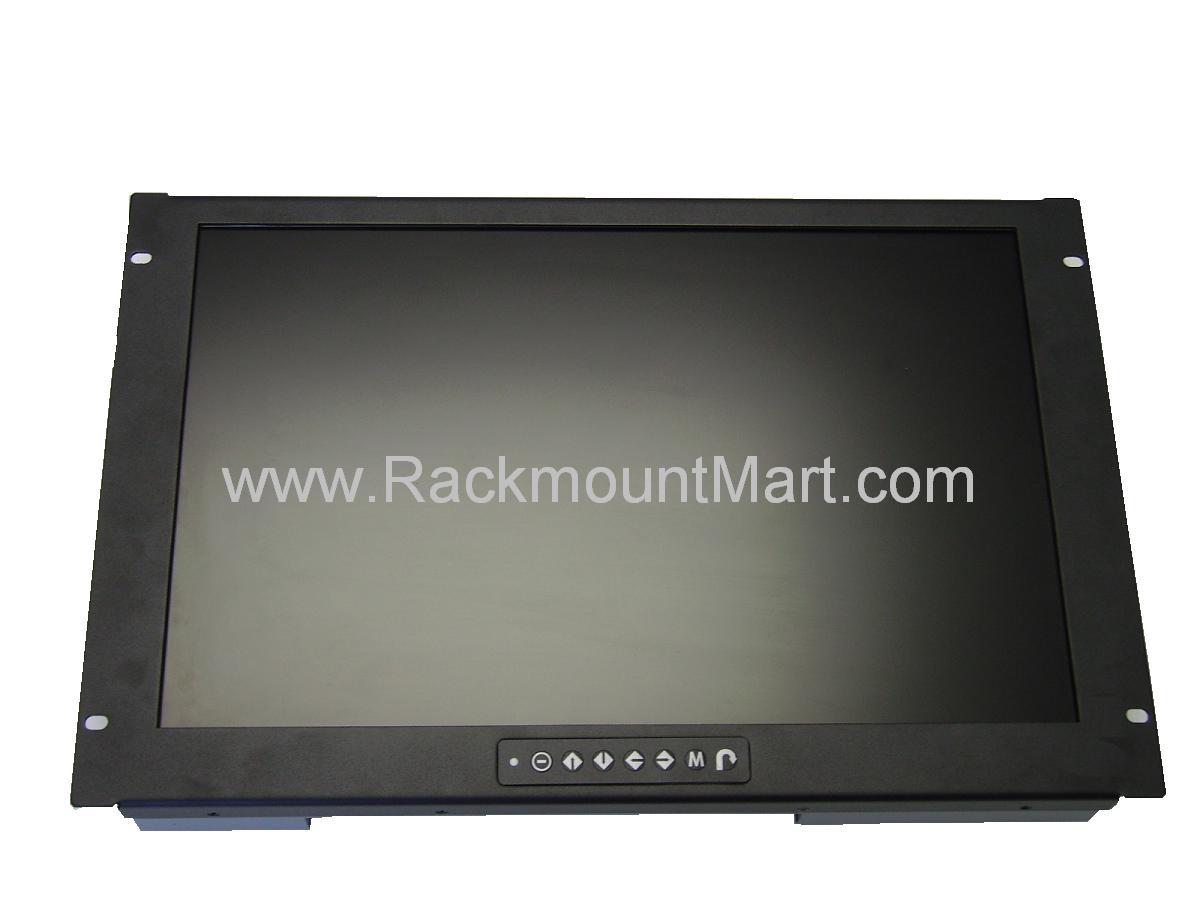

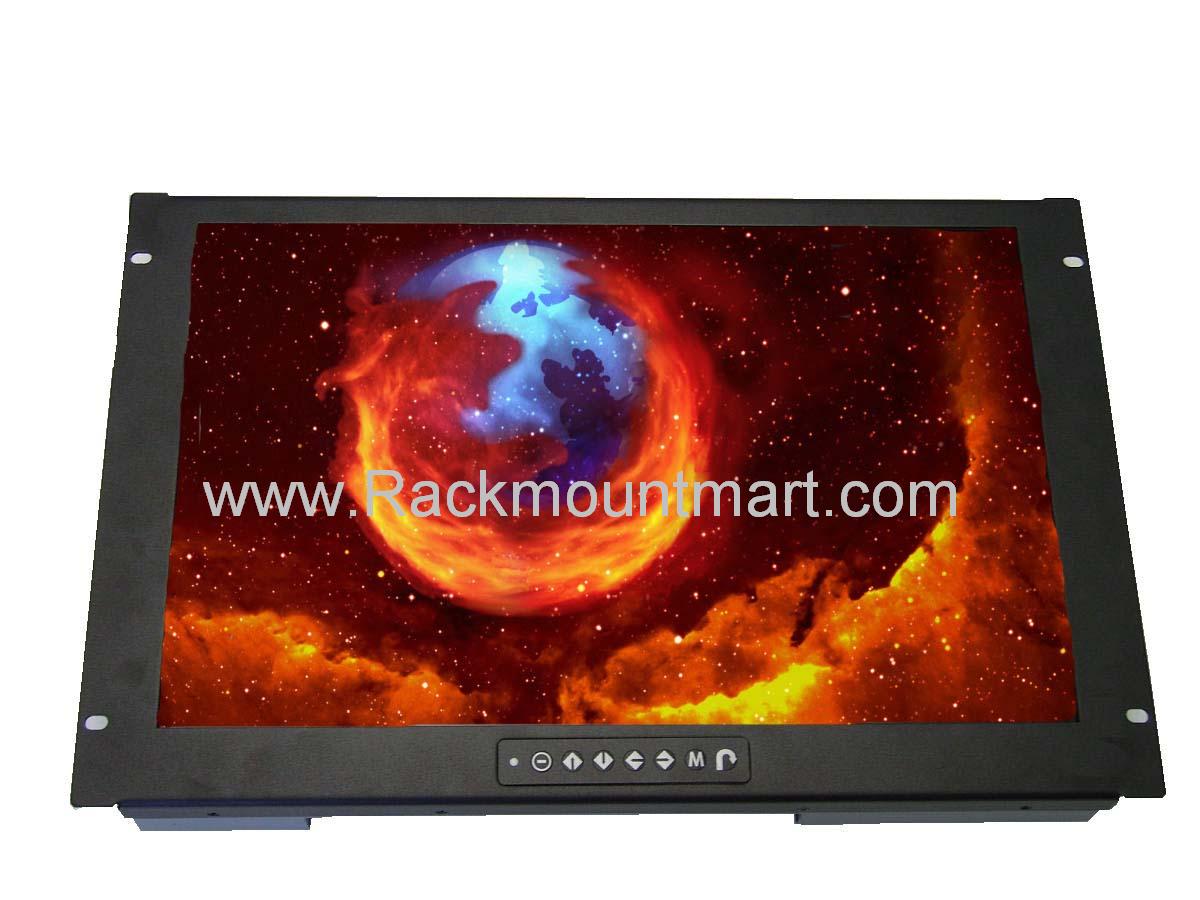

  Front View

  Construction


*click  for enlarged view

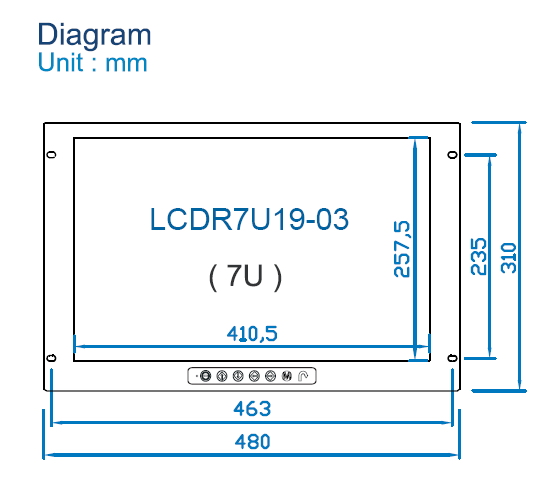

   Front / Bottom / Side Views & Dimensions


*click for enlarged view

   Free Ground Shipping *Click for details

  More photos (click to enlarge )


   DISPLAY BENEFITS :
  • 7U rackmount 19" widescreen LCD with high brightness 1000 cd/m²
  • Green LED-backlit panel technology
  • Ideal for CCTV security & industrial control
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 48V, 24V or 12VDC power
  • MIL-type or lockable connector

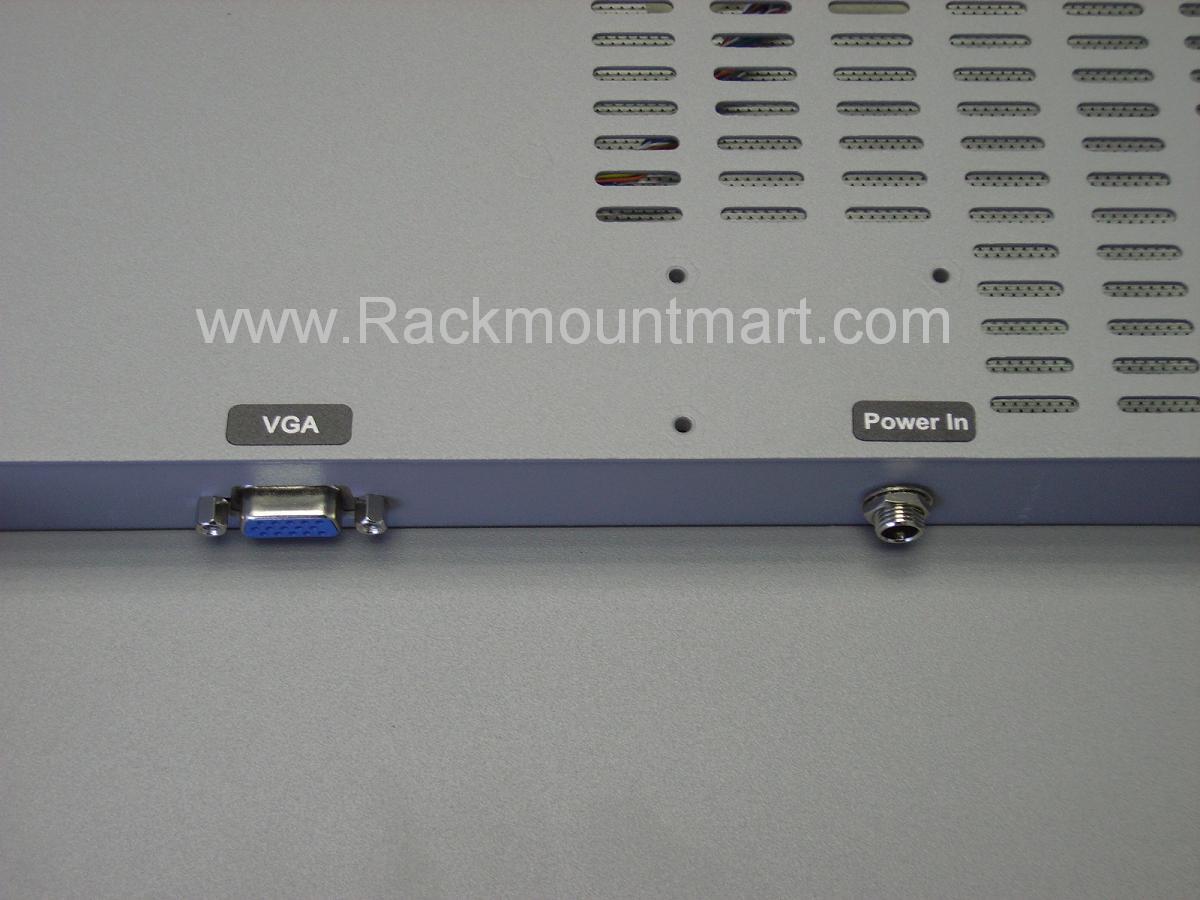

     Diagram for  I/O Outlet


Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan



Ordering information
Part Number  Description
LCDR7U19-03
Price : $1470

Bright Screen : 7U  Rack mount 19" Industrial Grade A Ultra Bright / Sun Readable TFT LCD Display Panel(VGA + DVI-D)

LCDR7U19-03-BNC
Price : $1621
Bright Screen : 7U  Rack mount 19" Industrial Grade A Ultra Bright / Sun Readable TFT LCD Display Panel with Composite Video (BNC) & S-Video Input
(VGA + DVI-D + BNC + S-Video + Audio)
LCDR7U19-03-HDMI-BNC
Price : $1621
Bright Screen : 7U  Rack mount 19" Industrial Grade A Ultra Bright / Sun Readable TFT LCD Display Panel with HDMI Input
(VGA + HDMI w/ speaker + BNC + S-Video + Audio)
LCDR7U19-03-HDMI-AV
Price : $1803
Bright Screen : 7U  Rack mount 19" Industrial Grade A Ultra Bright / Sun Readable TFT LCD Display Panel
(VGA + DVI-D + HDMI + BNC + S-Video + Audio w/ speaker)
Optional NEMA4 / IP65
-IP65
Price : $129
Add front IP65 protection for LCD size - 19"
Optional Video/Audio Inputs
-SDI
(Upgrade from LCDR7U19-03)

Price : $486
With VGA + DVI-D + HDMI w/ speaker + 3G / HD / SD-SDI input Download Spec Sheet
-SDI
(Upgrade from LCDR7U19-03-HDMI-AV)

Price : $314
With VGA + DVI-D + HDMI + BNC + S-Video + Audio w/ speaker + 3G / HD / SD-SDI input Download Spec Sheet
-MC
Price : $93
Add Multi-display control
( VGA + DVI-D + Multi-Display Control )
Download Spec Sheet
Optional  Touch screen
-TRS
Price : $271
Add Resistive touch screen + Serial controller
-TRB
Price : $271
Add Resistive touch screen + USB controller
-TCS
Price : $457
Add Capacitive touch screen + Serial controller
-TCB
Price : $457
Add Capacitive touch screen + USB controller
Optional  DC Input Power
-DC12
Price : $215
Add 12V DC input power supply
-DC24
Price : $215
Add 24V DC  input power supply
-DC48
Price : $215
Add 48V DC  input power supply
-DC110
Price : $357
Add 110V DC  input power supply
-DC125
Price : $357
Add 125V DC  input power supply
Optional Connectors – For DC power only
-MD
Price : $93
Add MIL-type DC Lockable jack, Male Download Spec Sheet
-MA
Price : $143
Add MIL-type VGA Lockable jack, Male Download Spec Sheet
-LD
Price : $36
Add Lockable DC jack, Male Download Spec Sheet
-LS
Price : $36
Add Lockable USB jack Download Spec Sheet









Availability: Usually ships the same business day

LCDR7U19-03$1,470.00
Option:

Optional NEMA4 / IP65:

Optional Video/Audio Inputs: :

TouchScreen Option:

DC Input Power Adapter:

Optional Connectors ĘC For DC power only: :
