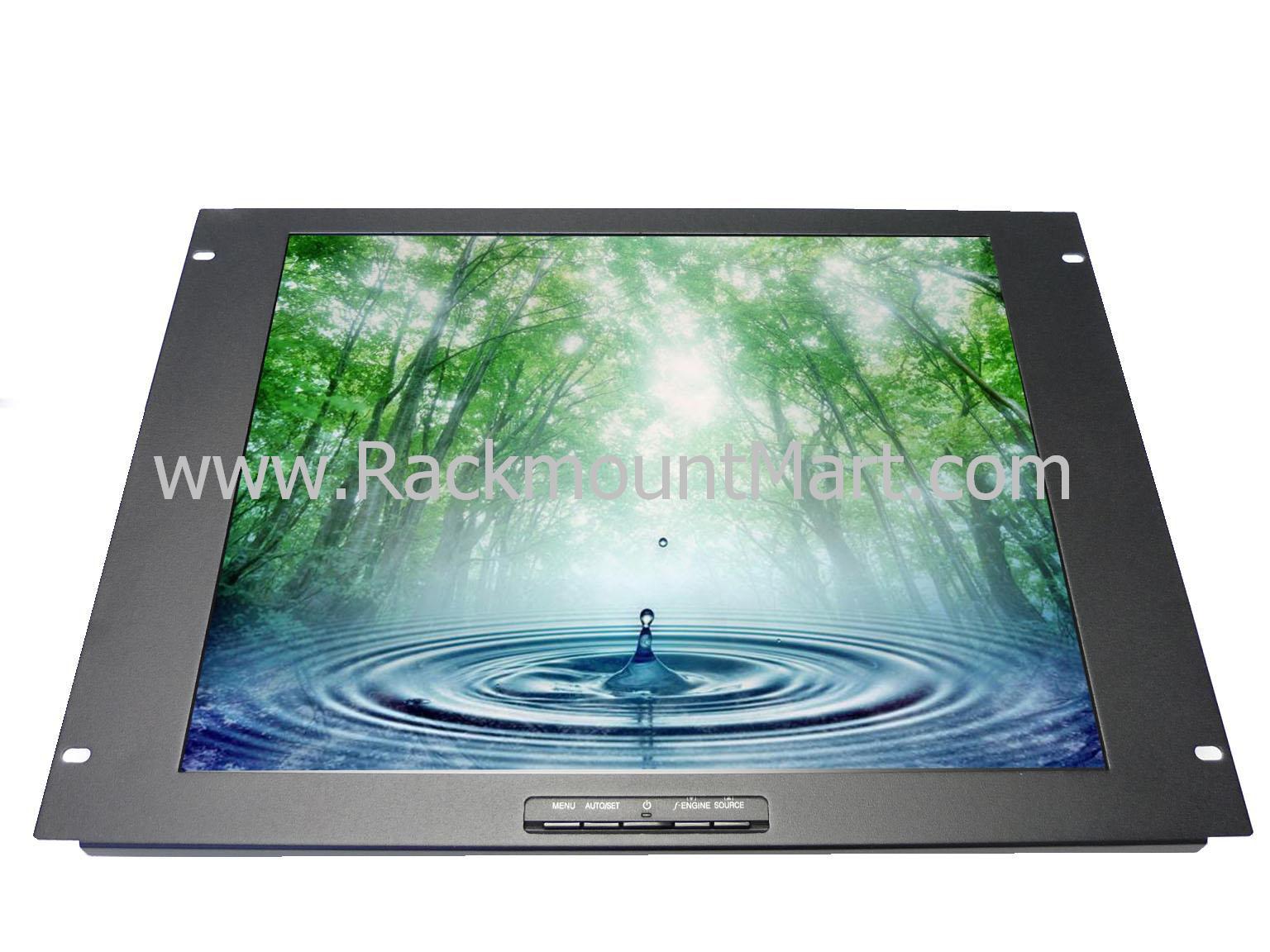

 LCDR8U19-10 8U Rackmount 19" TFT LCD Monitor with VGA & DVI input  High Contrast Ratio & Wide Viewing Angle( Made In U.S.A.) Optional Lexan Sheild





Rack Mountable Monitor :  Part #  LCDR8U19-10

**This model is discontinued .  Learn more about replacement model LCDR8U19-11**


8U Rack mount  19"  Rack Mountable TFT  LCD Monitor
Steel front panel construction with a durable power

Made in U.S.A.


Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor, tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor
                                                              * Click on the photos to enlarge
            Free Ground Shipping *Click for details

Features :
- 19" LG Active Matrix TFT LCD panel with resolution 1280 x 1024
- High contrast ratio 800: 1 for excellent picture quality
- Wide viewing angle enable mounting higher in rack
- Space saving : only  2.7" deep, enable mounting in confined spaces
- Fits in standard 19" rack/cabinet

- Steel front panel construction with a durable powder coat finish
- Analog & Digital Inputs

- On Screen Display (OSD)

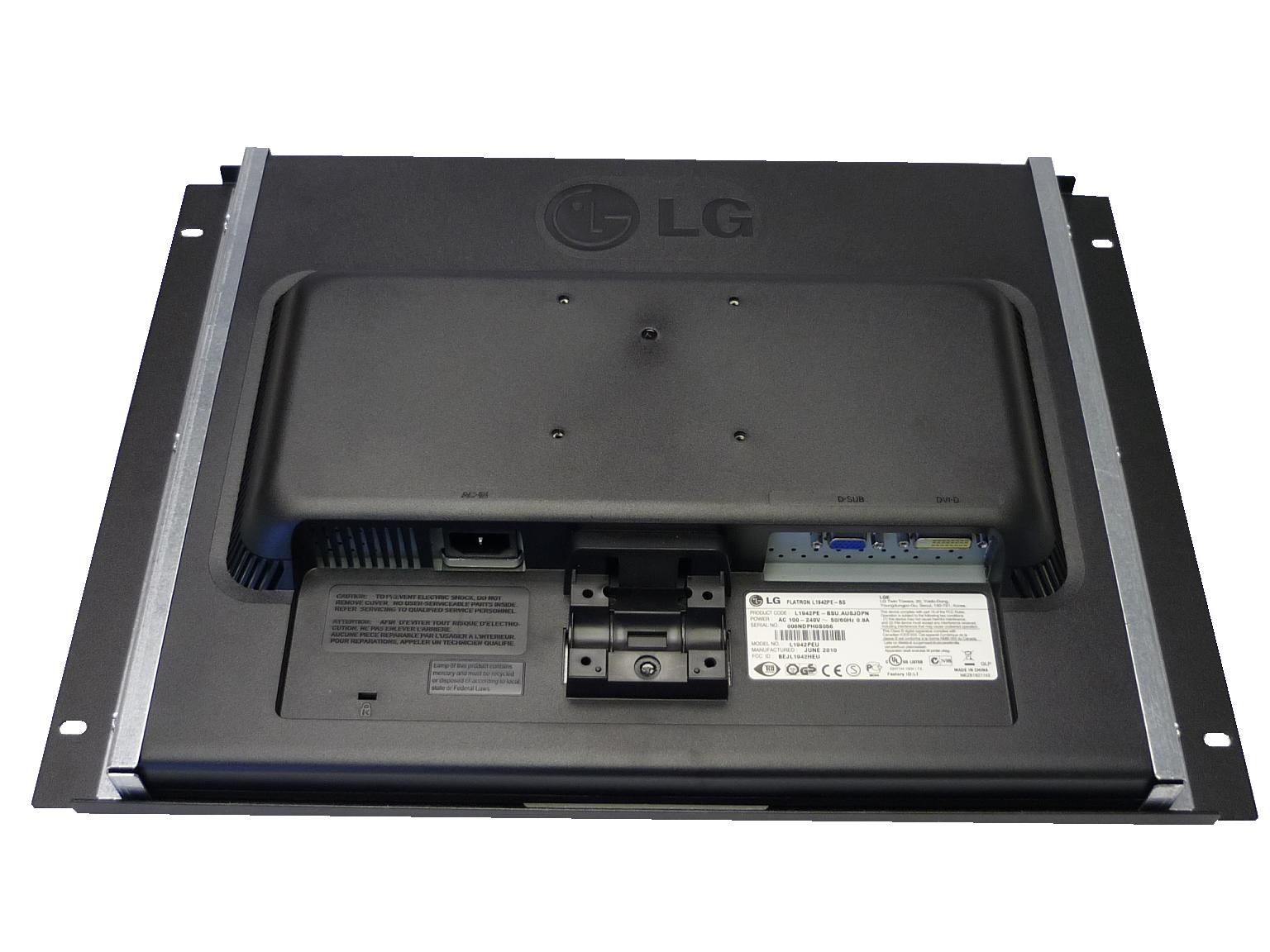

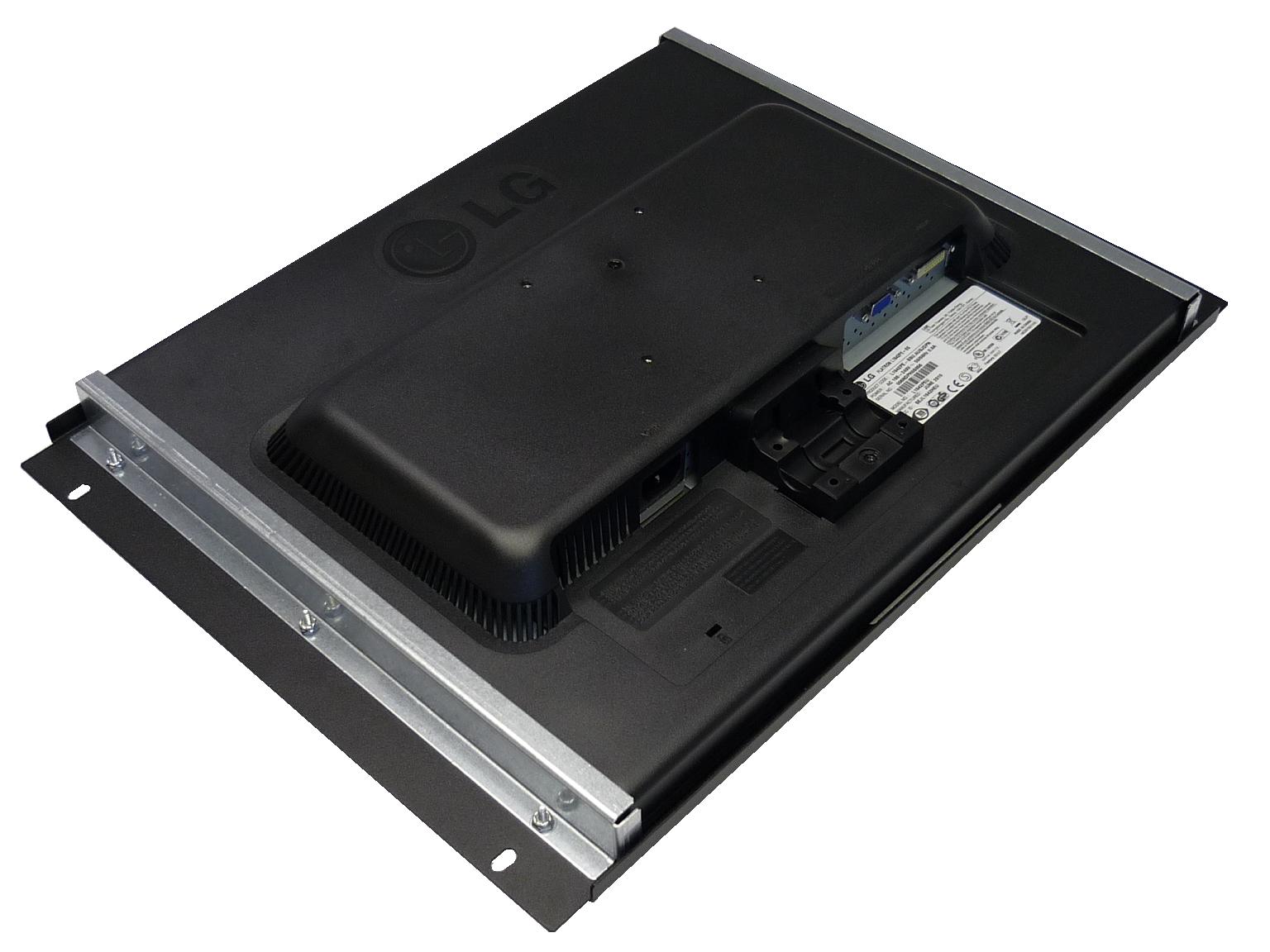

  More photos (click to enlarge )
Dimensions 19.0" (W) x 14.0" (H) x 2.7" (D)
Color Black
Display Type 19" TFT active matrix LCD.
Resolution VGA up to 1280 x 1024 maximum, 16.2M colors.
Frequency Horizontal:  30-81KHz
Vertical: 56-75Hz
Response Time 5 ms (typ).
Brightness 250 nits typical
Contrast Ratio 800:1 typical
Viewing Angle Horizontal: 170 degrees
Vertical: 160 degrees
Input Signal VGA: RGB. Analog Video, TTL H & V sync
Digital : DVI-D (TDMS)
Input Connector Analog : 15-pin mini D-sub    Digital : 24 pin DVI-D

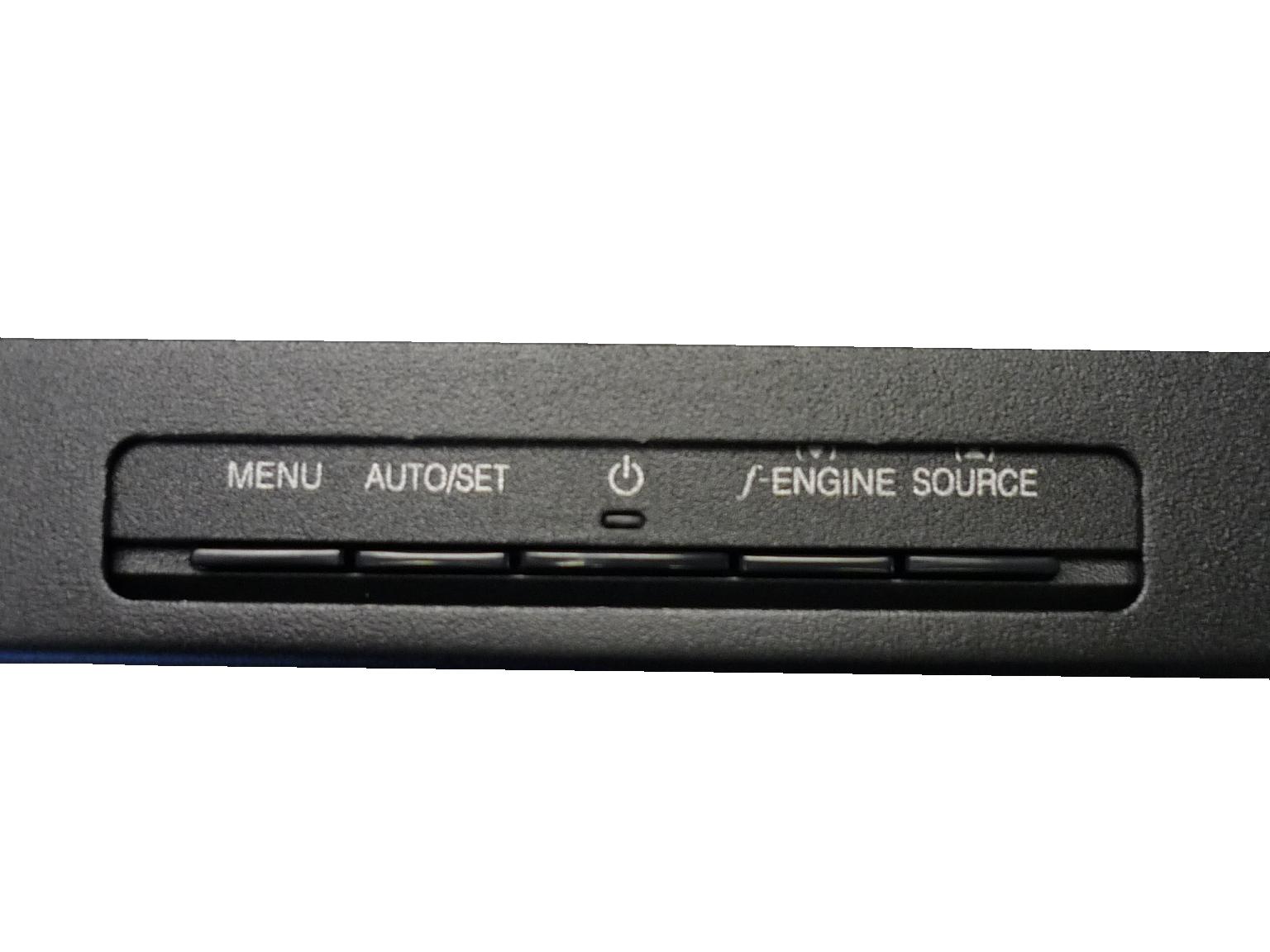

On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD H & V Position, Input Select , Reset, Color Temp
Plug & Play DDC1 and DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 38 Watts Maximum
Environment Temperature Operating:10 to 40 degrees C
Storage: -20 to 45 degrees C
Humidity Operating: 10% to 80% RH (max)

Ordering  information

Part Number  Description
LCDR8U19-10-bk  8U Rack 19" LG  TFT LCD Monitor , black
LCDR8U19-10-bk-Lex  8U Rack 19" LG  TFT LCD Monitor , black, with Lexan shield on screen




LCDR8U19-10
Option:
