8U Rack SAMSUNG 19 inch LCD Widescreen Quad Monitor
With RS-232 / Alarm I/O / VCR in & VCR out / AV / BNC / VGA
| Panel: SAMSUNG 19 inch LCD Widescreen |
Display type |
Active Matrix TFT |
Resolutions |
1440 x 900 |
Response time |
Tr =1.4 ms / Tf =3.7ms (Typ.) |
Contrast ratio |
1000 : 1 typical |
Brightness |
300 cd/ m2 typical |
Pixel pitch |
0.284mm (H) x 0.284mm (W) |
Panel color |
16.7 million display colors |
Viewing angle |
160 º (Horiz.) / 160 º (Vert.) |
Video: |
Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p |
OSD Control |
Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save |
|
External Connection |
| Power Input |
12V/5A DC adapter |
| Video Input |
15-pin D-Sub connector |
|

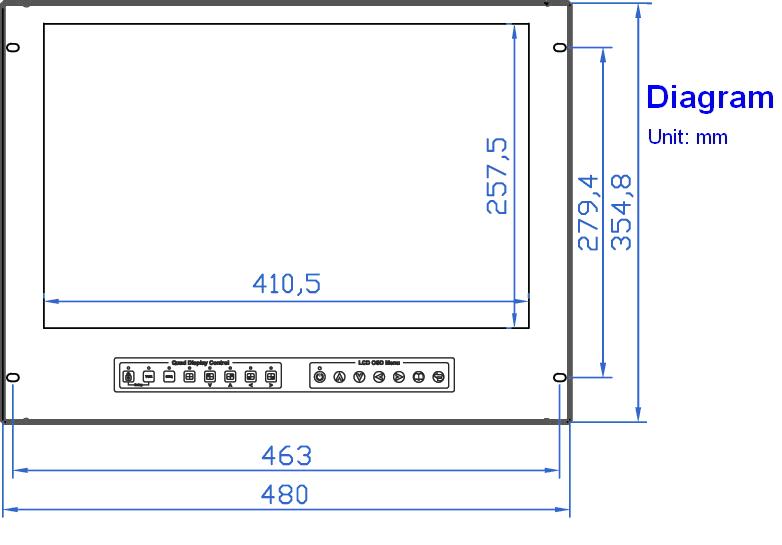

Product Dimension |
48.0 (W) x 35.48(H) x 7.15(D)cm /
18.9" x 14" x 2.8" |
| Temperature |
0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5~90%, non condensing |
| Shock |
10G peak acceleration
(11ms duration) |
| Vibration |
5~500Hz, 1G RMS random vibration |
Safety Approval |
FCC, CE, RoHS |
Optional Accessories & Peripheral |
Details  |
|
|
|
Features :
• Built-in Quad Display
• Great for CCTV security &industrial control
• High resolution 1440 x 900, 19" widescreen LCD in 8U
• Standard D-sub 15-pin VGA input connector
• Built-in RS-232, Alarm I/O, VCR in/out, AV, BNC
• Optional DC Power Supply
• Side to side wide-angle viewing .
• Built in On Screen Display controlled by integral membrane switches
• Four camera outputs can be combined into one video signal for simultaneous display & recording
• User selected video display mode including Quad Display mode (Cameras 1-4) & full screen sequential switching
• One screen TIME, TITLE display for each channel & on-screen setup menu
• Alarm detection for sensor contact closure & video loss in camera inputs
• Built-in buzzer for alarm detection acknowledgement
• Freeze of last picture before video loss
Power supply :
- Remote adapter : 110V - 220 V AC Input
- Optional 48V / 24V / 12V DC input power adapter available
 |

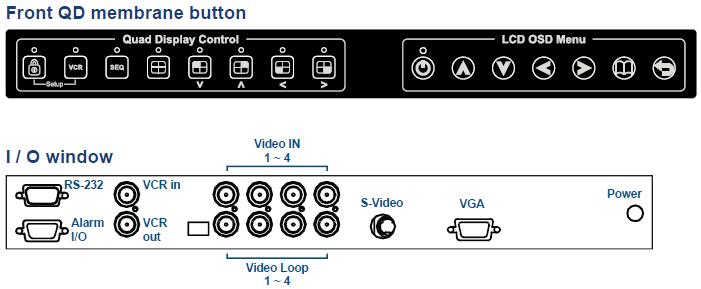

| Front QD membrane button |
 |
-On-screen menu setup in Quad mode
-LCD on-screen menu setup |
More photos (click to enlarge )
Specifications
| Item |
Description |
| Model Number |
QD (NTSC) |
QD (PAL) |
| Number of Colour |
16.7 Mil |
16.7 Mil |
| Imaging System |
NTSC |
PAL |
| Resolution |
1024 x 525 |
1024 x 625 |
| Refresh Rate |
60 |
50 |
| Video Input |
Camera Input |
1.0 Vpp, 75 Ohm x 4 |
| VCR Input |
1.0 Vpp, 75 Ohm x 1 |
| Video Output |
Live Monitor |
1.0 Vpp, 75 Ohm x 1 |
| Loop Through Out |
1.0 Vpp, 75 Ohm x 4 |
| VCR Output |
1.0 Vpp, 75 Ohm x 1 |
| Auto Gain Control |
Yes |
| Time / Date |
Yes |
| On Screen Display |
Yes |
| Camera Title |
8 Character Title |
| Display Format |
2 x Zoom on Playback |
Yes |
| QUAD |
Yes |
| FULL |
Yes |
| SEQUENCE |
Yes |
| Dwell Time |
0 to 99 Sec Adjustable |
| Built-in Buzzer |
Yes |
| Key Lock |
Yes |
Back to top
Ordering information
| Part Number |
Description |
LCDR8U19-09
Price : $1167 |
8U Rack 19" Widescreen SAMSUNG LCD QUAD Monitor |
-12VDC
Price : $171
|
Add 12V DC input power adapter |
-24VDC
Price : $171
|
Add 24V DC input power adapter |
-48VDC
Price : $171
|
Add 48V DC input power adapter |
|
|
