9U Rack mountable 19" SAMSUNG INDUSTRIAL GRADE A LCD Quad Video Monitors
With RS-232 / Alarm I/O / VCR in & VCR out / AV / BNC / VGA Optional DC power input
| SAMSUNG 19" INDUSTRIAL LCD Monitor |
Display type |
Active Matrix TFT |
Resolutions |
1280 x 1024 |
Response time |
Tr =1.3 ms / Tf =3.7ms (Typ.) |
Contrast ratio |
1000 : 1 typical |
Brightness |
300 cd/ m2 typical |
Pixel pitch |
0.294mm (H) x 0.294mm (W) |
Panel color |
16.7 million display colors |
Viewing angle |
160 (Horiz.) / 160 (Vert.) |
Video: |
Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p |
OSD Control |
Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save |
|
External Connection |
| Power Input |
12V/5A DC adapter |
| Video Input |
15-pin D-Sub connector |
|
Product Dimension |
48.0(W) x 44.3(H) x 7.15(D)cm /
19.7" x 17.4" x 2.8" |
Storage temp. |
-25 to 60 C |
Operating temp. |
0 to 50 C |
Safety Approval |
FCC, CE, RoHS |
|
| Front View
*click on photo for enlarged view
Rear View
*click on picture for enlarged view

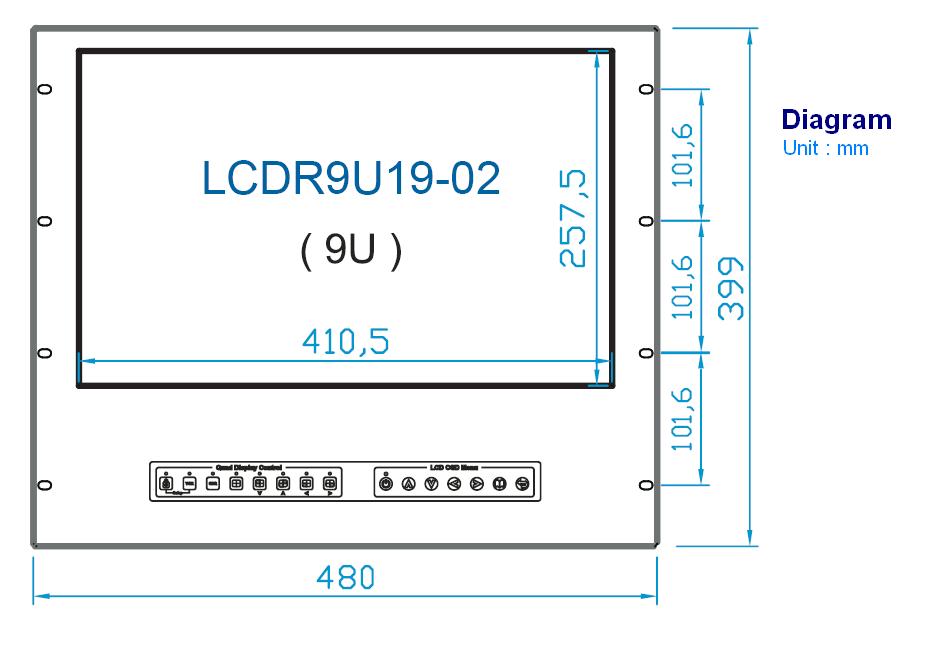

Diagram
*click on photo for enlarged view |
Free Ground Shipping *Click for details
|
|
|
Features :
Built-in Quad Video Monitors
Great for CCTV security &industrial control
High resolution 1280 x 1024, 19" LCD in 9U
Standard D-sub 15-pin VGA input connector
Built-in RS-232, Alarm I/O, VCR in/out, AV, BNC
Optional DC Power Supply
Side to side wide-angle viewing .
Built in On Screen Display controlled by integral membrane switches
Four camera outputs can be combined into one video signal for simultaneous display & recording
User selected video display mode including Quad Display mode (Cameras 1-4) & full screen sequential switching
One screen TIME, TITLE display for each channel & on-screen setup menu
Alarm detection for sensor contact closure & video loss in camera inputs
Built-in buzzer for alarm detection acknowledgement
Freeze of last picture before video loss
Power supply :
- Remote adapter : 110V - 220 V AC Input
- Optional 48V / 24V / 12V DC input power adapter available
 |
| Front QD membrane button |
 |
-On-screen menu setup in Quad mode
-LCD on-screen menu setup |
Specifications
| Item |
Description |
| Model Number |
QD (NTSC) |
QD (PAL) |
| Number of Color |
16.7 Mil |
16.7 Mil |
| Imaging System |
NTSC |
PAL |
| Resolution |
1024 x 525 |
1024 x 625 |
| Refresh Rate |
60 |
50 |
| Video Input |
Camera Input |
1.0 Vpp, 75 Ohm x 4 |
| VCR Input |
1.0 Vpp, 75 Ohm x 1 |
| Video Output |
Live Monitor |
1.0 Vpp, 75 Ohm x 1 |
| Loop Through Out |
1.0 Vpp, 75 Ohm x 4 |
| VCR Output |
1.0 Vpp, 75 Ohm x 1 |
| Auto Gain Control |
Yes |
| Time / Date |
Yes |
| On Screen Display |
Yes |
| Camera Title |
8 Character Title |
| Display Format |
2 x Zoom on Playback |
Yes |
| QUAD |
Yes |
| FULL |
Yes |
| SEQUENCE |
Yes |
| Dwell Time |
0 to 99 Sec Adjustable |
| Built-in Buzzer |
Yes |
| Key Lock |
Yes |
Back to top
ORDERING INFORMATION
| Part Number |
Description |
LCDR9U19-02
Price : $1212 |
9U Rack 19" SAMSUNG INDUSTRIAL GRADE A LCD QUAD Monitor DISPLAYS |
| Option |
-12VDC
Price : $171 |
Add 12V DC input power supply |
-24VDC
Price : $171 |
Add 24V DC input power supply |
-48VDC
Price : $171 |
Add 48V DC input power supply |
|
|
