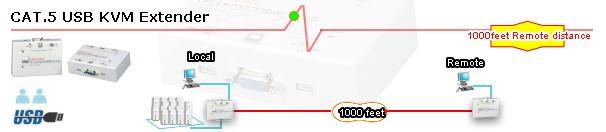

LCDK1041 / CV-S101 CAT.5 KVM Extender is an USB KVM Extender. It
includes a transmitter-receiver pair (S101-T/S101-R) that enables you to
locate a PC in a clean, secure area and access the PC from any
convenient, remote location. The remote user (keyboard, monitor, and
mouse), connected to the receiver, can be up to 1000 feet from the PC
using Category 5 UPT cable. In addition to the remote user, a local user
(keyboard, monitor, and mouse) can be connected to the transmitter.
Similarly, LCDK1041 / CV-101 can be used to extend distances between KVM
switches, user consoles, and connected computers
|
Features :
?lt;b>
Allows remote access of up to 1000 feet away
via CAT.5, CAT.5e, CAT. 6 UTP cables
?amp;nbsp; Dual console operation - control your system
from either the local or remote keyboards,
mice, and monitors
?amp;nbsp; Additional dual version features
- Fully automatic KVM sharing on first-come
first serve basis
- Displays video to both local/remote side
simultaneously
?amp;nbsp; Compact desktop size
?amp;nbsp; Plug-n-Play - no software installation
?amp;nbsp; High video resolution - up to 1,600 x 1,200
?amp;nbsp; Compatible with Sun?lt;/sup> Solaris?and USB server,
as well as Microsoft?lt;/sup>, Windows?lt;/sup>, Linux?lt;/sup>,
Unix?lt;/sup> and Netware?lt;/sup>.
Package Content :
- S101-T transmitter x 1
- S101-R receiver x 1
- CA-2 3-in-1 2 feet cable (To PC) x 1
- DC9V Power adapter (500mA) x 1
- |
|
Technical Specification:
 ">
APPLICATIONS :
|
General
Application
Before installation, it is recommended
to turn off all of peripherals and computers and follow the easy
procedures to install the unit:
 |
Before connecting to
the PC, make sure that the PC is powered off.
|
 |
Connect S101-T
transmitter to PC, using included CA-2 3-in cable.
|
 |
Connect S101-T
transmitter to S101-R receiver using standard Category 5 cable with
RJ-45 connectors up to 500 feet in length (resolutions up to 1,280 x
1,024) or 100 feet in length (resolutions up to 1,600 x 1,200)
|
 |
Plug the DC adapter
into the S101-R receiver.
|
 |
Plug a keyboard, VGA
monitor, and PS/2 mouse into S101-R receiver (and S101-T transmitter
if desired)
|
 |
Power in the PC and
VGA monitor and operate. |
|
 |
| |
|
Advanced Application
|
|
Ordering information
|
Part Number |
Description |
|
LCDK1041 / CV-S101 |
CAT5 USB KVM Extender |
|
|
For more information, please
visit our company web site at
http://www.rackmountmart.com/
