Panel: 10.4" TFT LCD panel
| Display Specification |
| Display Type |
TFT / LCD active matrix
color |
Display Area |
10.4" Diagonal |
Resolutions |
1024 x 768 |
Response time |
25ms (typ) |
Contrast ratio |
600 : 1 typical |
Brightness |
190 cd/ m2 |
LCD Panel color |
262K display colors |
Viewing angle |
178 º (Horiz.) / 178 º(Vert.) |
Horizontal Frequency |
31.5 to 80KHz |
Vertical Frequency |
56 to 75KHz |
Surface Treatment |
Anti-glare / Hard coat |
OSD Control: |
Brightness, Contrast, H.position,
V.position, Auto adjust , OSD H & V Position, Load & Saves Values |
Power : |
90-260 VAC , 50/60Hz, 60Watt Max |
| Keyboard Specification |
Rollover: |
Alpha N-key Rollover |
Auto Repeat : |
Yes |
Self Diagnostic: |
At power on and system reset |
Operating Voltage : |
+5 VDC +/- 5% |
Operating Current : |
100 mA max |
Trackball size : |
16mm |
Touchpad size : |
2.1 " x 1.25" |
Buttons : |
Left & Right , Scroll (touchpad) |
Interface : |
PS/2 |
| General Specification |
Dimension : |
19"(W) x 14.5"(D) x 1.75"(H) /
48.26(W)x36.83(D)x4.45(H)cm |
Weight : |
27 lbs |
Plug & Play : |
DDC1 & DDC2B |
Operating Temp.: |
0 to 50 degree Celsius |
Storage Temp.: |
-20 to 60 degree Celsius |
Humidity : |
+5 VDC +/- 5% |
Input Signal (VGA) : |
R.G.B analog Video, TTL H & V
sync |
Input Connector: |
Display : 15-pin mini D-Shell |
Compatibility with
KVM switch: |
Yes |
Optional : |
-Amplified Stereo Speaker
-Composite Video & S-Video Input
-USB interface
-Lock
-Retainer |
| Made in U.S.A. |
|
|
Free Ground Shipping *Click for details |

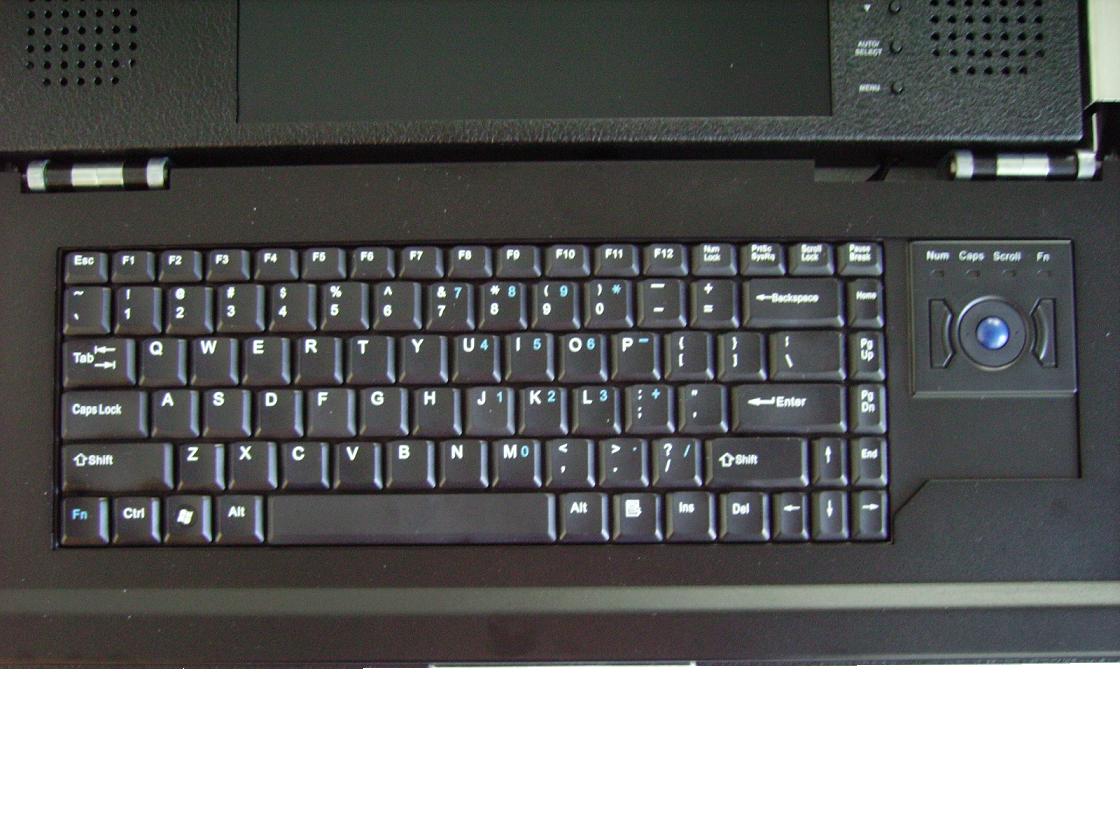

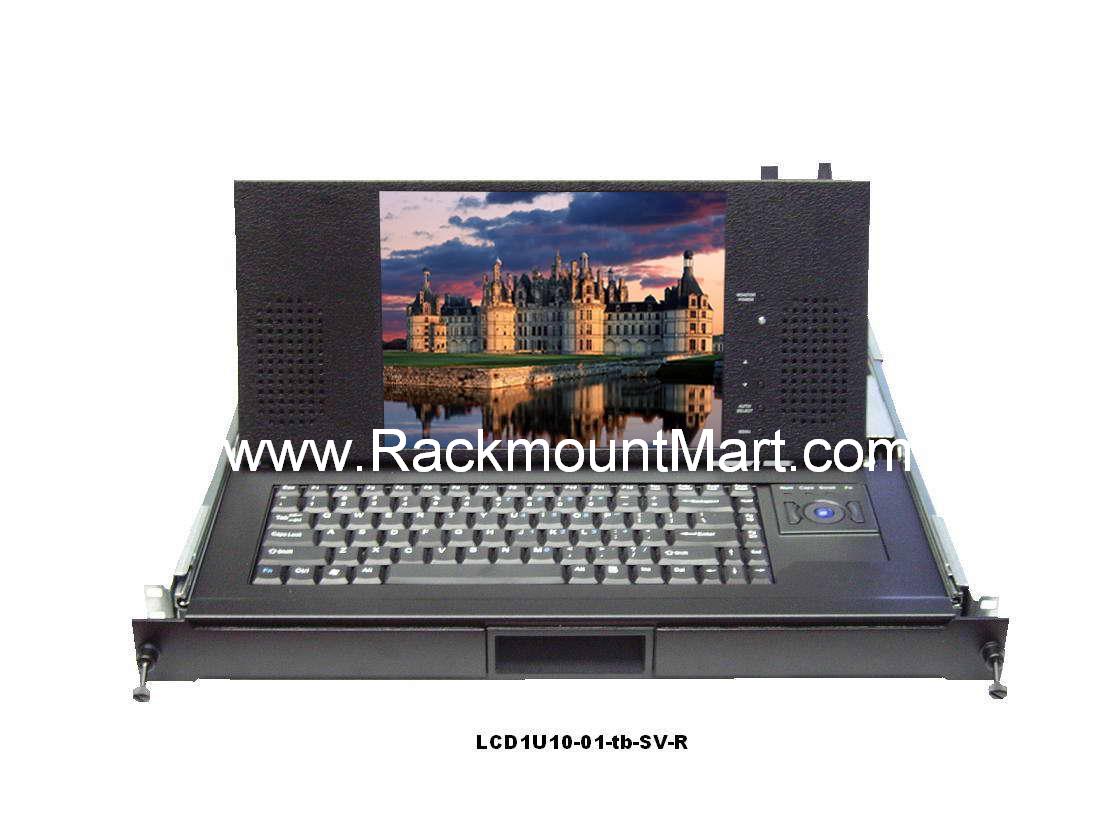

Front View with Cherry Keyboard and Trackball
Side View with Cherry Keyboard and Trackball
*click on photo for enlarged view
More photos (Click on photos for enlarged views) :

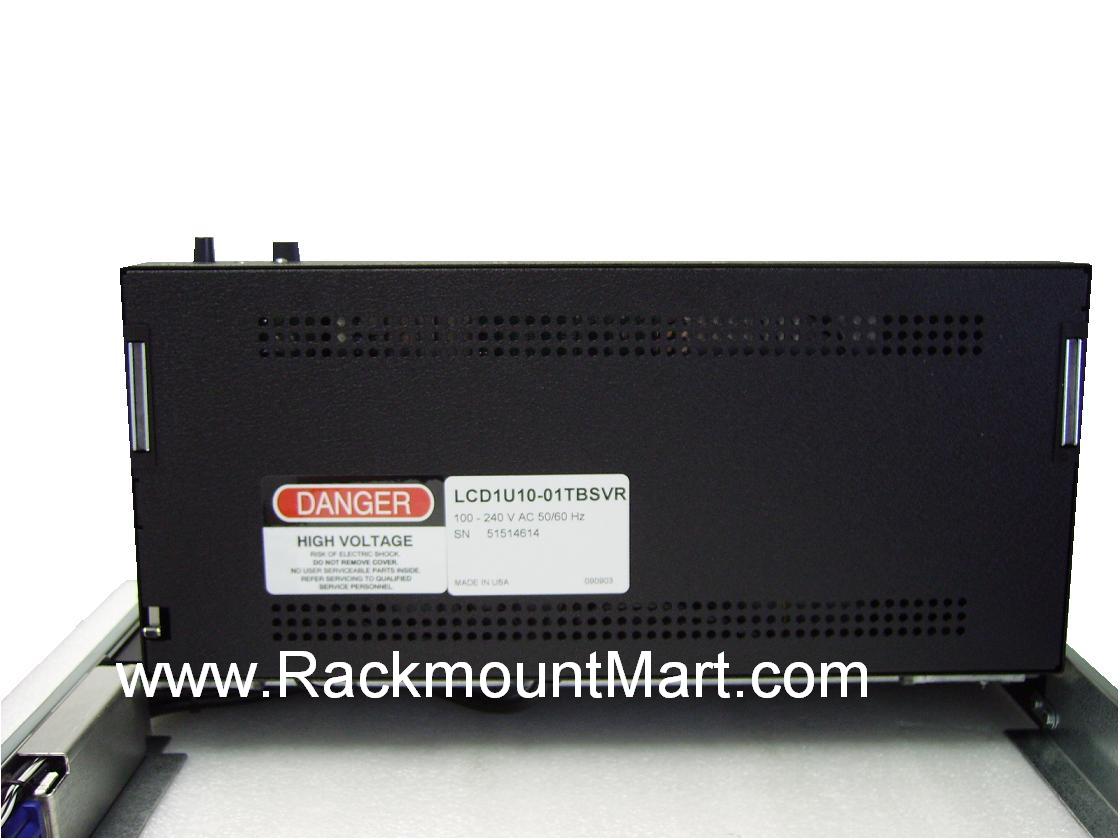

Connectors
|
