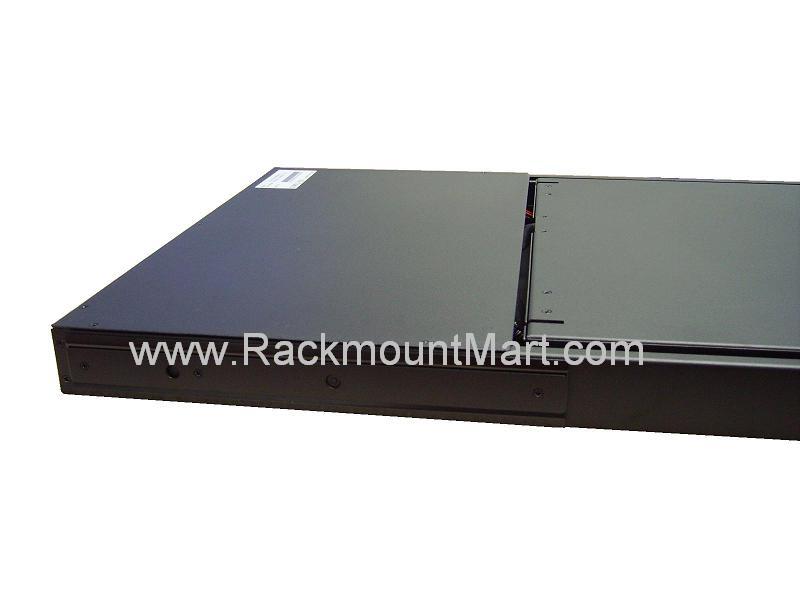

LCD1U19-07 1U Stylish & Rugged Rackmount 19" Samsung LCD Keyboard Drawer Optional 8 / 16 / 32 port DB-15 / RJ-45 KVM / KVM Over IP / Cat.5 KVM / Combo PS2 USB / Composite Video / BNC/ DVI



1U  Rack Console  19" SAMSUNG Grade A Industrial LCD Monitor Keyboard
                                       Optional  DB-15 Kvm / CAT5 Kvm ( CAT6 Kvm ) connector
           Optional Combo Kvm ( USB PS2 Kvm ) / PS2 Kvm / Multi-User Matrix Kvm / Kvm Over IP
                                           Optional 1 / 2 / 3 / 4 Consoles for  Local / Remote Access
    Rack Console LCD1U19-07-n


                 *click on photo for enlarged view

     Rack Console Benefits
  • Stylish and Rugged 1U 19" SAMSUNG LCD Rack Console
  • Optional Cost Efficient built in KVM with various choices:
    - Connector : DB-15 KVM  or Cat5 KVM ( Cat6 KVM )
    - KVM Type : Combo KVM (USB PS2 KVM ) / PS/2 KVM /
                       Multi-User Matrix KVM

  • Secure remote user access across the internet via optional IP console (KVM Over IP )

  • Mix PS/2 , USB & SUN with Multi-Platform switch capability

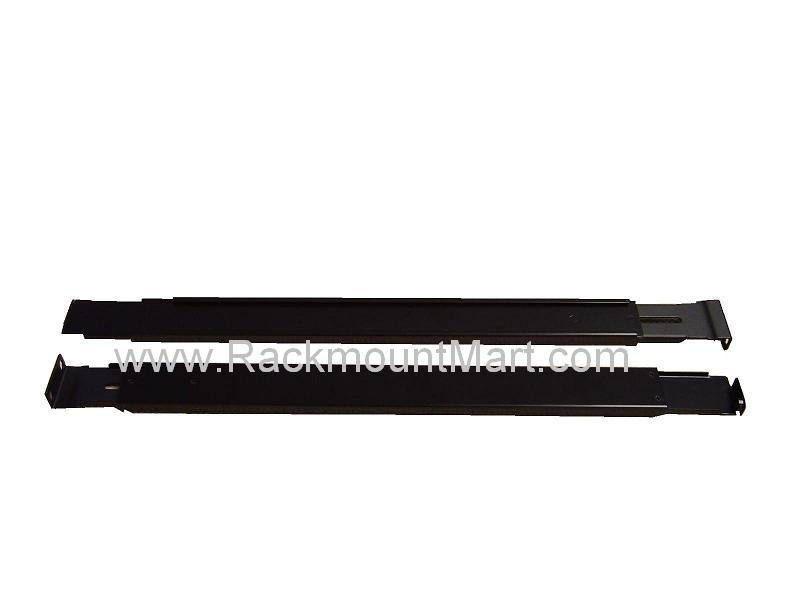

  • "One Man" installation slides for easy and quick installation
  • Combo interface either PS/2 or USB input to the rack console
  • Slide rails with fixed positions to prevent drawer movement when typing
  • High Scalability : Interchangeable LCD, Keyboard, Mouse & KVM modules
  • Optional S-Video + Composite Video ( BNC or RCA ),
    DVI-D, DC Power input, Audio
  • 2 year Warranty
                     General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows
                          LCD Screen

LCD Type

Grade A Industrial monitor 19 inch Active Matrix TFT LCD Panel

Display Size

 19 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr =1.3ms / Tf = 3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

S-video & Composite (BNC or RCA ),
DVI-D    ...More Video Input Details

LCD MTBF

50,000 hrs
                          Keyboard & Pointing Device

Model n

Notebook type KB  w/ Numeric Keypad & Touchpad

Model b

Notebook type KB w/ Numeric Keypad & Trackball   ...More Keyboard Details
                          KVM  ( Keyboard Video Mouse )

Connector

               KVM Version


DB-15
 * DB-15 No KVM ( with combo interface)
 * DB-15 PS/2 KVM  ( 8 or 16 port )
 * DB-15 Combo KVM  ( USB PS2 KVM )
 No. of  Console  No of  KVM port
1 ( Local only )   8 or 16
2 ( 1 x local + 1 x remote )   8 or 16
2  ( 1 x local + 1 x IP )   8 or 16
 * DB-15 Matrix KVM
 No. of  Console  No. of KVM port
2 ( 1 x local + 1 x remote )   8 or 16
3 ( 1 x local + 2 x remote )   8 or 16
3 (1x local +1x remote +1x IP )   8 or 16
4 ( 1 x local + 3 x remote )   8 or 16
4 (1x local +1x remote +2x IP )   8 or 16
4 (1x local +2x remote +1x IP )   8 or 16


CAT6
* CAT6 Combo KVM  ( USB PS2 KVM )
 No. of  Console  No. of  KVM port
1 ( Local only )   8 or 16 or 32
2 ( 1 x local + 1 x remote )   8 or 16 or 32
2  ( 1 x local + 1 x IP )   8 or 16 or 32
* CAT6 Matrix KVM
 No. of  Console  No. of KVM port
2 ( 1 x local + 1 x remote )   16 or 32
3 ( 1 x local + 2 x remote )   16 or 32
3 (1x local +1x remote +1x IP )   16 or 32
4 ( 1 x local + 3 x remote )   16 or 32
4 (1x local +1x remote +2x IP )   16 or 32
4 (1x local +2x remote +1x IP )   16 or 32
                          Power Supply



 Internal Power Supply : 110V - 220 V AC Input ,  12V 5A Output
                     Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
                          Mechanical

Product Dimension

(W x D x H )
442 x 650 x 44 mm /17.4 x 25.6 x 1.73 inch
Product Weight  Approximately 37 lbs / 17kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
         FCC , CE
                                           Remarks

LCD1U19-08 is the SUN Solaris Compatible version of the current model LCD1U19-07 , click this link for details

  More photos (click to enlarge )


Update: The touchpad is changed from 3 button to 2 button. For more details, please click here

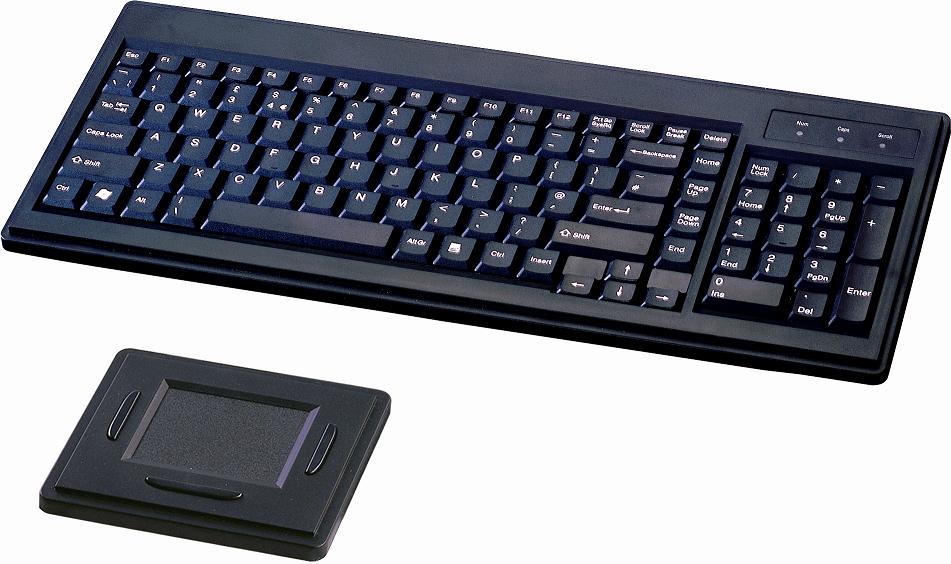

Keyboards  (click to enlarge )
  Trackball Option -  Touchpad Option -

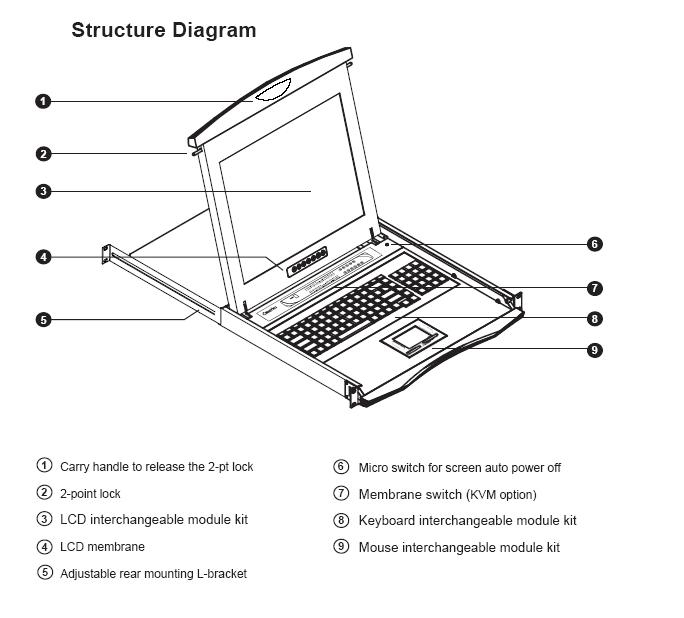

    Dimension  Construction



       *click on above pictures for enlarged view

   Rear Views for various versions of
   Rack Console LCD1U19-07



       *click on above picture for enlarged view

  Product Sheet
 Product Sheet
  User Manual
 General User Manual
 KVM Support
   DB-15 KVM
DB-15 PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local + remote console
DB-15 Combo USB PS2 kvm Local + IP console
   CAT5 / CAT6 KVM
Cat5 / Cat6 Combo USB PS2 kvm Local console
Cat5 / Cat6 Combo USB PS2 kvm Local + remote console
Cat5 / Cat6 Combo USB PS2 kvm Local + IP console
   Matrix KVM
DB-15 Matrix USB PS2 kvm Local + remote console
DB-15 Matrix USB PS2 kvm Local + IP console
Cat5 / Cat6 Matrix USB PS2 kvm Local + remote console
Cat5 / Cat6 Matrix USB PS2 kvm Local + IP console


Optional Peripheral & Accessory
- S-Vdieo + Composite Video (BNC or RCA) / DVI-D
- HDMI
- DC Power Input ( 12V / 24V / 48V )
- KVM Cables & Cascade Cables in Various length
- USB & PS/2 Dongles
-PS2 to SUN /iMac USB adapter
- KVM Extender        -IP KVM Extender
Free Ground Shipping( A $55 Value) *Click for details


 Customer who ordered this product may also order these :
- KVM Switch - Rack Shelves
- PDU ( Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount
Features of Rack Console :
  • SAMSUNG Industrial Grade A 19" LCD Monitor Panel in 1U Rack space
  • Either PS/2 or USB input to this Rack console  (the rack LCD drawer / keyboard )
  • Scalable : - LCD interchangeable module Kit : 17" & 19" LCD Panel interchangeable in the same chassis
                   -KVM interchangeable module Kit : i.  All KVM versions are  interchangeable in the same chassis
                                                                  ii. Mix PS/2 & USB with multi-Platform switch capability
                   -Keyboard interchangeable module Kit : 104 key touchpad or trackball with full numerical pad
                   -Mouse interchangeable module kit : 2 button GlidepointTM touchpad or trackball interchangeable in
                                                                    same chassis
  • 7-button LCD OSD membrane with a power LED

  • 2 point lock, with Stylish latching front panel to release the 2-point lock

  • Micro switch for screen auto power off , power saving feature for prolonging the lift of LCD panel

  • KVM membrane

  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Unique mechanical design to maximize rack mountable space
  • Black Anodized aluminum front panel
  • VGA, keyboards & mouse all in one by 15 pin HDB connector
  • Built in slide rails which can be mounted easily in any 19" rack cabinet
  • EMC shielding around the monitor housing to minimize interference
  • Rear rack mounting bracket included
  • Standard 6-ft KVM cable, optional 10, 15, 33 ft available
  • Optional : S-Video and Composite video input (RCA or BNC ), DVI-D , Audio, DC power input adapter , Speaker
