 LCD1U17-17 SHORT DEPTH Stylish & Rugged 1U Rackmount 17" Samsung LCD Monitor Keyboard Drawer fits 23.6" / 600mm deep Rack w/ Combo PS2 / USB  Optional S-Video + Composite / BNC DVI Input







Part #  LCD1U17-17

*** This model is discontinued. Learn more about replacement model LCD1U17-15  ***


                           SHORT DEPTH 1U Rack Consoles 17" Samsung TFT LCD Monitor Keyboard Drawer
                                           Only 18.9" / 480mm Deep, fits  23.6" / 600mm deep cabinet

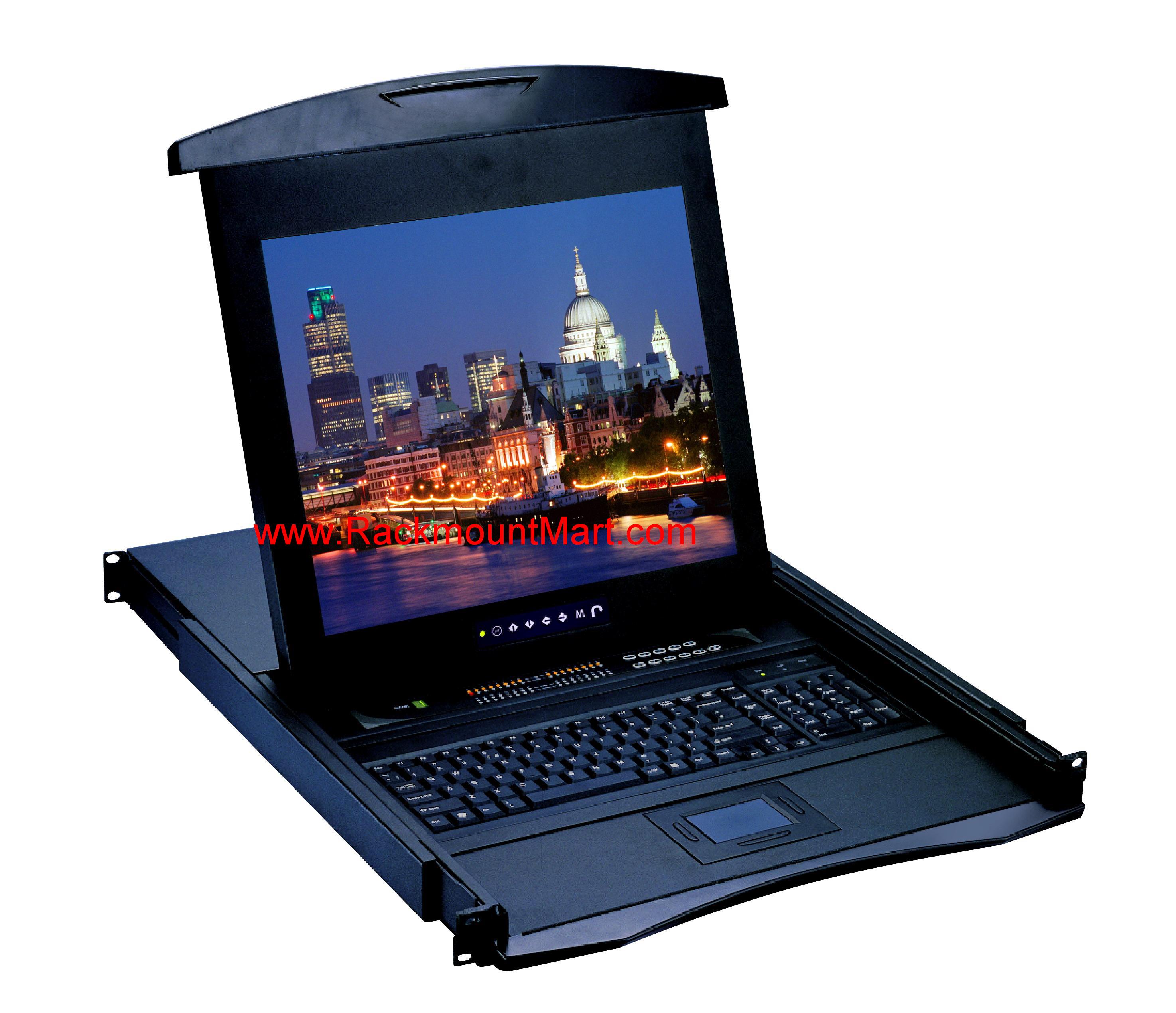

Short Depth Rack Console LCD1U17-17-n

   *click on photo for enlarged view

     Rack Console Benefits
  • Short Depth Rugged 1U 17" SAMSUNG Rack Console
  • Short Depth design of 480mm (18.9" ) only
  • Depth will fit a 600mm (23.6") rack application
  • "One Man" installation slides for easy and quick installation
  • Combo interface either PS/2 or USB input to the rack console
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Optional S-Video + Composite Video ( BNC or RCA ),
    DVI-D, DC Power input, Audio
  • 2 year Warranty
                     General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows

                          LCD Screen

LCD Type

Grade A Industrial monitor 17 inch Active Matrix TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

S-video & Composite (BNC or RCA ),
DVI-D
  ...More Video Input Details

LCD MTBF

50,000 hrs

                          Keyboard & Pointing Device

Model n

Notebook type KB  w/ Numeric Keypad & Touchpad

Model b

Notebook type KB w/ Numeric Keypad & Trackball  ...More Keyboard Details

                          Power Supply



-Remote adapter : 110V - 220 V AC Input ,
 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /

10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter : 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V DC  input
                     Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
                          Mechanical

Product Dimension

(W x D x H )
442 x 480 x 44 mm /17.4 x 18.9 x 1.73 inch

Product Weight  Approximately 33 lbs / 15kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
  FCC, CE, VCCI, 3C*

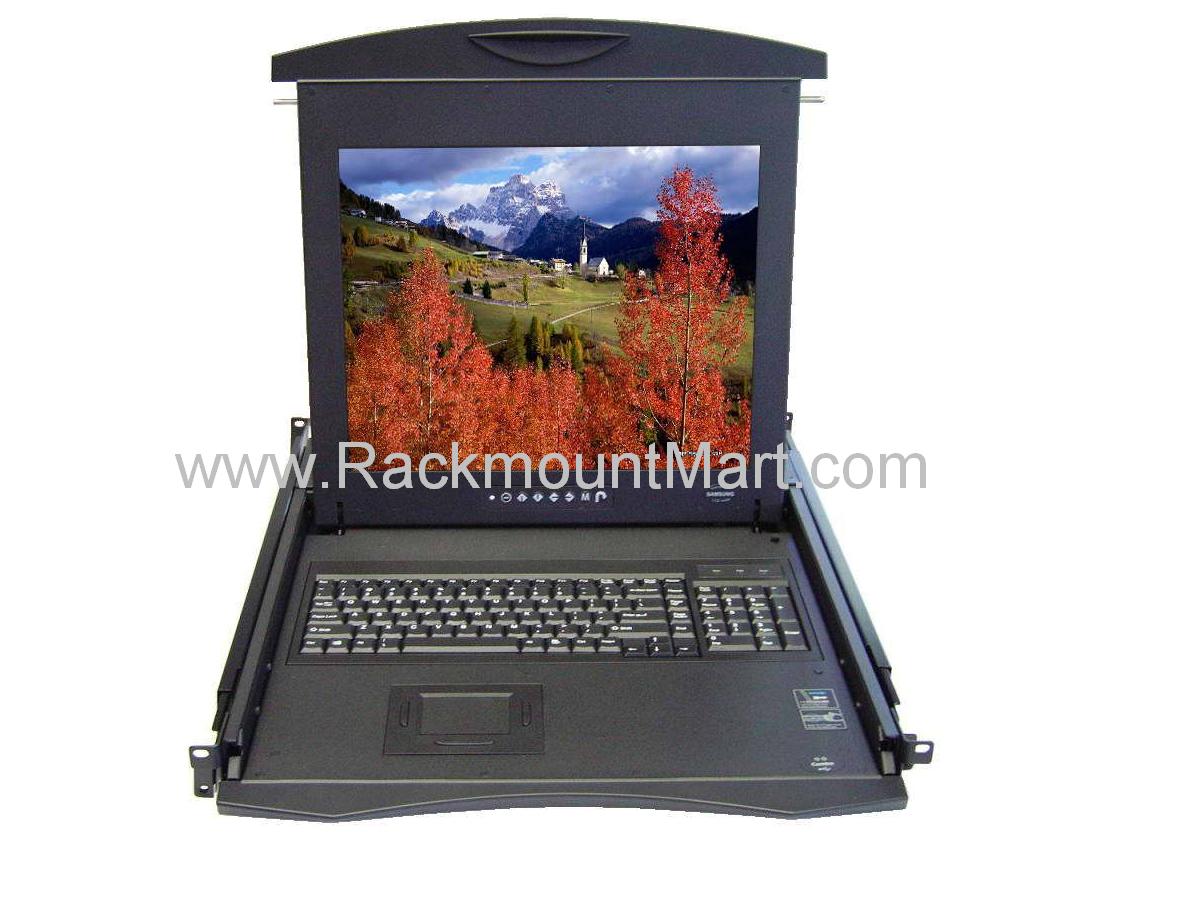

  More photos (click to enlarge )


Update: The touchpad is changed from 3 button to 2 button. For more details, please click here

Keyboards  (click to enlarge )
  Trackball Option -  Touchpad Option -
    Dimension


*click on above pictures for enlarged view

  Product Sheet
Product Sheet
  User Manual
 General User Manual
Optional Peripheral & Accessory
- S-Vdieo + Composite Video (BNC or RCA) / DVI-D
- HDMI
- DC Power Input ( 12V / 24V / 48V )
- KVM Cables & Cascade Cables in Various lengths
- KVM Extender       -IP KVM Extender
Free Ground Shipping( A $55 Value) *Click for details



 Customer who ordered this product may also order these :
- KVM Switch
- PDU ( Power Distribution Unit )
- Server Rack Cabinet
- 4 Post Rack
- Wall Rack Mount
- Rack Shelves
- Rack Drawer
- Power Strips
- Rack Cooling Fan

Features of Rack Console :
  • SAMSUNG Industrial Grade A Short Depth 17" LCD Monitor Panel in 1U Rack space
  • Short Depth design of 480mm (18.9" ) only
  • Depth will fit a 600mm (23.6") rack application
  • Either PS/2 or USB input to this Rack console  (the rack LCD drawer / keyboard )
  • 7-button LCD OSD membrane with a power LED
  • 2 point lock, with Stylish latching front panel to release the 2-point lock

  • Micro switch for screen auto power off , power saving feature for prolonging the lift of LCD panel

  • KVM membrane

  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Unique mechanical design to maximize rack mountable space
  • Black Anodized aluminum front panel
  • VGA, keyboards & mouse all in one by 15 pin HDB connector
  • Built in slide rails which can be mounted easily in any 19" rack cabinet
  • EMC shielding around the monitor housing to minimize interference
  • Rear rack mounting bracket included
  • Standard 6-ft KVM cable, optional 10, 15, 33 ft available
  • Optional : S-Video and Composite video input (RCA or BNC ), DVI-D , Audio, DC power input adapter , Speaker

Back to top

 ORDERING INFORMATION FOR  LCD1U17-17-SHORT DEPTH 1U SAMSUNG 17" LCD RACK CONSOLE



 KVM Support  Keyboard Type Part # Description
 NO KVM
Single Port with PS/2 & USB Combo Interface Notepad KB w/ Touchpad & Numeric key LCD1U17-17-n Short Depth Stylish Rugged 1U LCD 17" Samsung Panel w/ Notebook KB & touchpad & Combo PS2 / USB interface & 1 x 6-ft 4-in-1 Combo KVM cable
Notepad KB w/ Trackball  & Numeric key LCD1U17-17-b Short Depth Stylish Rugged 1U LCD  17" Samsung Panel w/ Notebook KB & trackball  & Combo PS2 / USB interface &  1 x 6-ft 4-in-1 Combo KVM cable
Notepad KB w/ Touchpad & Numeric key LCD1U17-17-n-u Short Depth Stylish Rugged 1U LCD  17" Samsung Panel w/ Notebook KB & touchpad  & Combo PS2 / USB interface & 1 x 6-ft 4-in-1 Combo KVM cable
Notepad KB w/ Trackball  & Numeric key LCD1U17-17-b-u Short Depth Stylish Rugged 1U LCD  17" Samsung Panel w/ Notebook KB & trackball &  Combo PS2 / USB interface &  1 x 6-ft 4-in-1 Combo KVM cable
Option
-12VDC Add 12V DC power input   (the depth will be 530mm/20.9")
-24VDC Add 24V DC power input   (the depth will be 530mm/20.9")
-48VDC Add 48V DC power input   (the depth will be 530mm/20.9")
-BNC Add Composite Video (BNC) + S-video
-AV Add Composite Video (RCA ) + S-video
-HDMI Add HDMI Input with built in Speaker
-DVI Add DVI-D Input
-SPK Add speaker




LCD1U17-17
