SHORT DEPTH Short Depth
Stylish Rugged 1U Rackmount 19" Samsung TFT LCD Monitor Keyboard Drawer
****
Built-in Combo PS/2 & USB interface
****
Only 18.9" / 480mm Deep, fits
23.6" / 600mm deep cabinet
Front
View of LCD1U19-09-n/ N1419e
*click on
photo for enlarged view |
LCD
Drawer & KVM Benefits
- Short Depth design of 480mm
(18.9" ) only
- Depth will fit a 600mm (23.6")
rack application
- Short Depth Stylish Outlook and
Rugged design
- Single or "One Man" installation
slides for easy, quick installation
- Either PS/2 or USB input to the
LCD Drawer by cable selection
- Slide rails with fixed positions to
prevent drawer
movement when typing
- 104 key notepad keyboard with full
numerical pad
- Multi lingual on screen display menu
|
 |
| Special
Features : |
1. LCD
interchangeable module Kit :
-17" & 19" LCD Panel interchangeable in the same chassis
-Samsung Grade A panel
-Optional Video , DVI and BNC inputs |
2. KVM
interchangeable module Kit :
-All KVM models are interchangeable in the same chassis
-High density CAT5 KVM are either 16 or 32 ports in 1U of Rack
space
-Mix PS/2 & USB with multi-Platform switch capability
|
3. Keyboard
interchangeable module Kit :
-Either PS/2 or USB input to the LCD drawer /
keyboard by cable selection
-Multiple
keyboard language selections with either
touchpad or trackball
-104 key notepad keyboard with full numerical pad |
4.
Mouse
interchangeable module kit
-3 button
GlidepointTM touchpad or trackball
interchangeable in same chassis
-Either
PS/2 or USB input to the LCD drawer / keyboard by cable selection
|
| 5. 2-point
lock |
6. Micro
switch for screen auto power off |
| 7. Single
person (One Man ) installation rackmount kit |
8. Carry
handle to release the 2-pt lock |
| 9. 7-button
LCD OSD membrane with a power LED |
10. KVM
membrane |
|
General
Information |
|
Form Factor |
1U Rack mounting on slide-out
rails,
Short Depth |
|
Compatibility
|
Multi-platform -
Mix PCs, SUNs, IBMs, HPs & DELLs |
|
Support Platform |
MS Windows
3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and
MS DOS |
|
Server Side
Interface
|
HD15 VGA,
6-pin Mini DIN for
PS/2 KB/MS |
|
|
Rack Mounting
|
Adjustable ranges
from 15.3" to 27.5"
(390 to 700mm) |
|
LCD Screen |
|
LCD Type |
 Samsung
Grade A 19" Industrial
Active Matrix TFT LCD Panel |
|
Display Size |
19 inch diagonal |
|
Resolutions
|
1,280 x 1,024 with
60 / 70 / 75Hz |
|
Response time
|
Tr =1.3ms / Tf =
3.7ms
|
|
Contrast ratio
|
1000
: 1 |
|
Brightness
|
300
cd/ m2 |
|
Pixel pitch
|
0.294mm (H) x
0.294mm (W) |
|
Panel color
|
16.7 million
display colors
|
|
Viewing angle
|
160 / 160 (Horiz.
/ Vert.) |
|
OSD Control |
Brightness, Contrast, Phase &
Color, H & V
position, Auto-tune, Recall & Language |
|
Signal Input |
VGA, Analog RGB |
|
Optional Video
Input |
S-video &
Composite (RCA) / S-Video & BNC /
DVI-D
More
Details
 |
|
LCD MTBF |
50,000 hrs |
|
Keyboard & Pointing Device |
|
Model Nn / Ne |
Notebook type KB Integrated w Numeric
Keypad & Touchpad |
|
Model
Nb |
Notebook type KB Integrated w Numeric
Keypad & Trackball
|
|
|
Keyboard Details
|
|
Power Supply |
|
|
-Remote adapter : 110V - 220 V AC
Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H)
/
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input |
|
Rear I/O Connector |
|
|
Console port
: HD15 female
DC power input : Plug-round type
|
|
Environmental |
|
Temperature
|
0 to 50 Degree
Celsius (Operation)
-25 to 65 Degree Celsius (Storage) |
|
Relative
Humidity |
90%, non
condensing |
|
Shock
|
50G peak
acceleration
(11ms, half since wave) |
|
Vibration |
58~500Hz/ 0.98G
(11min/ cycle) |
|
Mechanical |
|
Product
Dimension
|
17.3"(W) x 1.73"(H) x 18.9"(D)
/ 44.2(W) x 4.4(H) x 48(D)cm |
|
Product Weight
|
Approximately 35
lbs / 16kg |
|
Relative
Humidity |
90%, non
condensing |
|
Regulatory Approval |
|
|
FCC , CE , VCCI |
|
Optional Accessories & Peripheral
|
|
|
Details
|
|
Package Content
|
|
Package Content |
LCD Monitor drawer x 1 ,
upgradeable
6-ft KVM cable(s), 110 / 220 V DC Power
adapter x 1 , Power cord x 1, Rear
Mounting Bracket x 1 pair,
Fasteners x 4 , User Manual x 1 |
|
|
Front View of
LCD1U19-09-n / N1419e
*click on
photo for enlarged view
Dimension
*click on above
pictures for enlarged views
Keyboards
|
Trackball Option - |
Touchpad
Option - |
 |
 |
*click on above pictures for enlarged
views

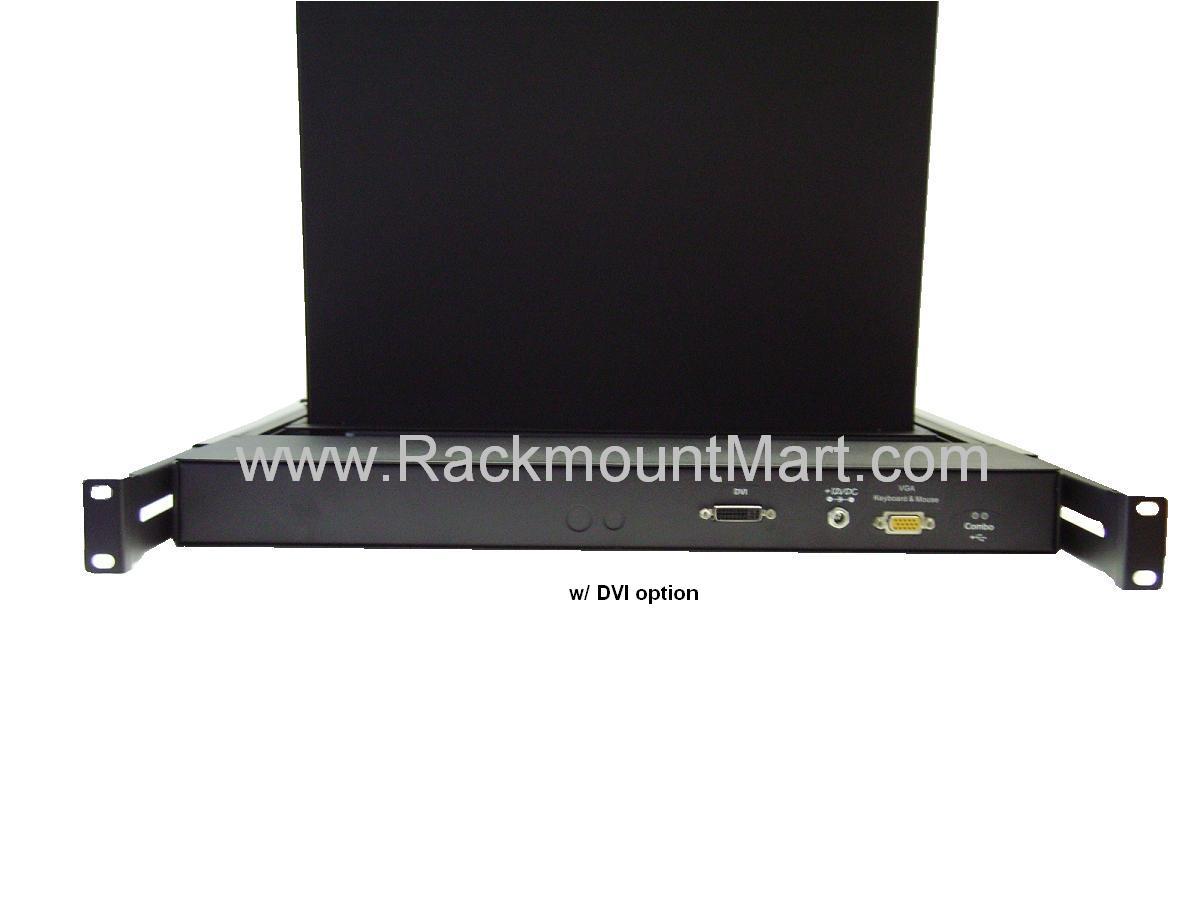

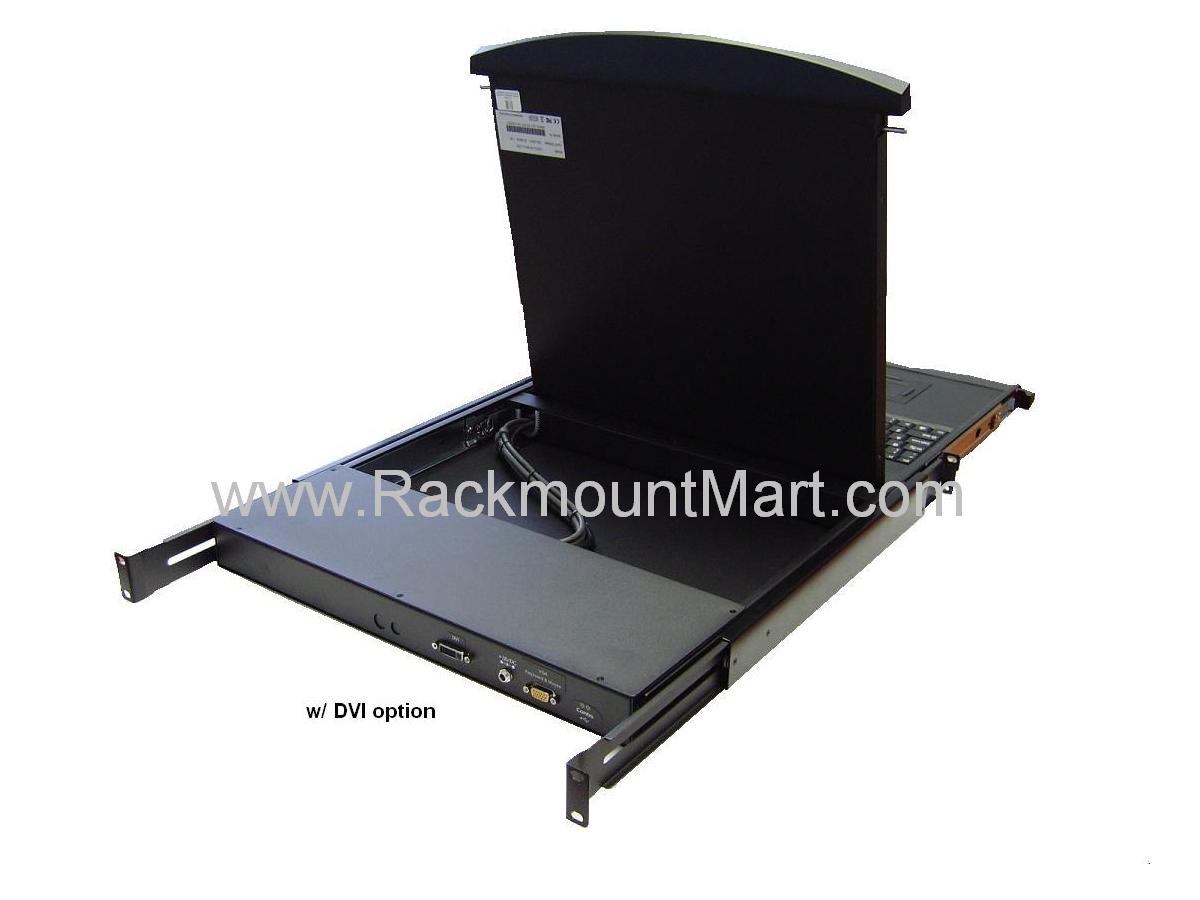

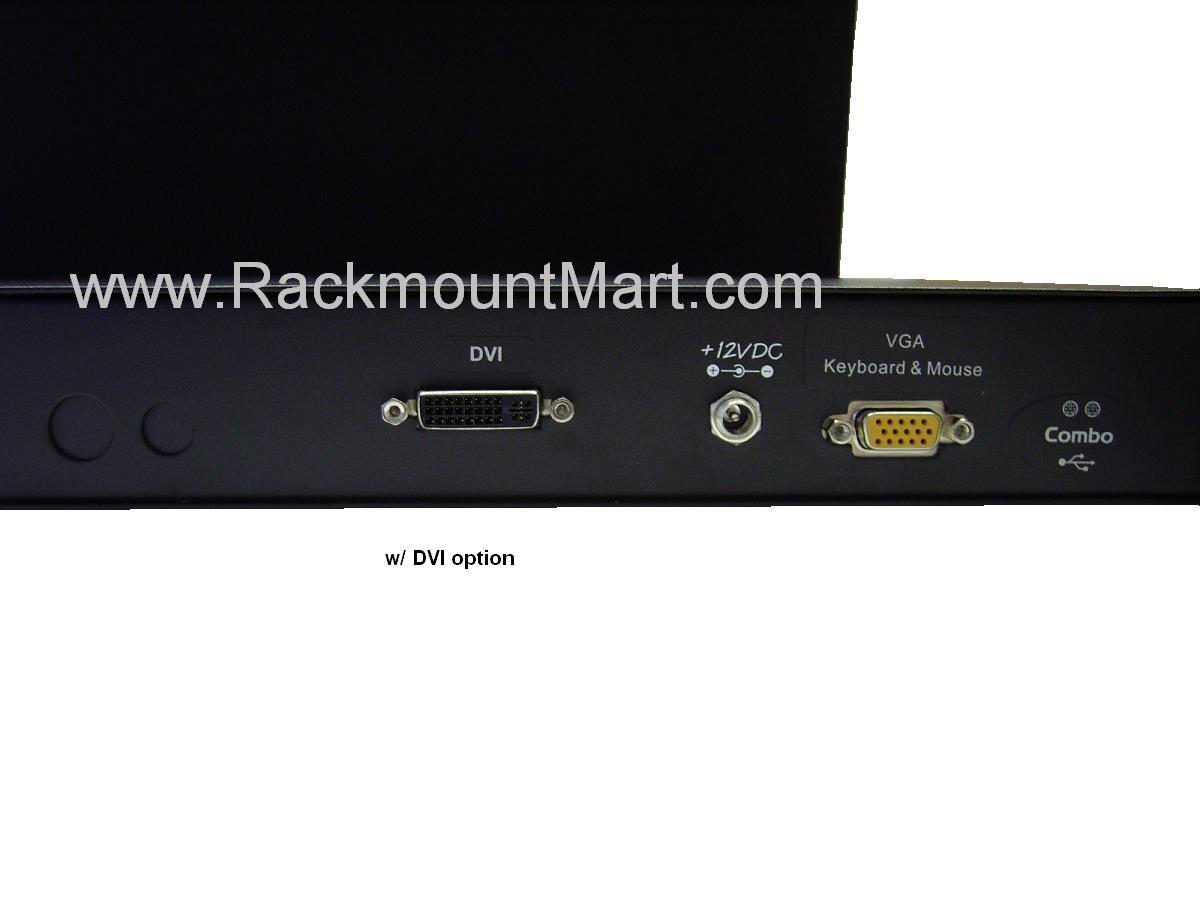

Rear
Views for various versions of
LCD1U19-09/
N1419
*click on above picture for enlarged
view
User Manual
Free Ground Shipping
*Click
for details
Space saving Flip up design
|
|
LCD Drawer & KVM
Benefits :
- Short Depth design of 480mm (18.9" )
only
- Depth will fit a 600mm (23.6") rack
application
- Short Depth Stylish Outlook and Rugged
design
- Single or "One Man" installation slides
for easy, quick installation
- Either PS/2 or USB input to the LCD
Drawer by cable selection
Features :
- 1U rackmount drawer with SAMSUNG Grade A
19" LCD Panel
- New Built-in
Combo PS/2 & USB interface :
user can have either PS2 or USB input to the LCD by connecting the combo
PS2 & USB interface of the LCD with the respective type of PS/2 or USB
KVM cable / dongle
- Slide rails with fixed
positions to prevent keyboard movement
while typing
- Built in on screen
display controlled by integral membrane switches
, Multi lingual on screen display menu
- Supports AT/XT, PS/2, UNIX, Sun, and
Macintosh computers
- Unique mechanical design
to maximize rack mountable space
- Unique monitor flip-up design allows
viewing through closed glass door of cabinet
- Adjustable mounting brackets for
multiple depth cabinets between 650mm and 1000mm
- Lightweight aluminum construction - with
a black anodize finish
- Front-access lock for security
- Large wrist rest area
- Standard D-sub 15-pin
VGA input connector
- Build in slide rail and
mounts easily in any 19" cabinet
- EMC shielding around the
monitor housing to minimize interference
- Side to side wide-viewing angle as CRT
monitor
- Power saving feature for prolonging life
of LCD Panel
- Built in On Screen Display controlled by
integral membrane switches
- Rear mount bracket included
- All mounting hardware
included
Ordering information :
|
KVM Support |
Keyboard Type |
Part # |
Description |
|
NO KVM |
|
Single Port with
PS/2 & USB Combo Interface |
Notepad KB w/ Touchpad &
Numeric key |
LCD1U19-09-n /
N1419e
Price : $1106 |
Short Depth
Stylish Rugged 1U
19" Samsung
Panel w/ Notebook KB & touchpad & Combo PS2 / USB
interface & 1 x 6-ft 3-in-1 **PS2 KVM cable |
|
Notepad KB w/
Trackball & Numeric key |
LCD1U19-09-b /
N1419b
Price : $1106 |
Short Depth
Stylish Rugged
1U 19" Samsung
Panel w/ Notebook KB & trackball & Combo PS2 /
USB interface &1 x 6-ft 3-in-1 **PS2 KVM cable |
|
Notepad KB w/ Touchpad &
Numeric key |
LCD1U19-09-n-u /
N1419eu
Price: $1106 |
Short Depth
Stylish Rugged
1U 19"
Samsung Panel w/
Notebook KB & touchpad & Combo PS2 / USB interface & 1 x 6-ft 2-in-1 **USB KVM cable |
|
Notepad KB w/
Trackball & Numeric key |
LCD1U19-09-b-u /
N1419bu
Price: $1106 |
Short Depth
Stylish Rugged
1U 19"
Samsung Panel w/
Notebook KB & trackball & Combo PS2 / USB interface & 1 x 6-ft 2-in-1 **USB KVM cable |
|
|
