LCD1U17-11 1U Rackmount 17" Samsung LCD Monitor Drawer with Unix Style Keyboard w/ Combo PS2 / USB interface Optional S-Video + Composite / BNC DVI Input



1U Rackmount 17" Samsung TFT LCD Monitor Keyboard Drawer
                              with full "Unix Style" Keyboard with Numerical Pad and LCD Support Arm
                                                      ***  New Built-in Combo PS/2 &  USB interface ****
                                      General Information

Form Factor

1U Rack mounting on slide-out rails,
17-key numeric keypad

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

Server Side Interface

HD15 VGA, 6-pin Mini DIN for
PS/2 KB/MS

Options

Video input ,  DC power , Touch screen

Rack Mounting

Adjustable ranges from 15.3" to 35"
(390 to 890 mm)            Dimension Diagram
                                                  LCD Screen

LCD Type

Samsung Grade A 17" Industrial
              Active Matrix TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

S-video & Composite (RCA) / S-Video & BNC /
DVI-D                        More Details

LCD MTBF

50,000 hrs
                                     Keyboard & Pointing Device

Model d

Compact KB w 17 numeric keypad &
3-button Trackball

Model t

Compact KB w 17 numeric keypad & 2-button Touchpad



                                         Keyboard Details

                                Power Supply



 -Remote adapter : 110V - 220 V AC Input ,
 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
 10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V DC
  input
                                 Rear I/O Connector



 Console port     :  HD15 female
 DC power input :  Plug-round type

                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  90%, non condensing
   Shock  10G acceleration
 (11ms duration)
   Vibration  58~500Hz/ 0.98G
 (11min/ cycle)
                                  Mechanical

Product Dimension

17.3"(W) x 1.75"(H) x 25.6"(L)  /
 43.9(W) x 4.45 (H) x 65(D)cm
Product Weight  Approximately 39.6 lbs / 18kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
           FCC , CE , VCCI
                       Optional Accessories & Peripheral



 Details

                             Package Content

Package Content

LCD Monitor drawer x 1 ,  upgradeable 6-ft KVM cable(s),  110 / 220 V DC Power
adapter x 1 , Power cord x 1,  Rear
Mounting Bracket x 1 pair,
Fasteners x 4 , User Manual x 1

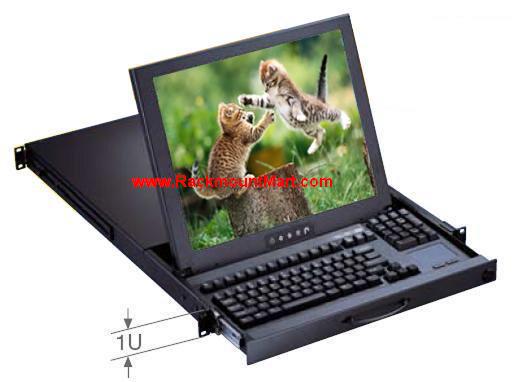

 Front View with Compact Keyboard
 & touchpad


       ***Click on photo for enlarged view



        Dimension



      *click on above pictures for enlarged views





        User Manual



       Single Sheet



        Flip Back design





    Free Ground Shipping *Click for details

























   More photos  (click on photos for enlarged views) :




LCD Drawer & KVM Benefits :

  • 1U unit with "Unix Style" Keyboard with numerical pad

Features :

  • 1U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
  • Built-in Combo PS/2 & USB interface  :
    user can have either PS2 or  USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of  PS/2 or USB KVM cable / dongle
  • Slide rails with  fixed positions to prevent keyboard movement while typing
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Unique mechanical design to maximize rack mountable space
  • Front-access lock for security.
  • Adjustable mounting brackets for multiple depth cabinets between 650mm and 1000mm
  • WITH NEWLY DESIGNED LCD SUPPORT ARM
  • Lightweight aluminum construction – with a black anodize finish.
  • Slide rails have fixed position to prevent movement of keyboard.
  • Power saving feature for prolonging the life of LCD panel
  • Side to side wide-angle viewing as CRT monitor.
  • Standard D-sub 15-pin VGA input connector
  • Supplied with 12V 5A remote power adapter (single power source)
  • Special  feature : Support Arm to LCD Monitor
  • All mounting hardware included


     Optional Accessories

Optional Peripheral

 Optional Video input
   -S-Vdieo + Composite Video / DVI-D / BNC
                  Details 		    Local Console DB-15  PS2 KVM switch
    - 4 Port / 8 Port / 16 Port                 Details

 48V / 24V / 12V DC Power
   Input Range          : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

                        Details   		     Local Console DB-15  USB  KVM switch
    -  8 Port / 16 Port                            Details

  Touch Screen

                                            Details    		     Local + Remote Console DB-15  PS2 KVM switch
    - 8 Port / 16 Port                             Details

PS/2 or USB KVM  Cables & Cascade Cables in various
 length
                                      Details   		     Local + Remote Console DB-15  USB KVM switch
     -  8 Port / 16 Port                          Details

PS/2 or USB Dongles & CAT5 Cables in various
 length

             Details     		    Local + IP Console DB-15 IP Over  KVM switch
     -  8 Port / 16 Port                           Details


 New Options
 - Speaker                                    - Front Panel
 - Internal Power Supply           - Micro Switch
 - LCD Membrane
                                 *** Please contact us for details  		  New Local Console High Density CAT.5 KVM switch
  - 16 Port / 32 Port

        16 Port KVM  - LCDK1043 Details
        32 Port KVM  - LCDK1044 Details

    LCD-A1001  PS2 to SUN /iMac USB adapter
  Converting PS/2 to USB with SUN translating special keys stroke
                          Details      		  New Local + Remote Console High Density CAT.5 KVM
  Switch  - 16 Port / 32 Port

              16 Port KVM - LCDK1045 Details
              32 Port KVM - LCDK1046 Details

CAT.5 PS2 KVM Extender



 Details

CAT5 USB KVM Extender



 Details

PS2 KVM Over IP Extender



 Details

  New Local + IP Console High Density CAT.5  IP KVM
  Switch - 16 Port / 32 Port

              16 Port KVM - LCDK1047 Details
              32 Port KVM - LCDK1048 Details


Ordering information :

 KVM Support  Keyboard Type Part # Description
 NO KVM
Single Port with Combo PS/2 and USB Interface Compact KB w/ Trackball  LCD1U17-11-d
Price : $735		 1U 17"Samsung Panel w/ Compact KB & trackball & 1 x 6-ft 4-in-1 Combo KVM cable
Compact KB w/ Touchpad LCD1U17-11-t
Price : $735		 1U 17"Samsung Panel w/ Compact KB &  touchpad & 1 x 6-ft 4-in-1 Combo KVM cable
Compact KB w/ Trackball  LCD1U17-11-du
Price : $735		 1U 17"Samsung Panel w/ Compact KB & trackball & 1 x 6-ft 4-in-1 Combo KVM cable
Compact KB w/ Touchpad LCD1U17-11-tu
Price : $735		 1U 17"Samsung Panel w/ Compact KB &  touchpad & 1 x 6-ft 4-in-1 ComboKVM cable





Availability: Usually ships in 2-3 business days.

LCD1U17-11 $735.00
