Hot ! LCD1U19-04 1U SUN Solaris Compatible Rackmount 19" Samsung LCD KB optional 8/16/32 port KVM (DB-15/ CAT5 CAT6 / IP KVM / Matrix KVM) / DVI /Speakers/DC input power



1U/1.5U  Rackmount Monitor Keyboard Drawer and KVM Switch :
                          Part #   LCD1U19-04

                          1U SUN Solaris Compatible Rackmount 19" TFT LCD Monitor Keyboard Drawer
                                 Optional 8 port  / 16 port  DB-15 KVM Switch /  KVM Over IP  / CAT5 KVM
     Optional 16 port / 32 port  High Density CAT5 KVM  or CAT.5 KVM Over IP  for Local / Remote Access

              Compatibility with  the following SUN Servers  & Solaris Servers have been certified by SUN-Microsystems :
                           SUN Server -       Entry Level Server  - V100 , V120, V240 & V440 , Middle Lever Server - V890
                           Solaris Server -   8, 9 & 10 Operating Systems

                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Compatible with SUNs, IBMs, HPs, DELLs and
Mix PCs with USB-enable

Server Side Interface

HD15 VGA, USB Type A for
KB/MS

Support Platform

Solaris, MS Windows 2000/XP, Linux and
SCO Unix

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

                                                  LCD Screen

LCD Type

Samsung Grade A  19" Industrial
              TFT LCD Panel

Display Size

 19 inch diagonal

Resolutions

-1280 x 1024 native graphic resolution
-Screen will sync with mist SUN resolution
including 1152 x 900 @66 or 76Hz

Response time

Tr =1.3ms / Tf =3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

Video [S-video + Composite (RCA)] , DVI-D,
BNC [S-video + BNC]      More Details

LCD MTBF

50,000 hrs

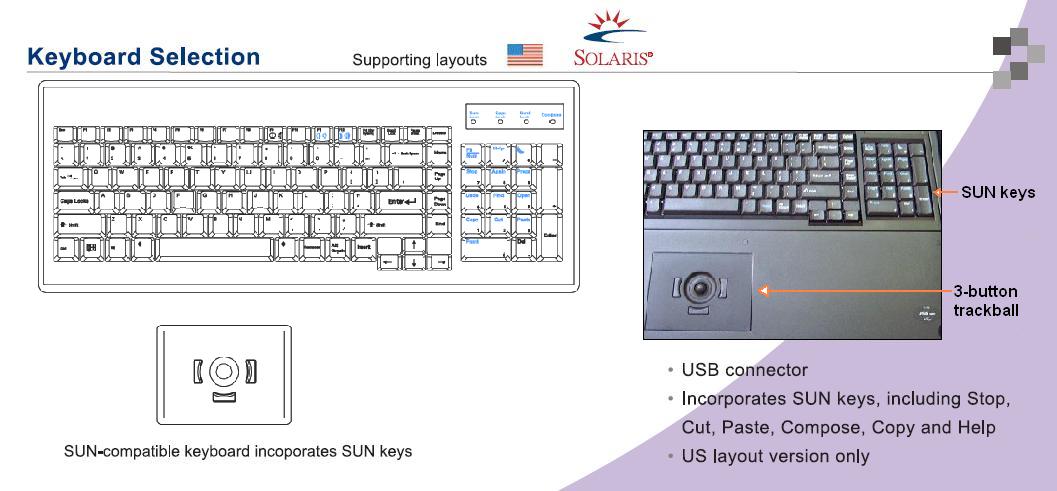

                                     Keyboard & Pointing Device



-USB connector
-3 button with 15mm trackball mouse
-Incorporate SUN keys including Stop, Cut,
Paste, Compose, Copy and Help
-US layout version only



                                   Keyboard Details

    Integrated High Density CAT.5  KVM Switch Option

KVM port

 16 port or 32 port


IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via  RJ-45 connection


Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via  RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade




                                           More Details

      Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status
LED

Cascade Expansion

Up to 128 ports/servers




 USB Type Interface        More Details


Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

 VGA HD15, analog RGB, USB type A,
 support  hot-plugging

Support Platform

 MS Windows 2000/XP, Solaris and SCO
Unix

KVM cable

 USB KVM cable with 6, 10, 15 feet option

Cascade cable

 Cable to PS2 KVM switch w/ 2 & 6 feet
 option
                                Power Supply



 -Remote adapter : 110V - 220 V AC Input ,
 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H)
  / 10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V
   DC  input

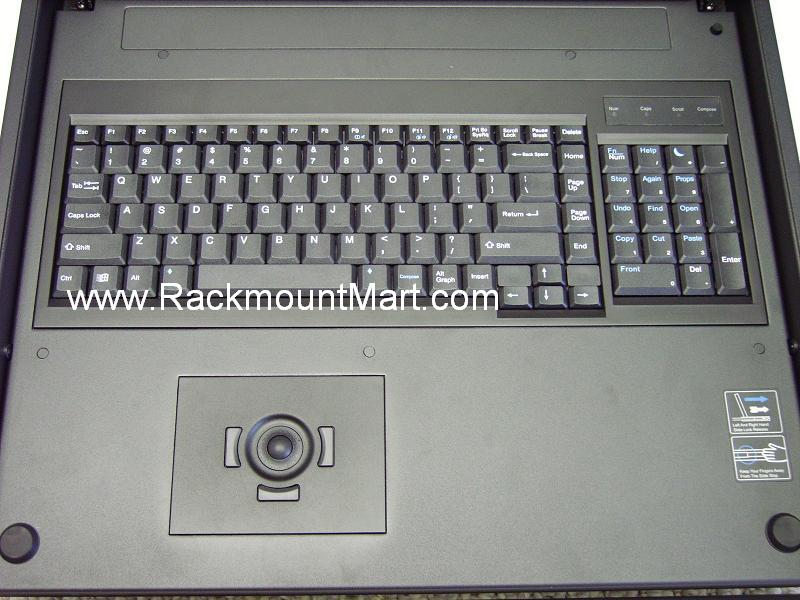

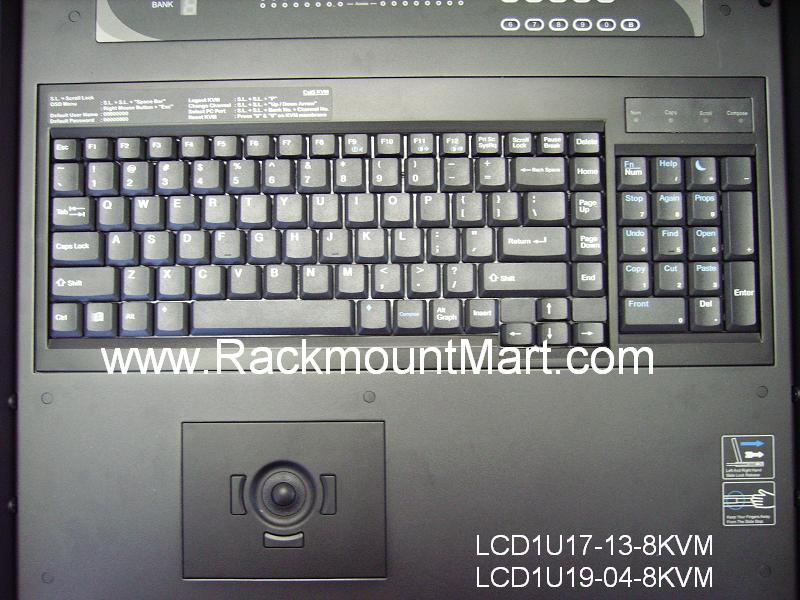

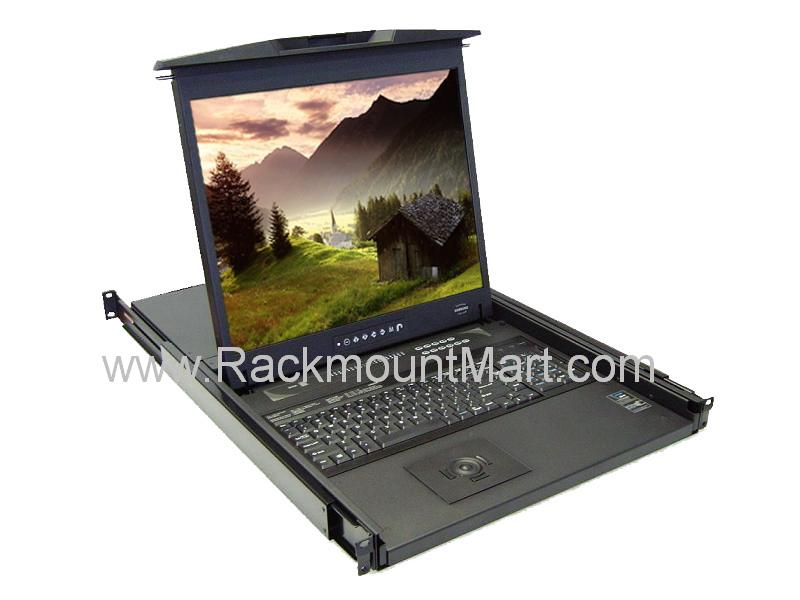

  Front View of LCD1U19-04



               *click on photo for enlarged view





   User Manual



  KVM SUPPORT
Single Sheet
USB, No KVM
USB, Local console KVM

Local Console, High Density CAT.5  KVM

Local + Remote Console, High Density CAT.5  KVM

Local + IP Console, High Density CAT5  IP KVM
      Free Ground Shipping *Click for details
                                 Rear I/O Connector
Integrated KVM
8 or 16 KVM ports :  HD15 female
IP console port  :  RJ45 type (IP KVM model )
Remote console port:  RJ45 type (2-console model)
Serial port   :  DB9 (IP KVM model)
Virtual Device port :  USB type B (IP  KVM model)
USB cascade port :  HD15 female
DC power input  Plug-round type

Without KVM
Console port  :  HD 15 female
DC power input : Plug-round type
                                  Mechanical

Product Dimension

17.4"(W) x 1.75"(H) x 25.6"(D)  /
44.2(W) x 4.45(H) x 65 (D)cm

Product Weight  Approximately 37.4 lbs / 17kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
           FCC , CE , VCCI
                       Optional Accessories & Peripheral



 Details

                             Package Content

Package Content

See user manual of the respective version listed above

LCD Drawer & KVM Benefits :

  • High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
  • Cost efficient DB-15KVM integration
  • Direct support for SUN Micro 1152 x 900 native resolution
  • Video auto-adjust for optimum image
  • 104 key notebook keyboard with full numerical pad and SUN function
  • Mix PS/2 , USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the web wide web via optional IP console

Features :

  • 1U rackmount drawer with SAMSUNG Grade A 19" LCD Panel
  • Slide rails with  fixed positions to prevent keyboard movement while typing
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Directly compatible with  SUN & USB server
  • Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
  • SAMSUNG 17" Grade A LCD Panel
  • Compatible with SUN, Apple, IBM, Dell, HP and USB Server
  • 104-key Sun Compatible keyboard with 3-button trackball support SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY
  • Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of  24" to 36"
  • Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
  • Unique mechanical design to maximize rack mountable space
  • Adjustable mounting bracket from 15.4"(390mm) to 31.1"(790mm)(front to rear 19" mounts), fits any standard 19" server rack
  • Anodized aluminum front panel
  • Sliding rails will self-lock when pulled all the way out
  • Built in on screen display controlled by integral membrane switches
  • Built-in thumb screws securing the machine when it is folded or pushed all the way in
  • Allow adding or removing connected PCs without powering down the USB KVM switch of the PCs
  • Power saving feature for prolonging the lift of LCD panel
  • Standard D-sub 15-pin VGA input connector
  • 12V 5A remote power adapter (Single power source)
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included
  • Optional : S-Video and Composite video input / Touch Screen, , 12V/24V/  48V DC input adaptor ,
    Speaker /   DVI Input /  Micro switch /  LCD Membrane / Front Panel /  Internal Power Supply

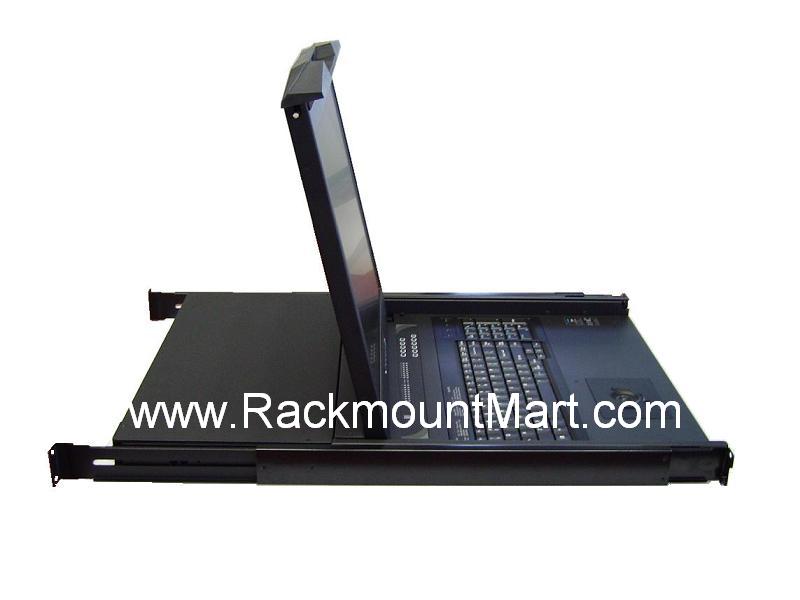

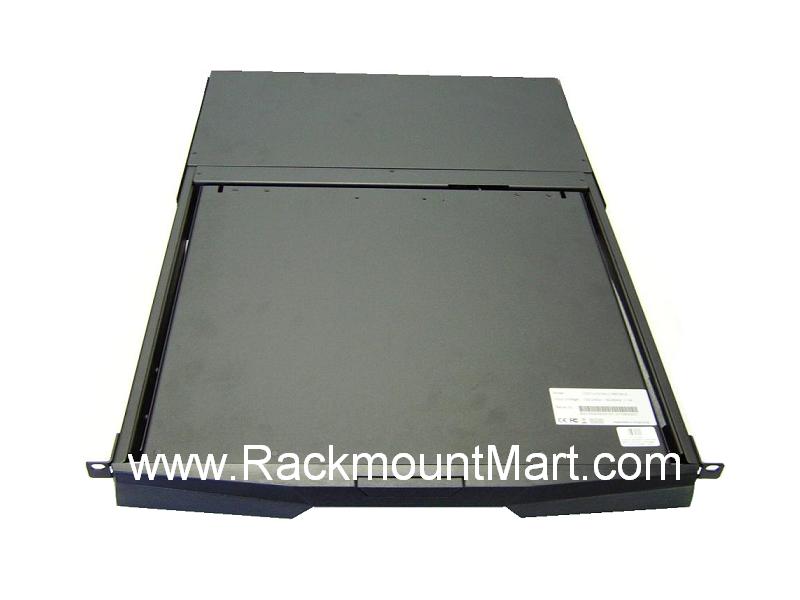

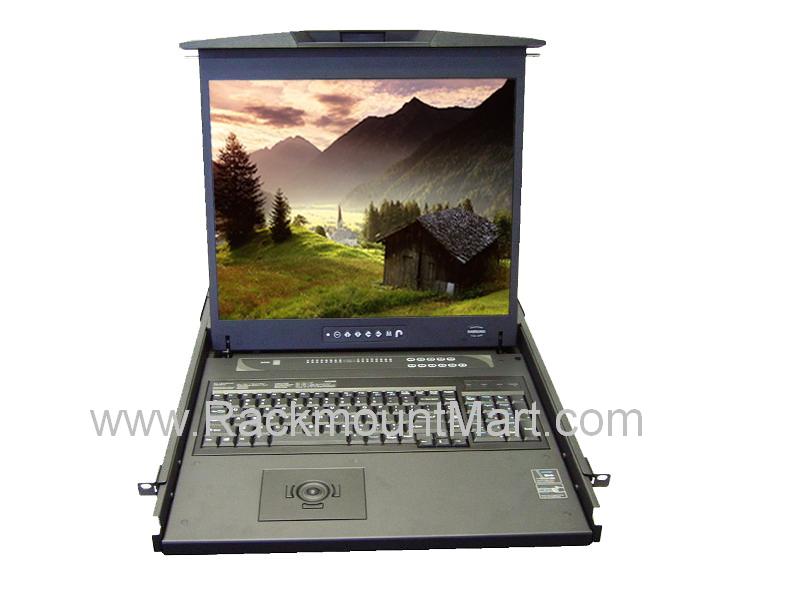

 More photos - (click on the photos for enlarged views)




                                           Integrated wiith Standard DB-15 KVM Switch Only

              Cost efficient DB-15 KVM OPTIONS -  with either 8 or 16  ports , cascade up to 128 servers
Local Console DB-15 USB KVM Switch :
       8 Port KVM - LCDK1020 Details
     16 Port KVM - LCDK1021 Details

                                                  Integrated with High Density CAT.5 KVM Switch Only

       High Density RJ-45 CAT5 KVM OPTIONS -  with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch :
        16 Port KVM - LCDK1043 Details
        32 Port KVM - LCDK1044 Details 		 Local + Remote Console High Density CAT.5 KVM Switch :
              16 Port KVM - LCDK1045 Details
              32 Port KVM - LCDK1046 Details
   Local + IP Console High Density CAT.5  IP KVM Switch :
              16 Port KVM - LCDK1047 Details
              32 Port KVM - LCDK1048 Details
