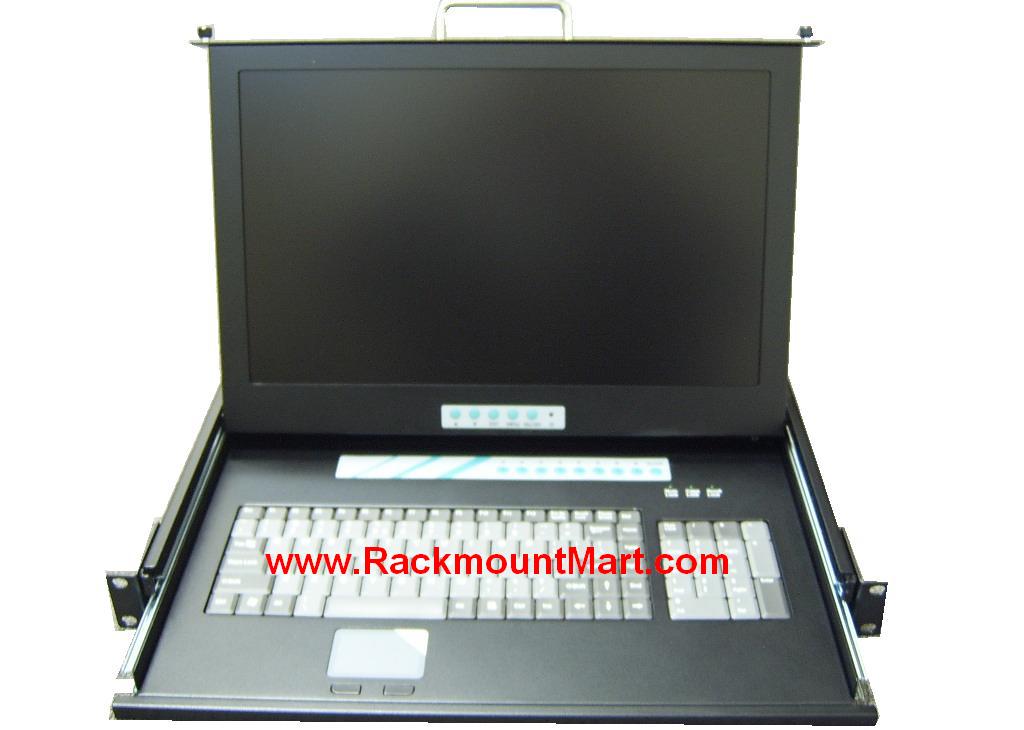

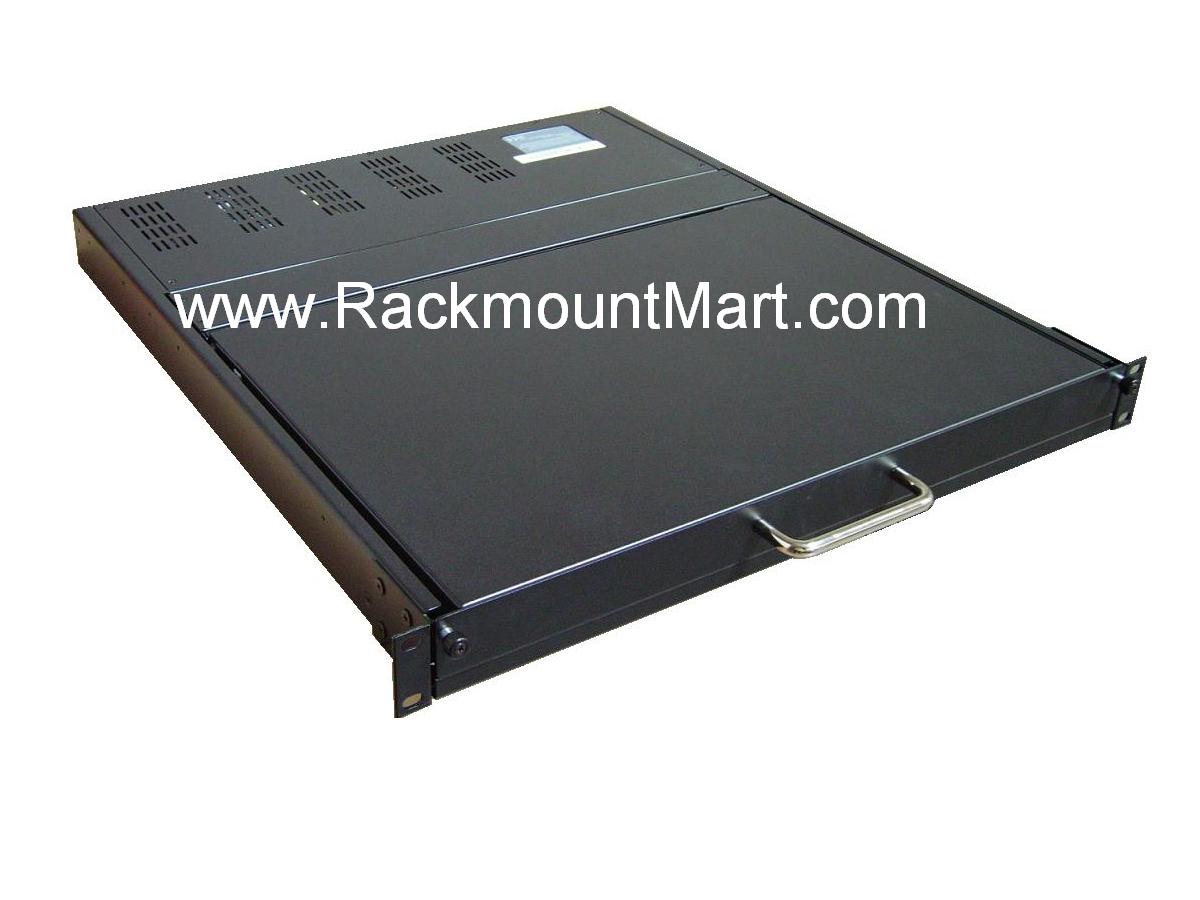

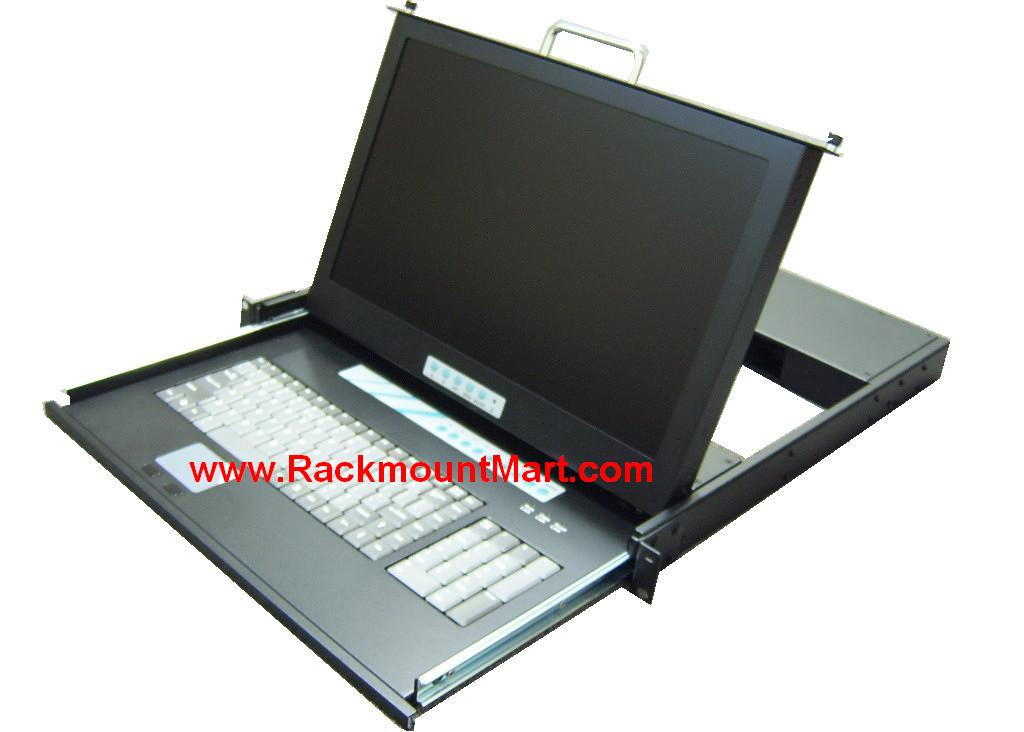

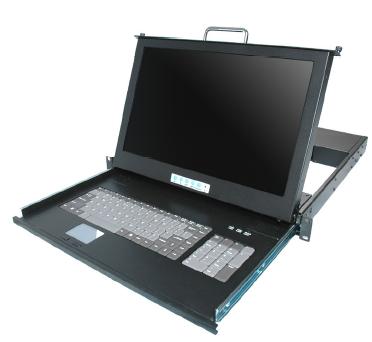

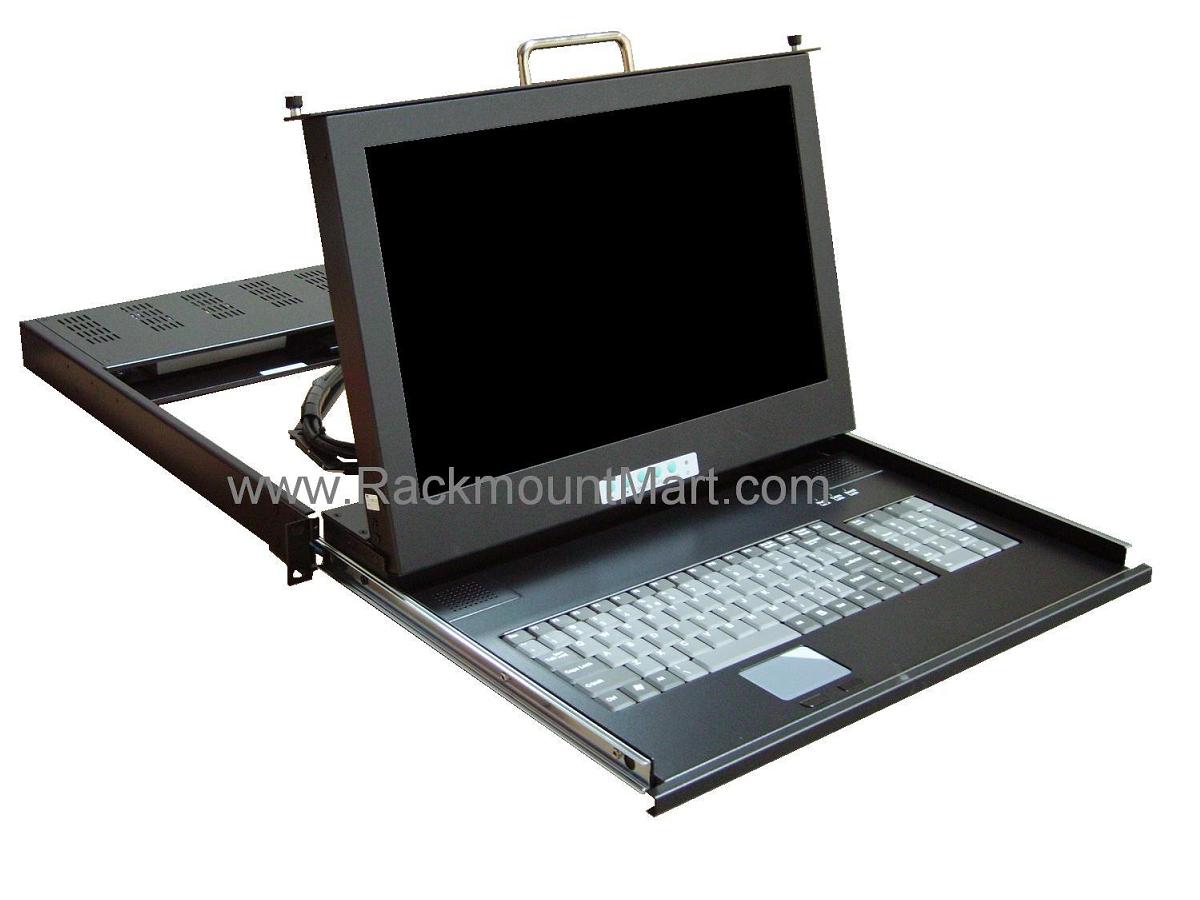

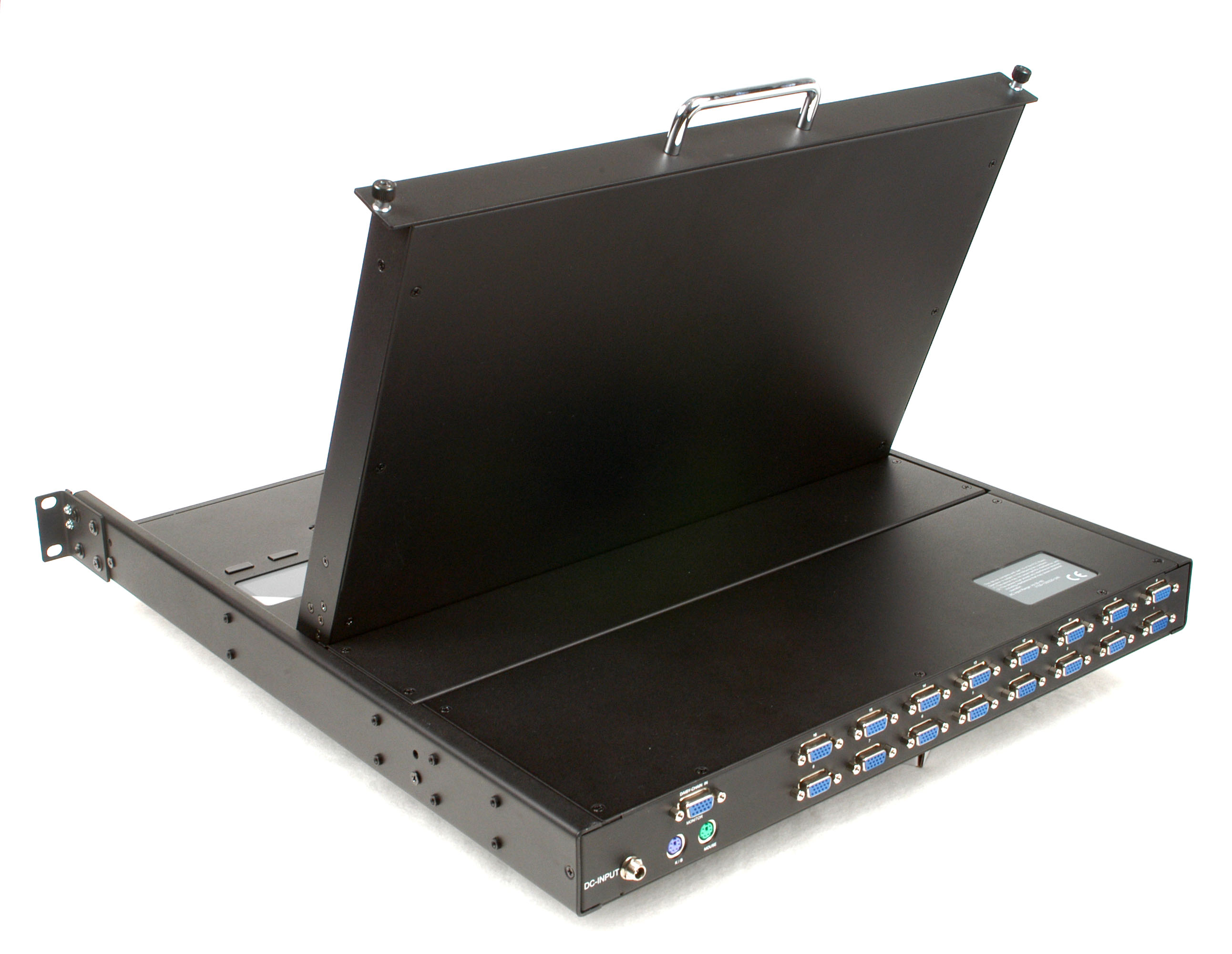

Hot! LCD1U17-14 SHORT DEPTH Wide Screen Navy Awarded 1U Rackmount 17" TFT LCD Monitor KB w/ built-in speakers Optional 16 port KVM Tempered Glass , Auto Power Switch RoHS






                                *** Click on each photo for enlarged view







Click on the following photos for enlarged views :







  • 16:9 wide screen high brightness TFT LCD panel
  • Built-in keyboard, touch pad & monitor console
  • With Built-in Speaker for Single port model
  • Military standard approved (20¡¨ depth)
  • Depth is 20" only even for 16 port KVM model
  • Heavy-duty steel

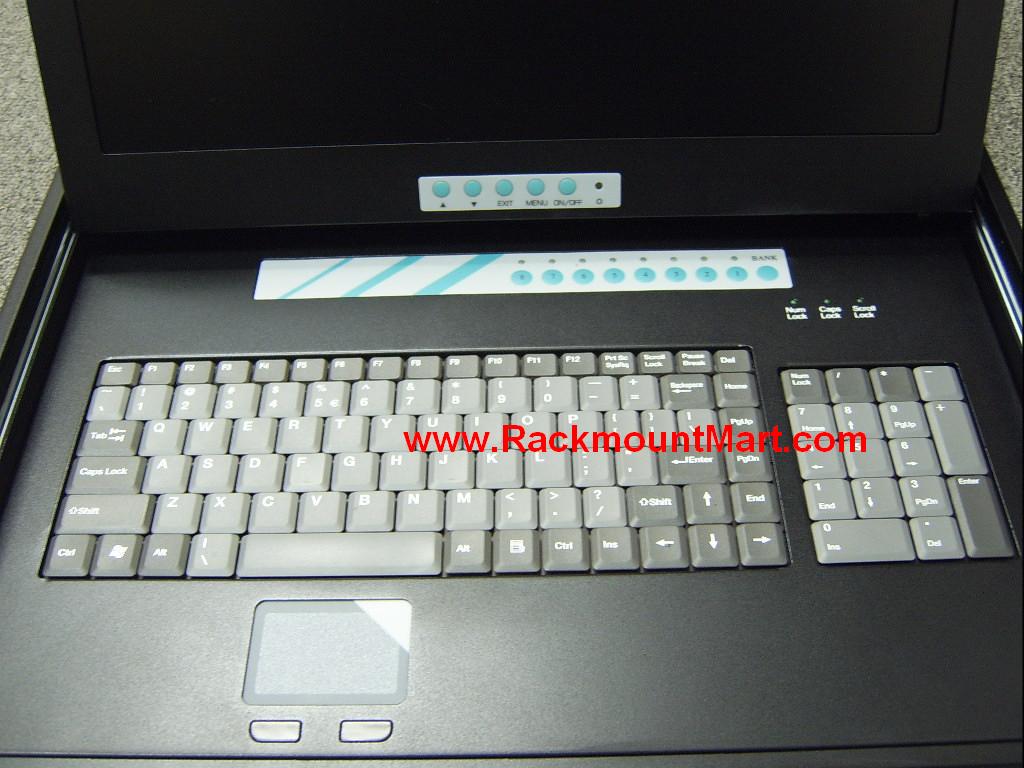

  • Mechanical Notebook type keyboard in 88 keys, with touch pad
  • Built-in rail self-locking device
  • Built-in side railing for instant installation
  • Movable front panel offers additional comfort during data entry
  • Keyboard available in multiple languages
  • Available in black and Customized colors available
  • Optional DC-48V power supply / Touch-screen
  • Safety approval: CE, FCC   & RoHS Compliant

I
III
Model No
LCD1U17-14
LCD1U17-14-16KVM
Ports switch for PC
Single
16 ports
Weight
Single port: 11kgs (28lb)
16 ports: 11.5 kgs (29.2lb)
Dimension
442.4 X 44 X  508 mm /  17.4" x 1.73" x 20"
(W x H x D)
Power Supply
100/220V auto-switching, 50W
Size
1U 19" Rackmount Type
*Extension Cable
none
3 IN 1
*Extensible Rail
Up to 35.4"
(900mm)
Up to 35.4"
( 900 mm)
*Construction Material
Industrial Metal
Keyboard
Mechanical 105 keys with Numeric Keypad
Mouse
Touchpad
*Color
Black
Protection
Front panel with Thumb screw
Rail with self-locking device
LCD back-light will be turned-off when
the screen set is turned down
*KVM switch

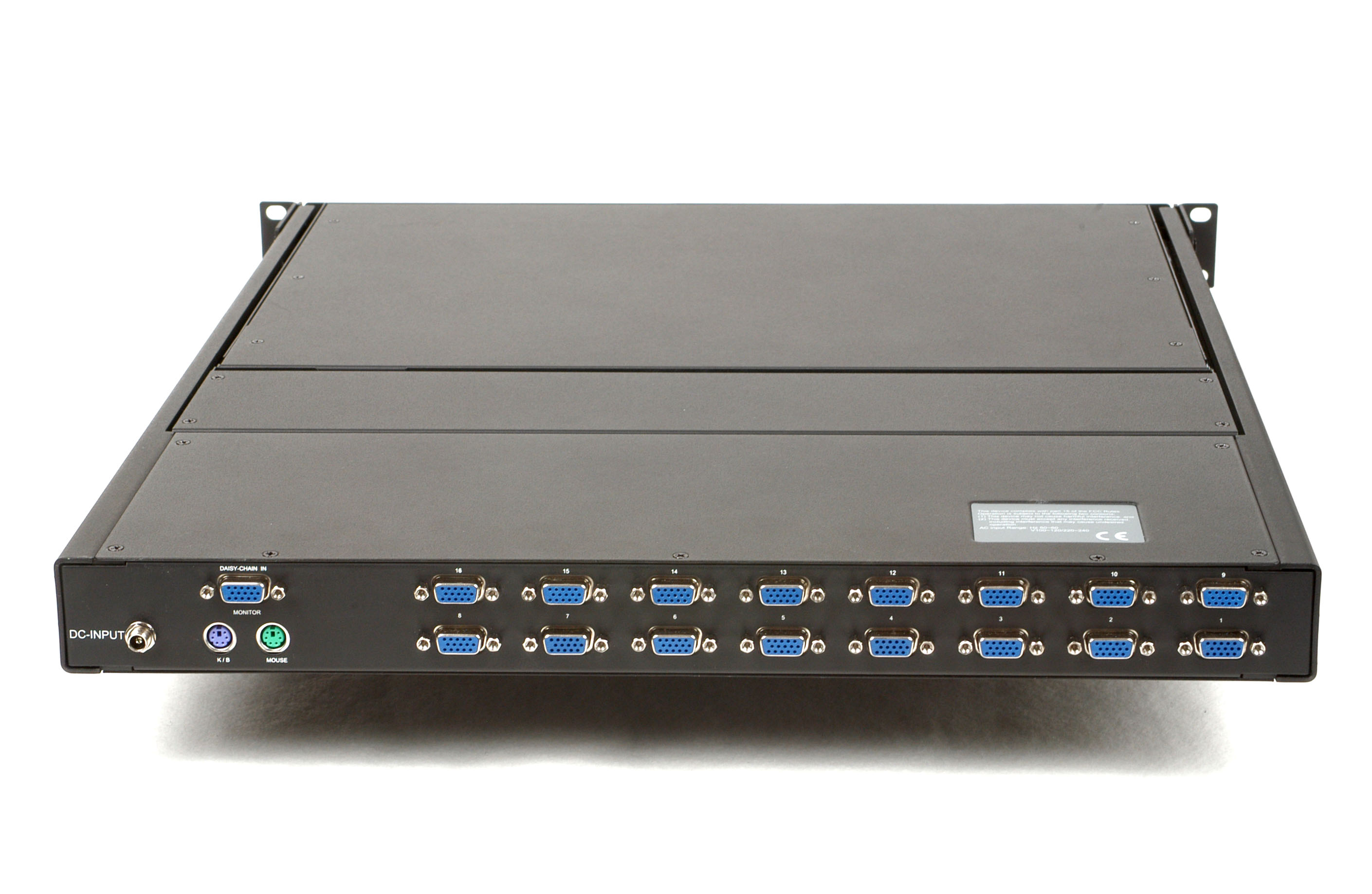

Build-in 16(490) ports KVM Switch
*Security Lock
Thumb screw x 2
*Built-in Speaker
Yes
                     No
Operation Temperature
0-50¢X C (32-122¢XF)
Display
Diagonal
 17" (16:9)
LCD Resolution

1280 x 1024
Contrast Ratio
600:1
Brightness
450 nits
Frequency
60Hz
Frame Rate
16.2M colors
Frame Rate
OSD

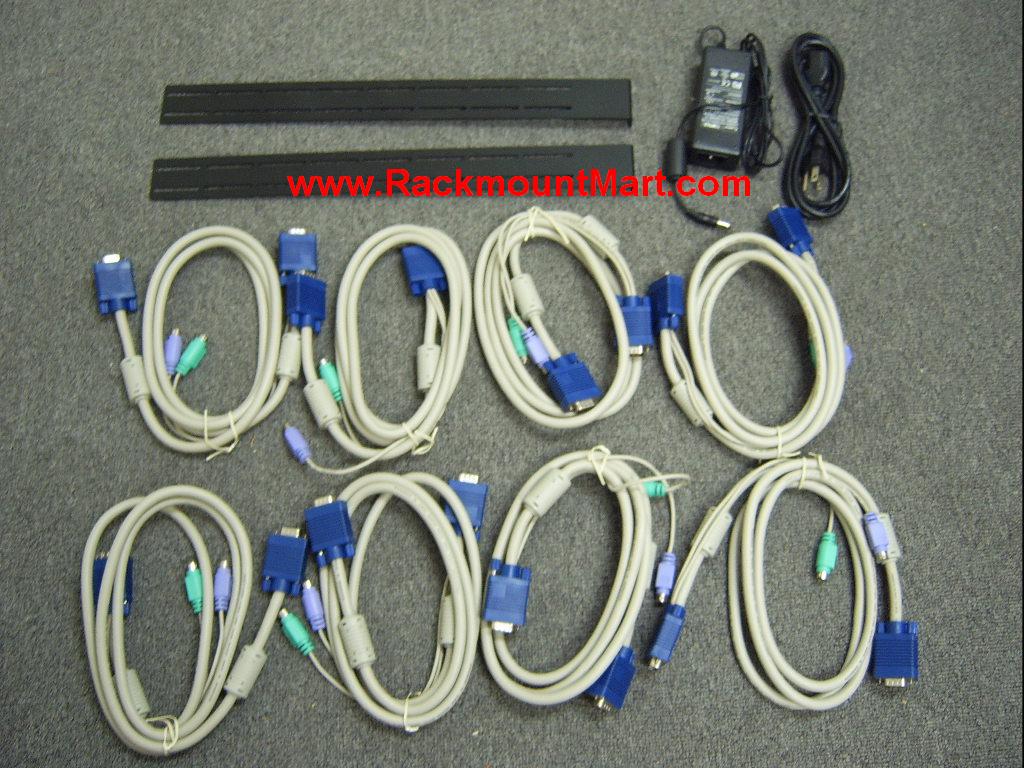

Accessories


Single Port
16 Port
KVM Drawer Unit
X1
X1
Extensible Bracket
X2
X2
Power Cord
X1
X1

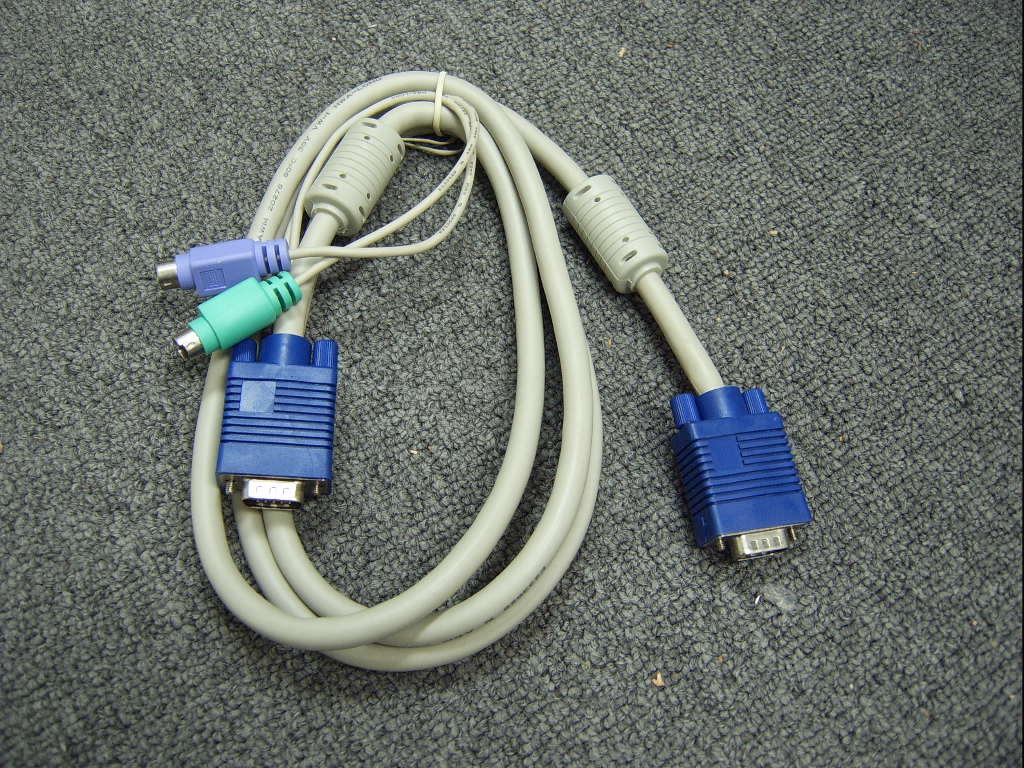

VGA HDDB 15 pin
(shared with PS2 keyboard and mouse)
X1
X16
Screws package
X1
X1
External power adaptor
X1
X1
User Manual
X1
X1








 Ordering information :

  Part # Description
LCD1U17-14             Price:$948 1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with touchpad mouse and built in speakers
LCD1U17-14-16KVM Price:$1518 1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with 16 port KVM switch and touchpad mouse & 16 sets of KVM cables




Availability: Usually ships the same business day.

LCD1U17-14Regular price: $1,228.00Sale price: $1,048.00
OPTION:
