LCD1U19-013  SUN Solaris Compatible 1U Rackmount 19"  Grade A TFT LCD Monitor Drawer with VGA & DVI , Optional DC input power





Part # LCD1U19-013


SUN Solaris 1U Rack mounted 19" TFT LCD Display Drawer with VGA & DVI
Optional  DC Input Power

   Sun Solaris 1U LCD Drawer LCD1U19-013



    Drawer Features & Display Benefits
  • 1U 19" LCD drawer
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Short depth design of 500mm ( 19.7" )
  • Depth will suit a 600mm rack application
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Installation slides for easy, quick installation
  • Enhanced aesthetics with molded front panel and two point lock
    Options
  • DC power : 12V / 24V / 48V / 110 ~ 125V
                          LCD Screen

LCD Type

Grade A Industrial monitor 19 inch TFT LCD Panel

Display Size

19 inch diagonal

Resolutions

1152 x 900 ( Direct ), 1280 x 1024 ( Native )

Backlight

LED

Contrast ratio

1000 : 1

Brightness

250 cd/ m2

Active area (mm)

376 x 301

Panel color

16.7 M

Viewing angle

170° x 160°

Signal Input

VGA / DVI-D

LCD MTBF

30,000 hrs

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
                     Environmental

Storage temp.

-5ºC to 60ºC

Operating temp.

0ºC to 55ºC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

5~500Hz 1G RMS random vibration

Package Content

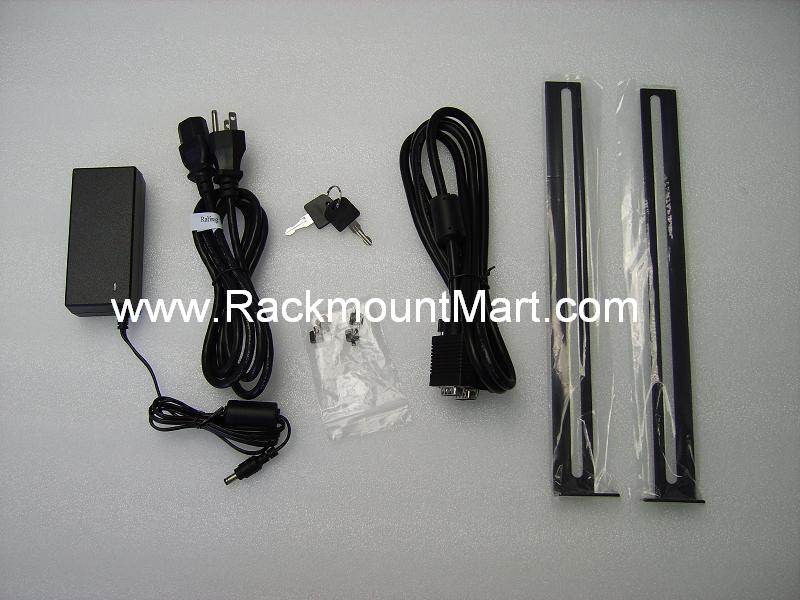

LCD1U19-013 unit X 1 , 6ft VGA cable X 1, Power cord X 1 , M6 screw, cage nut & cup washer X 8
                          Mechanical
Dimension:
( Single console )
441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch
Product Weight 12.5 kgs / 28 lbs
                              Regulatory Approval
  FCC, CE, RoHS Compliant
    Dimension

*click on above pictures for enlarged view

    Construction

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual


        Free Ground Shipping *Click for details

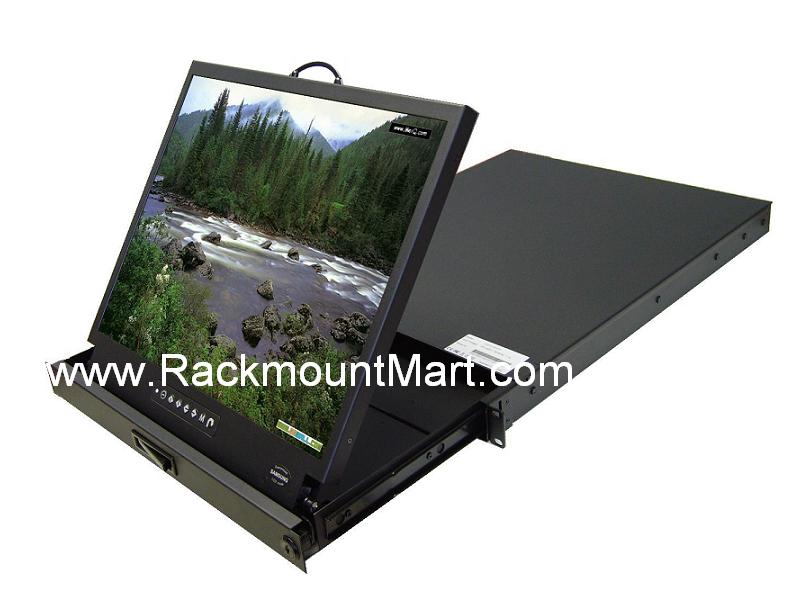

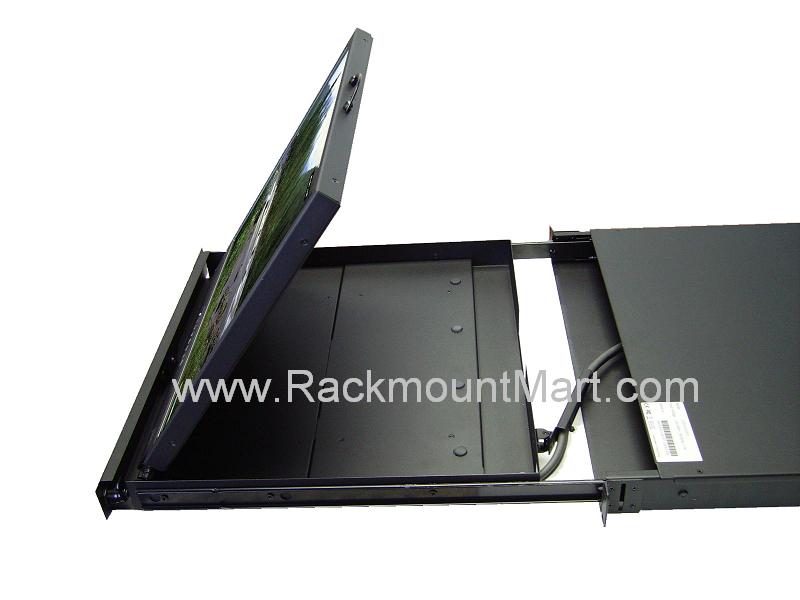

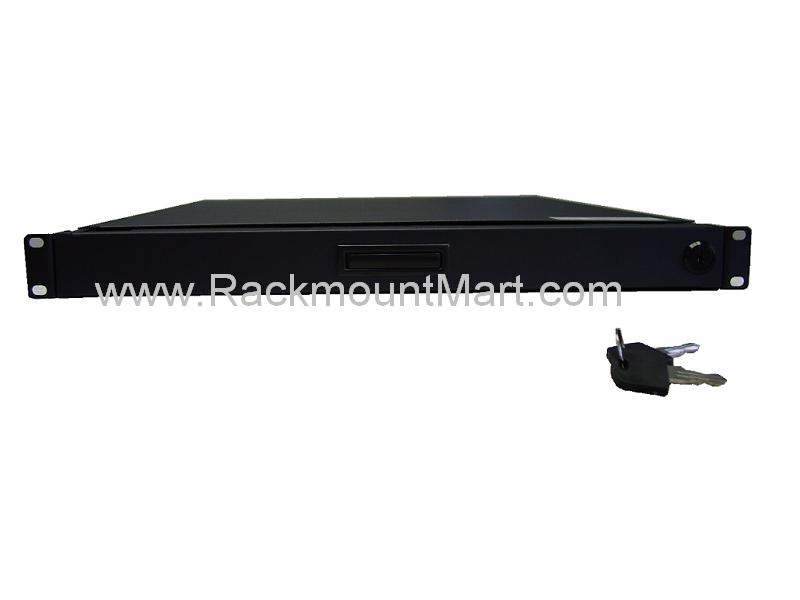

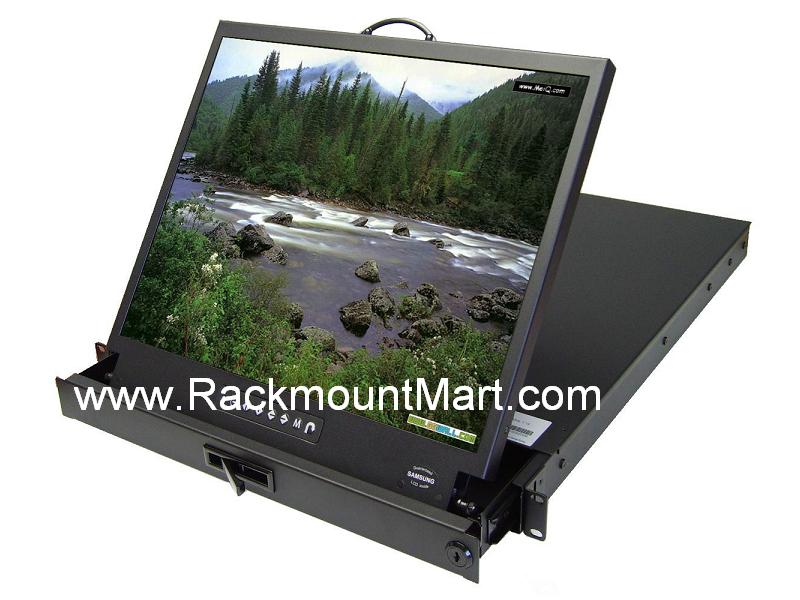

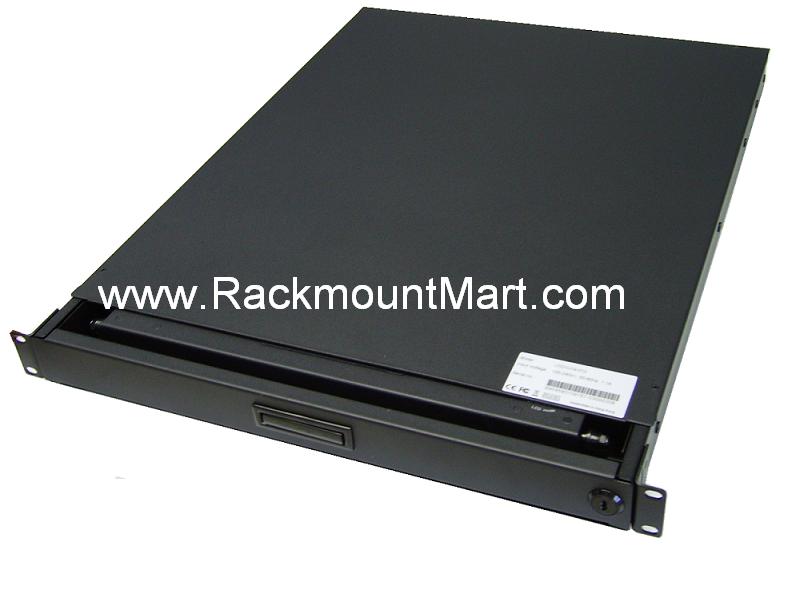

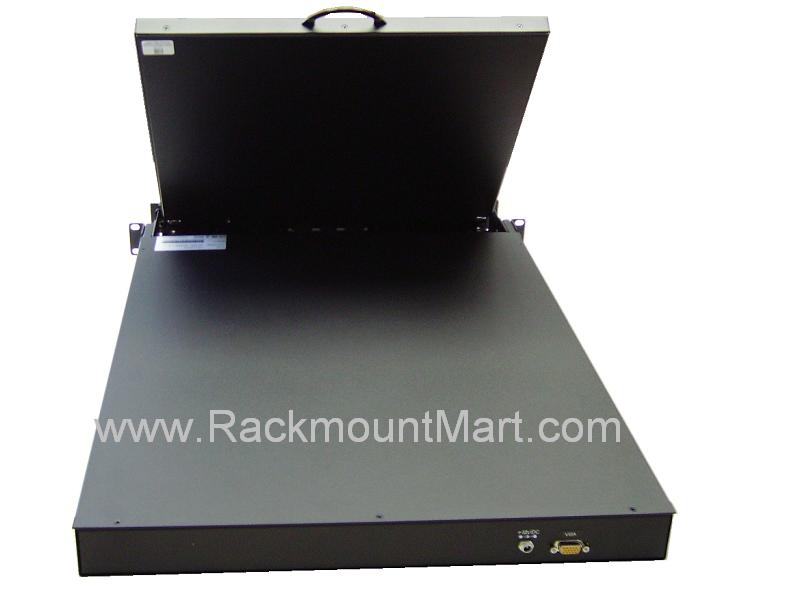

More Photos, click on the following for enlarged view:




Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
 Customer who ordered this product may also order these :
- KVM Switch - Rack Shelves
- Rack Mount Keyboard - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount

 Ordering  information

Part Number  Description
LCD1U19-013
Price : $788
 SUN Solaris Compatible 1U Rack-mount 19" TFT LCD Monitor Drawer with VGA & DVI-D , one 6-ft long VGA cable included
Optional DC power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply






Availability: Usually ships the same business day

LCD1U19-013 $788.00
Model:

Optional DC Input Power Adapter:
