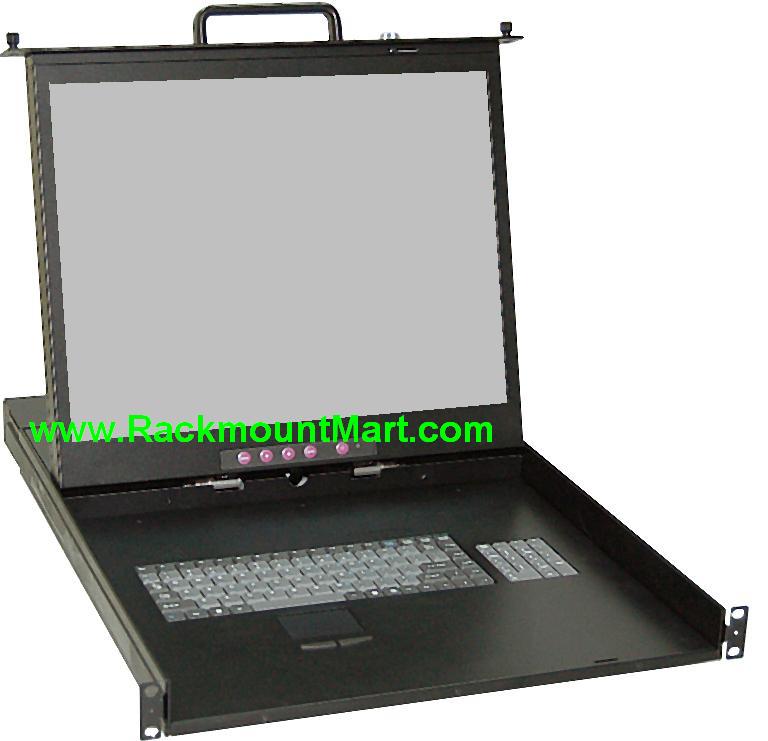

LCD1U20-01 1U Rackmount 20"  TFT LCD Monitor Keyboard Drawer  with Tempered Glass, Combo PS2 /USB interface Optional DVI / SunHot Keys/ Cherry Trackball                                            .





          1U  Rackmount 20.1" TFT LCD Monitor Keyboard Drawer  (  TAA Compliant  )

with Combo PS2 & USB interface ,  VGA and  DVI-D Input
                        Optional  8 Port KVM or 16 port KVM  /  SUN Hotkey   / Cherry Trackball
                                             For shorter version, please check LCD1U20-04



                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platform : Support PS/2, SUN and USB

Options

- Color (Black / Beige / OEM color)
-
DC power (-48V ~ +48V / + - 12V )
SUN Hotkeys
-
Rear bracket extension up to 1030mm
-
Detachable keyboard plate
-
Signal cable 1.8m / 3.0m / 5.0m
-
Audio function

                                                  LCD Screen

LCD Type

 20.1" Active Matrix TFT LCD

Display Size

 20.1 inch diagonal

Resolutions

Max Resolution up to 1600 x 1200 (UXGA)

Response time

Rising Time 7 ms, Decay Time 9 ms

Contrast ratio

700 : 1

Brightness

300 cd/ m2

Pixel pitch

0.255mm (H) x 0.255mm (W)

Panel color

16.7 million display colors (RGB 8-bit data)

Back Light

Six Lamps for Back Light

Viewing angle
(CR >10)

 Right-Left view 178° (Typ)
 Up-Down View 178° (Typ)

                                     Keyboard & Pointing Device

Keyboard Type

106 key PS/2 Keyboard with Touchpad &
Numerical key pad
OR Cherry Trackball Keyboard

                                  Other Features

Support Platform

Dos, Windows (3.1, 9x, 2000, NT4, ME, XP,
2003 Server) Linux, Novell 3.12-6, HP UX, SUN

System Cables

 VGA + Combo PS2 & USB cable

Sync

 45 ~ 80 KHz

                                Power Supply



-Power Source : 100-240 VAC input
-Power Consumption :
35W
                                  Environmental
   Temperature Operate 0°~ 50°C / 32°~ 122°F
Storage-20°~ 60°C / -4°~ 140°F
 Humidity 10 % ~ 90 % RH
                                  Mechanical Dimension
Single port 448.7 x 673.1 x 44 mm /
17.7 x 26.5 x 1.7 inches
***30"(D) with rails***


  Front View of LCD1U20-01



   *click on photo for enlarged view

     Dimension

*click on above picture for enlarged view



           Download Product Sheet

           Download User Manual

           Download Hot key Command List

           Download Installation Guide














 More photos - (click on the photos for enlarged views)







FEATURES :
  • DVI-D signal Input is included
  • Combo PS2 / USB interface
  • OSD function (On Screen Display) for LCD display
  • Panel protected by tempered glass
  • TAA compliant
  • Heavy duty steel materials
  • Optional Speakers
  • Optional SUN Hotkeys
  • Optional 12V / 24V / 48V DC power input

Ordering information :



  Part # Description
 LCD1U20-01-co-ps2
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with  touchpad mouse and COMBO PS2 / USB INTERFACE ,  VGA & DVI-D input and  *1 PS/2 6-ft cable included, Black
 LCD1U20-01-co-usb
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with  touchpad mouse and COMBO PS2 / USB INTERFACE     VGA & DVI-D input and  *1 USB 6-ft cable included, Black
 LCD1U20-01-c-ps2
1.5U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with Cherry Trackball Keyboard  and PS2 INTERFACE and      VGA & DVI-D input and  *1 PS/2 6-ft cable included, Black
Optional Hot Key
 -Sun Hot Key
Add SUN Hot Keys to Keyboard
Optional DC power
-DC12
Add 12V DC power supply (with Trackball keyboard)        DC sheet
-DC24
Add 24V DC power supply (with Trackball keyboard)        DC sheet
-DC48
Add 48V DC power supply (with Trackball keyboard)        DC sheet
-DC125
Add 125V DC power supply
Optional Cable
 LCD-A4001

Add 6 ft PS2 Cable + USB adapter
 LCD-A4002

Add 10 ft PS2 Cable + USB adapter
 LCD-A4003
Add 15 ft PS2 Cable + USB adapter
 LCD-A4011

Add 6 ft USB Cable
 LCD-A4012
Add 10 ft USB Cable
 LCD-A4013
Add 15 ft USB Cable



LCD1U20-01
