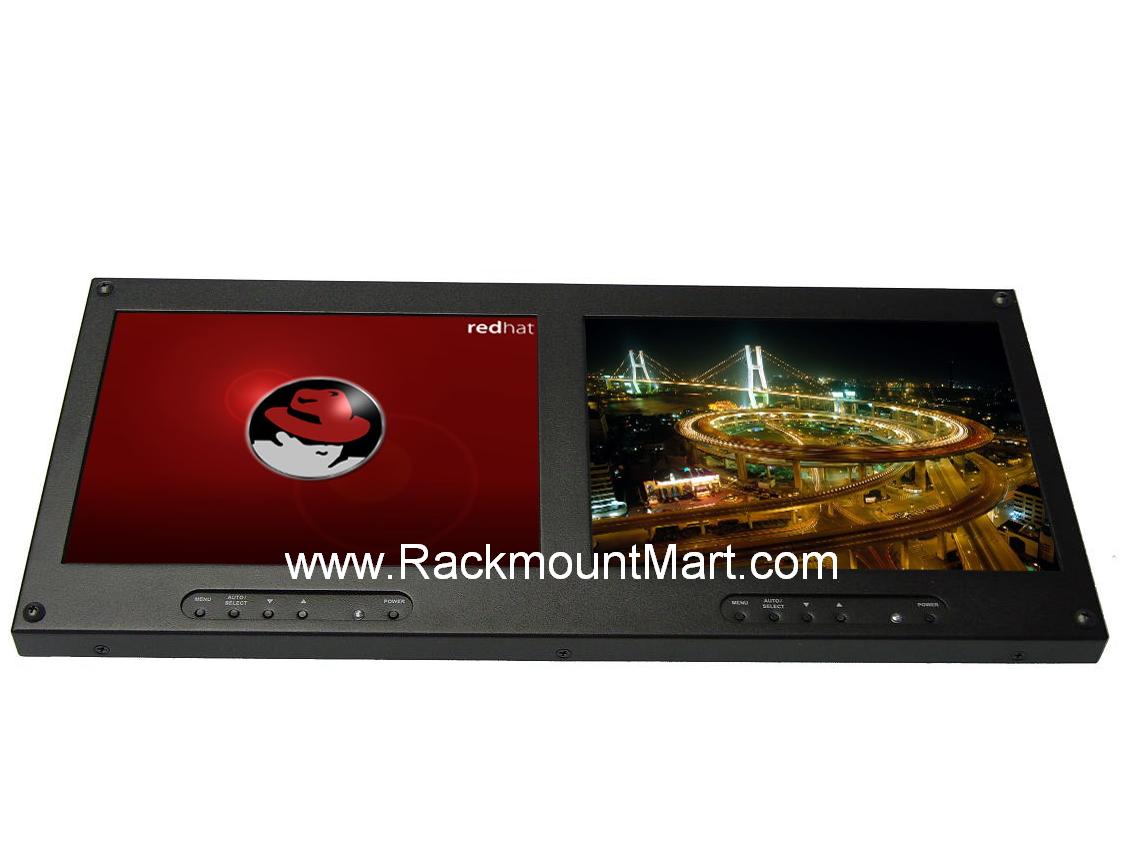

LCDR5U10-01-dual  5U Rackmount Dual 10.4" TFT LCD Monitor W/Anaglog & DVI Input  Optional Lexan Shield / S-Video & Composite video input





                                                    5U Rack mount  Dual 10.4"  TFT  LCD Monitors
                                                 Optional Composite Video + ARGB
( Made in USA )

**This model is discontinued .  Learn more about replacement model LCDR5U10-05-dual**


Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor, tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor

                * Click on above photos to enlarge
            Free Ground Shipping *Click for details



Features :
-Dual 10.4" TFT LCD panel with resolution 1024 x 768
- High contrast ratio 500: 1 for excellent picture quality
- Viewing angle -  Horizontal : 178 degrees  -Vertical : 178 degrees
- Fits in s
tandard 19" rack/cabinet
- Rugged Steel front panel construction with a durable powder coat finish
- Analog & Digital Inputs

- On Screen Display (OSD)
-OPTIONAL COMPOSITE VIDEO INPUT available now









  More photos (click to enlarge )
Dimensions 19.0" (W) x 8.75" (H) x 2.35" (D) (1.65" (D) behind rack mounting rails)
Color Black
Display Type  10.4"  TFT active matrix LCD.
Resolution VGA up to 1024 x 768  maximum, 262K colors.
Frequency Horizontal:  31.5-80KHz
Vertical: 56-75Hz
Response Time  < 40 ms (typ).
Brightness 350 nits typical
Contrast Ratio  500:1 typical
Viewing Angle Horizontal: 178 degrees
Vertical: 178 degrees
Input Signal VGA: RGB. Analog Video, TTL H & V sync

Input Connector Analog : 15-pin mini D-sub
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD H & V Position, Input Select , Reset, Color Temp
Plug & Play DDC1 and DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 60 Watts Maximum
Environment Temperature Operating:0 to 50 degrees C
Storage: -20 to 60 degrees C
Humidity Operating: 10% to 90% RH (max)

Ordering  information

Part Number  Description
LCDR5U10-01-dual
 5U Rackmount Dual 10.5"  SAMSUNG TFT LCD Monitor , black
LCDR5U10-01-dual-Lex
 5U Rackmount Dual 10.5"  SAMSUNG TFT LCD Monitor , black, with Lexan Shield
-AV  S-Video &Composite Video inputs + ARGB & DVI inputs (per screen)




LCDR5U10-01-dual
Option:

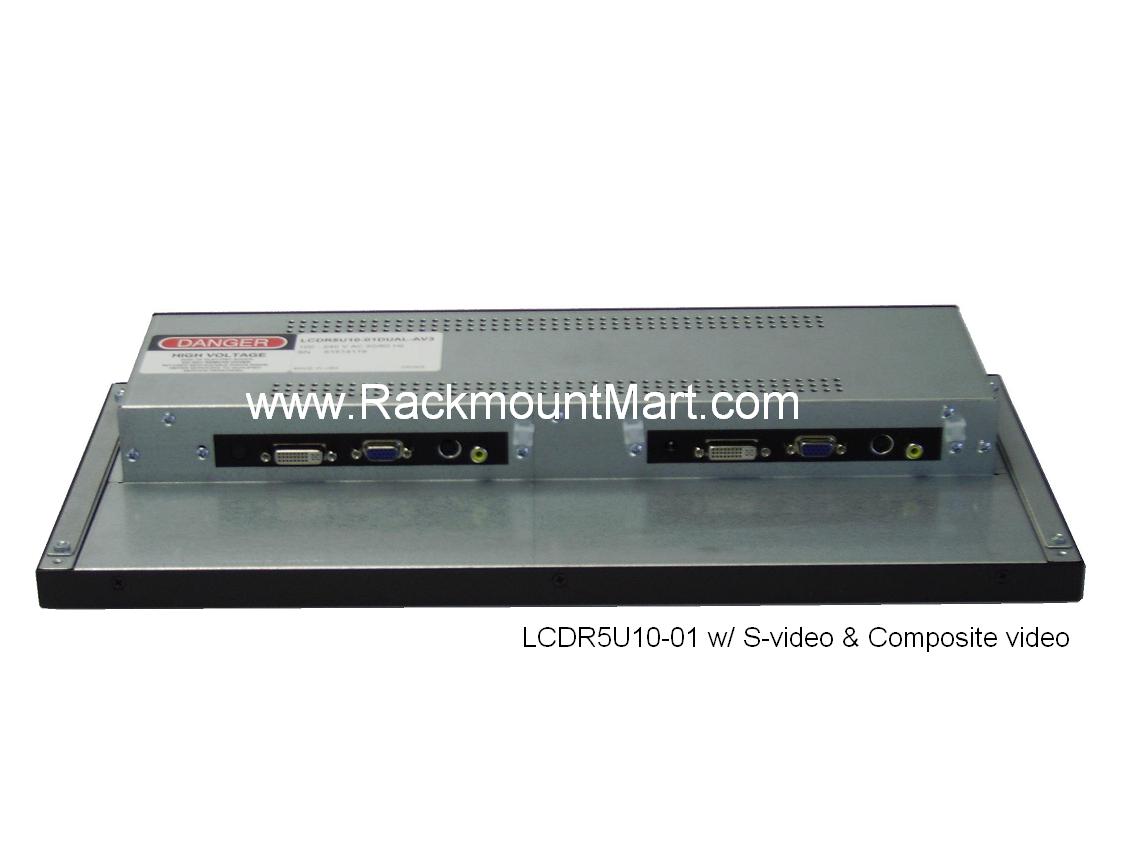

Optional S-Video & Composite video input + ARGB & DVI inputs :
