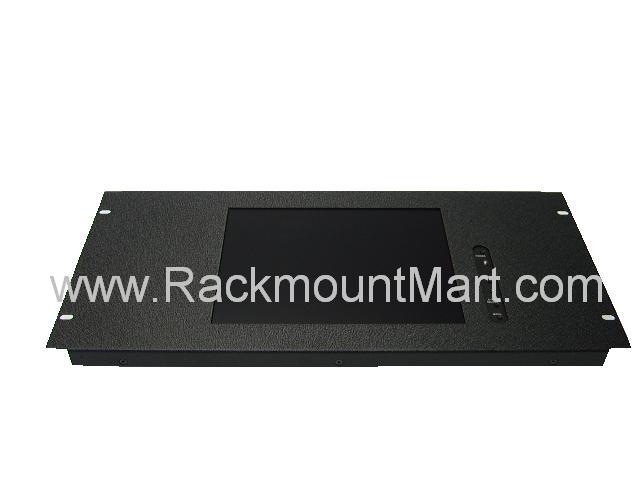

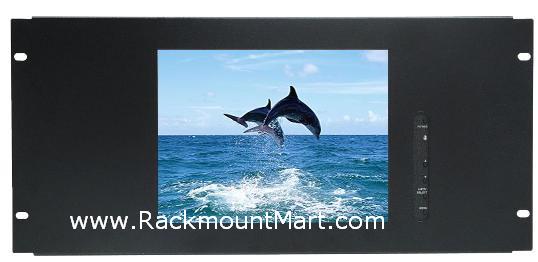

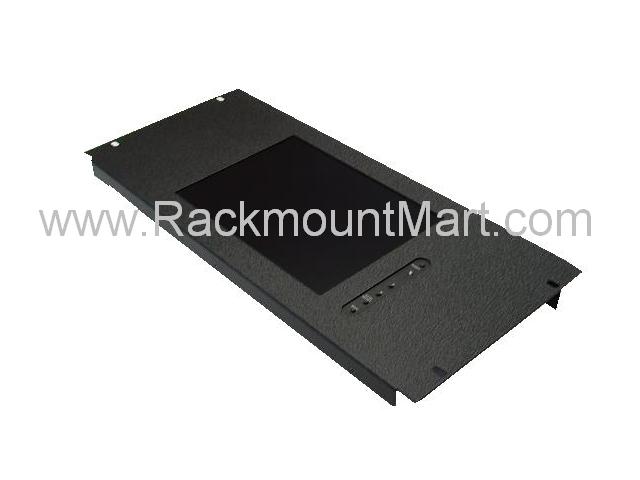

LCDR5U10-02  5U Rackmount 10.4" TFT LCD Monitor optional Composite Video / DVI / ARGB  inputs ( Made in USA )



      5U Rack mount  10.4"  TFT  LCD Monitors
                                              Optional Composite Video + ARGB
 ( Made in USA )


Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor, tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor

                        * Click to enlarge
            Free Ground Shipping *Click for details






Features :
- 10.4" TFT LCD panel with resolution 1024 x 768
- High contrast ratio 500: 1 for excellent picture quality
- Viewing angle -  Horizontal : 178 degrees  -Vertical : 178 degrees
- Fits in standard 19" rack/cabinet
- Rugged Steel front panel construction with a durable powder coat finish
- Analog & Digital Inputs
- On Screen Display (OSD)


More photos









Dimensions 19.0" (W) x 8.75" (H) x 2.35" (D) (1.65" (D) behind rack mounting rails)
Color Black
Display Type  10.4"  TFT active matrix LCD.
Resolution VGA up to 1024 x 768  maximum, 262K colors.
Frequency Horizontal:  31.5-80KHz
Vertical: 56-75Hz
Response Time  < 40 ms (typ).
Brightness 350 nits typical
Contrast Ratio  500:1 typical
Viewing Angle Horizontal: 178 degrees
Vertical: 178 degrees
Input Signal VGA: RGB. Analog Video, TTL H & V sync

Input Connector Analog : 15-pin mini D-sub
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD H & V Position, Input Select , Reset, Color Temp
Plug & Play DDC1 and DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 60 Watts Maximum
Environment Temperature Operating:0 to 50 degrees C
Storage: -20 to 60 degrees C
Humidity Operating: 10% to 90% RH (max)

Ordering  information

Part Number  Description
LCDR5U10-02
Price : $680
 5U Rackmount 10.5"  TFT LCD Monitor , black
LCDR5U10-02-Lex
Price : $735
 5U Rackmount  10.5"  TFT LCD Monitor , black, with Lexan Shield
-AV
Price : $110
 S-Video &Composite Video inputs + ARGB & DVI inputs





Availability: Usually ships the same business day

LCDR5U10-02$680.00
OPTION:
Optional S-Video & Composite video input + ARGB & DVI inputs :
