Features :
-19" SAMSUNG
Active Matrix TFT LCD panel with resolution 1440 x 900
- Wide Format 16:10 aspect ratio
- Wide viewing angle enable mounting higher in rack : 160 degree/
160 degree
- Fast 4 ms (G to G ) response time
- Fits in standard 19"
rack/cabinet
- Steel front panel construction with a durable powder coat finish
- Analog & Digital Inputs
- On Screen Display (OSD)
|
|
|
|
|
|
Dimensions |
19.0" (W) x 12.25" (H) x 3.0" (D)
|
|
Color |
Black |
|
Display Type |
19" TFT active matrix LCD. |
|
Resolution |
Up to 1440 x 900 maximum, 16.2M colors.
|
|
Response Time |
4ms (typ). |
|
Brightness |
300 nits typical |
|
Pixel Pitch |
0.285mm |
|
Contrast Ratio |
500:1 typical |
|
Viewing Angle |
Horizontal: 160 degrees
Vertical: 160 degrees |
|

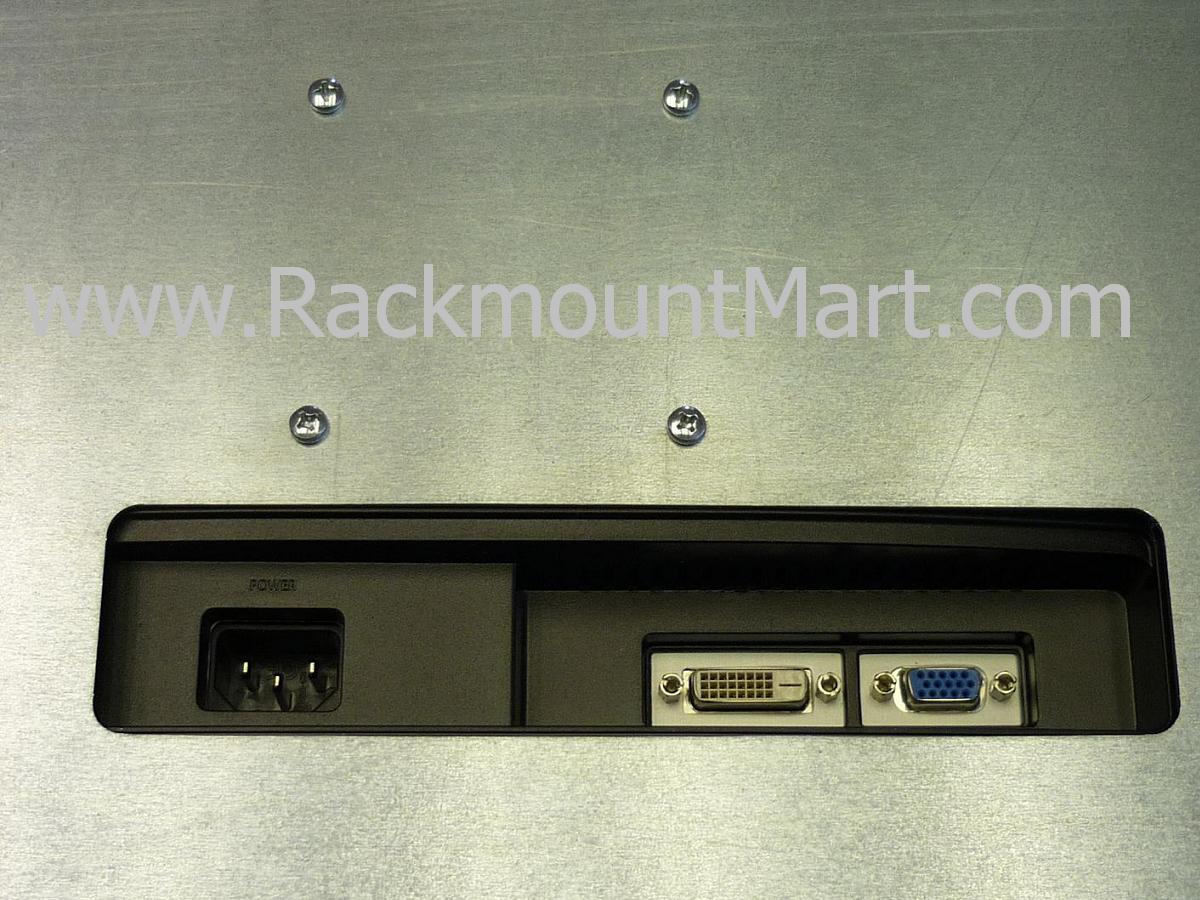

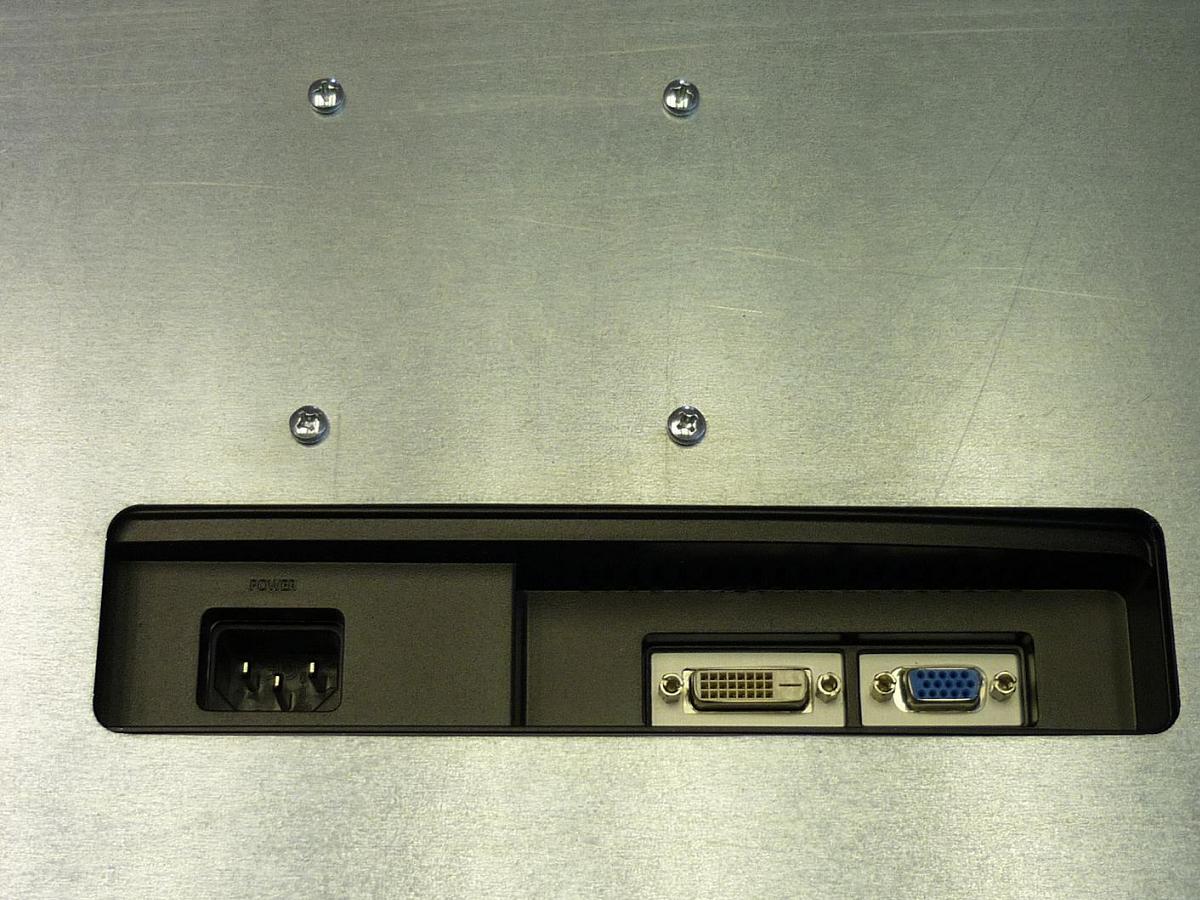

Input Signal |
VGA: RGB. Analog Video, TTL H & V sync
Digital : DVI-D (TDMS) |
|
Input Connector |
Analog : 15-pin mini D-sub Digital :
24 pin DVI-D |
|

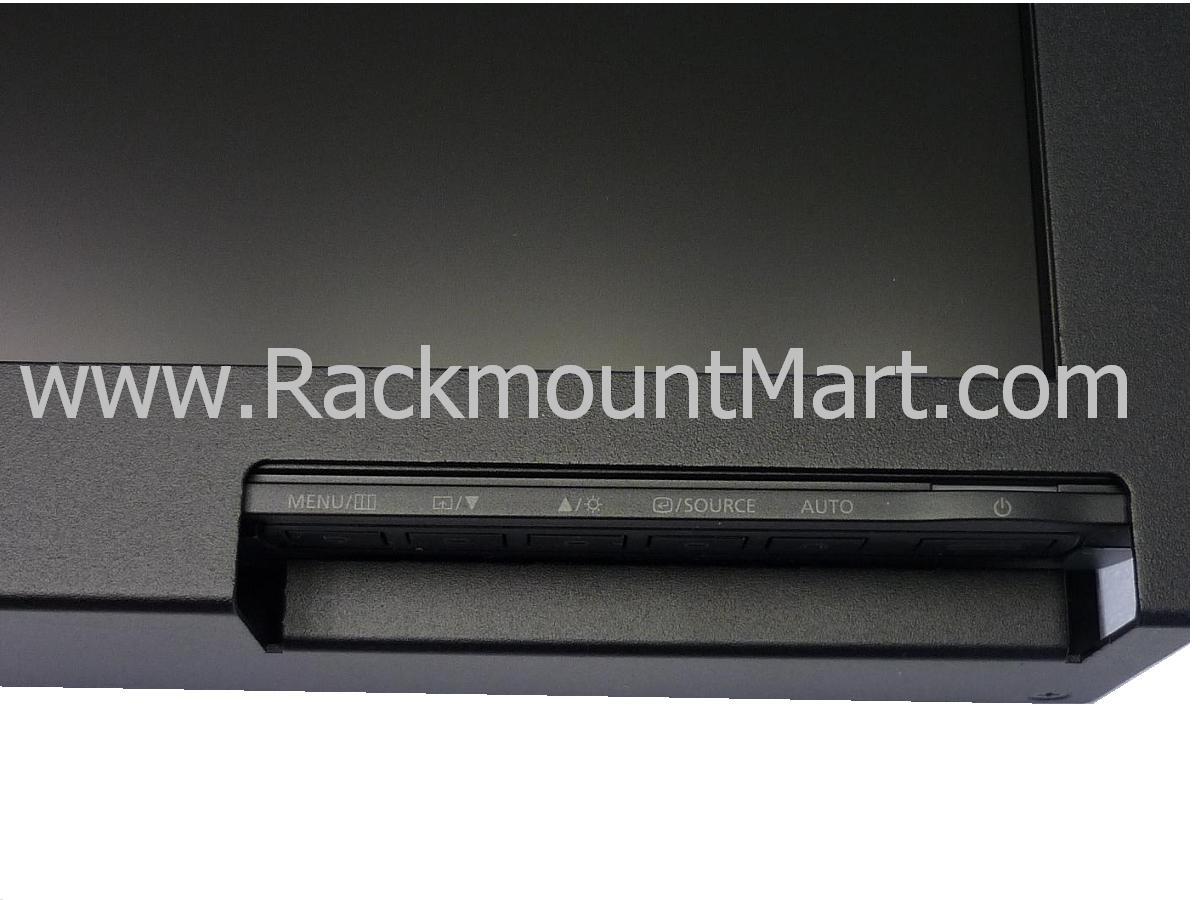

On-Screen Controls |
Brightness, Contrast, Position (Vert. &
Horiz.), Auto Adjust, OSD H & V Position, Input Select , Reset,
Color Temp |
|
Plug & Play |
DDC1 and DDC2B |
|
Power |
AC Input |
100-240VAC |
|
Frequency |
50/60 Hz |
|
Power Consumption |
42 Watts Maximum |
|
Environment |
Temperature |
Operating:10 to 40 degrees C
Storage: -20 to 45 degrees C |
|
Humidity |
Operating: 10% to 80% RH (max) |
|
|
Ordering information
|
Part Number |
Description |
|
LCDR7U19-01 |
7U
Rackmount 19" Wide Format TFT LCD Monitor , black |
|
LCDR7U19-01-Lex |
7U
Rackmount 19" Wide Format TFT LCD Monitor , black, with Lexan Shield
Protection |
|
|
