LCDR7U17-03 SUN Solaris Compatible  7U Rackmount 17" SAMSUNG TFT LCD Monitor Panel, Black

SUN LCD Monitor :  7U Rackmount 17" SAMSUNG  LCD Monitor SUN Solaris Compatible

                           Auto detection of SUN Server resolution 1152 x 900  @ 66 or 76 Hz
Panel: SAMSUNG 17" LCD panel

Display type

TFT / LCD active matrix color

Resolutions

-1280 x 1024 native graphic resolution
-Screen will sync with most SUN resolution including
1152 x 900 @66 or 76Hz

Response time

Tr =1.3ms / Tf =3.7ms (Typ.)

Contrast ratio

1000 : 1 typical

Brightness

300 cd/ m2 typical

Pixel pitch

0.264mm (H) x 0.264mm (W)

Panel color

16.2 million display colors

Viewing angle

160º (Horiz.) / 160º (Vert.)

Back light

4 CCFTs

Video

Horizontal Synchronization : 64-80 KHz (Max.)
Vertical Synchronization : 60-75 Hz (Max.)

Input Signal : Analog RGB 0.7Vp-p

Power Management

VESA DPMS

OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/ 5A DC adapter
Video Input 15-pin D-Sub connector

Product Dimension

48(W) x 31(H) x 5.5(D)cm /
18.9" x 12.2" x 2.2"

Storage temp.

-25  to 60 ºC

Operating temp.

0  to 50 ºC

Safety Approval

 FCC, CE

Optional Accessories & Peripheral

   Details

Package Content LCD Monitor x 1 ,  6-ft VGA cable x 1, AC to DC Power adapter x 1 , User Manual x 1

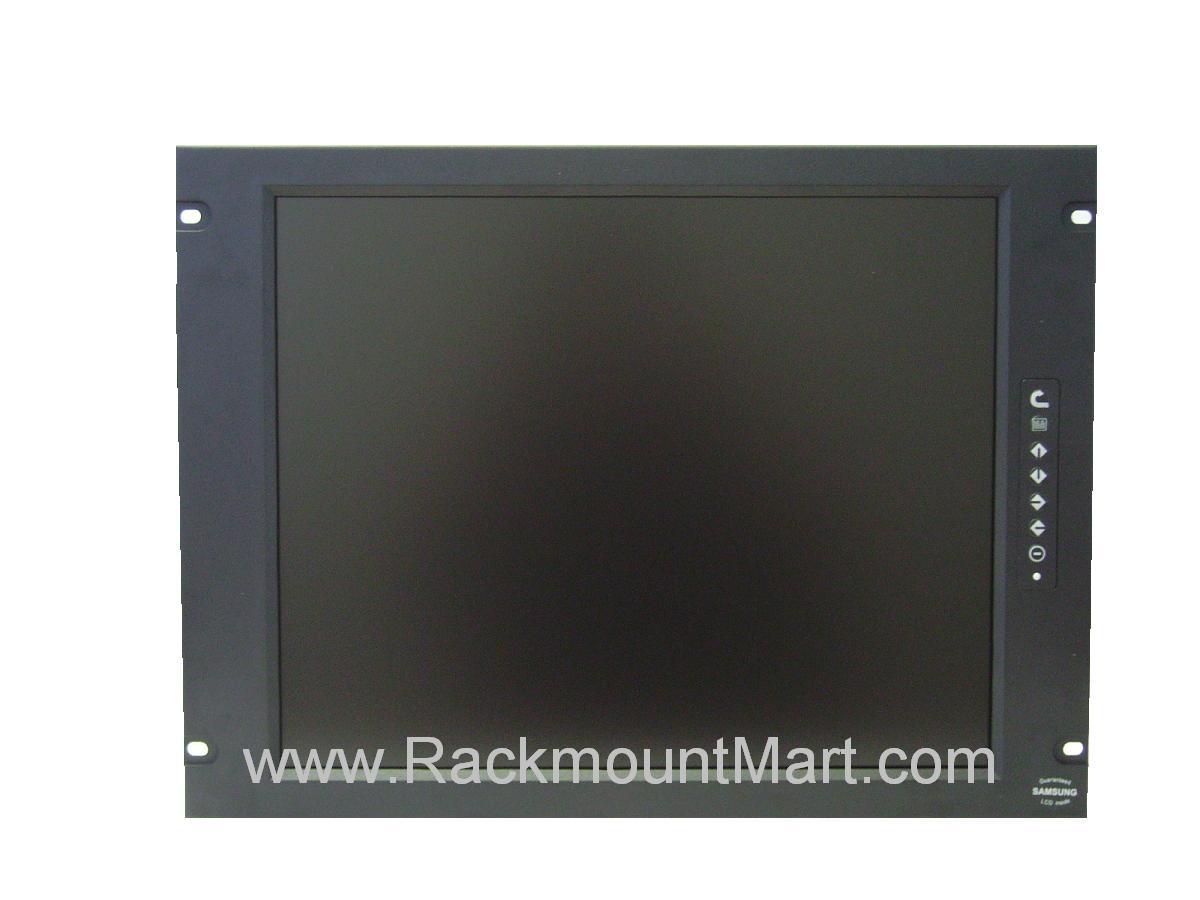

  Front View


              Only Black is available

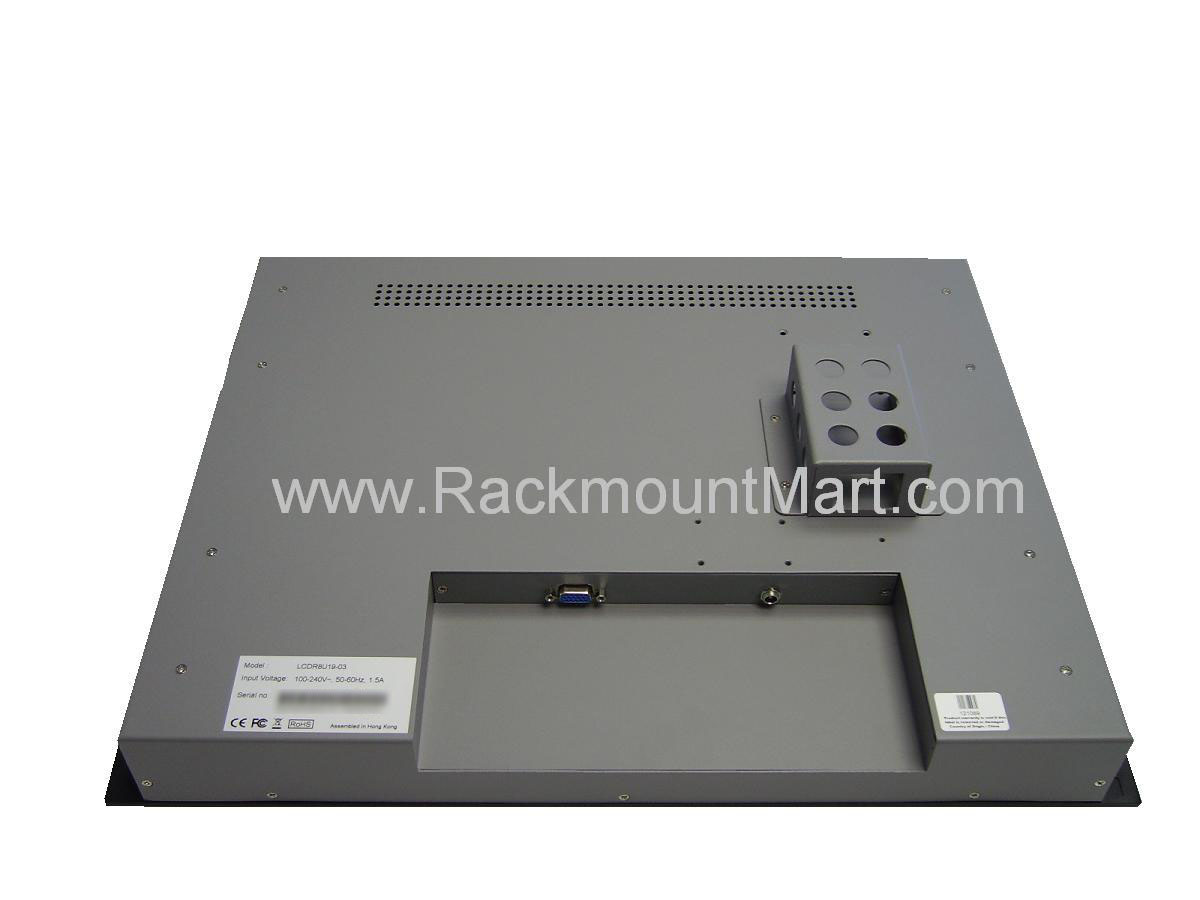

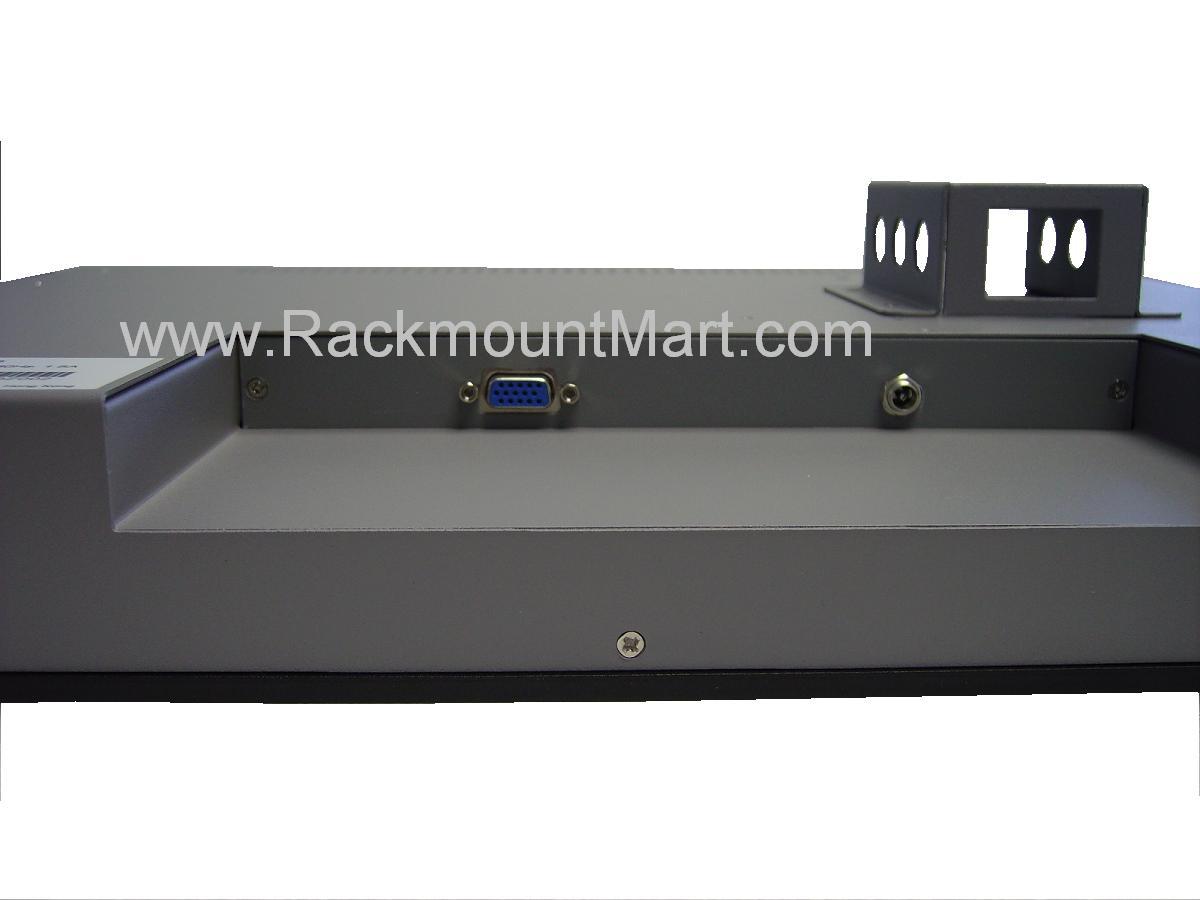

 More photos - (click on the photos for enlarged views)





Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

       User Manual


       Free Ground Shipping *Click for details














FEATURES :

  • Directly compatible with  SUN & USB server
  • Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
  • SAMSUNG 17" Grade A LCD Panel
  • Compatible with SUN, Apple, IBM, Dell, HP and USB Server
  • Lightweight aluminum construction - with a black anodize finish
  • Styled 6mm aluminum front panel.
  • Lower power consumption.
  • Built in on screen display controlled by integral membrane switches
  • Power saving feature for prolonging the life of LCD panel
  • Front-access lock for security & secure transportation
  • Supplied with 12V 5A remote power adapter (single power source)
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included
  • Optional IP65/ NEMA sealed front 2mm protective glass for LCD
  • Standard  6 ft VGA cable  included

Power supply :

  • Remote adapter : 110V - 220 V AC Input , 12V 5A Output
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval :  FCC, CE
  • Mains plug options available
  • Optional  48V / 24V / 12V DC input power adapter available

     Optional Accessories

Optional Peripheral

     48V / 24V / 12V DC Power





    1U Rackmount Keyboard Drawer
                                                     Details

     IP65/ NEMA sealed front 2mm protective
     glass  for   LCD
    Single User (Console) PS/2 KVM switch
    - 4 Port / 8 Port / 16 Port                 Details





























    Single User (Console) USB  KVM switch
    -  8 Port / 16 Port                            Details

    2 User (2 Consoles ) PS/2 KVM switch
    - 8 Port / 16 Port                             Details

    2 User (2 Consoles )USB KVM switch
     -  8 Port / 16 Port                          Details

    PS/2 KVM Extender
                                                        Details


                                                                                                                                                 Back to top



Ordering  information
Part Number  Description
LCDR7U17-03
Price : $689
 SUN Solaris Compatible 7U Rackmount 17" SAMSUNG TFT LCD Monitor
Option
-HDMI
Price : $121
Add HDMI Input
-DVI
Price : $64
Add DVI-D Input
-12VDC
Price : $171
Add 12V DC input power supply
-24VDC
Price : $171
Add 24V DC input power supply
-48VDC
Price : $171
Add 48V DC input power supply
-TRS
Price : $243
Add resistive touch screen + Serial controller
-TRB
Price : $243
Add resistive touch screen + USB controller
-TCS
Price : $421
Add capacitive touch screen + Serial controller
-TCB
Price : $421
Add capacitive touch screen + USB controller





Availability: Usually ships the same business day

LCDR7U17-03 $689.00
