LCDR8U19-05 8U Rackmount 19" TFT LCD Monitor optional Lexan / Composite Video / DVI / ARGB ( Made in USA )

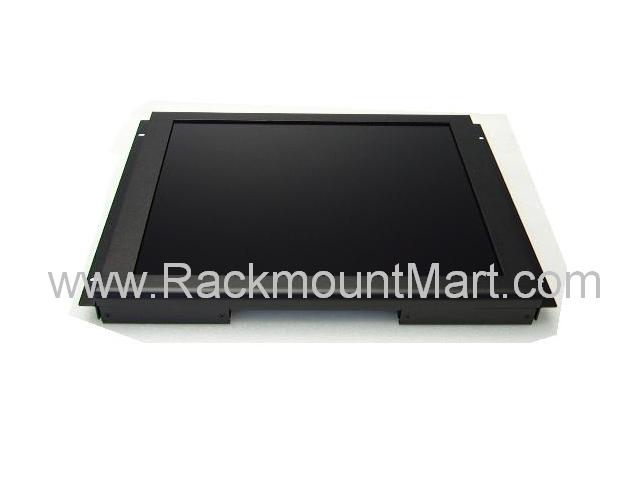

8U Panel Mount 19" TFT LCD Monitor with Optional Lexan





                                       Made in U.S.A.










                                                            *Click on above photos  for enlarged view







  A 19" TFT LCD display featuring high contrast and wide viewing angles
while occupying only 1.7" of rack depth
Dimensions 19.0" (W) x 14.0" (H) x 1.7" (D)
Display Type 19"  viewable, TFT active matrix LCD.
Resolution 1280 x 1024 maximun, 16M colors.
Frequency Horizontal: 31-80 KHz.
Vertical: 55-76 Hz.
Response Time 18 ms (typ).
Brightness 270 nits typical
Contrast Ratio 800:1 typical
Viewing Angle Horizontal: +89 / -89 degrees
Vertical: +89 / -89 degrees
Input Signal (VGA) Analog RGB, TTL H & V Sync.
(Digital) DVI-D (TMDS).
Video Connector Analog: 15 pin mini HD D-sub.
Digital: 24 pin DVI-D.
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, Input Select, Scaling, Color Temp., Reset.
Plug & Play DDC1 and DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 60 Watts Maximum
Environment Temperature Operating:0 to 50 degrees C
Humidity Operating: 10% to 85% non-condensing

Features :

-19" Active Matrix TFT LCD display.
- High contrast and wide viewing angle.

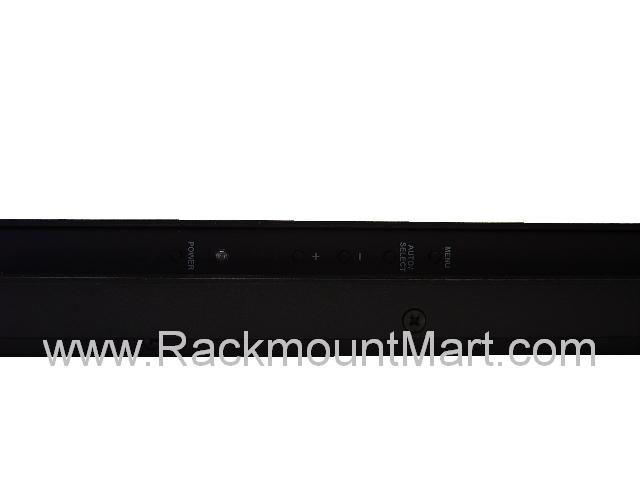

- Controls on side of monitor for a clean appearance.
- Optional LEXAN shield.
- Only 1.7" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided

Ordering  information


Part Number  Description
LCDR8U19-05-bk  8U Rackmount 19" TFT LCD Monitor , black
LCDR8U19-05-bk-L  8U Rackmount 19" TFT LCD Monitor , black with Lexan shield protection on display surface
LCDR8U19-05-lg  8U Rackmount 19" TFT LCD Monitor , light gray
LCDR8U19-05-lg-L  8U Rackmount 19" TFT LCD Monitor , light gray Lexan shield protection on display surface










Availability: Usually ships the same business day.

LCDR8U19-05Regular price: $845.00Sale price: $748.00
OPTIONS:
Optional S-Video & Composite video input + ARGB & DVI inputs :
