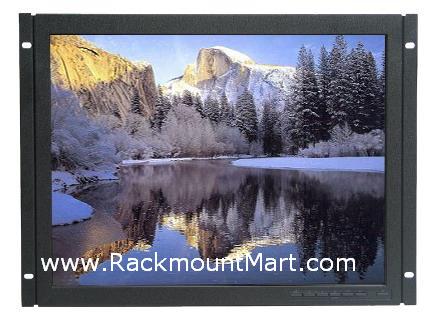

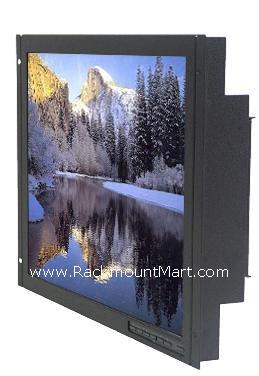

LCDR8U20-03 8U Rackmount 20.1" SAMSUNG TFT LCD Monitor ( Made In U.S.A.)




                                                                     * Click on the photos to enlarge
                            Free Ground Shipping *Click for details



Features :
- 20.1" SAMSUNG Active Matrix TFT LCD display.
- High contrast and wide viewing angle.
- Optional Lexan Shield protection for the display surface.
- Only 3.3" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided.
-Color : Black

The LCDR8U20-03 rack mountable 20.1"  TFT monitor provides a high contrast, wide viewing angle
display in a minimal rack depth. This TFT display connects directly to a standard video output via a
15-pin VGA connector and does not require any additional drivers or proprietary interface adapters. Also
featured is a connection to DVI-D digital video devices. Offered in black with optional display surface Lexan Shield protection.
Dimensions 19.0" (W) x 14.0" (H) x 3.3" (D)
Display Type 20.1"  viewable, TFT active matrix LCD.
Resolution 1600 x 1200 maximum, 16.7M colors.
Frequency Horizontal: 30-81 KHz.
Vertical: 56-75 Hz.
Response Time 5 ms (typ).
Brightness  300 nits typical
Contrast Ratio  800:1 typical
Viewing Angle Horizontal: 160 degrees
Vertical: 160 degrees
Input Signal (VGA) Analog RGB, TTL H & V Sync.
(Digital) DVI-D (TMDS).
Video Connector Analog: 15 pin mini HD D-sub.
Digital: 24 pin DVI-D.
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto Adjust
Plug & Play DDC1 and DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 36 Watts Max
Environment
Humidity Operating: 10% to 80% RH (max)

Ordering  information


Part Number  Description
LCDR8U20-03-b  8U Rackmount 20.1"  Samsung LCD Monitor , black
LCDR8U20-03-b-lex  8U Rackmount 20.1"  Samsung LCD Monitor , with Lexan Shield protection at display , black













Availability: Usually ships the same business day.

LCDR8U20-03padRegular price: $798.00padSale price: $688.00pad
