LCDR9U20-01 9U Rackmount 20" LG TFT LCD Monitor Optional  S-Video & Composite Video /  Audio/ HDMI/ SDI / Multi-Display Control / NEMA 4 / Touch Screen/ DC Input Power / Lockable Connector





Part#  LCDR9U20-01


SiriusView 9U Rackmount 20" LG TFT LCD Monitor Panel
Optional S-Video & BNC / Audio / HDMI / Touch Screen / DC Input / NEMA4 / SDI / Multi-display / MIL-type / Lockable connector

Panel: LG Industrial Grade A 20" LCD panel

Display type

20.1" TFT color LCD

Resolutions

1600 x 1200

Active area

408 x 306 mm

Contrast ratio

800 : 1 typical

Brightness

300 cd/ m2 typical

Panel color

16.7 million display colors

Viewing angle

178 (Horiz.) / 178 (Vert.)

Back light

CCFL

LCD MTBF

45,000 hrs

Signal Input

VGA / DVI-D

Power Supply

Input : Auto-sensing 100 to 240VAC,
          50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt

External Connection

Power Input: 12V/5A DC adapter
Video Input: 15-pin D-Sub connector

Product Dimension

480 x 63.5 x 399 mm / 18.9 x 2.5 x 15.7 inch

Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non-condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Safety Approval FCC, CE, RoHS Compliant
Package Content LCDR9U20-01 X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1

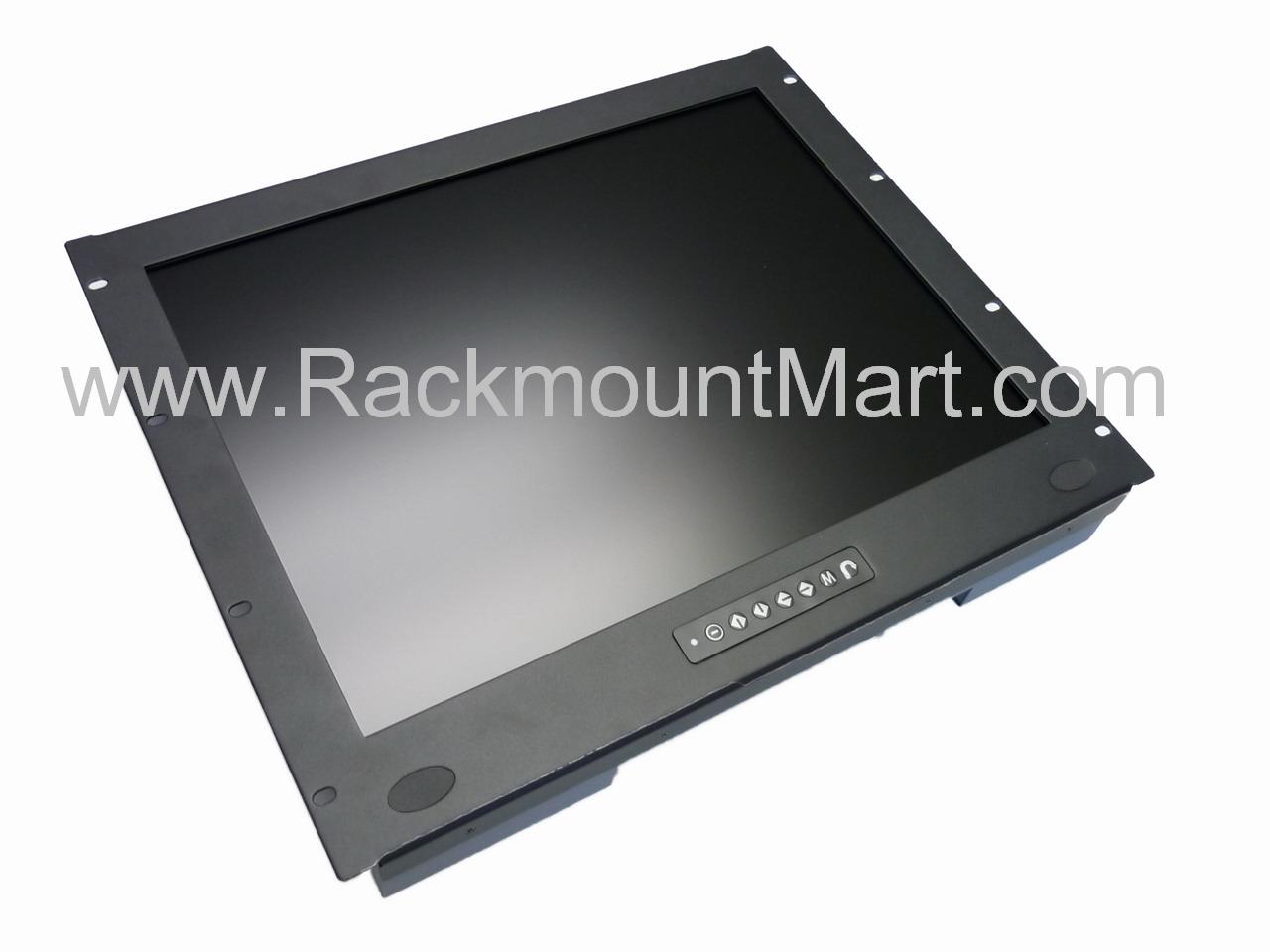

 Front View


 Download User Manual
 Download Product Sheet
 Download Mechanical Drawing

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

     Free Ground Shipping *Click for details

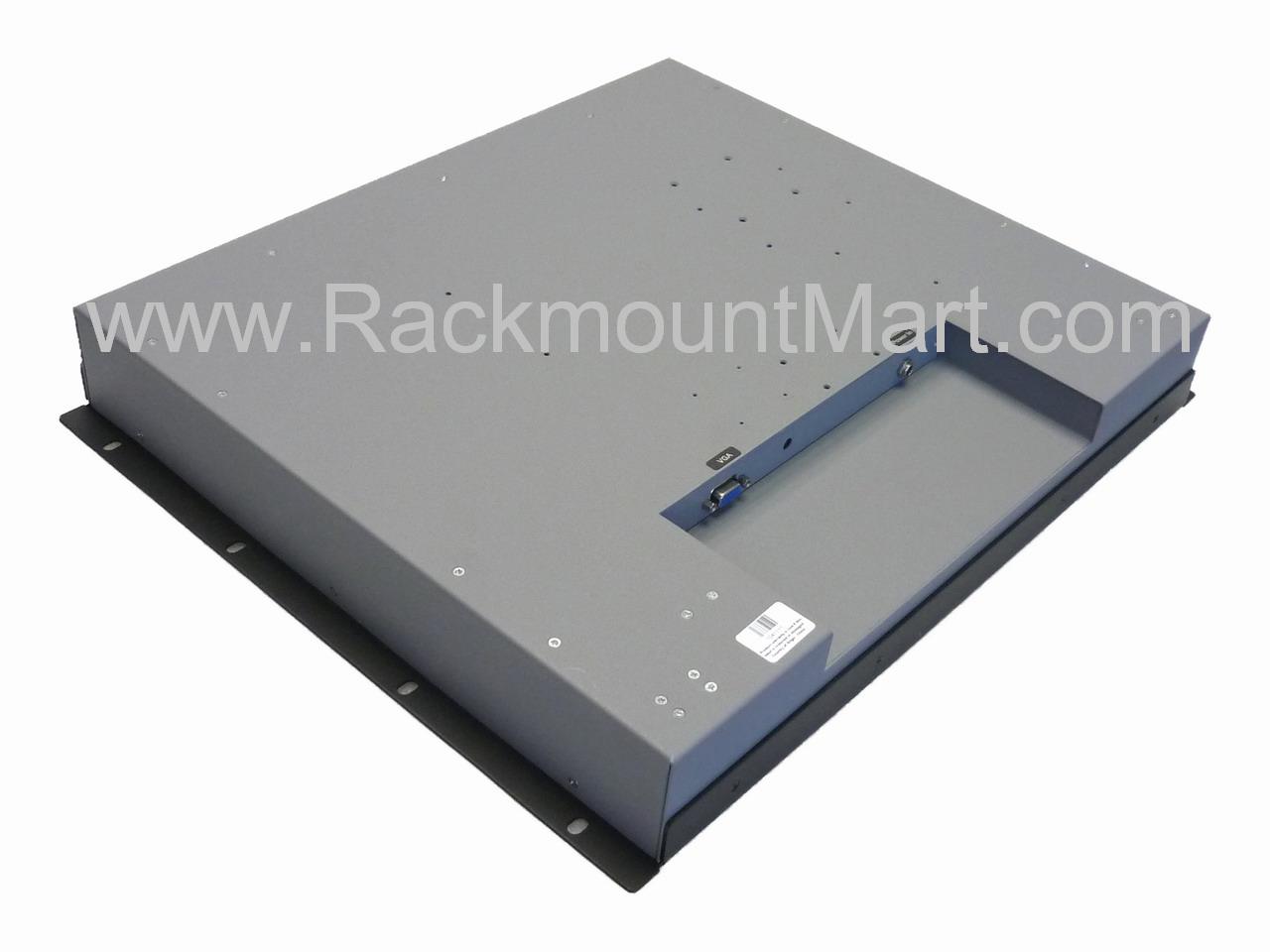

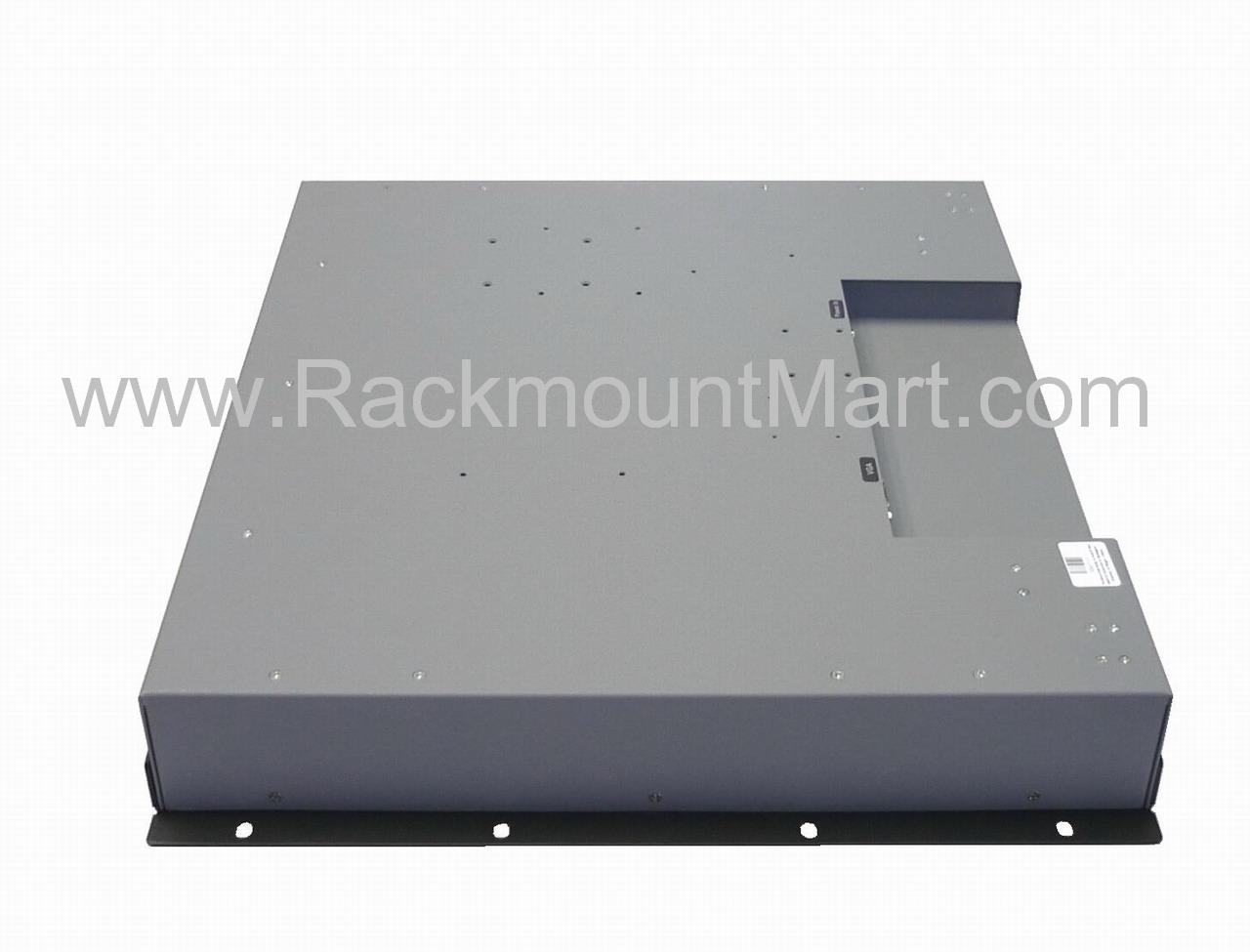

  More photos (click to enlarge )

Display Features & Benefits :
  • 9U 20" rackmount LCD with DVI-D / VGA input
  • Ultra high resolution 1600 x 1200
  • Ideal for CCTV security & industrial control

Options :

  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 20" Touchscreen : Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • DC power : 12V / 24V / 48V / 110V ~ 125V
  • MIL-type or lockable connector

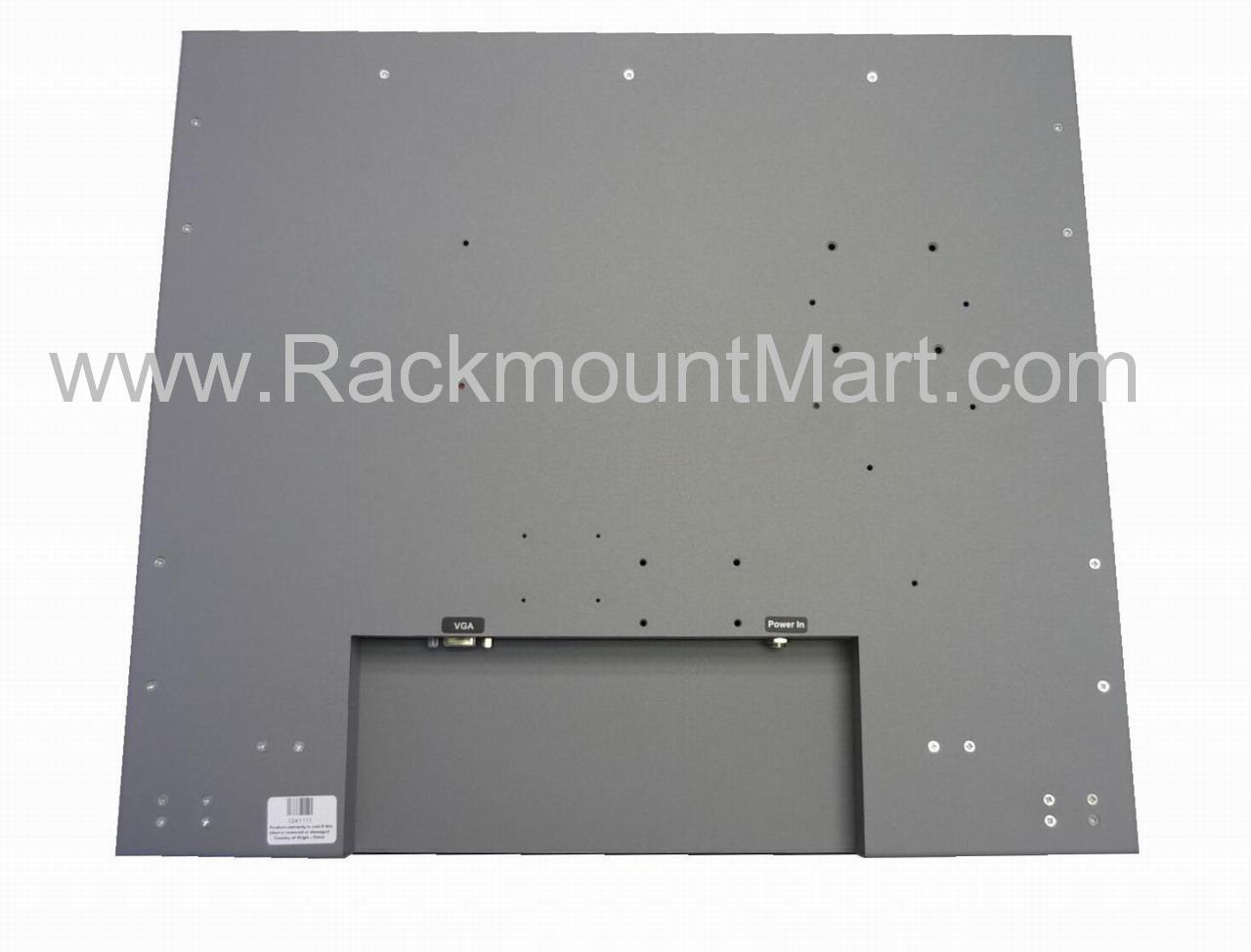

     Diagram for  I/O Outlet

Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / Multi-display
- Touch screen
- DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan

Ordering information

Part Number  Description
LCDR9U20-01
Price : $1144
9U Rackmount 20" LG Industrial Grade A TFT LCD Monitor
with VGA + DVI-D input.
LCDR9U20-01-BNC
Price : $1295
9U Rackmount 20" LG Industrial Grade A TFT LCD Monitor
with VGA + DVI-D + S-Video + BNC + Audio Inputs.
LCDR9U20-01-AV
Price : $1295
9U Rackmount 20" LG Industrial Grade A TFT LCD Monitor
with VGA + DVI-D + S-Video + RCA (BNC-RCA adapter) + Audio Inputs.
LCDR9U20-01-HDMI
Price : $1295
9U Rackmount 20" LG Industrial Grade A TFT LCD Monitor
with VGA + HDMI w/ speaker + S-Video + BNC + Audio Inputs.
LCDR9U20-01-HDMI-AV
Price : $1477
9U Rackmount 20" LG Industrial Grade A TFT LCD Monitor
with VGA + DVI-D + HDMI + S-Video + BNC + Audio w/ speaker Inputs.
Optional NEMA4 / IP65
-IP65
Price : $165
Add front IP65 protection for LCD size - 20"
Optional Video/Audio Inputs
-SDI
(Upgrade from LCDR9U20-01)

Price : $486
With VGA + DVI-D + HDMI w/ speaker + 3G / HD / SD-SDI input Download Spec Sheet
-SDI
(Upgrade from LCDR9U20-01-HDMI-AV)

Price : $341
With VGA + DVI-D + HDMI + S-Video + BNC Composite Video + Audio with Speaker + 3G / HD / SD-SDI Download Spec Sheet
-MC
Price : $93
Add Multi-display control
( VGA + DVI-D + Multi-Display Control )
Download Spec Sheet
Optional Touch Screen
-TRS
Price : $357
Add resistive touch screen + Serial controller
-TRB
Price : $357
Add resistive touch screen + USB controller
Optional DC power
-DC12
Price : $215
Add 12V DC power supply
-DC24
Price : $215
Add 24V DC power supply
-DC48
Price : $215
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
Optional Connectors – For DC power only
-MD
Price : $93
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $143
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $36
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $36
Add Lockable USB jack Download Spec Sheet









Availability: Usually ships the next business day

LCDR9U20-01 $1,144.00
Model :

Optional NEMA4 / IP65:

Optional Video/Audio Inputs:

Optional STRAIGHT DC POWER INPUT:

Optional Touch Screen :

Connector:
