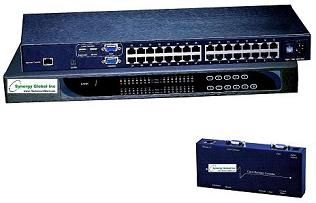

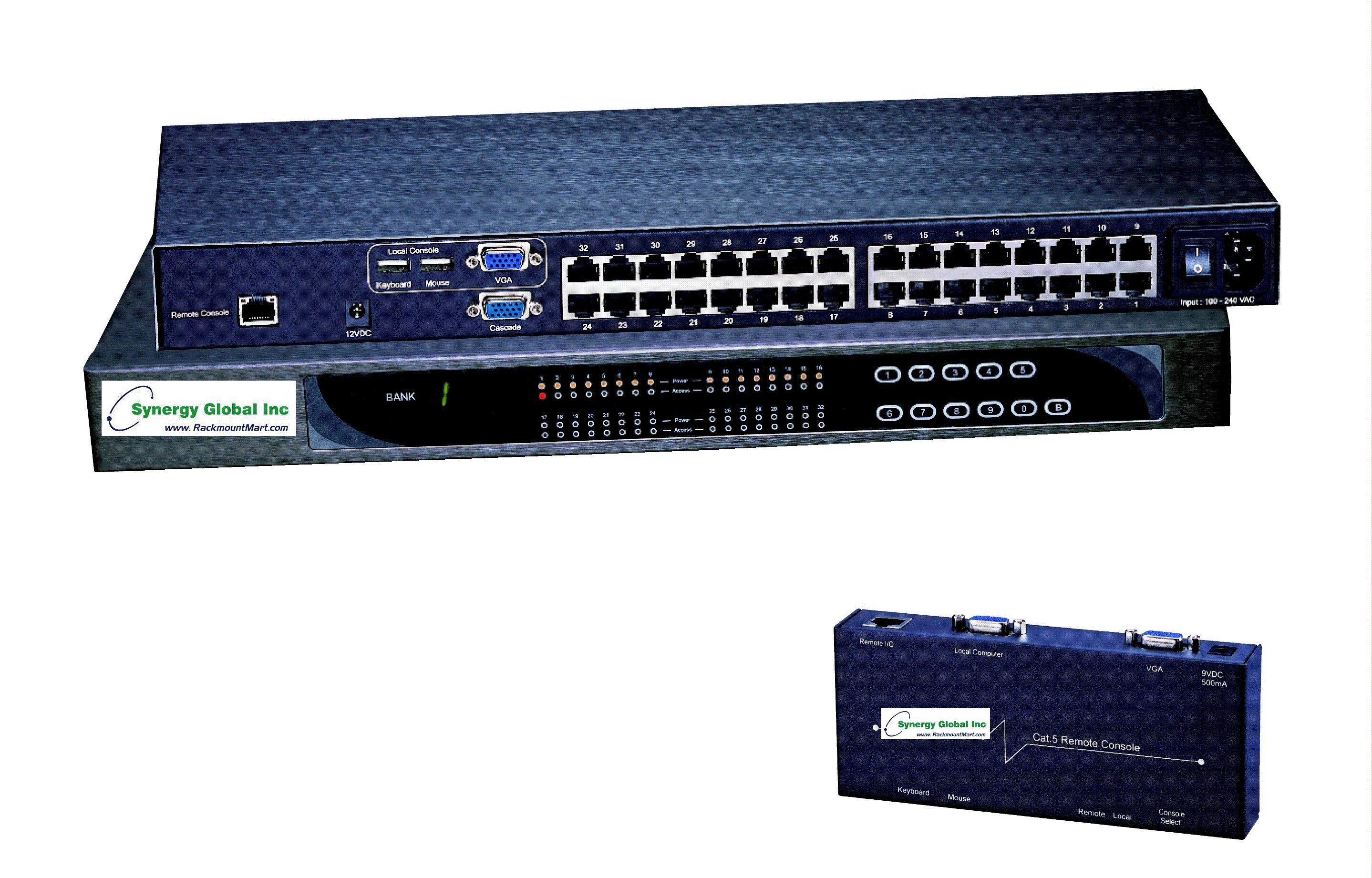

*click
on photo for enlarged view
Connection Diagram
LCDK1046/U-3202 : 1U Rackmount 2 consoles (Local + Remote) High
density CAT.5 KVM 32-port RJ-45 switch |
| |
 |
|
Two
Console Cat5 KVM Benefits
- High density Cat5 KVM w/
either 16 ports (P/N:
LCDK1045 /U-1602 ) or 32 ports (P/N :LCDK1046 / U-3202 )
- Increased distance of 40m
between your server & KVM switch
- Enhanced rear cable
management using Cat5 cords
- Mix PS/2, USB & SUN with
Multi- Platform switch capability
- Secure remote access over
300m of Cat5
Switch Features & Options
- Use of the RJ45 Cat5
interface allows for a higher number of ports in smaller density
- Greater distances between
your switch and servers allow enhanced data centre rack layouts
- Traditional Cat5 cords,
when compared to Coaxial cables, provide simple cable management
-Cat 5 cable length up to
132 feet
- Mix legacy PS/2 servers
with newer USB and Sun solutions
- Enhanced data centre
security with a second user or console up to 300m from the installed switch /
server
- Multi lingual on screen
display menu
- Advanced user profiles
and configurable OSD hot key combinations
- Dual power with failover
- 12, 24 and 48 volt DC
power options
High Density Cat5 KVM
Expanding its range of server management solutions, a new high density 16
and 32 port Cat5 KVM switches is launched. Designed to provide added
benefits to its users the new switch range offers increased density,
increased distances, enhanced cable management and multiplatform
capabilities over traditional KVM switch platforms. Using either a PS/2 or
USB dongle at the server end of the installation allows a user to cost
effectively specify the switch to match the exact server configurations ?
multiplatform switches allow older or redundant
servers to be migrated to servers with newer USB interfaces without
replacing switch hardware. |
 |
Enhanced User Interface
The
user interface or OSD menu also offers many enhanced features for switch
administration and user management, as an example the OSD allows Super Users
to create custom user profiles / access rights for
specific KVM ports. The OSD hotkey can also be configured using different
key combinations and the multilingual interface allows users to select
English, French, German, Spanish, Italian, Russian, Japanese and Simplified
Chinese. |
 |
Designed for
 |
- SUN?#60;/span>
- IBM?#60;/span>
- HP?#60;/span>
- DELLTM
- Solaris?#60;/span>
- Mac - Microsoft? - Windows?#60;/span>
- Linux
|
|
KVM Port |
| Number of
ports : |
32 |
| Connector:
|
RJ-45 |
| Connectivity:
|
USB type or PS/2 type
dongle, up to 40 meter ( 132 feet) |
|
Local Console
|
| Graphic
connector: |
HDDB15-pin HDDB15-pin, VGA
|
| Resolution:
|
Up to 1600x1200
|
| Input device:
|
2 x USB type A for
keyboard & mouse |
|
Remote Console
|
| Connector:
|
HDDB15-pin, VGA
|
| Resolution: |
Up to 1600 x 1200
(500feet)
Up to 1024 x768 (1000feet) |
| Input device: |
2 x USB type A for
Keyboard &mouse |
| Remote I/O: |
RJ45 via Cat5/ Cat5e/cat6/
cable up to 1000feel |
| Compensation |
Auto adjust for cable
length |
|
Expansion :
|
| |
Up to 256 servers by 8
Cascade levels |
|
Compatibility
|
| Multi-platform
|
Mix PCs, SUNs, IBMs, HPs,
DELLs Server |
| :Support: |
Windows Vista, 2003 / XP /
2000, Linux, Netware, Unix |
|
Power |
| Input: |
100-240VAC, 50 or 60Hz,
IEC type cord |
| Option DC : |
12V/24V/48V DC input
|
| Consumption : |
Max. 25 Watt |
|
Regulatory Approval
|
|
|
FCC,CE |
|
Environmental
|
|
Operating : |
0 to 50"C |
|
Storage: |
-10 to 60-C |
|
Relative humidity: |
90%, non-condensing
|
|
Shock: |
50G peak acceleration (11
ms, half-sine wave) |
|
|
FCC,CE |
|
Package |
|
|
KVM switch x 1 , Screw
M3.2 x 4.5mm x 4 pcs , Screw M4 x 10mm x 8 pcs, Bracket x 1 set,
Receiver x 1 set , 9V power adapter for Reciever x 1, User manual x 1 ,
Power cord x 1 , LCD-A1014/ CB-6 2-in-one USB KVM cable x 1 |
Dimensions
|
Model |
Product Dimension (WxDxH)
|
Packing Dimension (WxDxH)
|
Net Weight
|
Gross Weight
|
| LCDK1046 /
U-3202 |
443 x180 x44
mm 17.3x7.1 x 1.73 inch
|
510 x400 x77
mm
20.1 x 15.7x3 inch |
4 kg / 9 lbs
|
7 kg/15 lbs |
|
ACCESSORIES
-
Ordering information
|
Part Number |
Description |
|
LCDK1046 / U-3202
Price:$979 |
1U Rackmount 2 Console
(Local + Remote) CAT.5 KVM Switch with 32 RJ-45 port & Combo PS/2 &
USB interface,
(*PS2 /USB Dongles are optional Details-> ) |
|
