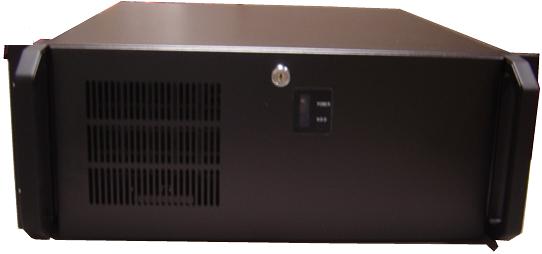

| Front
View :
Technical Drawing :
***Click on above photo & picture
for enlarged view |
|
Construction |
Heavy duty steel, Meets FCC/CE
Class |
|
Disk Drive Bays |
Supports three 5.25"drives and one
3.5"drive |
|
Cooling System |
1 x 120mm front fan |
|
Expansion Slots |
7 |
|
Options |
4U chassis support for max
motherboard size 12" x 10" |
|
Power Supply
Options |
AT/ ATX Power Supply
|
|
Color Option |
Grey/ Beige/ Black |
|
Dimensions
|
19" x 18.5" x
7" (W x D x H)
(482mm*455mm*177mm) |
|
Operating
Temperature Range |
0-55 degree Celsius (0-70 degree
Celsius non-operating) |
|
Relative
Humidity |
5% to 95%,non-condensing
|
|
Vibration (
operating ) |
5-15Hz,0.1"double-amplit.Displacement 15 to 150 Hz,1.5G
acceleration peak to peak |
|
Shock (
operating ) |
10G acceleration peak(11ms
duration) |
|
