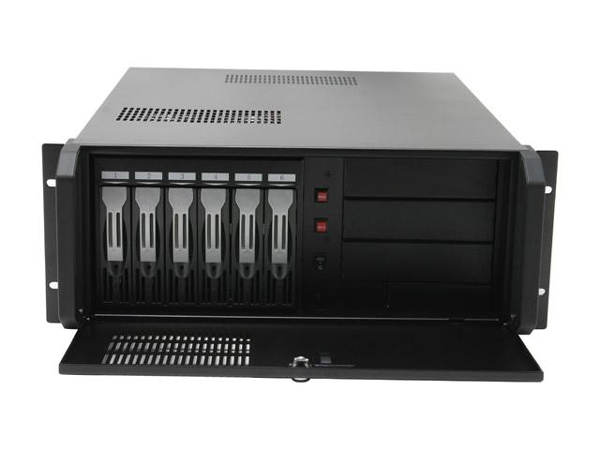

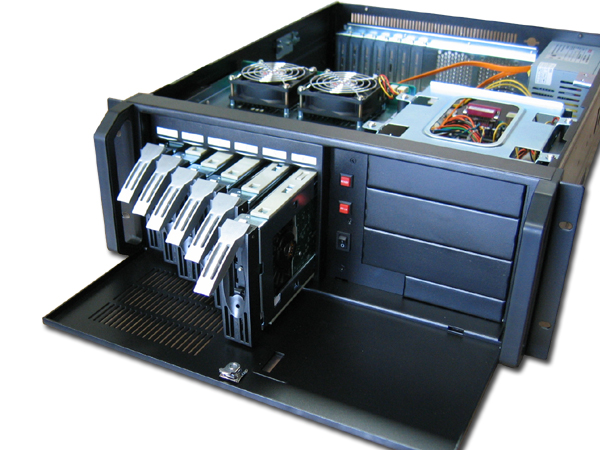

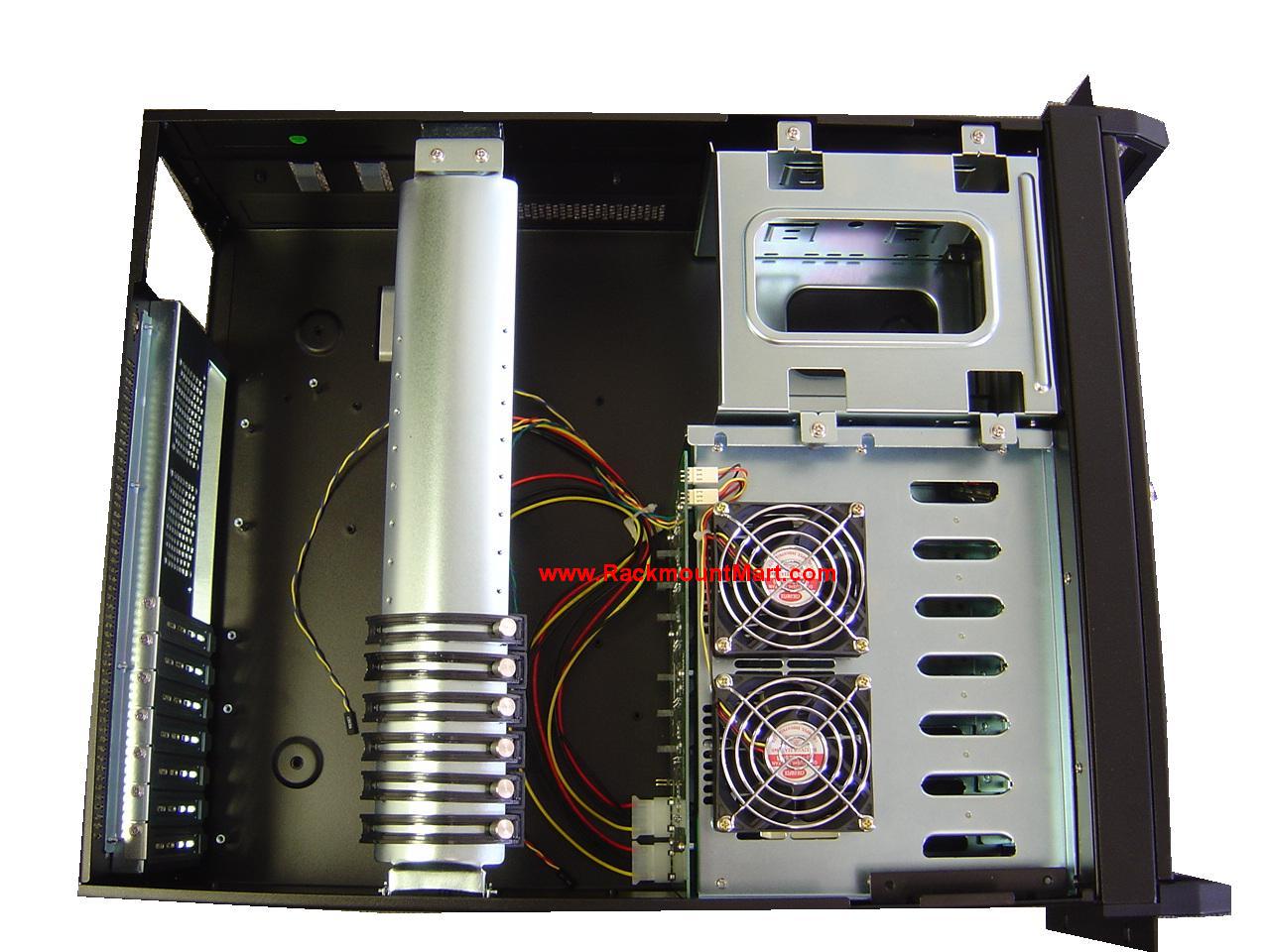

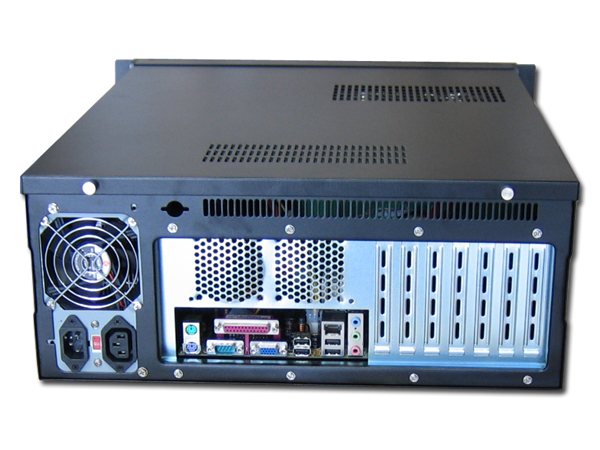

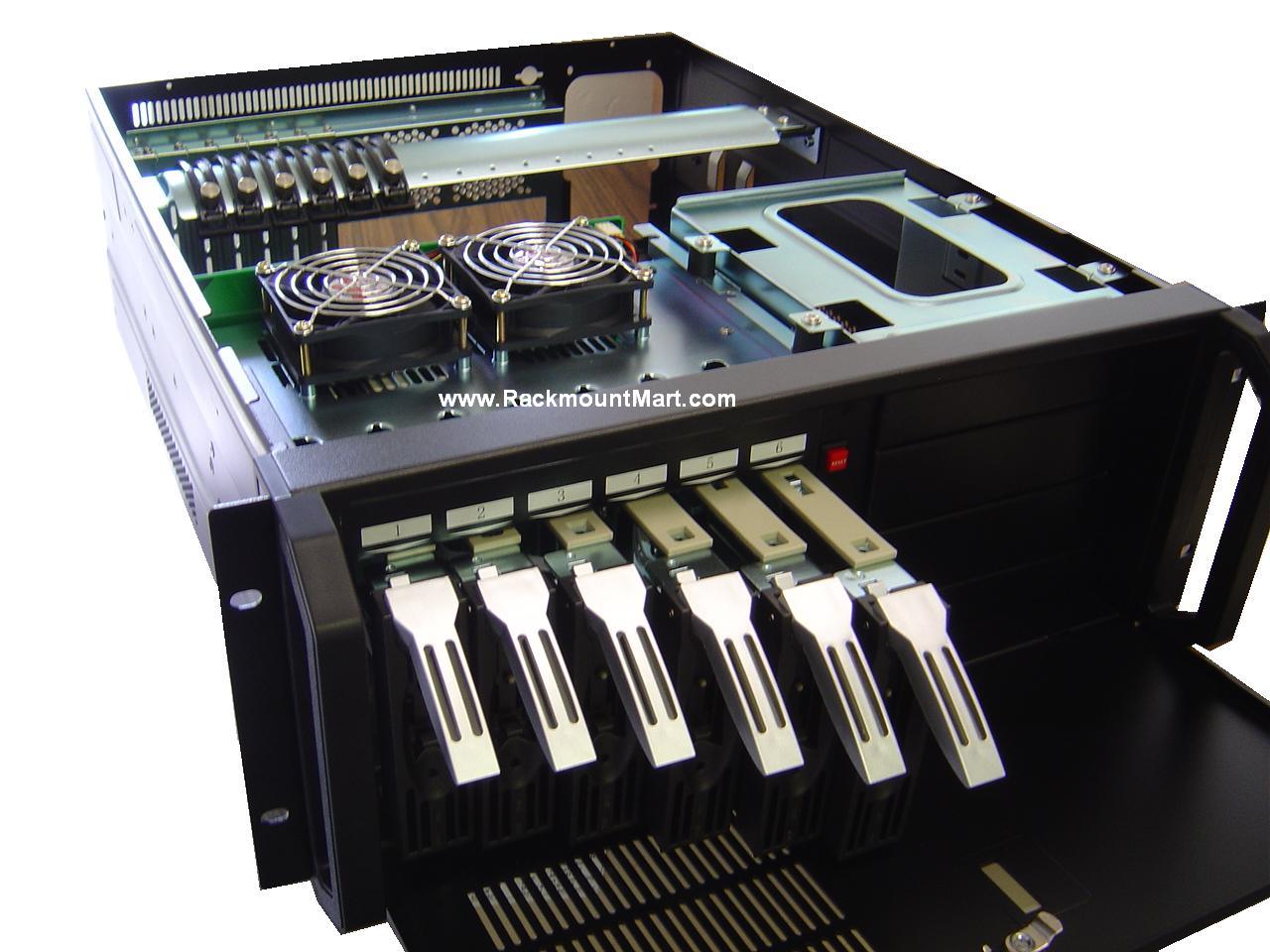

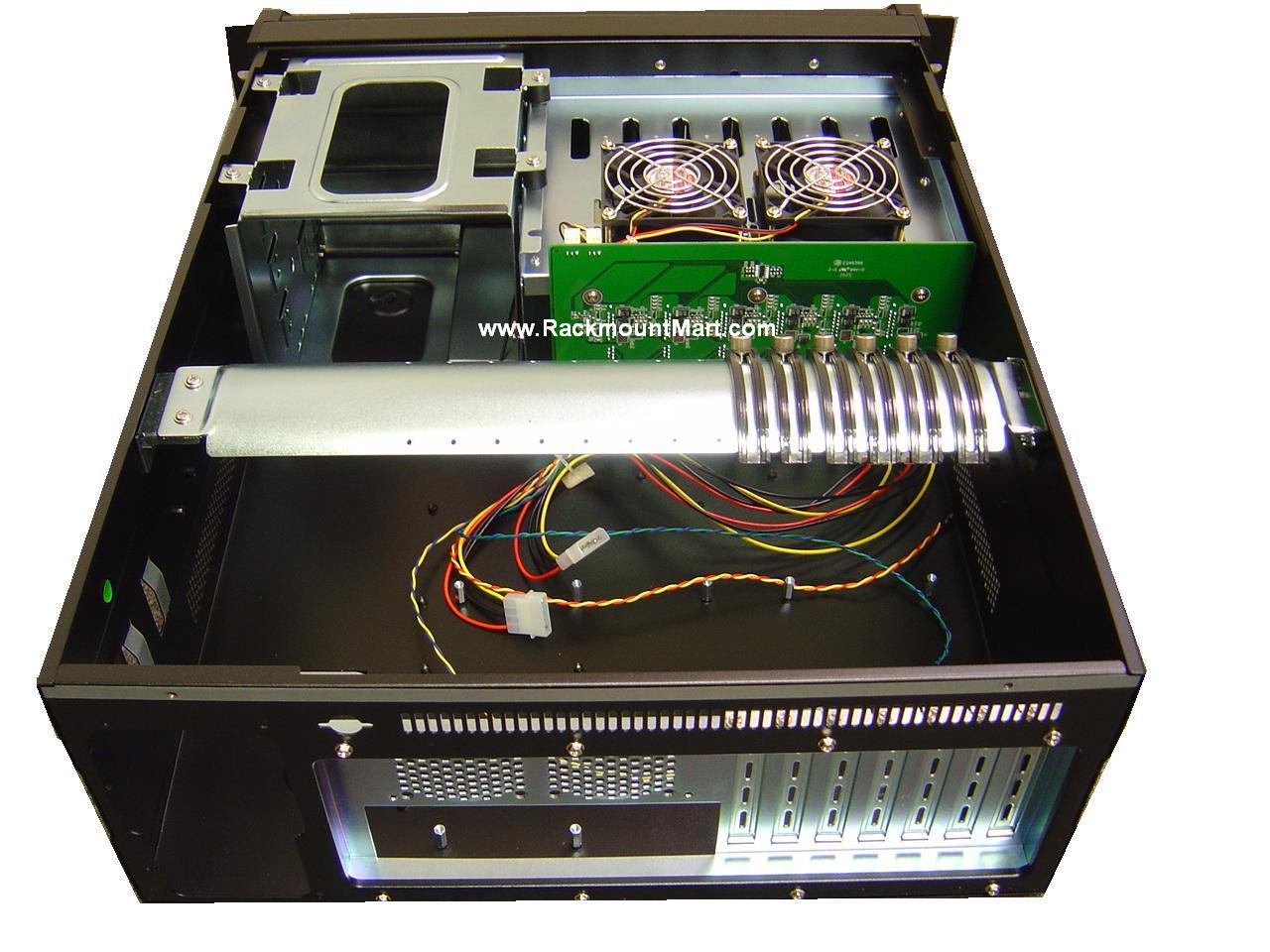

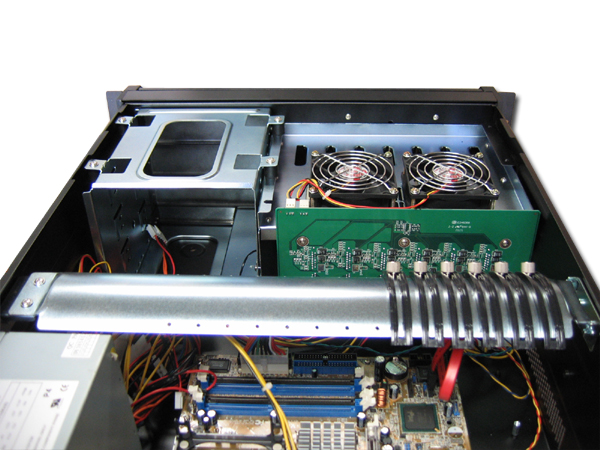

Front View :         Back View :     ***Click on above  pictures for enlarged views Specification Construction Heavy duty 1.2mm steel ,Meets FCC/CE Class Drive Bay 6 x hot-swappable SATA slim drive bays, 3 x 5.25" bays, 1 x 3.5 " bay Cooling Fan 4 x 80mm top fans, 2 x 60mm optional rear fans Switch Power ON/OFF x 1, System reset x 1, Keyboard lock x 1 Options support ATX motherboard up to 12" x 10" Expansion Slots 7 Power Supply Options ATX Color Option Black (Standard)  optional Gray , Beige Dimensions ( W x D x H ) 19" x 21.5" x 7" (482mm x 545mm x 177mm) Environment Temperature 0/40 °C, 32/104 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating) Relative Humidity 5% to 95%,non-condensing                           More photos - (click on the picture for enlarged view)

Features:

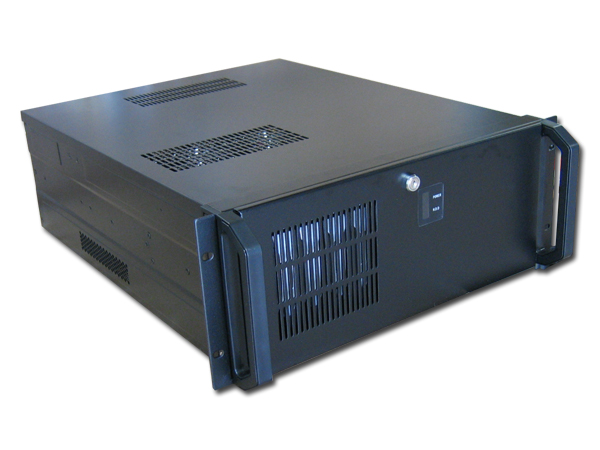

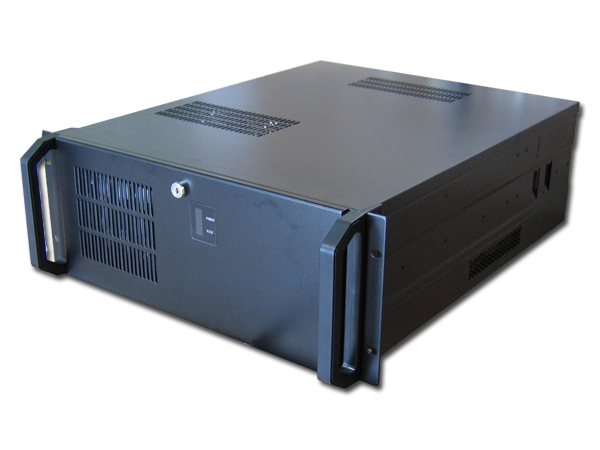

4U rackmount design

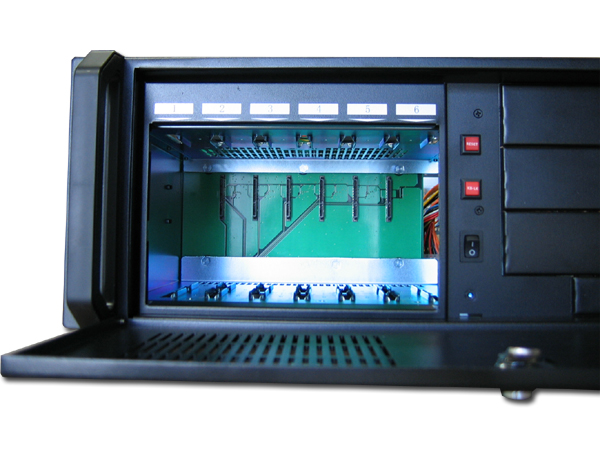

6x hot-swappable SATA slim drive bays with SATA interface backplane

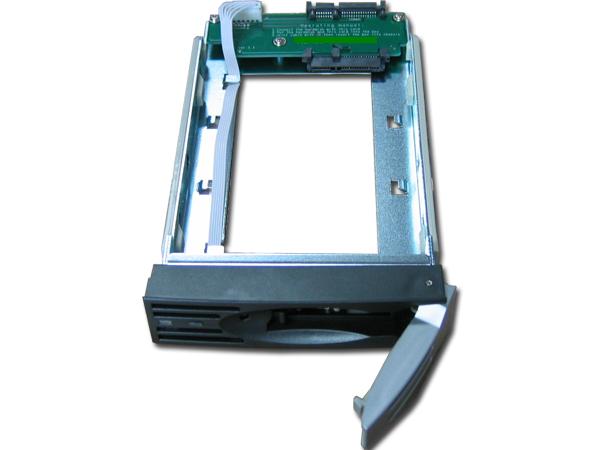

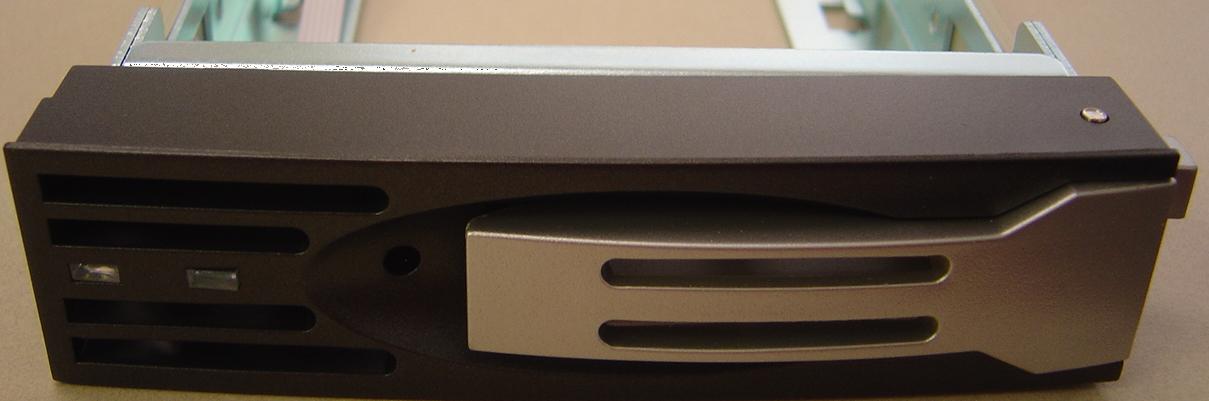

Hot-swappable HDD tray with special designed power-off and lock mechanism.
3 x 5.25" drive bays, 1 x 3.5 " drive bay

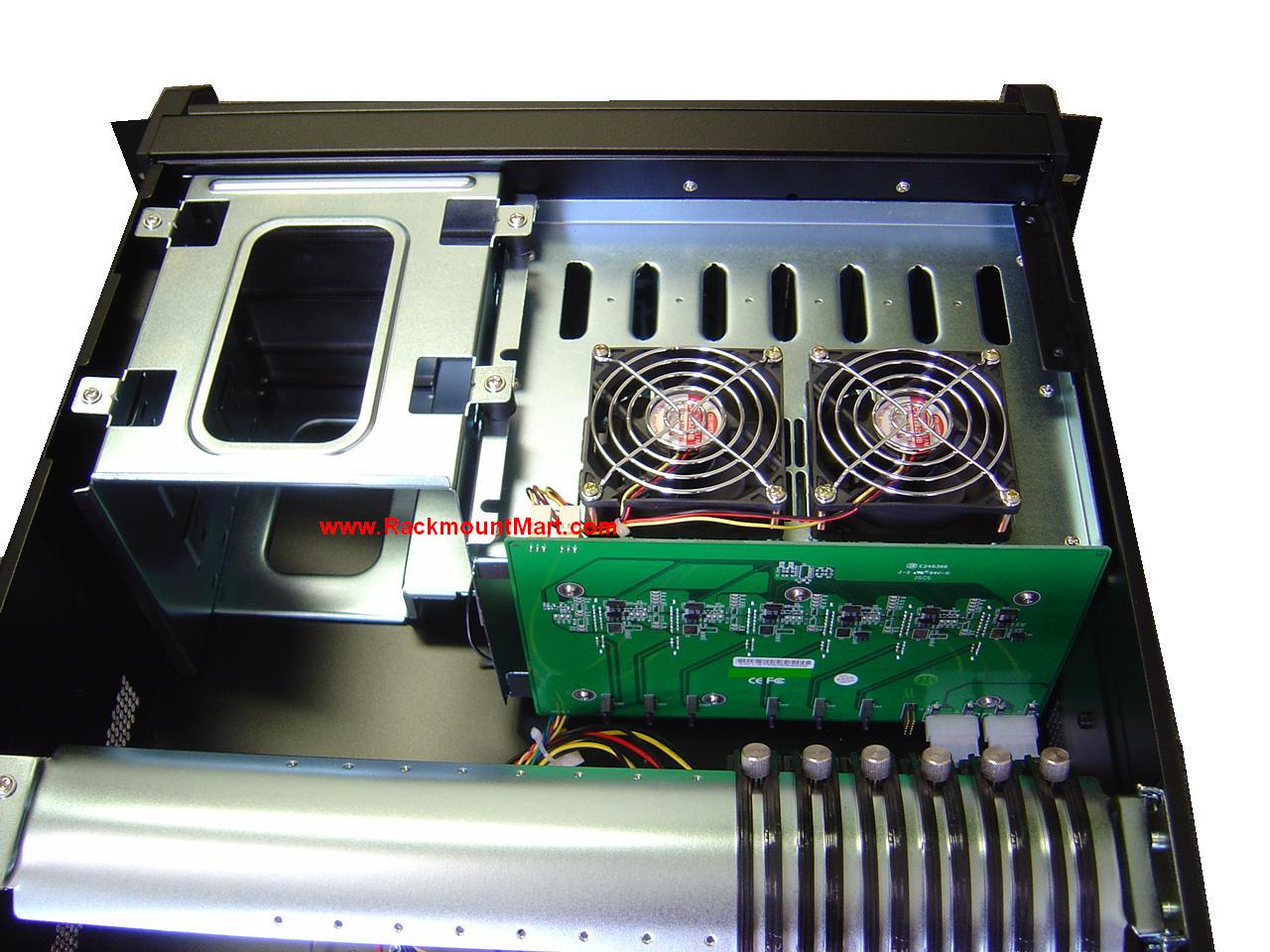

Four ball-bearing cooling fans for better ventilation

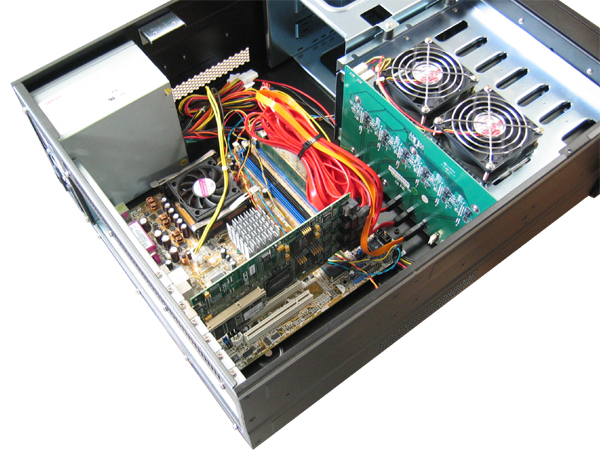

Support ATX motherboard, size up to 12" x 10"
Lockable front panel door
Rubber-buffered card slot hold-down clamp
Smooth border prevent lacerating your skin

Availability: Usually ships the next business day.

RM4008$215.00
OPTIONS: Chassis only, no power supplyChassis w/ 300W power supply(+$38)Chassis w/ 400W power supply(+$56)Chassis w/ 500W power supply(+$78)Chassis w/ 550W power supply(+$88)Chassis w/ 600W power supply(+$138)
Motherboard Used with this chassis: M/B using 20-pin + 4-pinM/B using 24-pin + 8-pinDual Tyan AMD 2462/2468 using special 24-pin + 8-pin(+12)
Sliding Rails: Not RequiredRL-01 : Pair of 20 inches sliding rails extensible to 24 inches(+$48)RL-02 : Pair of 26 inches sliding rails extensible to 30 inches(+$55)
