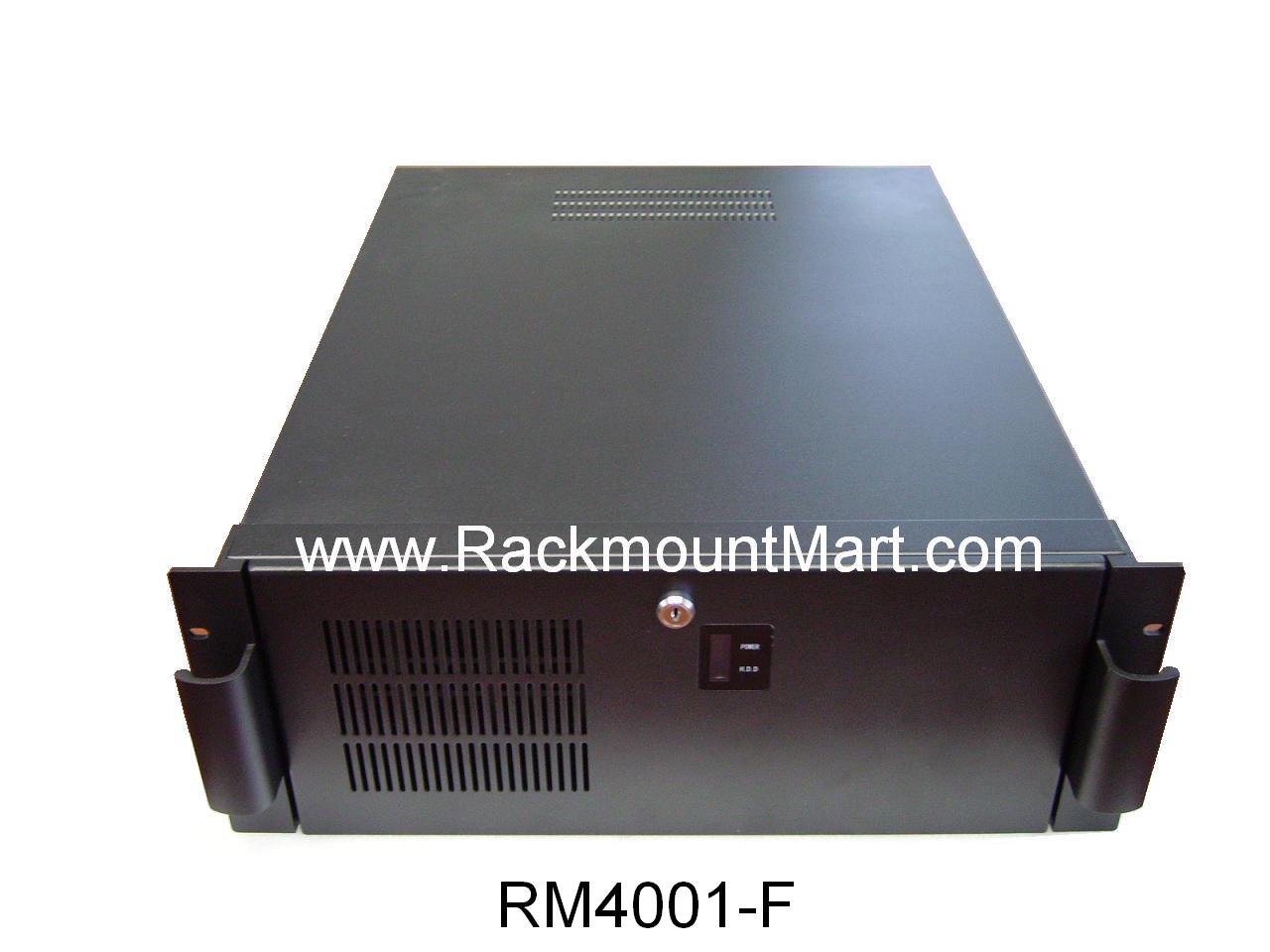

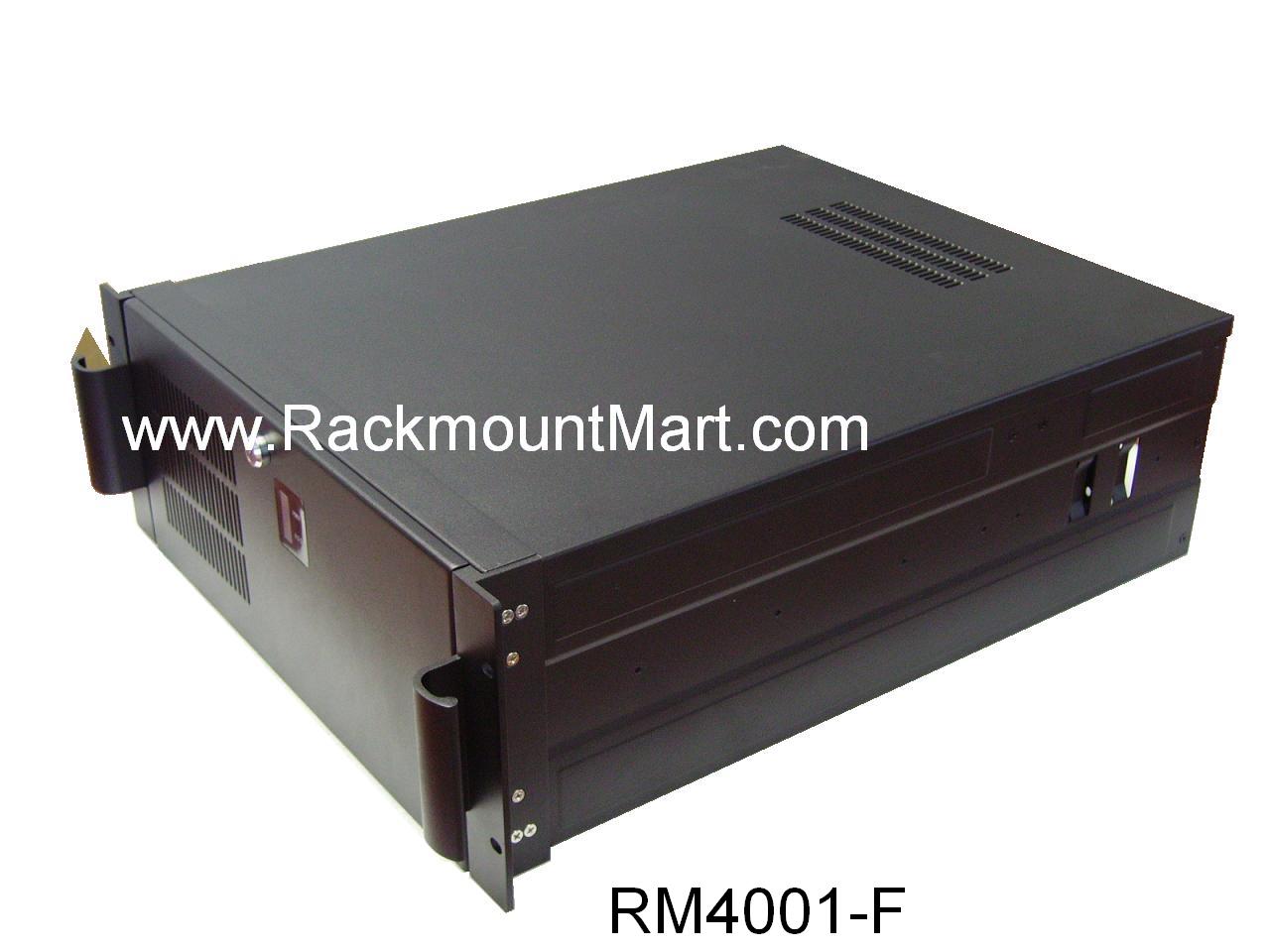

RM4001-F
RM4001

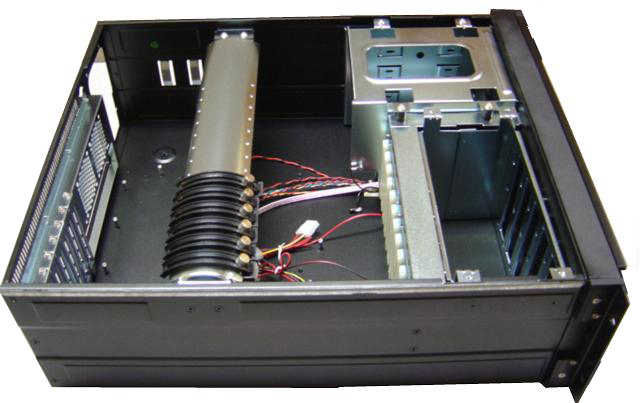

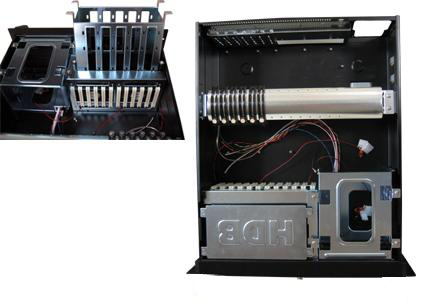

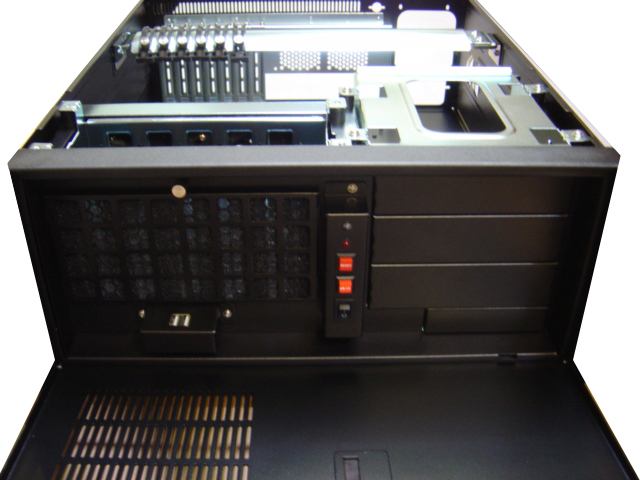

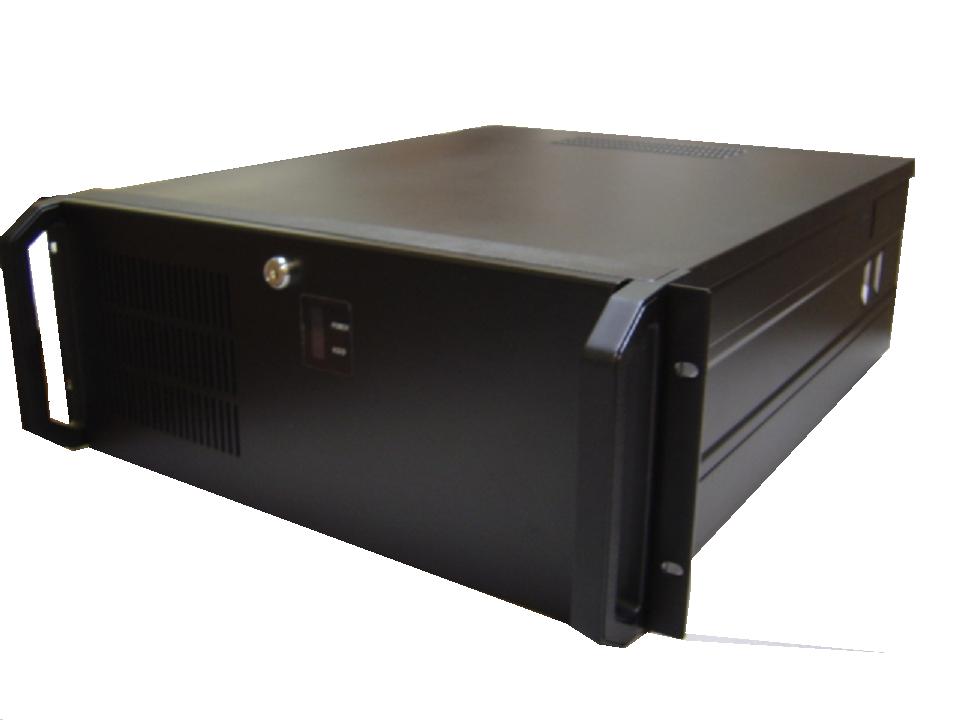

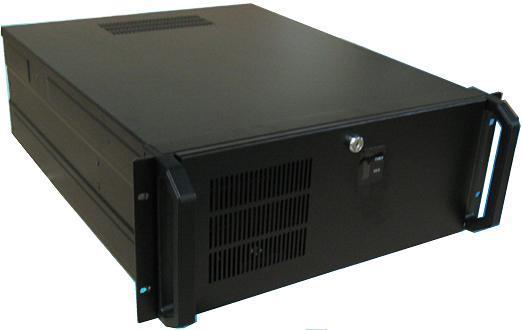

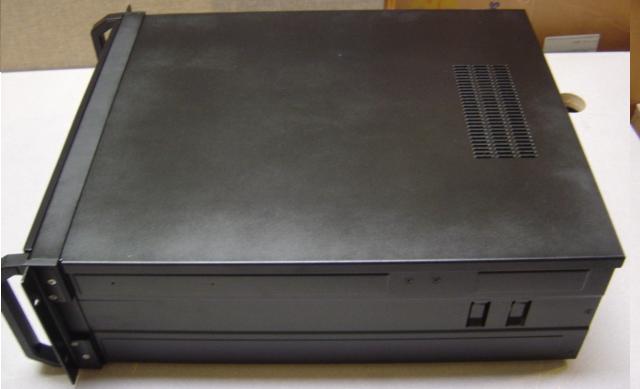

Click on photo for enlarged view

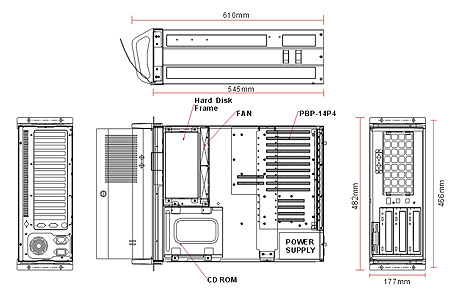

Click on above drawing for enlarged view |
| Construction |
Heavy duty steel ,Meets FCC/CE Class |
| Disk Drive Bays |
Supports seven 3.5" drives and three 5.25"drives |
| Cooling System |
2 x 120mm front fans |
| Options |
4U chassis support for max motherboard size 12" x 13" |
| Expansion Slots |
7 |
| Power Supply Options |
AT/ ATX / Single Power supply |
| Color Option |
Black / Beige |
| Dimensions ( W x H xD) |
19" x 7" x 21.5" (482mm x 545mm x 177mm) |
| Operating Temperature Range |
0-55 degree Celsius (0-70 degree Celsius non-operating) |
| Relative Humidity |
5% to 95%,non-condensing |
| Vibration ( operating ) |
5 to 15Hz , 0.1"double-amplit. Displacement, 15 to 150 Hz,1.5G acceleration peak to peak |
| Shock ( operating ) |
10G acceleration peak (11ms duration) |
| Additional Features |
2 x USB connector at front panel, replaceable AT/ ATX back window |
|
