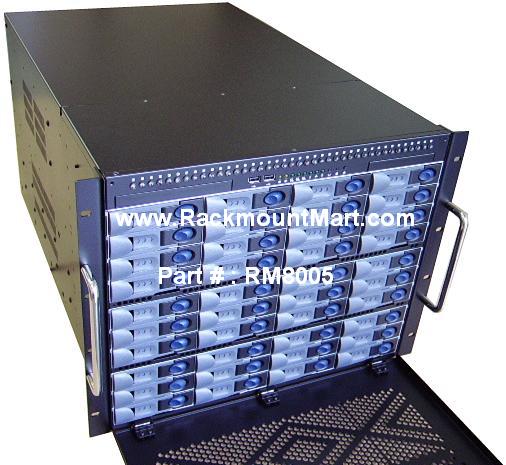

 RM8005 8U Rackmount Chassis w/ 40 x Hot-swap bays,SATA /SCA /SFF8470/SFF8087 version & 1650W 3+1 redundant power supply ,Optional 4 or 12 bay for total 52 (40+12)





Part # RM8005








           *Click on photo for enlarged view





EIA RS-310C 19" Rackmount Standard: 8U chassis

Construction:

Heavy Duty Cold Rolled Electroplated Steel (1.2mm)

Color:

Black (Standard) or Custom

System Boards:

Pentium 4, Dual Xeon, AMD 64, Dual Opteron, Quad Opteron;

Optional(with additional mounting kit): Intel Quad Xeon & AMD 8-Ways Opteron

Motherboard Size:

Support EATX M/B (Max. to 13 " x 16") with Removable drawer

Drive Bays:

1 x slim ODD, 1 x slim FDD, 40 x hot-swappable 3.5" HDD carrier/tray, 2 x Internal 3.5" HDD bay

Drive Interface:

SATA, U320 SCSI/SCA, Multi-Lane(SFF-8470)/SATA, Mini-SAS(SFF8087/SATA)

Power Supply:

(Rear Chassis Installation) 1550W EPS 12V (24+8pin) Redundant Power Supply.

Cooling Units:

6 x (60mm = 23.5CFM ea.) & 4 x (80mm = 42.5CFM ea.) & 5 x (120mm = 90.0CFM ea.) Ball-Bearing Fans

Thermal Monitoring Card:

Installed

Expansion Slot:

7 x Vertical Full Length/Height PCI Slots

Connector Port (front): 2 x USB

Indicators:

LEDs for Power, 40x HDD Activity, 3x LAN, Fan Failure, Temperature Warning

Buttons:

Power On/Off, System Reset, Fan Failure/Temperature Alarm Reset

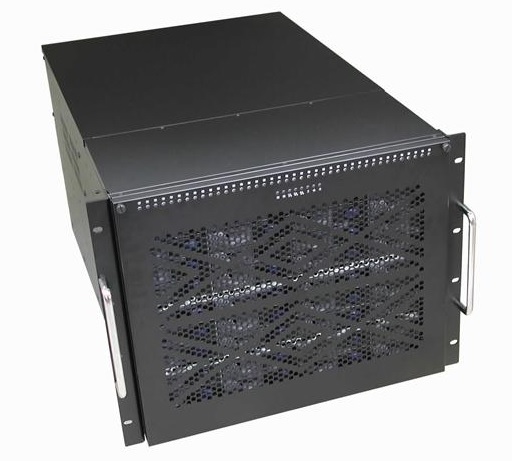

Front Door :

Single Door with 2x Thumbscrew

Dimensions:

(W x H x D):

483 x 265 x 666mm (19" x 10.4" x 26.2")

Cu. ft.:

9.1

Carton Size:

85.0 x 49.4 x 61.5 (33.5" x 19.5" x 26.2")

Humidity:

5% - 95% Non-condensing

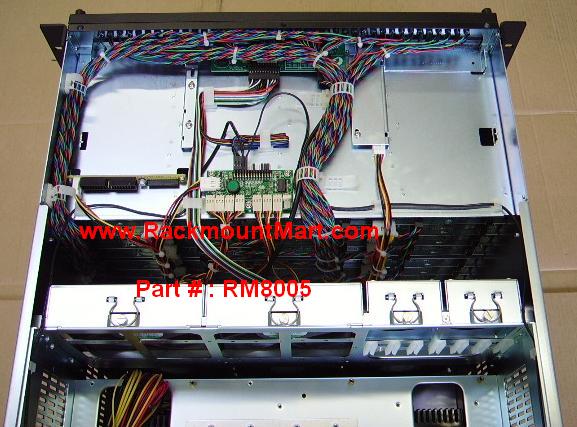

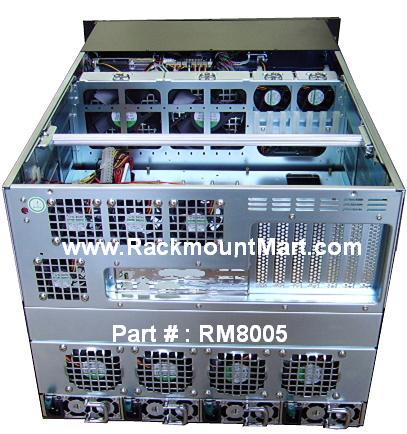

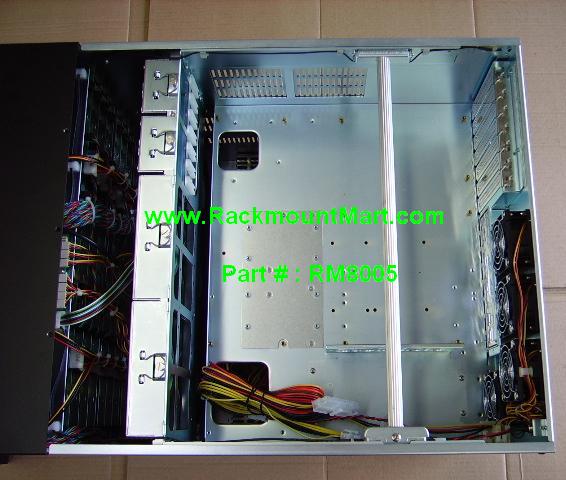

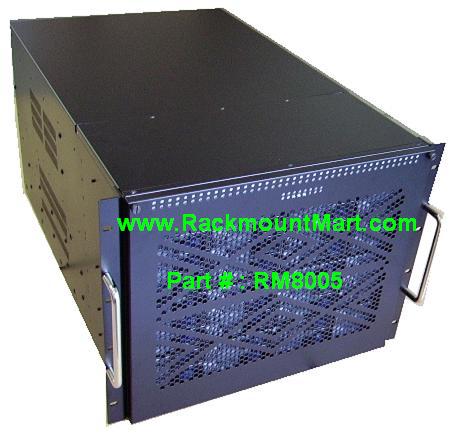

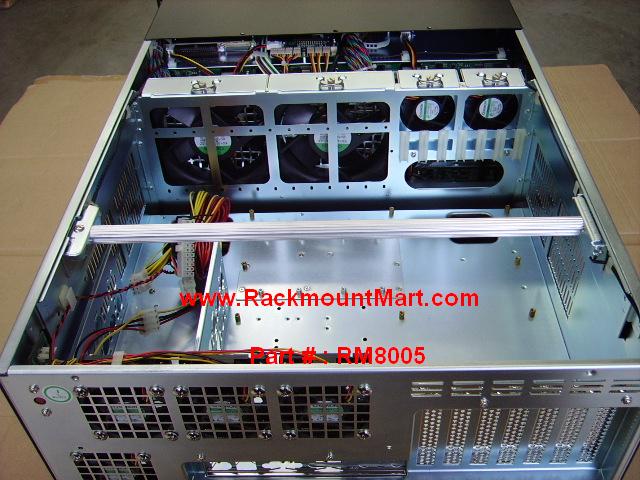

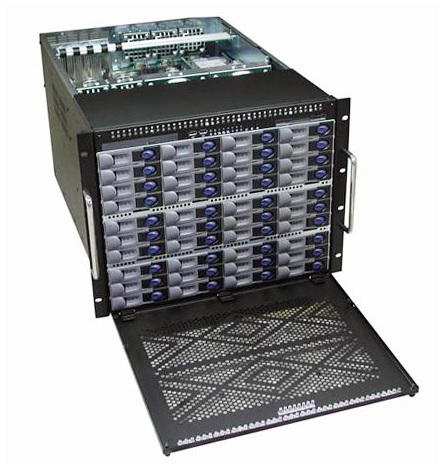

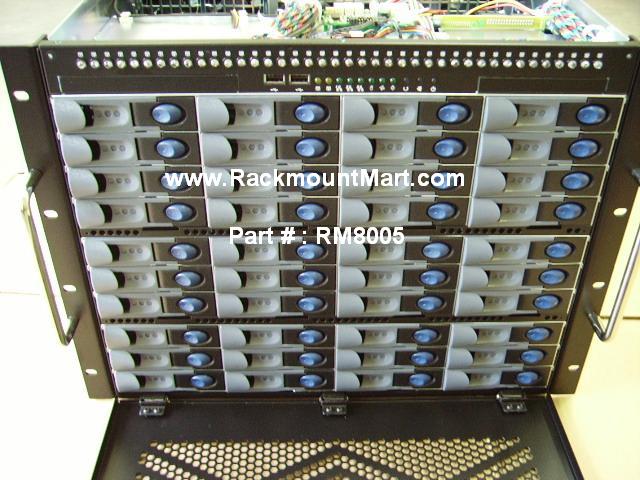

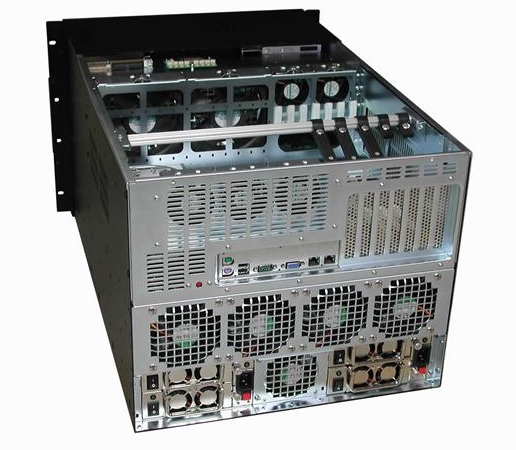

Click on the following pictures for enlarged views :










Availability: Usually ships the same business day

RM8005 (***Shipping weight is over 160lbs. Can be delivered by truck only. Shipping charge will be informed to customer after check out .)$2,780.00
Motherbord details:
Backplane Connector:

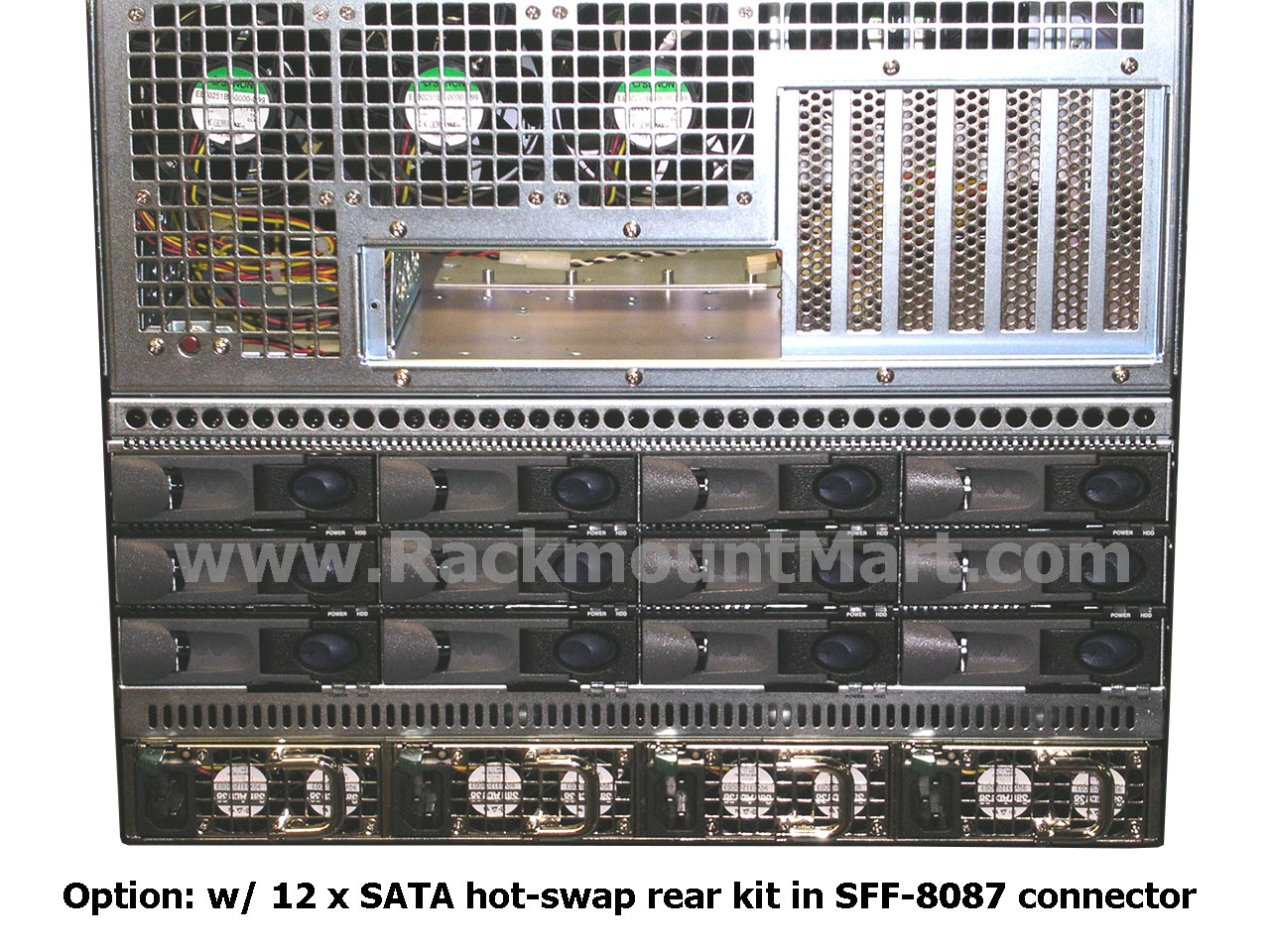

Extra hard drive kit on rear side:
Upgrade to 1800W:
Slide Rails:
