|3U Rackmount Storage Chassis ,10 SATA Hot-Swap bays, 19.7" depth
with Riser Card and 2 cables
**Click on picture to enlarge
- 3U rack height.
- Very cost effective storage subsystem.
- 2 ports eSATA host interface (Silicon Image SiI3124 + SiI3726 Multipliers).
- 1.5 Gb/s SATA I and 3 Gb/s SATA II host and drive support.
- Supports up to ten 3.5" SATA-I or SATA-II disk drives, no drive size limit;
- Excellent cooling system ensures the drives reliability;

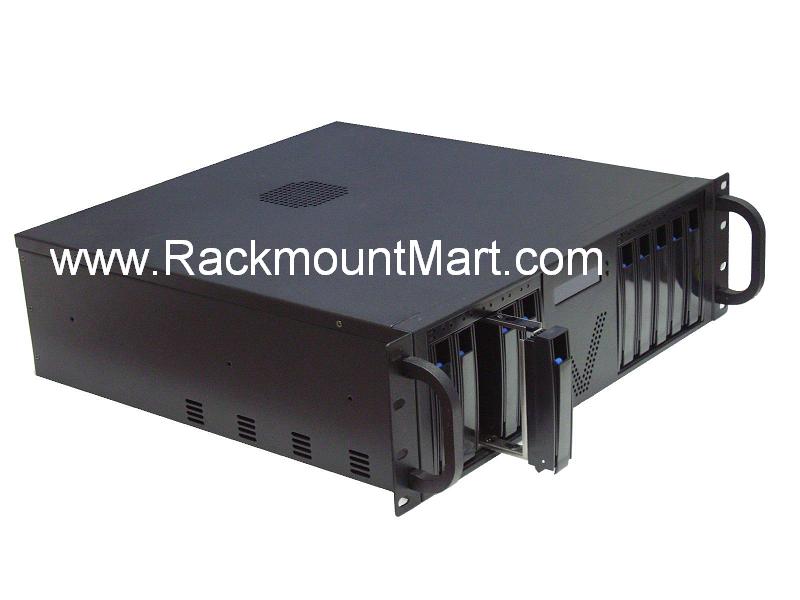

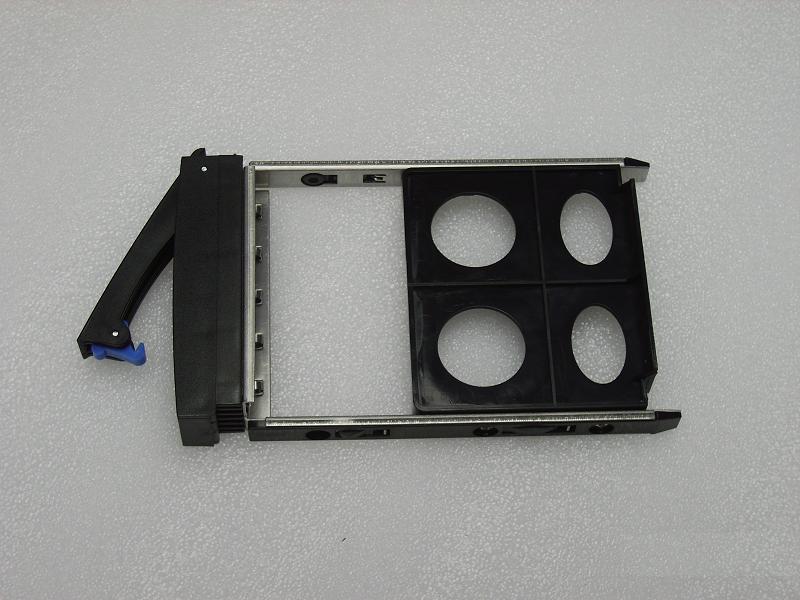

- Hot-swappable disk drive tray with special designed power-off and lock mechanism;
- Monitor and alarm with temperature and fan-speed display
- PCI-X/PCI card, eSATA cables, power supply, HDD mobile rack, backplane, all mounting screws for HDDs included
- Support RAID 0, 1, 0+1, JBOD, RAID5 (Windows only)
- Supports Windows, Linux, MAC
More photos (Click on the photos for enlarged views)

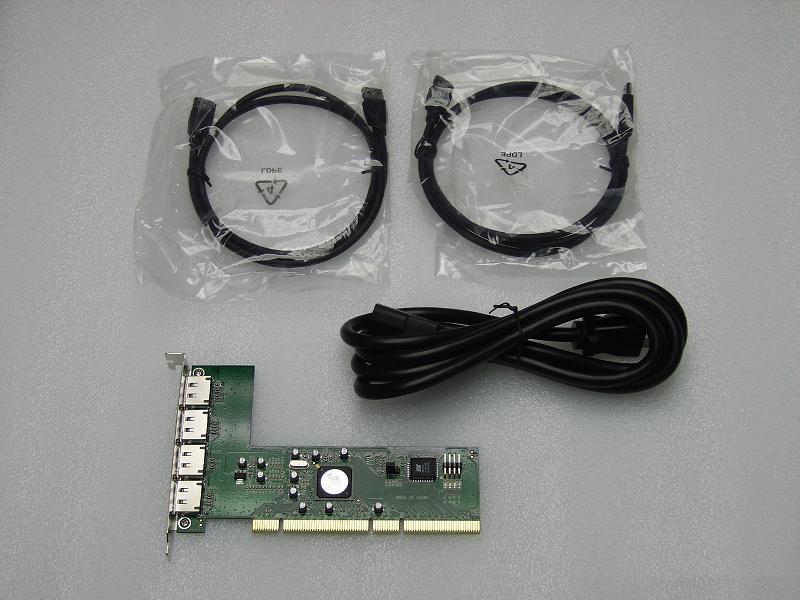

Included - PCI/PCI-X 4 port controller (based one Silicon Image Sil3124 chip)
Optional Compatible controller - HighPoint RocketRAID 2314 Host Adapter, x4 PCIe, 4 port eSATA, support hardware RAID 5 under PC and Mac OS
| Main features
|| 3U, 10 x 3.5" HDD bays, SINGLE Expander, AC HRP, SATA
| Power Supply
|| 500W 110V-240V pro-data power supply
| Drive Bay
|| 10 x hot-swappable SATA slim drivebay
|| 2 ports eSATA host interface
| Cooling Fan
120mm ball-bearing fan x 1,
90mm ball-bearing fans x 2,
80 ball-bearing fan x 1
| Maximum Storage Capacity
|| no limit on hard drive size
| Data speed
|| 3 Gb/s
|| Support Support RAID 0, 1, 0+1, JBOD, RAID5 (Windows only)
| O/S Supported
|| MAC OS, Linux, Windows NT, Windows 2000,
Windows XP, Windows 2003, Windows Vista
| Dimensions (W x D x H)
|| 19" x 19.7" x 5.31" (483mm x 500mm x 135mm)
| Temperature Range
|| Operating 41°F to 104°F (5°C to 40°C)
Shipping -31°F to 167°F (-35°C to 75°C)
