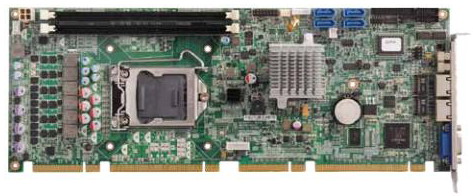

SB2012     Intel Core i7 / i5 / i3 / Pentium LGA1156 with 2 x PCI Express Gigabit LAN/ 6 x SATA / 8 x USB 2.0





Intel® Core™ i7 / i5 / i3 / Pentium® LGA1156 with 2 x PCI Express Gigabit LAN/ 6 x SATA / 8 x USB 2.0


  • PICMG1.3 and RoHS compliant
  • Onboard XGI Z11 graphic for Intel® Core™ i7
        processors
  • Support Intel® LGA1156, Core™ i7 / i5 / i3 /
        Pentium®
  • 1 x 82574 PCI Express Gigabit Ethernet
  • 1 x 82578DM Gigabit Ethernet
  • 6 x SATA, 8 x USB2.0, 2 x COM, 1 x Parallel
  • Support Non-ECC Dual Channel DIMM-DDR3 1066 / 1333 MHz up to 8GB
  • Intel® AMT 6.0
  •



     Specifications:
    CPU Support Intel® LGA1156, Core™ i7/ i5/ i3/ Pentium®
    Intel® Quad Core™ i5/ i7
    Main Memory 2 x 240-pin DIMM, for up to 8GB dual channel Non-ECC DDR3 1066/1333 SDRAM
    Chipset Intel® Q57 Express Chipset PCH
    BIOS AMI BIOS
    Plug and play support
    Advanced power management and advanced configuration & power interface support
    On-board LAN 1 x Intel® 82578DM PHY for AMT 6.0
    1 x Intel® 82574L PCI Express Gigabit Ethernet
    Support boot from LAN (PXE)
    2 x RJ45 with LED
    Display Integrated graphic engine by XGI Volari Z11 GPU with DDR2 SDRAM through PCIe 1 x Interface
    Analog VGA Interface: 230MHz pixel clock support CRT display up to 1600x1200@70Hz 16M colors
    I/O Interface USB 2.0: 8 ports (2 on board, 4 to backplane), 2 ports through I/O Bracket
    Serial port: 2 port, with 2x5pin headers (COM 1 and COM 2)
    SATA HDD: 6 ports, Support RAID 0/1/5/10 and Intel® Matrix Storage Technology (Intel® MST)
    Parallel port: 1 x 26-pin connector
    IrDA: 1 x 5-pin header
    GPIO: Supports 4 sets general purpose I/O each with TTL level (5 V) interface
    On-board buzzer x 1
    Power LED/ Power On/ Reset/ SMBUS: 2 x 8 pin header
    1 x 4-pin fan connector (for CPU); 1 x 3-pin fan connectors (for System)
    IPMB interface through PICMG 1.3 Golden-finger
    I/O On SBC Bracket
      1 x VGA DB-15 connector
      2 x RJ45 Gigabit Ethernet LAN port
      2 x USB 2.0 Ports
    System monitor

    6 Voltages (+3.3V, +5V, +12V, Vcore) memory, VTT
    3 Temperatures (For CPU and System)
    2 FAN speed monitors (1 for CPU and 2 for System FAN)

    Watchdog Timer

    1-minute increments from 1 to 255 minutes
    1-second increments from 1 to 255 seconds
    On-chip RTC with battery backup
    1 x External Li-lon battery

    Power Input

    Power source from backplane through golden finger and AUX +12V
    Support ATX/AT power supplies
    +12V/+5V/+3.3V/+5Vsb

    Environment

    Board level operating temperatures: 0°C to 60°C
    Storage temperature: -20°C to 85°C
    Relative humidity: 10% to 90%, (Non-condensing)

    Certifications

    CE approval
    FCC Class A

    Dimensions

    PICMG 1.3 SHB
    Dimension: 338.58mm (L) x 126.39mm (W) (13.3’’ x 4.9’’)




    SB2012
