SS3002 / XJ-SA12-316R-B 3U Rackmount Storage Chassis ,16 SAS / SATA Hot-Swap bays, 22.5" depth , Singlel I/O module with expander , 460W 1+1 swap redundant PFC





SAS / SATA JBOD : Part # SS3002 / XJ-SA12-316R-B

3U Rackmount Storage Chassis ,16 SAS/SATA Hot-Swap bays, 22.5" depth ,
Singlel I/O module with expander , 460W 1+1 swap redundant PFC





**Click on picture to enlarge



FEATURES
- High performance, redundancy, and connectivity SAS interface
supports

- High performance/availability SAS drives and high capacity /
lower cost SATA drives in a single system, the flexibility to reduce
total cost of ownership (true mix-and-match of drives in a
single enclosure)

- Six 4-port connectors for host or expansion with automatic port


speed detection and negotiation

- Scalable with expansion ports to couple with business growth

- Environment monitoring with SEP/SES Support

- Redundant and hot swappable IO modules, drives, fans and
power supplies for high availability and easy maintenance

- 3U with both SFF 2.5and 3.5drive offerings

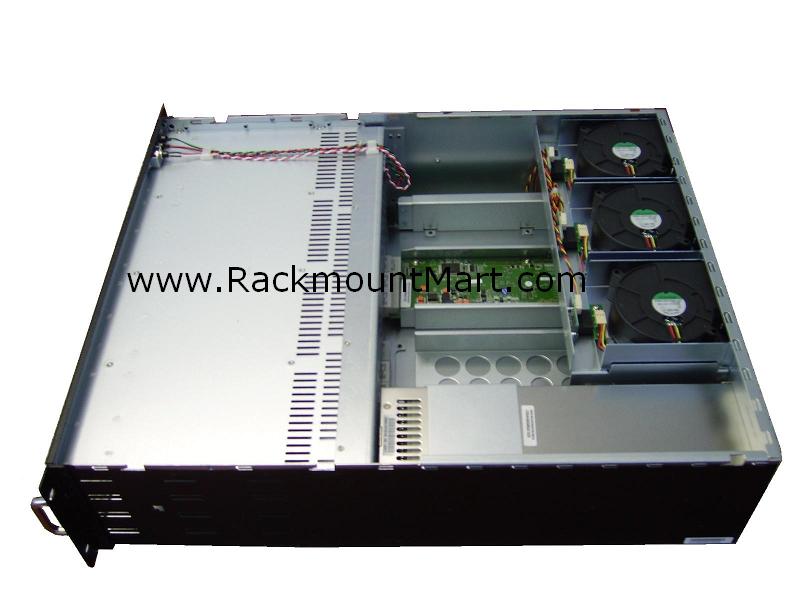

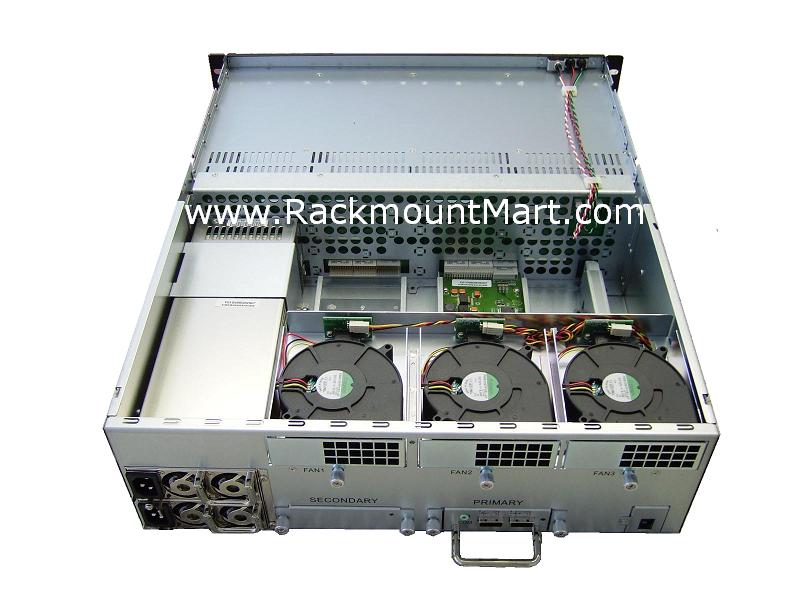

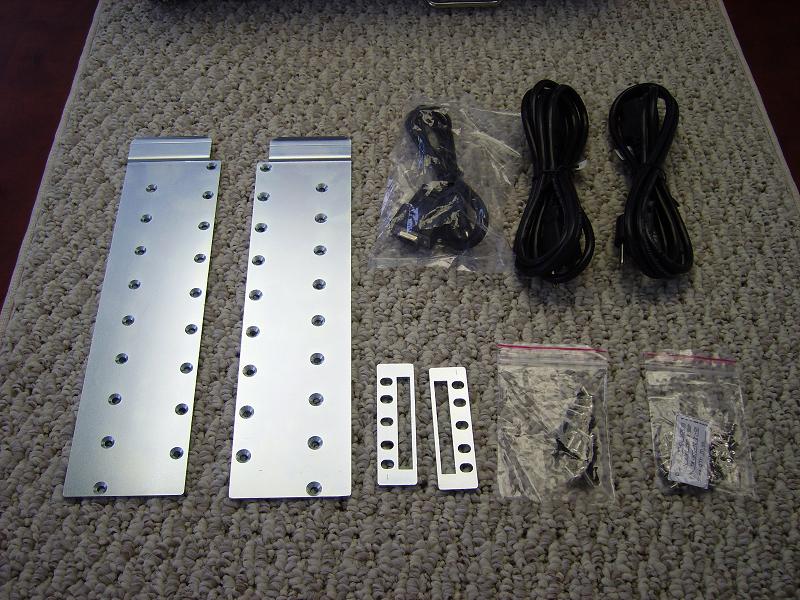

More photos (Click on the photos for enlarged views)







High Performance
The maximum performance per host connection is 1,200MB/sec, which is higher than a single 4G or even 10G Fiber Channel connection. The performance of the bus is achieved by combination of four SAS channels with each supporting 3Gbps full duplex speed. Together with a high-speed SAS HBA or SAS RAID controller card on the server, the storage enclosure provides not only capacity but unprecedented performance for applications like High Definition Video Editing or high speed transaction applications.

High Storage Density Design and Offerings
For cost and capacity consideration, SS3002 provides both 3U-16 and 2U-12 solutions, employing 3.5" drives. For applications where power consumption, thermal or environmental elements, and space limitations are considerations, SS3002 provides 1U-10 and 2U-24 enclosures using 2.5" drives. All of SS3002's SAS Disk Enclosures are designed with dual host and cascade paths for further capacity expansion.

Scalability
SS3002 enclosures support a scalable solution to manage growing storage needs via efficient expansion. Each SAS I/O Module supports a down link cascade path with four SAS channels maintaining 1,200MB/s speed.

Easy Maintenance and Management
All of SS3002's SAS Disk Enclosures are designed in a modular base, completed with redundant and hot-swap I/O modules, fans, and power supplies for easy maintenance. The systems support in-band SES (SCSI Enclosure Service) with embedded SEP for error and status reporting. Each drive has activity and failure LEDs to indicate the drive status. Firmware can be upgraded through in-band SAS ports or serial port.

Versatile Cost/Performance Options
For highest performance and reliability, systems can be configured with dual I/O modules and high reliability SAS drives by providing a 1,200 X 2MB/sec speed and dual-port fail over capability. An application for a clustering transaction server can apply the above scheme with the best throughput and reliability. On the other hand, customers looking for performance but not requiring redundancy can deploy the single I/O module system with SAS drives without sacrificing performance and reliability. Applications such as Video Editing can use pure SAS interface for on-line storage usage. For the lowest $/GB consideration, customers can apply the single I/O module system with large capacity SATA drives to achieve the best performance/cost investment. It is the best and most cost-effective near-line or backup storage available.

RAID controller Compatibility List
Adaptec - ACS-48300; ACS-58300SAS; ASR-4800SAS; ASR-4805SAS; Adaptec RAID 3085
ARECA - ARC-1680
LSI - SAS 3442E-R; SAS 3442X-R; SAS 3800X; SAS 3801E; SAS3801X; MegaRAID 8480E;


MegaRAID SAS 8344ELP; MegaRAID SAS 8888ELP
ATTO - SAS R348

SPECIFICATION
Main features 3U, 16 x 3.5" HDD bays, SINGLE Expander, AC HRP, SAS/SATA
Material Heavy-duty cold-rolled steel
Outside SPGC preplated with bright chromate
Dimension 17.32"x22.5"x5" (W x D x H)
Weight

63 lbs

Cooling Rear 3 x 97mm hot-swap blowers
Drive Bay Hot-swap 16 x 3.5" SAS/SATA Hot-swap
Power Supply 460W 1+1 hot-swap redundant PFC
Expansion Slots 2 x mini-SAS connectors per I/O module( 1 x host interface + 1 x expansion interface)
Indicators system failure and HDD LEDs for power, activity and failure
Cable 1M External mini SAS to infiniband cable included,


1M external mini SAS to mini SAS cable optional
Number of IO Modules 1
Host Interface per IO Module
( mini SAS 4x connector )
Single
Expansion Interface per IO
Module (mini SAS 4x connector)
Single (or used as host)
Transfer speed

1200MB/s per connector

Drive Interface 3Gb dual ported SAS; 1.5Gb/3Gb single ported SATA
Dual ported SATA support w/
optional interposer boards
Yes
Drive RPM up to 15,000rpm
HDD Form Factor

3.5",1" height (HDD NOT Included)

Administration/
Firmware Upgrade
(In-band & Out-of-band)
Windows GUI, Serial
LED Indicator, Audible Alarm Included
IO Module Redundancy No
Disk Drive

16-Bay How-Swappable

Emissions /Safety FCC, CE, UL, CB
Quality

ISO9001, ISO 140000, IECQ QC 080000 HSPM





Availability: Usually ships the same business day

SS3002 / XJ-SA12-316R-B $2,060.00
