BP3002 PCI X 10, PCIe 16 X 1, PCIe 4 X 1. Pericom P17C8150 Bridge PICMG 1.3 for 4U Chassis





PCI X 10, PCIe 16 X 1, PCIe 4 X 1. Pericom P17C8150 Bridge


 Features :
  • 13 slots (PICMG 1.3 x 1, PCIe‐16 x 1, PCIe‐4 x 1, 32 bit PCI x 10), SATA x 2, USB 2.0 x 4
  • Design for 4U chassis
  • Power connector
    24 PIN ATX power connector
    8 PIN AUX Standard Power connector
    Support ±12V -5V、3.3V Power Connector

  • Supports 3 Fan Power Power signal status
  • Use 4‐layer PCB to reduce noise, impedance and cost.
  • Dimension: 317 x 327 (mm)

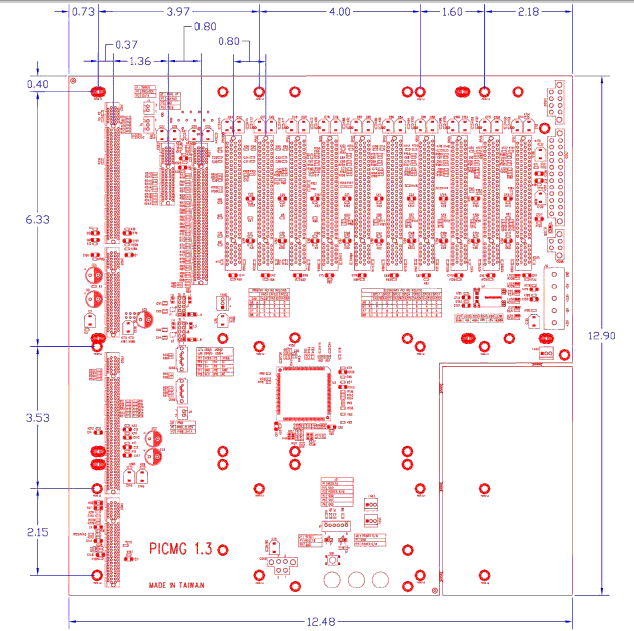

 Board drawing :
 Dimension & Mounting Screw Holes compatible with PICMG 1.3 Specification :



BP3002
