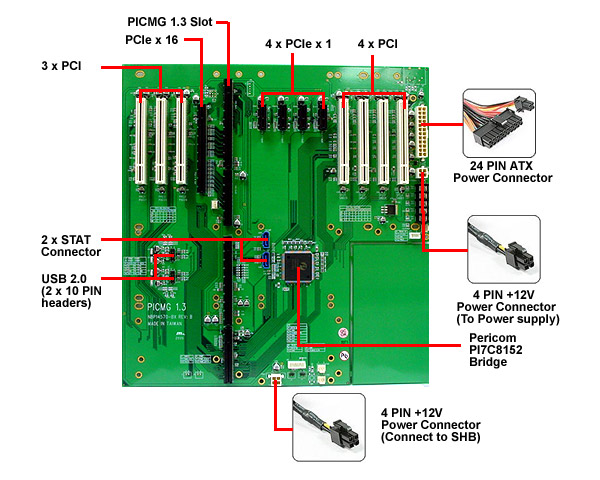

BP3003 PCI X 7, PCIe 16 X 1, PCIe 4 X 4. Pericom P17C8152 Bridge PICMG 1.3 for 4U Chassis





PCI X 7, PCIe 16 X 1, PCIe 4 X 4. Pericom P17C8152 Bridge


 Features :
  • 14-slot (PICMG 1.3 x 1, PCIe-16 x 1, PCIe-1 x 4, 32-bit PCI x 7)
  • 2 x SATA connector , 4 x USB
  • Designed for 4U Chassis
  • Power Connector Supports
    24 PIN ATX Power connector
    8 PIN AUX Standard Power connector
    Support ±12V、-5V、3.3V Power Connector
  • Supports Four Fan Power、Power signal status
  • 4-layer PCB to reduce noise and keep lower impedance
  • Dimension: 317 x 327 (mm)

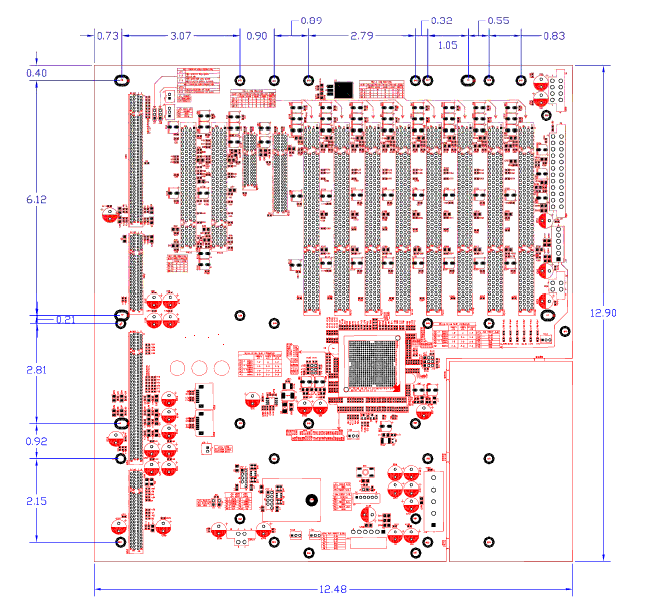

 Board drawing :
 Dimension & Mounting Screw Holes compatible with PICMG 1.3 Specification :



BP3003
