CR1005  29U Server Rack Cabinet , 800mm / 31.5" deep, Color : Black or White

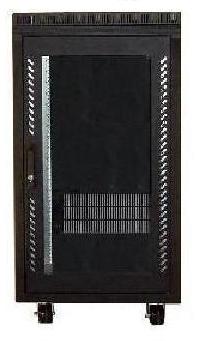

* Click on the above picture  for a detailed View

19 Server Cabinet

Inside Dimension :
Height = 29U ( 51" )
Depth  =
28.25" (Self-tapping type) / 28.75" (Square type)
Width  = 19"

Overall Dimension : 23.50"(w) x 31.50"(d) x 61"(h)

Cabinet frame of extrude aluminum sections front and clear door, side panels, top, bottom plates and plinth of sheet metal
Package content
* Heavy Duty Aluminum Main frames
* Tempered glass front door with lock
* Rear door with lock
* Removable solid side panels with lock (push-down type)
* 4 pieces of Round self-tapping vertical mounting railings
   (optional square type )
* 1 set of depth supporter (0.5”x0.5” adjustable)
* 3 of 12cm fans (115CFM each) fans installed on top and
   expandable up to total 8
* 4 x Heavy duty castors
* 4 x Leveling feet
* 50 sets of M6 cage nuts and screws
* Vented top panel with cable entry and cable fixtures
* Solid bottom panel with cable entry and cable fixtures
* Door Grounding wires
* Fully assembled
-  Full size mounting strips front and rear
- Good air ventilation
- You could increase to total 8 fans
-  All doors design with the spring latch, easy remove, tool less
-  Water or dust resist from top
-  Easy assemble

    Price : $1075.95


 Specification :
-  Overall width: 23.6"
-  depth: 31.5"
-  height: 29U = 61"
-  Interior width: Hole to Hole = 19", Railing to Railing = 17 5/8"
-  Depth of front railing to rear door: Self-tapping type = 28.25" Square type = 28.75"
-  height: 29U = 51"
-  Maximum length of sliding rail's brackets: Self-tapping type = 23.75" Square type = 25 5/8"
Optional Accessories ( Click on specific link for details):
  Air Filters Rack LCD Monitors (No Keyboard & KVM)
  Blank Panels Rack LCD Monitor Keyboard Optional KVM
  Bracket Supports Rack PDU ( Power Distribution Unit )
  Cable Management Rack Rails
  KVM Switches Rack Shelves
  Rack Cooling Fans Rack Speakers
  Rack Display Mounting Brackets Power Strips
  Rack Drawers  Screw Bags
  Rack Keyboard Drawers (No Monitor & KVM)  Vertical Mounting Rail

Availability: Usually ships the same business day

CR1005 (**** Please note that due to system limitation to the over- sized (and/or) heavy weight of the current model , the shipping cost which will be shown from the online system is incorrect . Actual freight quote will be emailed to customer for approval by separate email after order is checked out. We will charge the right shipping cost only upon customer's final approval. **** )$1,075.95
