DL-1003 Intelligent Cabinet Door Lock For CR16xx Series

DL-1003 Intelligent Cabinet Door Lock For CR16xx Series

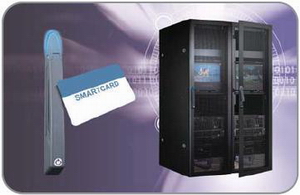

	Cabinet level access security has become critically important for all data centers and server rooms. More and more IT managers have recognized this need and are upgrading their cabinets with secured Door Lock access control. Our DL series provides data center managers a complete networked solution with monitoring, control, alarm & reporting. It allows cabinet access remote management - saving traveling time / costs and hence increases the data center operation efficiency.
		Download User Manual Download Product Sheet

Key Benefits:

>> Affordable Price A basic cabinet can be upgraded with Our DL Series access control at an affordable price.		>> Fuctionality Functionality is not limited to cabinet access management. In addition to cabinet access control, DL Series can be further expanded to PDU and environmental management. Users can remotely manage the above devices via the provided software.
>> Compatibility Hardware - Our DL handle is already designed for some global IT branded cabinet models. Other cabinets just need to make a custom handle mounting cut-out on the door to suit our DL handle. Software - We offer software for remote management. Besides, our DL Series also supports SNMP for integration to the existing BMS of data center. Users can use their own platform for a centralized management. Smartcard - Our DL handle caters for the 2 most common alternatives - Proximity & MiFARE format. The users can keep using their existing Smartcard to apply on the cabinet access system if their Smartcards are in either format as above.		>> Expandability The managing capacity of DL Series is expandable to a maximum of 3000 cabinets. And control box GUI allows up to 100 concurrent client access to remotely manage the locking handles. DL Series provides the scalable flexibility to the date center projects, especially to the project with several phases.

DL-1003P		Features		DL-1003M
		Intelligent design with patent
		Universal mounting design for global branded cabinets
		Dual locking system ( electronics and mechanical lock )
		Electronic lock released either by smartcard or software
	✔	Proximity 26-bit smartcard compatible
		MiFARE 26-bit smartcard compatibile	✔

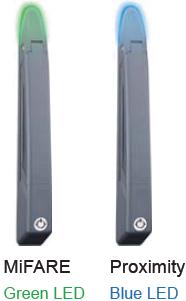

		Cabinet access status and alarm indication by LED

Mounting Cut-out:

The patented DL-1003 door lock handle is designed specially for CR16xx cabinets. Cabinet manufacturers just need to make a custom handle mounting cut-out to suit DL-1003 It is an alternative for users who look for a stylish and different outlook design.
Back View		Side View Close		Side View Open

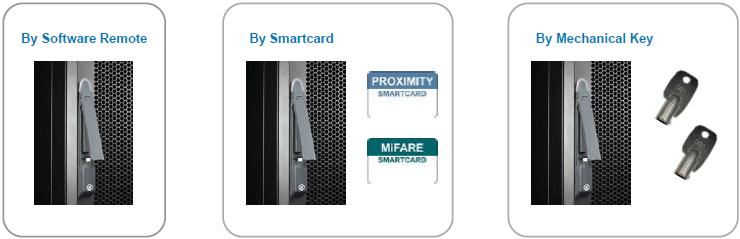

Handle Releasing :

DL-1003 handle allows 3 lock releasing ways - by Software remote, Smartcard or Mechanical key.

Door Sensor:

Door Sensor is an important component which should never be overlooked. DL Series provides high quality, durable and precise door sensors to ensure 100% right door detection.
( I ) Inductive Door Sensor, pair ( DLS-102 )		( II ) Mechanical Door Sensor, pair ( DLS-101 )
	light weight / adhesive easy setup for existing cabinet retrofit no custom cutting required on doors		low cost / precise cost efficient integration to new cabinet custom cutting required on doors

Network Setup :

( I ) Daisy Chain Connect all control boxes by Cat5/6 cable, and no any network switch required
	Key Benefits Simple connection No network switch required Appropriate for small networks Quantity of Control Box / Cabinet : Up to 50 Total distance in daisy chain : Up to 100M
( II ) Star Connect to network switch by a point-to-point connection
	Key Benefits Appropriate for large networks Increased fault tolerance Easy for troubleshooting Network switch required Total distance for each Control Box to Network Switch : Up to 100M
( III ) Mixed Combining daisy chain with star connection
	Key Benefits Most effective and practical for large scale of networks Take all advantages of Daisy Chain and Star connection Flexible to meet a variety of network environments and needs Total Control Box Qty in Mixed Network : Up to 3000

Management Software :

DL Series Manager X-ISM is a LICENSED cabinet management software to monitor up to 3000 cabinets remotely.

Each Control Box connects a pair of smartcard handles to secure the cabinet access control, and connect a variety of sensors to provide an environmental monitoring solution. To enhance the functionality, up to 1920 x kWh PDU / 960 x Fan Unit can be monitored through X-ISM Manager as well. Up to 100 concurrent users can access the management software remotely to achieve the demand of multi-user / multi-tasking in nowadays’ time sharing data center operation.

Software Features		X-ISM
Capacity	Control Box Concurrent User	3000 100
System Setup	Backup / Restore Setting Time Rule Setting Alarm Mail Server Setting Audio and Visual Alarm Output Setting	✔
Cabinet Overview Door	Status of Door, PDU, Sensor & Fan Unit Door Open by Remote Last Door Open & Close Record	✔
Sensor Peripherals	Status Monitoring Temp-Humid Alarm Threshold Setting	✔
PDU	Energy Consumption kWh / Amp Monitoring Outlet Level Measurement PDU Outlet Schedule Outlet Switch ON / OFF Amp Alarm Threshold Setting Amp Rising / Low Alert Threshold Setting Temp-Humid Monitoring	✔
Fan Unit	CFM & Temp. Monitoring Unit CFM ( fan speed ) Setting Auto CFM Control Setting Individual Fan Kit ON / OFF Fan Unit ON / OFF	✔
Chart / Event / Reporting	System & Device Event Reporting Temp-Humid Line Chart of InfraBox	✔

Optional Accessories:

>> Individual Key Lock Up to 500 individual key-locks available Part no. : DLS-501 set of 2 for front & rear door		>> Unique Key Lock Unique key dedicated to single project / customer regionally For project size over 500 cabinets Part no. : Call for information
>> Proximity Smartcard Proximity 26-bit format Single card for multiple application Custom layout available Part no. : DLS-401P pack of 10		>> MiFARE Smartcard MiFARE 26-bit format Single card for multiple application Custom layout available Part no. : DLS-401M pack of 10
>> Proximity Card Reader Compatible to Proximity 26-bit Smartcard format Convenient way for Smartcard ID checking Driverless for easy installation Part no. : DLS-402P		>> MiFARE Card Reader Compatible to MiFARE 26-bit Smartcard format Convenient way for Smartcard ID checking Driverless for easy installation Part no. : DLS-402M

ORDERING INFORMATION

Part Number	Description
DL-1003P Price : $340	Proximity 26-bit smart card handle, front & rear - standard key lock, set of 2
DL-1003M Price : $383	MiFARE 26-bit smart card handle, front & rear - standard key lock, set of 2
DL-1003P-R Price : $340	Proximity 26-bit smart card handle, front & rear (Right side open) - standard key lock, set of 2
DL-1003M-R Price : $383	MiFARE 26-bit smart card handle, front & rear (Right side open) - standard key lock, set of 2
Door sensor
-DLS-101 Price : $26	Mechanical Door Sensor, w/ 2m cord, pair
-DLS-102 Price : $68	Adhesive Inductive Sensor, w/ 2m cord, pair
Handle data input cable
-DLS-201 Price : $29.7	Handle data input cable, USB to DC2.5 plug, 1.8m
Dual card authentication
-DLS-301 Price : $29.7	Administrator card + User card ( front & rear handle set )
Smart card & card reader
-DLS-401P Price : $44.55	Proximity smart card ( 26-bit ), pack of 10
-DLS-401M Price : $55.35	MiFARE smart card ( 26-bit ), pack of 10
-DLS-402P Price : $336.15	Proximity smart card reader (USB), set
-DLS-402M Price : $130.95	MiFARE smart card reader (USB), set
Individual key
-DLS-501 Price : $14.85	Upgrade for Combination key lock, set of 2 for front & rear door
Management Software
-X-ISM-10+5 Price : $850	DL Series Manager, Matrix server license, plus rack x 10 & client x 5
-X-ISM-20+5 Price : $1020	DL Series Manager, Matrix server license, plus rack x 20 & client x 5
-X-ISM-50+5 Price : $1235	DL Series Manager, Matrix server license, plus rack x 50 & client x 5
-X-ISM-100+5 Price : $1530	DL Series Manager, Matrix server license, plus rack x 100 & client x 5
-X-ISM-300+5 Price : $2550	DL Series Manager, Matrix server license, plus rack x 300 & client x 5
-X-ISM-500+10 Price : $3825	DL Series Manager, Matrix server license, plus rack x 500 & client x 10
-X-ISM-1000+10 Price : $6800	DL Series Manager, Matrix server license, plus rack x 1000 & client x 10
-X-C005 Price : $510	Additional Client license x 5
-X-N005 Price : $47	Additional rack license x 5
-X-N010 Price : $85	Additional rack license x 10
-X-N020 Price : $162	Additional rack license x 20
-X-N050 Price : $383	Additional rack license x 50
-X-N100 Price : $714	Additional rack license x 100
-X-N200 Price : $1326	Additional rack license x 200
Customized package available on request - max. up to 100 clients per Manager license - each cabinet requires one rack license, max. up to 3000 rack licenses

Availability: Usually ships the next business day
