Part# ID-01-19Pw

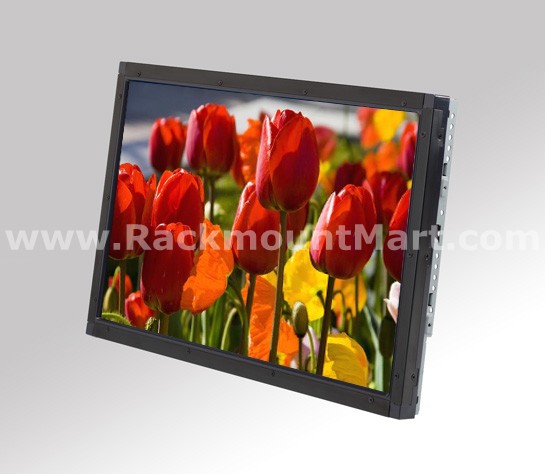

*click on photo for enlarged view |
The ID-01-19Pw open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
The ID-01-19Pw features an injection-molded bezel with a virtually invisible water-resistant seal, thus making it a good choice to withstand the rigors of public use. Narrow borders, black anodized bezel hardware, multiple mounting options, and dual serial/USB touch interface add to the touchmonitor's flexibility. Worldwide agency approvals cover the entire monitor that is developed, built and supported by TouchSystems, a true single-source supplier.
The ID-01-19Pw is available with a choice of IntelliTouch surface acoustic wave and SecureTouch surface acoustic wave touch technologies. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.) The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
- High quality panel with 160°x160° viewing angle
- 1000:1 contrast ratio
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with water-resistant 0.5 mm seal
- Mounting options including rear-mount (with two included mounting brackets) and VESA mount
- IntelliTouch or SecureTouch surface wave touch technology with dual serial/USB touch interface. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.)
- Integrated multilingual on-screen display (OSD), connector for optional remote on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
|
|
| Specifications |
| Display |
|
19.0" diagonal, Active matrix TFT LCD |
| Aspect Ratio |
|
16:10 |
| Useful Screen Area |
|
Horizontal: 16.1" (408 mm)
Vertical: 10.0" (255 mm) |
| Native (Optimal) Resolution |
|
1440 x 900 at 60 Hz |
| Other Supported Resolutions |
|
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 60, 65 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
640 x 350 at 70Hz
640 x 480 at 60, 66 or 72 Hz |
| Colors |
|
16.7 million |
| Brightness (Typical) |
|
LCD panel: 250 nits
IntelliTouch: 225 nits
SecureTouch: 220 nits |
| Response Time - Total (Typical) |
|
3.7 msec |
| Viewing angle (typical) |
|
Horizontal: ±80° or 160° total
Vertical: ±80° or 160° total |
| Contrast Ratio (Typical) |
|
1000:1 |
| On-Screen Display (OSD) |
|
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, French, Italian, German, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese
Lockouts: power, user controls |
| Input Video |
|
Analog VGA, DVI (Asia/Pacific models without DVI)
Mini D-Sub 15-Pin VGA type, DVI-D
Horizontal: 83 kHz
Vertical: 76 Hz |
| Power Supply |
|
External DC - Optional power brick (sold separately)
Input voltage
DC: +12VDC ±5%
Input power connector specification (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)
Power connector (Power brick)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm) |
| Power Consumption (Typical) |
|
Monitor only: 41.1W
Monitor and power brick: 41.6W |
| Monitor Dimensions (W x D x H) |
|
Width: 17.5" (444 mm)
Height: 11.7" (297 mm)
Depth: 1.9" (47 mm) |
| Weight |
|
Actual: 10.5 lb (4.8 kg) |
| Temperature |
|
Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F) |
| Humidity (non-condensing) |
|
Operating: 20%-80%
Storage: 10%-90% |
| Enclosure Color |
|
Steel/black |
| MTBF |
|
50,000 hours demonstrated |
| Mounting Options |
|
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting brackets
|
| Sealing |
|
Touchscreen sealed to bezel
Touchscreen sealed to LCD |
|
| Accessories |
Optional IntelliTouch/iTouch Stylus Pen: Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Available at additional cost.
Optional Mounting Bracket Kit: Available at additional cost. Minimum order quantity of 50 sets.
Remote On-screen Display (OSD): With 1.8 m cable. Available at additional cost.
Touch/Video Cables: Detachable touch and video cables are included. |
|

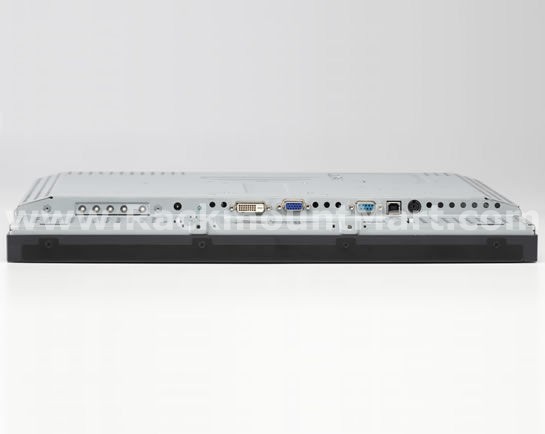

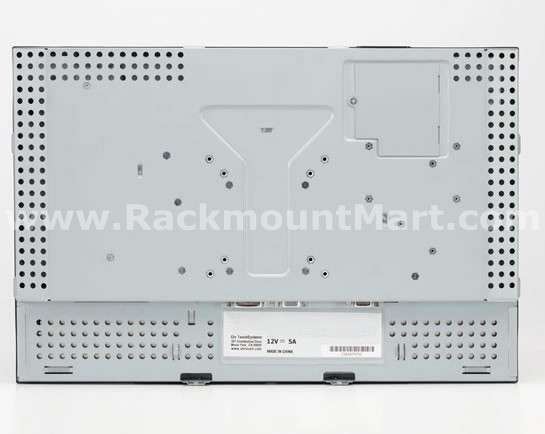

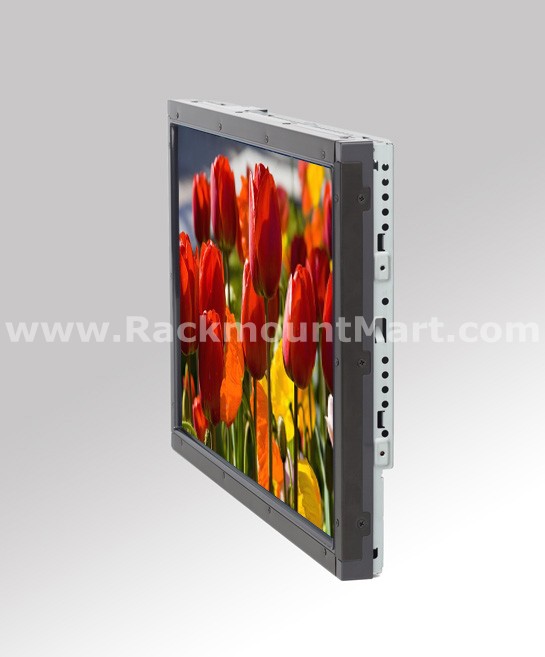

More photos ( Click for enlarged views )

| Model information |
| Part #(RoHS Compliant) |
Technology  |
Interface |
Surface Treatment |
Availability |
| ID-01-19Pw-SAWD/A |
IntelliTouch |
Dual serial/USB |
Antiglare |
Americas, EMEA |
| ID-01-19Pw-SAWD/A-G |
SecureTouch * |
Dual serial/USB |
Antiglare |
Americas, EMEA |
* SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.
Ordering Information
| Part # |
Description |
ID-01-19Pw-SAWD/A
Price : $611.58 |
19IN INTELLITOUCH OPN FRM SER/USB DVI/VGA NO PWR BRCK NCNR |
ID-01-19Pw-SAWD/A-G
Price : $638.95 |
19IN W SECURE TOUCH SER USB DVI NO PWR BRCK OPN FRM NCNR |
|
|
