Click to enlargeID-02-19P    19-inch Open-Frame Touchmonitor

Part#  ID-02-19P

*click on photo for enlarged view

The ID-02-19P 19" LCD open-frame touchmonitors deliver high performing touch solutions for OEM’s and systems integrators, and complement the large family of touch solutions for applications in the retail self-service and gaming/ amusement markets. These compact touchmonitors are "designed for touch" with proven expertise and reliability built in, not added later by altering an existing monitor.
The ID-02-19P features an injection-molded bezel with a virtually invisible watertight seal, narrow borders and comes with IntelliTouch single touch, IntelliTouch Plus dual touch and SecureTouch anti-vandal surface acoustic wave as well as AccuTouch resistive touch technology options.

  • High quality energy-saving LED panel with 178°x178° viewing angle.
  • Compact form factor that easily integrates in state-of-the-art cabinet designs.
  • Long lasting product cycle-enclosure controlled by Elo specifications.
  • Future generation panels phased-in without external changes.
  • Integrated precision minibezel with water-resistant 0.5 mm seal.
  • Mounting options including flush mount, rear-mount (two standard rear-mount brackets included) and
    VESA mount; optional front mount (see Accessories for details) and rack mount (see Accessories for details).
  • Standard bezel touch technologies include IntelliTouch, IntelliTouch Plus or SecureTouch surface wave, AccuTouch Five-Wire Resistive touch technology with dual serial/USB touch interface. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor).
  • Zero-bezel options in a seamless, true flat design include IntelliTouch Zero-Bezel / iTouch surface acoustic wave and IntelliTouch Pro projected capacitive multi-touch technologies
  • IntelliTouch Pro projected capacitive passes impact testing to IK05 rating
  • Worldwide agency approvals
  • 3-D electronic design files available
Display   19.0" Active matrix TFT LCD with LED backlight
Aspect Ratio   5:4
Useful Screen Area   Horizontal: 14.8" (376 mm)
Vertical: 11.9" (301 mm)
Native (Optimal) Resolution   1280 x 1024
Other Supported Resolutions   1280 x 1024 at 60, 70 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz
512 x 247 at 60 Hz
512 x 256 at 60 Hz
Colors   16.7 million
Brightness (Typical)   LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
IntelliTouch Plus: 225 nits
SecureTouch: 220 nits
IntelliTouch Zero-Bezel / iTouch: 225 nits
IntelliTouch Pro: 225 nits
Response Time - Total (Typical)   14 ms
Viewing angle (typical)   Horizontal: ±89° or 178° total
Vertical: ±89° or 178° total
Contrast Ratio (Typical)   1000:1
On-Screen Display (OSD)   Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls
Input Video   Analog VGA Mini D-Sub 15-Pin VGA Type
Horizontal: 31.5-80.0 kHz
Vertical: 56.3-75 Hz
Power Supply   External DC - Optional power brick (sold separately)

Input power connector specification (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)
Input voltage range: +12VDC ±5%

Input power connector specification (Power brick)
Type: IEC 60320 C14
Adaper input voltage range: 100-240VAC, 50/60Hz
Power Consumption (Typical)   ON (Monitor + AC/DC adapter: 30W
Monitor Dimensions (W x D x H)   Width: 16.3" (415 mm) Height: 13.5" (343 mm) Depth: 2.0" (51 mm)
Weight   Unpackaged: 11.5 lb (5.2 kg)
Temperature   Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity (non-condensing)   Operating: 20%-80%
Storage: 10%-90%
Enclosure Color   Steel/black
MTBF   50,000 hours demonstrated
Mounting Options

Rear mount or with included standard mounting brackets Front mount with optional bezel
Rack mount with optional bracket

Sealing   Touchscreen sealed to bezel
Touchscreen sealed to LCD

Touch/Video Cables: Detachable touch and video cables are included.

Front-Mount Bezel: For front mounting. Available at additional cost. See the dimensional drawing for mounting options and details.

Optional IntelliTouch/IntelliTouch Plus Stylus Pen: Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch Plus surface wave touch technology. Available at additional cost.

Optional Mounting Brackets: Two standard ("L") mounting brackets are included; additional set of two, available at additional cost, minimum shipment quantity of 50 sets.

Rack-Mount Bracket: For compatibility with 19" industrial racks. Available at additional cost. See the dimensional drawing for mounting options and details.

Remote On-screen Display (OSD): With 1.8 m cable. Available at additional cost.

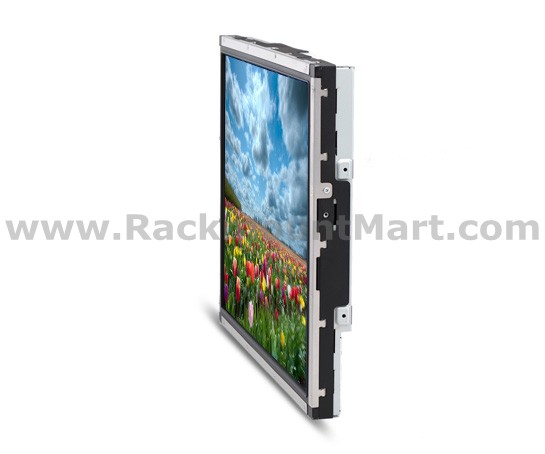

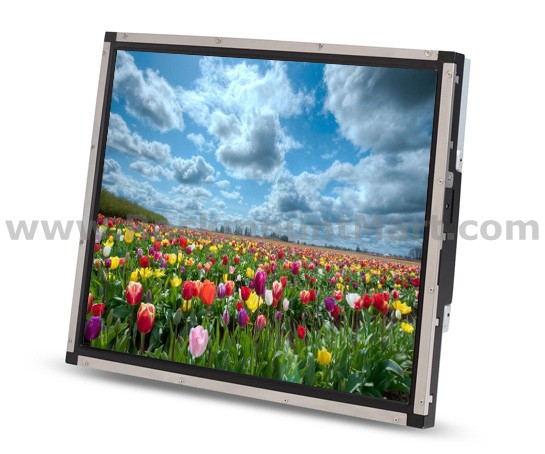

More photos ( Click for enlarged views )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan

Model information
Part #(RoHS Compliant) Technology   Interface   Bezel Surface Treatment Availability
ID-02-19P-TRD/A AccuTouch USB/Serial Yes Antiglare Worldwide
ID-02-19P-SAW2B IntelliTouch Plus USB Yes Clear Worldwide
ID-02-19P-SAWD/A IntelliTouch USB/Serial Yes Antiglare Worldwide
ID-02-19P-SAWD/A-G SecureTouch USB/Serial Yes Antiglare Worldwide

 Ordering Information

Part # Description
 Price : $733.37
 Price : $733.37
 Price : $733.37
 Price : $774.42

ID-02-19P $733.37
Select Model:
