Click to enlargeID-19Pw-LED  Industrial Grade 19" Wide Screen Monitor,  Open Frame Display





Part #   ID-19Pw-LED


                      19" LCD w/ LED Backlight Panel Wide Screen (16:9) Open Frame Display

LCD w/ LED Backlight Panel
LCD Type TFT LCD Panel

Backlight

LED

Display Size

19" Widescreen TFT

Resolutions

1440 x 900

Display Color

16.7M color

Brightness

250 cd/m2

Contrast ratio

1000 : 1 (Typical)

Active area

408 x 255mm

Viewing angle 160° x 160°

LCD MTBF

30,000 hrs

Signal Input

DVI-D / VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 48 Watt,
                   Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Other Option

- Multi-Display Controller         Details
- TV
- S-Video + Composite ( BNC ) or Audio input
- HDMI or DVI-D ( either one for AV2.2 upgrade )
- MIL-type or lockable connector
- 48V, 24V or 12VDC power     Details
- Quad display for CCTV

Mechanical
Dimension  505.5 x 57.1 x 335.1 mm /
 19.9 x 2.2 x 13.2 inch ( WxDxH )
Product Weight  5 kgs ( 11 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Safety Approval FCC, CE, RoHS Compliant
Package Content

Package Content

19" Widescreen LCD display X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1
  Front View of  ID-19Pw

  Construction

  Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual

      Free Ground Shipping * Click for details

  More photos (click to enlarge )



   DISPLAY BENEFITS :
  • 19" widescreen LCD with high resolution 1440 x 900
  • Rugged construction against external impact
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for AV2.2 upgrade )
  • MIL-type or lockable connector
  • 48V, 24V or 12VDC power
  • Quad display for CCTV
  • TV - Analog

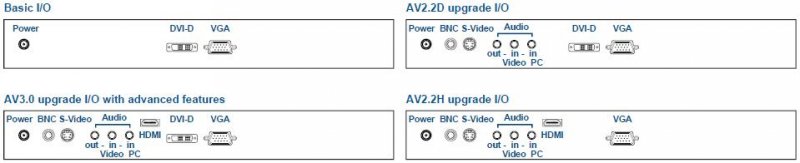

     Diagram for  I/O Outlet

Ordering information :

Part # Description
ID-19Pw-LED
Price : $408
Standard Version  - 19"(16:9) Open Frame TFT LCD w/ LED-backlit Display,
with VGA + DVI-D input
ID-19Pw-BNC-LED
Price : $544
19"(16:9) Open Frame TFT LCD w/ LED-backlit Display,
with VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-19Pw-HDMI-LED
Price : $544
19"(16:9) Open Frame TFT LCD w/ LED-backlit Display,
with VGA + HDMI w/ speaker + BNC + S-Video + Audio + remote controller
Optional Video/Audio Inputs
-SDI
Price : $461
With VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI Download Spec Sheet
-QD
Price : $596
Add Quad display
(VGA + DVI-D + QD)
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $257
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $257
Add Resistive Touch Screen with USB Controller
-TCS
Price : $434
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $434
Add Capacitive Touch Screen with USB Controller
-TPC
Price : $508
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional Controller
-TV
Price : $102
Add TV tuner (NTSC or PAL) with remote controller
(VGA + DVI-D + TV (analog))
Optional DC Input Power
-DC12
Price : $207
Add 12V DC Power
-DC24
Price : $207
Add 24V DC Power
-DC48
Price : $207
Add 48V DC Power
-DC110
Price : $339
Add 110V DC Power
-DC125
Price : $339
Add 125V DC Power
Optional Connectors
-MD
Price : $88
Add MIL-type DC Power lockable jack, male
-MA
Price : $136
Add MIL-type VGA lockable jack, male
-LD
Price : $34
Add Lockable DC Power jack, male
-LS
Price : $34
Add Lockable USB jack







Availability: Usually ships the next business day

ID-19Pw-LED $408.00
Model


Video / Audio Inputs:

Touch Screen:

DC Power:

Connectors:
