Click to enlargeID-E21Pw   21" Full HD Widescreen Monitor, Industrial Grade







Part #   ID-E21Pw


21.5" Open frame Full HD 1080p Widescreen LCD Panel with LED-backlit Display


LCD w/ LED Backlight Panel
LCD Type

Industrial Grade TFT LCD Panel

Backlight

LED

Display Size

Wide 21.5 inch diagonal

Resolutions

1920 x 1080

Display Color

16.7 M

Brightness

250 cd/m2

Contrast ratio

1000 : 1 ( Typical )

Active area (mm)

477 x 268

Viewing angle 170° x 160°

LCD MTBF

30,000 hrs

Signal Input

DVI-D / VGA / HDMI

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 48 Watt,
                   Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Touch Screen

               Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

48V / 24V / 12V DC Power   Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety :
  Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- MIL-type or lockable connector
- BNC / RCA + S-Video & Audio

Mechanical
Dimension
( W x D x H )
 22.6 x 2.1 x 14.4 inch /
 575 x 53 x 366 mm
Product Weight  5 kgs ( 11 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , Assebled in USA , TAA Compliant

  Front View of  ID-E21Pw



  Construction

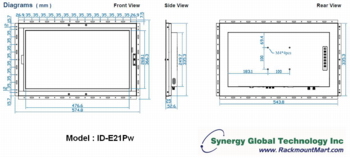

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

                        Download Product Sheet
                        Download User Manual


         Free Ground Shipping * Click for details

More Photos, click on the following for enlarged view:





   DISPLAY BENEFITS :
  • 21.5" widescreen LCD with Full HD 1080p resolution
  • Green LED-backlit panel technology
  • Rugged construction against external impact


   0PTIONS :
  • BNC / RCA + S-Video & Audio
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 21.5" Touchscreen : Capacitive, Resistive, Multi-touch
  • MIL-type or lockable connector
  • 48V, 24V or 12VDC power

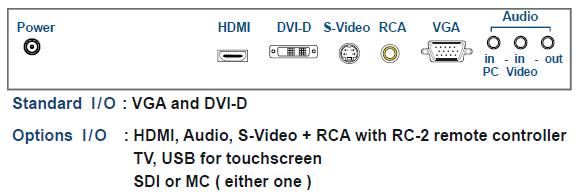

    Diagram for  I/O Outlet

Ordering information :

Part # Description
ID-E21Pw
Standard Version  - 21.5" Open frame Full HD 1080p Monitorwith LED-backlit Display, with VGA + DVI-D + HDMI input
ID-E21Pw-BNC
21.5" Open frame Full HD 1080p Monitorwith LED-backlit Display,
with VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller
ID-E21Pw-AV
21.5" Open frame Full HD 1080p Monitorwith LED-backlit Display,
with VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller
Optional Video/Audio Inputs
-SDI
With VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI Download Spec Sheet
-MC
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Add Resistive Touch Screen with Serial Controller
-TRB
Add Resistive Touch Screen with USB Controller
-TCS
Add Capacitive Touch Screen with Serial Controller
-TCB
Add Capacitive Touch Screen with USB Controller
-TPC
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional DC power
-DC12
Add 12V DC Power
-DC24
Add 24V DC Power
-DC48
Add 48V DC Power
-DC110
Add 110V DC Power
-DC125
Add 125V DC Power
Optional Connectors
-MD
Add MIL-type DC Power lockable jack, male Download Spec Sheet
-MA
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Add Lockable DC Power jack, male Download Spec Sheet
-LS
Add Lockable USB jack Download Spec Sheet







Availability: Usually ships in 2-3 business days

ID-E21Pw$611.00

Video / Audio Inputs:

Touch Screen:

DC Power:

Connectors :
