Part # ID-26Pw-LED
26" Wide Screen ( 16:9 ) Open Frame TFT LCD w/ LED Backlight Panel Display
| LCD w/ LED Backlight Panel |
| LCD Type |
 LG TFT LCD Panel
|
Backlight |
LED |
Display Size |
Widescreen 26 inch diagonal |
Resolutions |
1920 x 1080 |
Display Color |
16.7M color |
Brightness |
350 cd/m2 |
Contrast ratio |
1000 : 1 ( Typical ) |
Active area (mm) |
576 x 324 |
| Viewing angle |
178° x 178° |
LCD MTBF |
50,000 hrs |
Signal Input |
HDMI / DVI-D / VGA / S-Video / RCA |
Power Supply |
Input : Auto-sensing 100 to
240VAC, 50 / 60Hz |
Consumption :Max. 200 Watt,
Standby 20 Watt |
Mounting |
Wall-mount / VESA mount |
| OPTIONS |
Optional Touch Screen |
 Details
|
Optional Input |
3G / HD / SD-SDI Broadcast-grade input |
Other Option |
- 48V / 24V / 12V DC Power Details
- Multi-Display Controller Details
- TV
- MIL-type or lockable connector |
| Mechanical |
| Dimension |
26.5 x 2 x 16.6 inch /
673.7 x 52 x 421.6 mm ( WxDxH ) |
| Product Weight |
10 kgs / 22 lbs |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5 ~ 90%, non condensing |
| Vibration |
5 ~ 500Hz 1G RMS random vibration |
| Safety Approval |
FCC, CE |
| Package Content |
Package Content |
26" LCD display X 1, 6ft VGA cable X 1, Power cord X 1, Remote controller X 1 |
|
Front View of ID-26Pw-LED
Construction

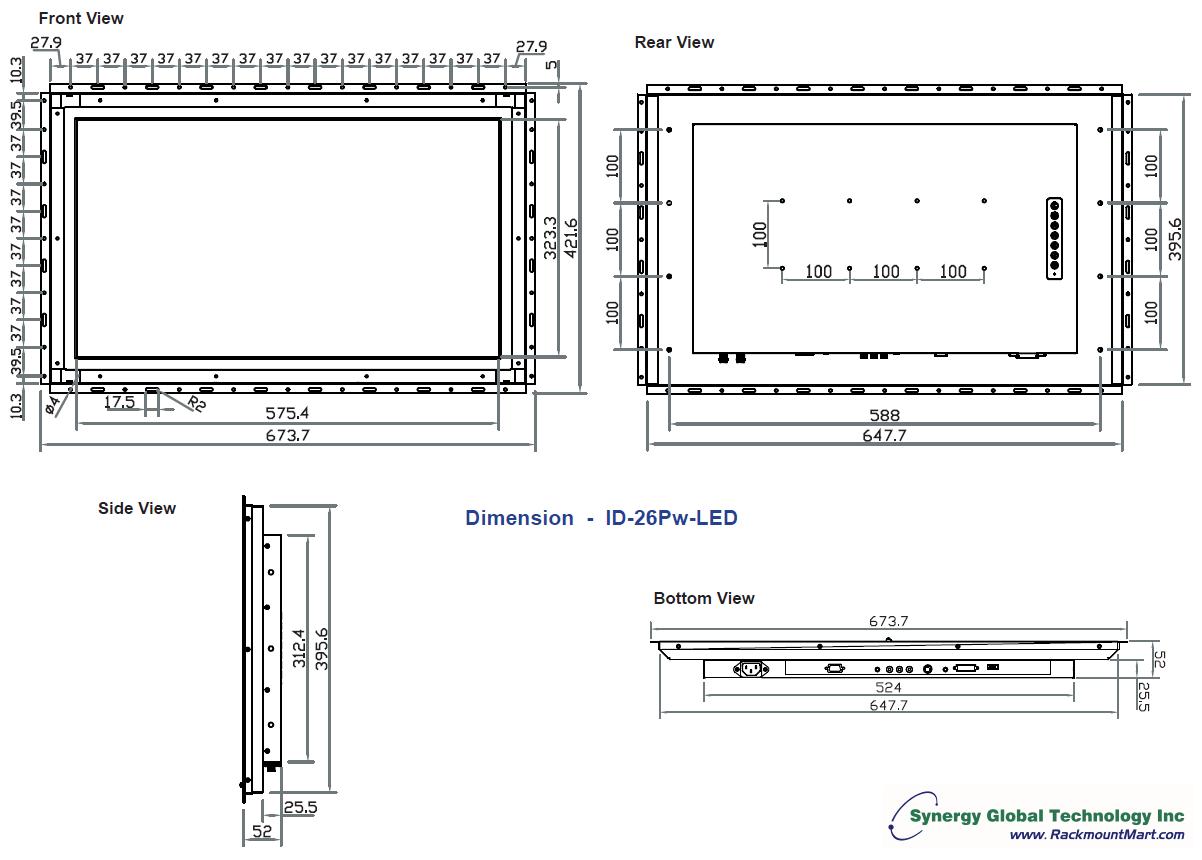

Front / Rear / Top / Side Views & Dimensions
*click on above picture for enlarged view
Free Ground Shipping * Click for details
|
|
More Photos, click on the following for enlarged view:

DISPLAY BENEFITS :
- 26" widescreen LCD supports Full HD 1080p resolution
- PIP & Picture by Picture viewing efficiency
- Green LED-backlit panel technology
- Rugged construction against external impact
- Standard with HDMI, DVI-D, VGA, S-Video, RCA & Audio & remote controller
|
 |
0PTIONS :
- 3G / HD / SD-SDI Broadcast-grade input
- MC Multi-display control solution
- 48V or 24V DC power
- 26" Touchscreen : Capacitive, Resistive
- MIL-type or lockable connector
- TV - Analog
|
Diagram for I/O Outlet
Ordering information :
| Part # |
Description |
ID-26Pw-LED
Price : $777 |
Standard Version - 26" (16:9) LG Open Frame TFT LCD Display,
with VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller |
| Optional Video/Audio Inputs |
-SDI
Price : $297 |
With VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI |
Download Spec Sheet |
-MC
Price : $88 |
Add Multi-Display Controller |
Download Spec Sheet |
| Optional Touch Screen |
-TCS
Price : $756 |
Add Capacitive Touch Screen with Serial Controller |
-TCB
Price : $756 |
Add Capacitive Touch Screen with USB Controller |
| Optional Controller |
-TV
Price : $135 |
Add TV tuner (analog) |
| Optional DC power |
-DC24
Price : $419 |
Add 24V DC Power |
-DC48
Price : $419 |
Add 48V DC Power |
| Optional Connectors – For DC power only |
-MD
Price : $88 |
Add MIL-type DC lockable jack, male |
-MA
Price : $135 |
Add MIL-type VGA lockable jack, male |
-LD
Price : $34 |
Add Lockable DC jack, male |
-LS
Price : $34 |
Add Lockable USB jack |
|
|
|
