Click to enlargeID-E30Pw   30" High Resolution Widescreen LCD Panel w/ LED-backlit Display








 Part #   ID-E30Pw


                                    30" High Resolution Widescreen LCD Panel w/ LED-backlit Display


LCD w/ LED Backlight Panel
LCD Type LG TFT LCD Panel

Backlight

LED

Display Size

30" Widescreen diagonal

Resolutions

2560 x 1600

Display Color

1.07 Billion, 10-bit

Brightness

350 cd/m2
Contrast ratio 1000 : 1 ( Typical )

Active area (mm)

641 x 401
Viewing angle 178° x 178°

LCD MTBF

30,000 hrs
Signal Input Display Port 1.2 / HDMI 1.4 / Dual-link DVI-D / VGA

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 70 Watt, Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional DC Power

48V / 24V DC Power   Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Other Option

- MIL-type or lockable connector
Mechanical
Dimension
( W x D x H )
 740.9 x 71.5 x 500.4 mm /
 29.2 x 2.8 x 19.7 inch
Product Weight  11.9 kgs ( 26.2 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory Safety : FCC & CE certified
RoHS Compliant
Package Content

Package Content

30” Ultra Widescreen LCD display X 1, 6ft DVI-D dual-link digital cable ( male to male ) X 1, Power cord X 1, Remote controller X 1



  Front View of  ID-E30Pw

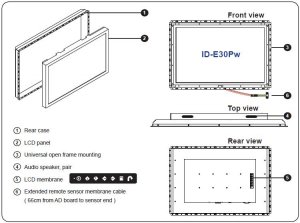

  Construction

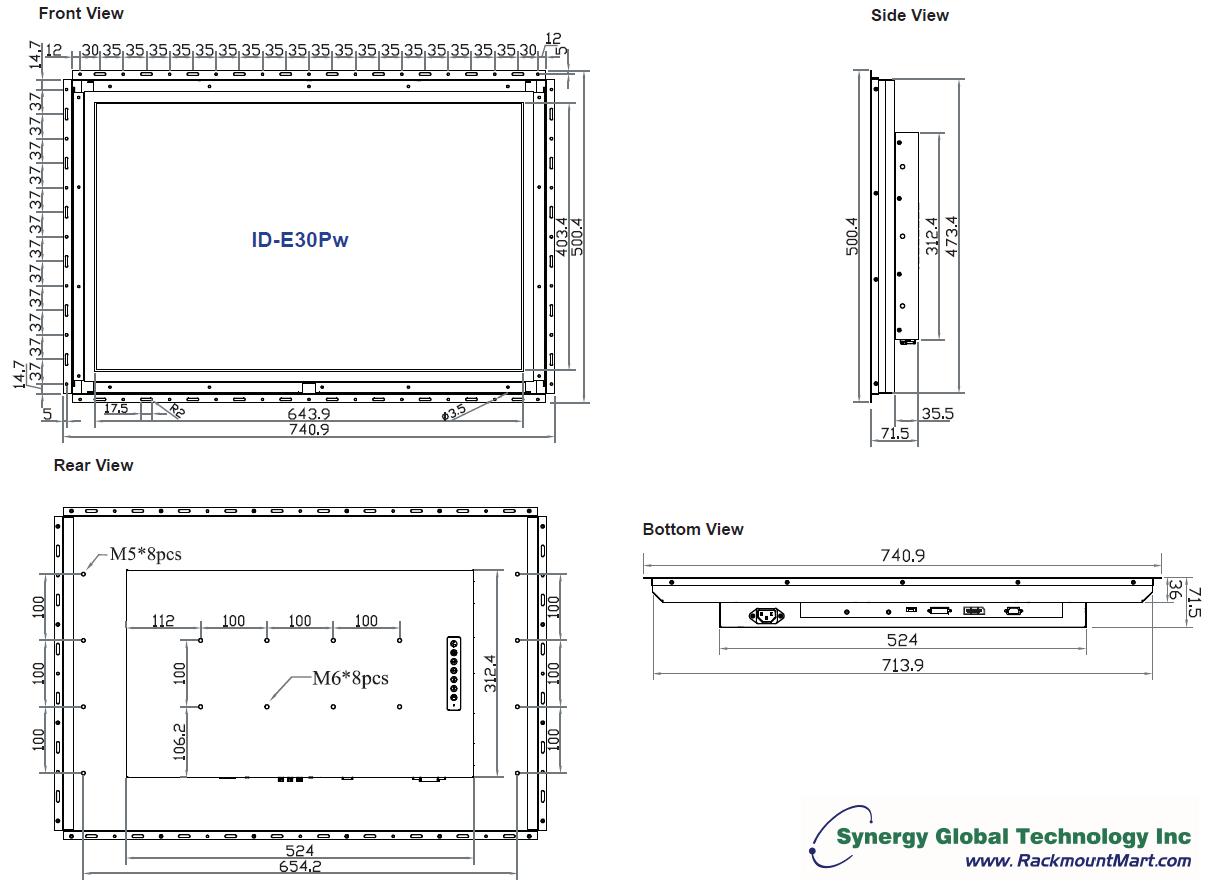

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

                       Download Product Sheet
                       Download User Manual

         Free Ground Shipping * Click for details

More Photos, click on the following for enlarged view:



   DISPLAY BENEFITS :
  • 30" ultra widescreen LCD with 2560 x 1600 native WQXGA resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • 10-bit LCD delivers 1.07 billion true color
  • Standard with Display port, HDMI, Dual-link DVI-D, VGA & remote controller
   0PTIONS :
  • MIL-type or lockable connector
  • 48V or 24VDC power

    Diagram for  I/O Outlet








ID-E30Pw
