ID-32Pw-LED  32" LG Wide Screen (16:9) Open Frame TFT LCD w/ LED Backlight Panel Display





Part #   ID-32Pw-LED


                            32" LG Wide Screen (16:9) Open Frame TFT LCD w/ LED Backlight Panel Display
                           LCD w/ LED Backlight Panel

LCD Type

LG Grade A Industrial TFT LCD Panel

Backlight

LED

Diagonal Size

32" Widescreen TFT

Active area (mm)

698 (H) x 393 (V)

Response Time

9 ms

Resolutions

1920 x 1080

Display Color

16.7M color

Brightness

360 cd/m2

Contrast ratio

1400 : 1 (Typical)

Viewing angle

178° x 178°

LCD MTBF

50,000 hrs

Signal Input

HDMI / DVI-D / VGA / S-Video / RCA

Power Supply

Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption: Max. 200 Watt, Standby 20 Watt

Mounting

Universal mount / VESA mount
                                  Mechanical

Color

Black
Dimension
( W x D x H )
 799 x 77 x 493 mm /
 31.5 x 3 x 19.4 inch

Weight

16.4 kgs ( 36.1 lbs )
                                  Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval  Safety : FCC & CE certified
 Environmental : RoHS2 & REACH compliant
                             Package Content

Package Content

32" widescreen LCD display X 1
6ft VGA cable X 1
Power cord X 1
Remote controller X 1

  Front View of  ID-32Pw-LED

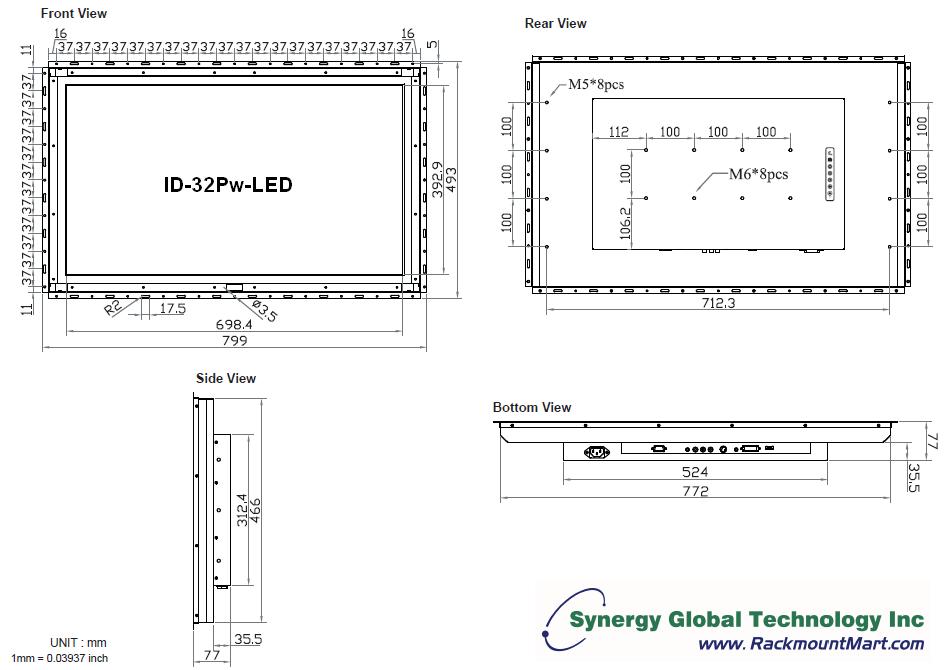

   Front / Rear / Top / Side Views & Dimensions

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

 Download Product Sheet

   DISPLAY BENEFITS :
  • 32" widescreen LCD supports Full HD 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • Projected Capacitive ( 10-point touch )
    Capacitive ( single point touch )
  • MIL-type or lockable connector
  • 48V, 24V or 12VDC power
  • TV - Analog

   Basic I/O






ID-32Pw-LED
