Part# ID-01-32Pw
*click on photo for enlarged view |
The ID-01-32Pw open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and digital signage applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
The ID-01-32Pw features a brilliant wide-viewing-angle LCD panel to instantly grab and hold the user's attention, whether they are checking out retail goods with a selfservice kiosk, interacting with a digital signage application or playing games in a casino or arcade. The ID-01-32Pw features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a dual serial/USB touch interface add to the versatility of the ID-01-32Pw. Worldwide agency approvals cover the entire monitor.
The ID-01-32Pw is available with IntelliTouch surface acoustic wave touch technology. The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
- A bright, high-contrast display with wide viewing angle easily attracts and holds the user's attention.
- IntelliTouch (surface acoustic wave) technology offers high quality optics, durability, and long-term reliability.
- Integrated precision minibezel with water-resistant 0.5 mm seal
- The enclosure has a long-lasting product cycle.
- Multiple mounting options are available.
- Dual serial and USB connectivity are standard.
- Worldwide agency approvals.
|
|
| Specifications |
| Display |
|
32.0" diagonal |
| Aspect Ratio |
|
16:9, active matrix TFT LCD |
| Useful Screen Area |
|
Horizontal: 27.5" (698 mm)
Vertical: 15.4" (392 mm) |
| Native (Optimal) Resolution |
|
1366 x 768 |
| Other Supported Resolutions |
|
640x480 @ 60Hz
800x600 @ 56Hz, 60Hz
1024x768 @ 60Hz
1280x960 @ 60 Hz
1280x1024 @ 60Hz
1360x768 @ 60 Hz
1366x768 @ 60 Hz
1440x900 @ 60 Hz
1600x1200 @ 60 Hz
1680x1050 @ 60 Hz |
| Colors |
|
16.7 million |
| Brightness (Typical) |
|
LCD panel: 450 nits
IntelliTouch: 405 nits |
| Response Time - Total (Typical) |
|
8 msec |
| Viewing angle (typical) |
|
Horizontal: ±89° or 178° total
Vertical: ±89° or 178° total |
| Contrast Ratio (Typical) |
|
3000:1 |
| On-Screen Display (OSD) |
|
Controls (back): menu, up, down, select
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall default, sharpness, display information
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controls |
| Input Video |
|
Analog VGA, DVI video (Asia and EMEA models without DVI)
Mini D-Sub 15-Pin VGA type, DVI-D connector
Horizontal: 30-75 kHz
Vertical: 48-63 Hz |
| Power Supply |
|
Internal AC
AC: 100–240 VAC, 50/60 Hz
AC: IEC 60320 C6 |
| Power Consumption (Typical) |
|
145W typical; 190W max. at 110V/60Hz input) |
| Monitor Dimensions (W x D x H) |
|
Width: 30.9" (784 mm)
Depth: 4.3" (110 mm)
Height: 18.7" (474 mm) |
| Weight |
|
Actual: 38.1 lb (17.3 kg) |
| Temperature |
|
Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F) |
| Humidity (non-condensing) |
|
Operating: 20%-80%
Storage: 10%-90% |
| Enclosure Color |
|
Black |
| MTBF |
|
50,000 hours demonstrated |
| Mounting Options |
|
200mm x 100mm VESA mount
Mounting brackets included
|
| Sealing |
|
Touchscreen sealed to bezel
Touchscreen sealed to LCD |
|
| Accessories |
Optional IntelliTouch/iTouch Stylus Pen: Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Available at additional cost. |
|

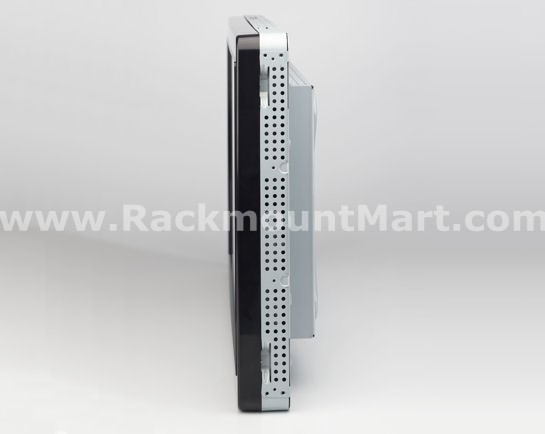

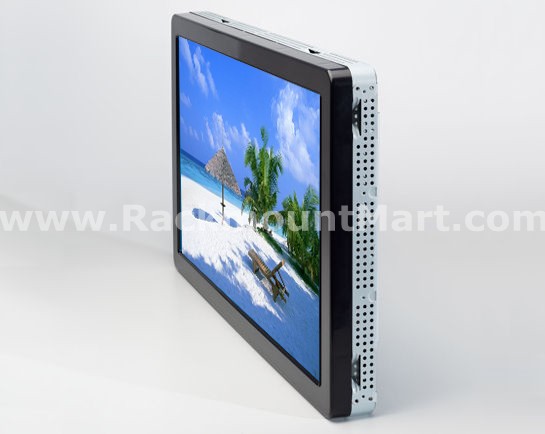

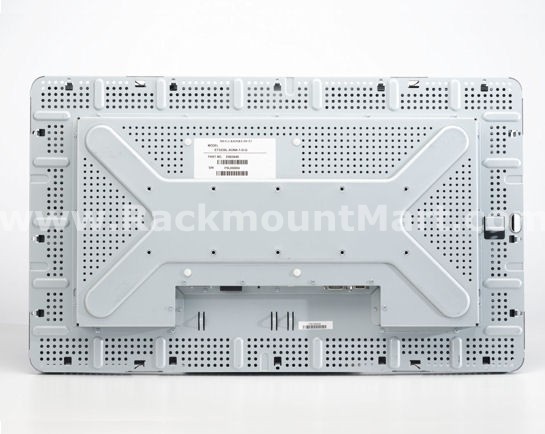

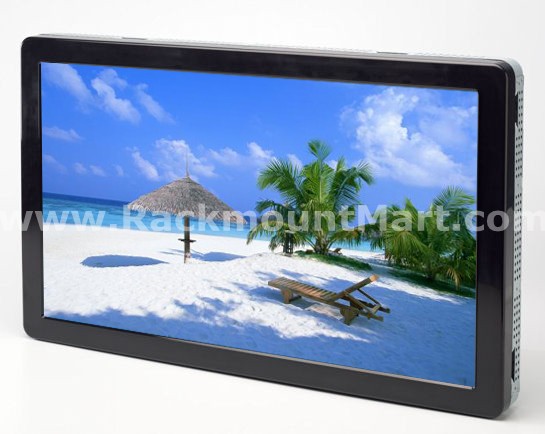

More photos ( Click for enlarged views )

| Model information |
| Part #(RoHS Compliant) |
Technology  |
Interface |
Surface Treatment |
Availability |
| ID-01-32Pw-SAWD |
IntelliTouch |
Dual serial/USB |
Clear |
Americas |
Ordering Information
| Part # |
Description |
ID-01-32Pw-SAWD
Price : $1829.37 |
32IN WIDE INTELLI TOUCH SAW SER/USB DVI/VGA OPN FRM |
|
|
