ID-40Pw-LED 40" High Resolution Wide Screen ( 16:9 ) Open Frame LCD with LED Backlight Panel Display





Part #   ID-40Pw-LED

*** This model is discontinued. Learn more about replacement model ID-42Pw-LED  ***



             40" High Resolution Wide Screen ( 16:9 ) Open Frame LCD with LED Backlight Panel Display
LCD with LED Backlight Panel
LCD Type

SAMSUNG TFT LCD Panel

Backlight

LED

Resolutions

1920 x 1080

Display Color

16.7M color

Brightness

400 cd/m2

Contrast ratio

4000 : 1 ( Typical )

Active area (mm)

886 x 498
Viewing angle 178° x 178°

LCD MTBF

30,000 hrs

Signal Input

 HDMI / DVI-D / VGA / S-Video / RCA

Power Supply

 Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 200 Watt,
                   Standby 20 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Input

 3G / HD / SD-SDI Broadcast-grade input

Other Option

- 48V / 24V / 12V DC Power    Details
- Multi-Display Controller         Details
- MIL-type or lockable connector
- TV - PAL or NTSC

Mechanical
Dimension  38.8 x 2.8 x 23.6 inch /
 986 x 71 x 599 mm ( WxDxH )
Product Weight  45 kgs ( 99 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory CE, FCC

  Front View of  ID-40Pw-LED

  Construction

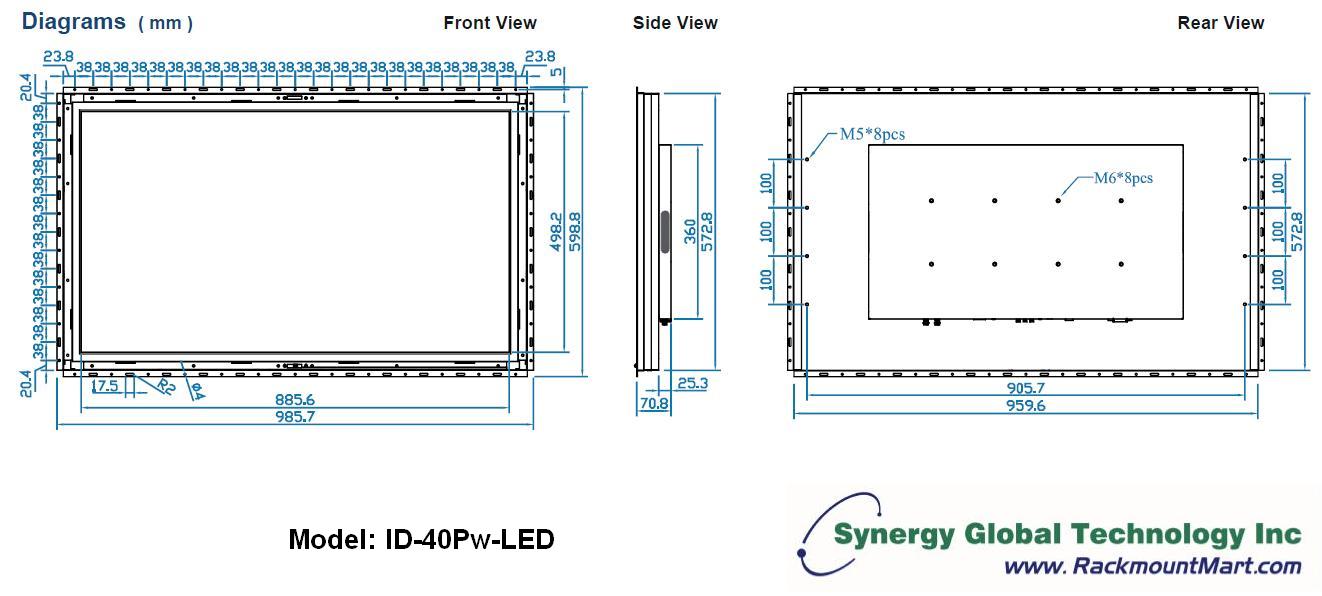

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual


   DISPLAY BENEFITS :
  • 40" widescreen LCD with Full HD 1080p resolution
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • MIL-type or lockable connector
  • TV - PAL or NTSC

    Diagram for  I/O Outlet






ID-40Pw-LED
