Part # ID-47Pw-LED
47" High Resolution Wide Screen ( 16:9 ) Open Frame LCD with LED Backlight Panel Display
| LCD with LED Backlight Panel |
| LCD Type |
 TFT LCD Panel
|
Backlight |
LED |
Resolutions |
1920 x 1080 |
Display Color |
16.7 M, 8-bit |
Brightness |
350 cd/m2 |
Contrast ratio |
1400 : 1 ( Typical ) |
Active area (mm) |
1040 x 585 |
| Viewing angle |
178° x 178° |
LCD MTBF |
50,000 hrs |
Signal Input |
HDMI / DVI-D / VGA / S-Video / RCA |
Power Supply |
Input : Auto-sensing 100 to
240VAC, 50 / 60Hz |
Consumption :Max. 200 Watt,
Standby 20 Watt |
Mounting |
Universal mount |
| OPTIONS |
Optional Input |
3G / HD / SD-SDI Broadcast-grade input |
Other Option |
- 48V / 24V / 12V DC Power Details
- Multi-Display Controller Details
- MIL-type or lockable connector
- TV - PAL or NTSC |
| Mechanical |
| Dimension |
1142 x 64.8 x 686 mm / 45 x 2.6 x 27 inch |
| Product Weight |
29.1 kgs ( 64 lbs ) |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5 ~ 90%, non condensing |
| Shock |
10G acceleration ( 11 ms duration ) |
| Vibration |
5 ~ 500Hz 1G RMS random vibration |
| Regulatory |
FCC, CE, RoHS Compliant |
| Package Content |
Package Content |
47" HD LCD Display x 1, 6 ft VGA Cable x 1, Power cord x 1, Remote controller x 1 |
|
Front View of ID-47Pw-LED

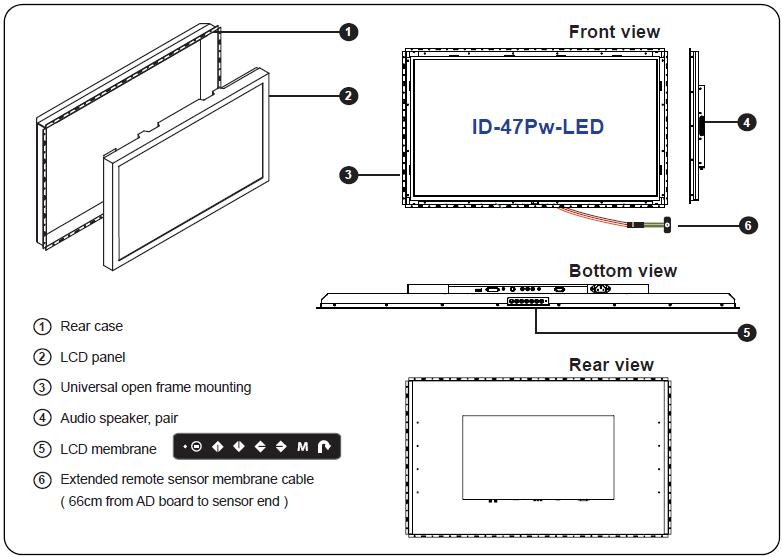

Construction

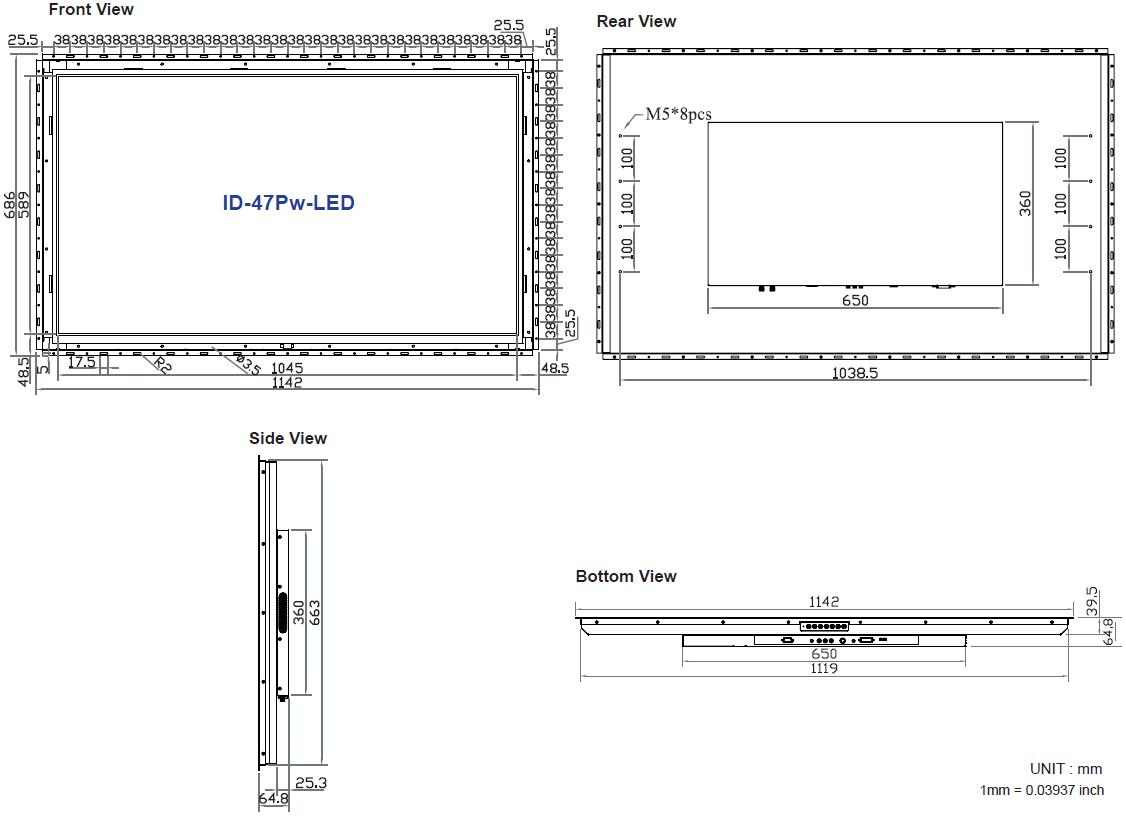

Front / Rear / Top / Side Views & Dimensions
*click on above picture for enlarged view
Free Ground Shipping * Click for details
|
|
DISPLAY BENEFITS :
- 47" widescreen LCD supports Full HD 1080p resolution
- PIP & Picture by Picture viewing efficiency
- Green LED-backlit panel technology
- Rugged construction against external impact
- Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
|
 |
0PTIONS :
- 3G / HD / SD-SDI Broadcast-grade input
- MC Multi-display control solution
- 48V or 24VDC power
- MIL-type or lockable connector
- TV - Analog
|
Diagram for I/O Outlet
Ordering information :
| Part # |
Description |
ID-47Pw-LED
Price : $1673 |
Standard Version - 47" (16:9) LG Open Frame TFT LCD Display ,
with VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller |
| Optional Video/Audio Inputs |
-SDI
Price : $298 |
With VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller + SDI input |
Download Spec Sheet |
-MC
Price : $88 |
Add Multi-Display Controller |
Download Spec Sheet |
| Optional Controller |
-TV
Price : $136 |
Add TV tuner (NTSC or PAL) with remote controller
(VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller + TV (analog)) |
| Optional DC power |
-DC24
Price : $600 |
Add 24V DC Power |
-DC48
Price : $600 |
Add 48V DC Power |
-DC110
Price : Please call |
Add 110V DC Power |
-DC125
Price : Please call |
Add 125V DC Power |
| Optional Connectors – For DC power only |
-MD
Price : $88 |
Add MIL-type DC lockable jack, male |
Download Spec Sheet |
-MA
Price : $136 |
Add MIL-type VGA lockable jack, male |
Download Spec Sheet |
-LD
Price : $34 |
Add Lockable DC jack, male |
Download Spec Sheet |
-LS
Price : $34 |
Add Lockable USB jack |
Download Spec Sheet |
|
|
|
